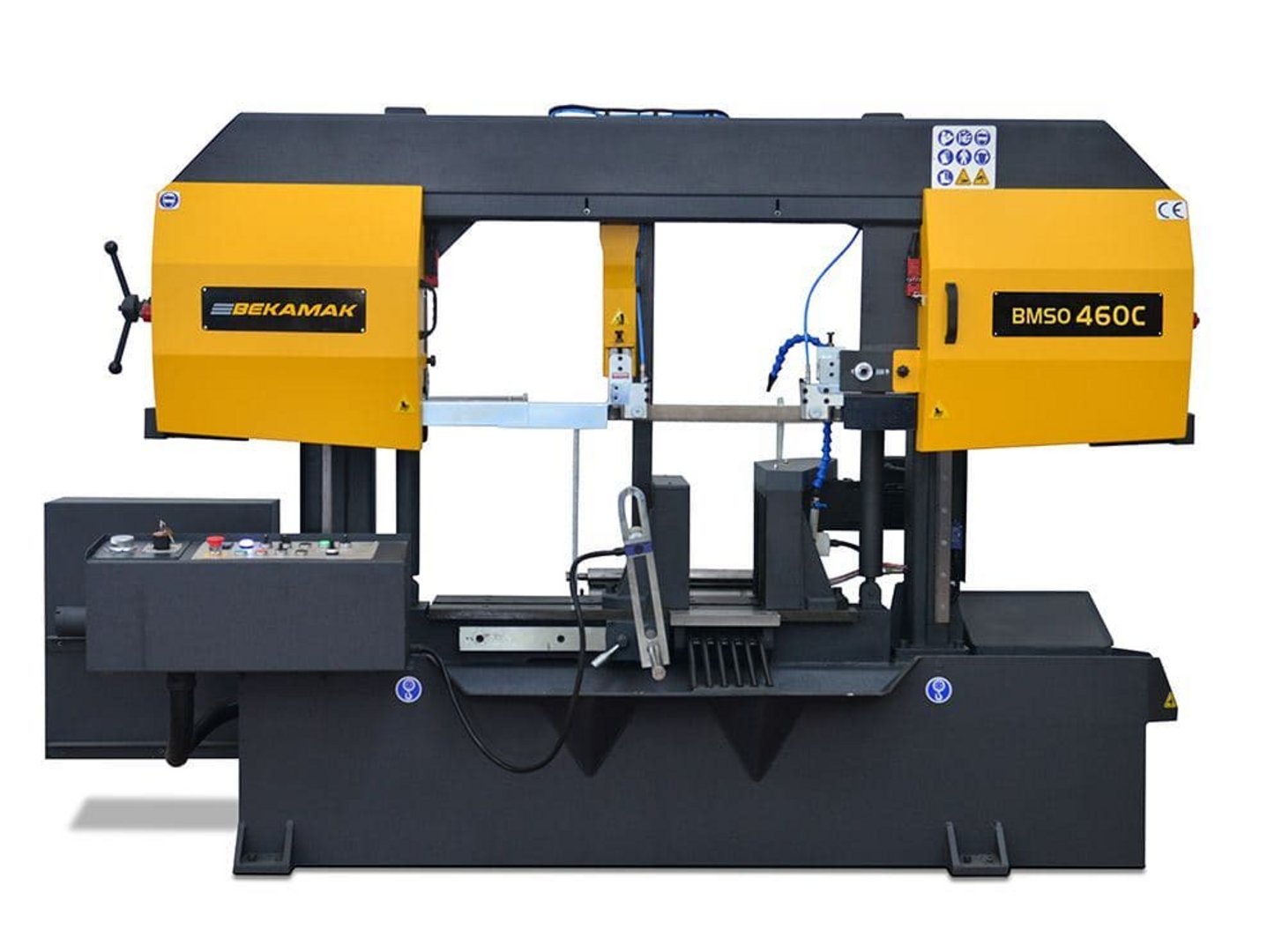

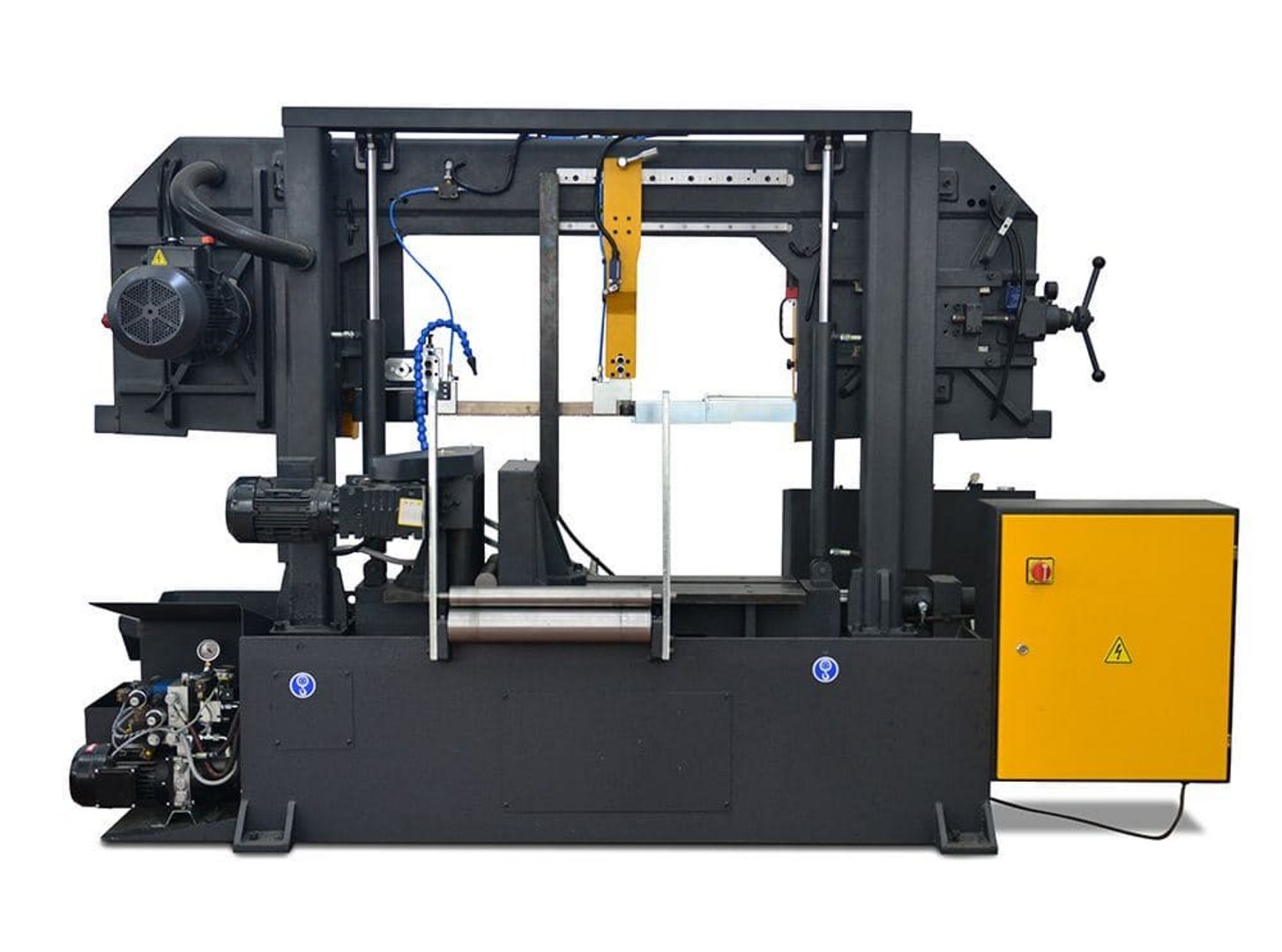

Bandsägevollautomat HESSE by BEKA-MAK BMSO 460 C
| Model | BMSO 460 C |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 460 mm |
| Cutting capacity 0° square | 460 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 5750 x 41 x 1,3 mm |
| Band speed continous | 15 - 120 m/min |
| Cutting capacity 0° round | 460 mm |
| Cutting capacity 0° square | 460 mm |
| Cutting capacity 0° flat | 520 x 460 mm |
| Working height | 585 mm |
| Hydraulic motor | 0.55 kW |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3000 mm |
| Width | 1200 mm |
| Height | 1800 mm |
| Weight | 1650 kg |
Description
Roller feed with manually adjustable stop with micro switch
Piece counter
Linear guide
41 mm saw blade

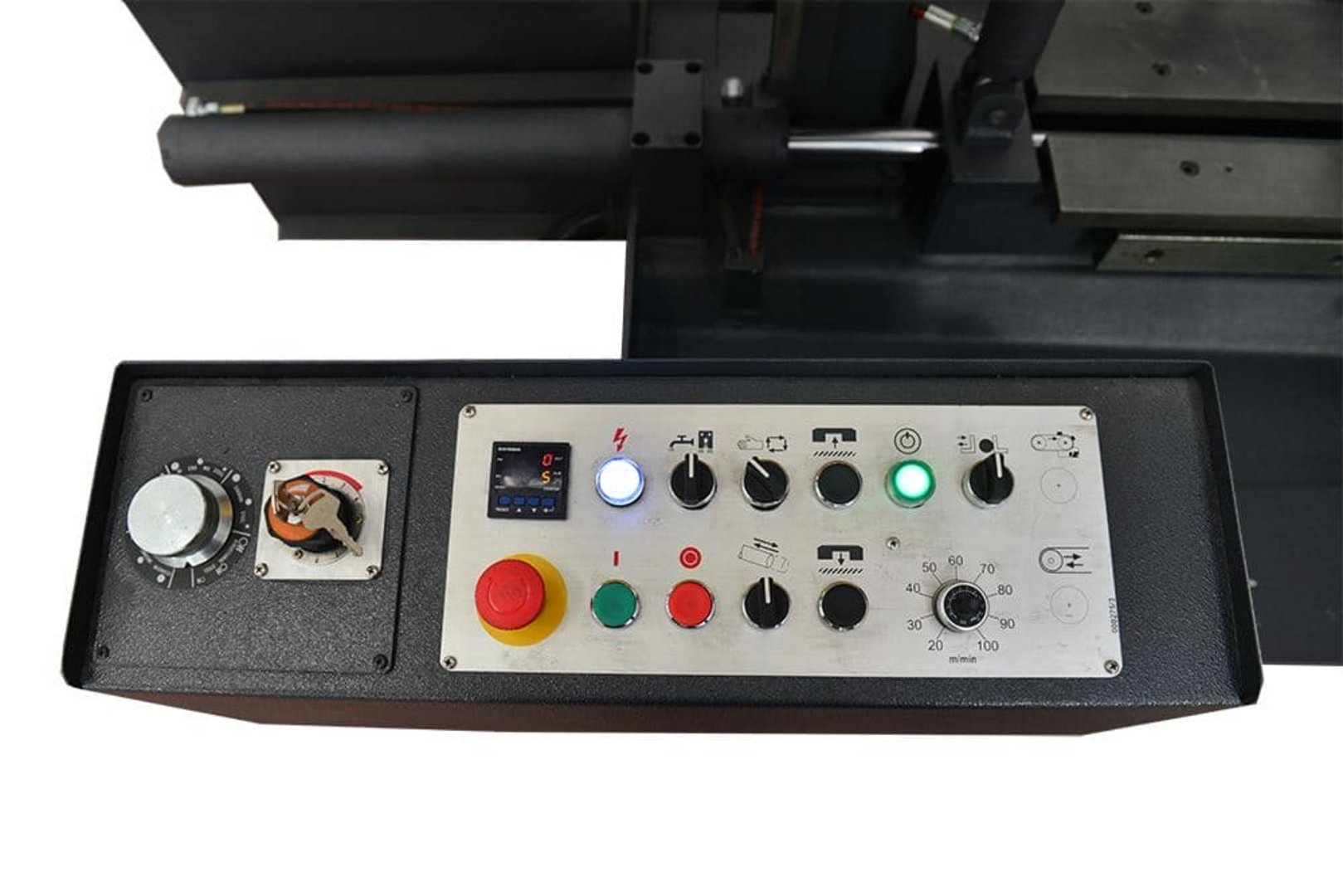

Control panel
Hydraulic vice
Hydromechanical blade tension
Heavy duty gearbox
Coolant device
Mechanical upper clamping
Pressure adjustment
Inverter for stepless blade speed
Roller conveyor 1.2 m
Chip brush
Optical height adjustment
Operating instructions in GERMAN or ENGLISH
