General characteristics
| Saw frame | Double column |
| Band dimensions | 6000 x 41 x 1,3 mm |
| Band speed continous | 20 - 100 m/min |
| Cutting capacity 0° round | 560 mm |
| Cutting capacity 0° square | 560 mm |
| Cutting capacity 0° flat | 600 x 560 mm |
| Working height | 810 mm |
| Hydraulic motor | 2.2 kW |
| Motor | 5.5 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3250 mm |
| Width | 2200 mm |
| Height | 2350 mm |
| Weight | 4500 kg |
Description
Hydromechanical band tension
Continuously variable band speed (inverter)
Linear guide

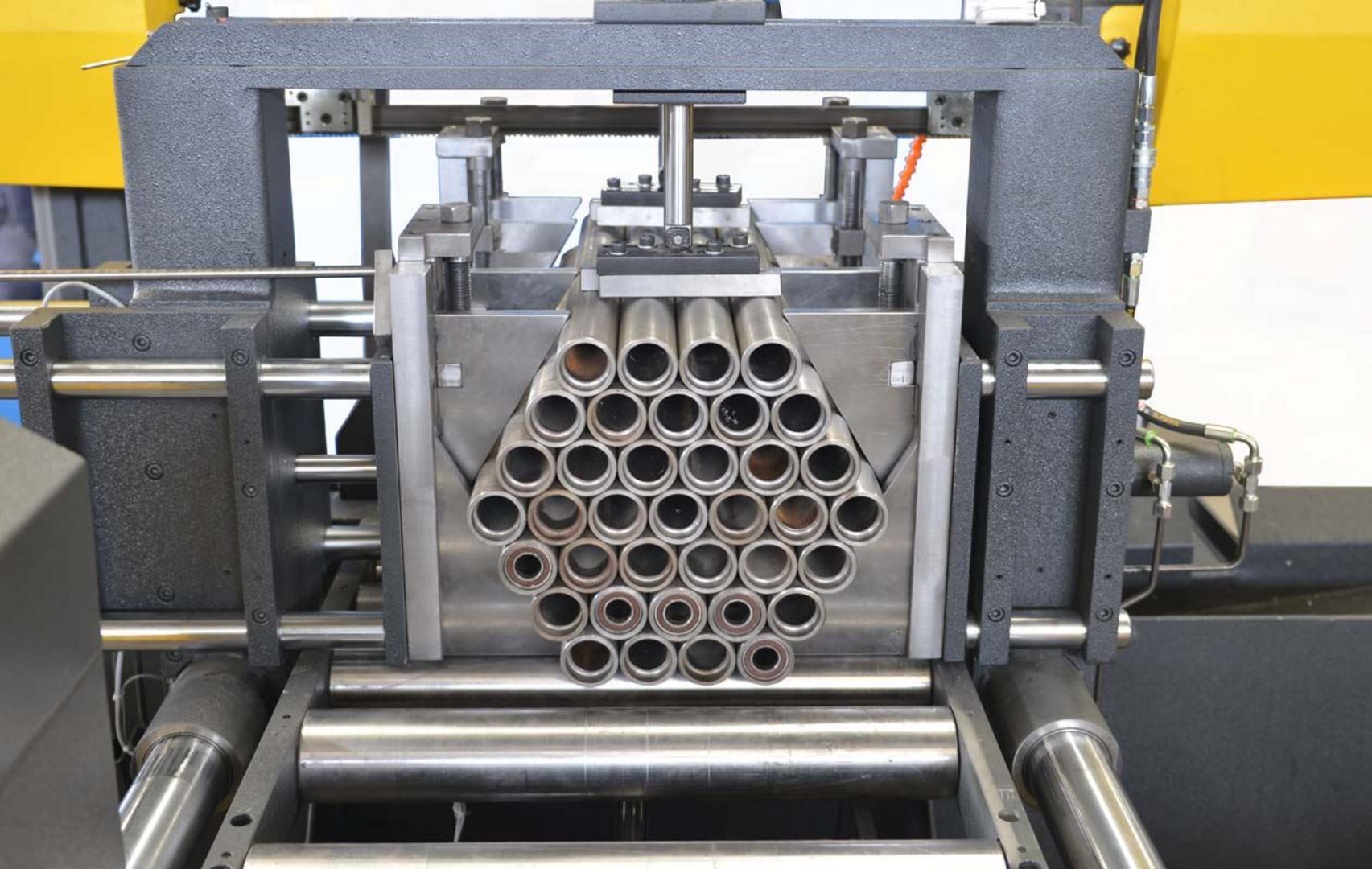

Feed vice with servo drive with 700 mm stroke or 9.999 mm for multi-stroke
Control panel with touchscreen (50 cutting lengths / 30 programs)
Planetary gearbox
Saw pressure adjustment
Band deflection sensor
Coolant device
Chip brush
Optical height adjustment
Optionen:
| Hydraulic upper clamping |
| Micro cooling unit |
| Roller table 3 m |
| Laser cutting line |
