General characteristics
| Saw frame | Double column |
| Band dimensions | 3270 x 27 x 0,9 mm |
| Band speed continous | 40 - 80 m/min |
| Cutting capacity 0° round | 300 mm |
| Cutting capacity 0° square | 300 mm |
| Cutting capacity 0° flat | 330 x 290 mm |
| Cutting capacity 45° | round 210 mm, square 210 mm, rectangular 210 x 260 mm |

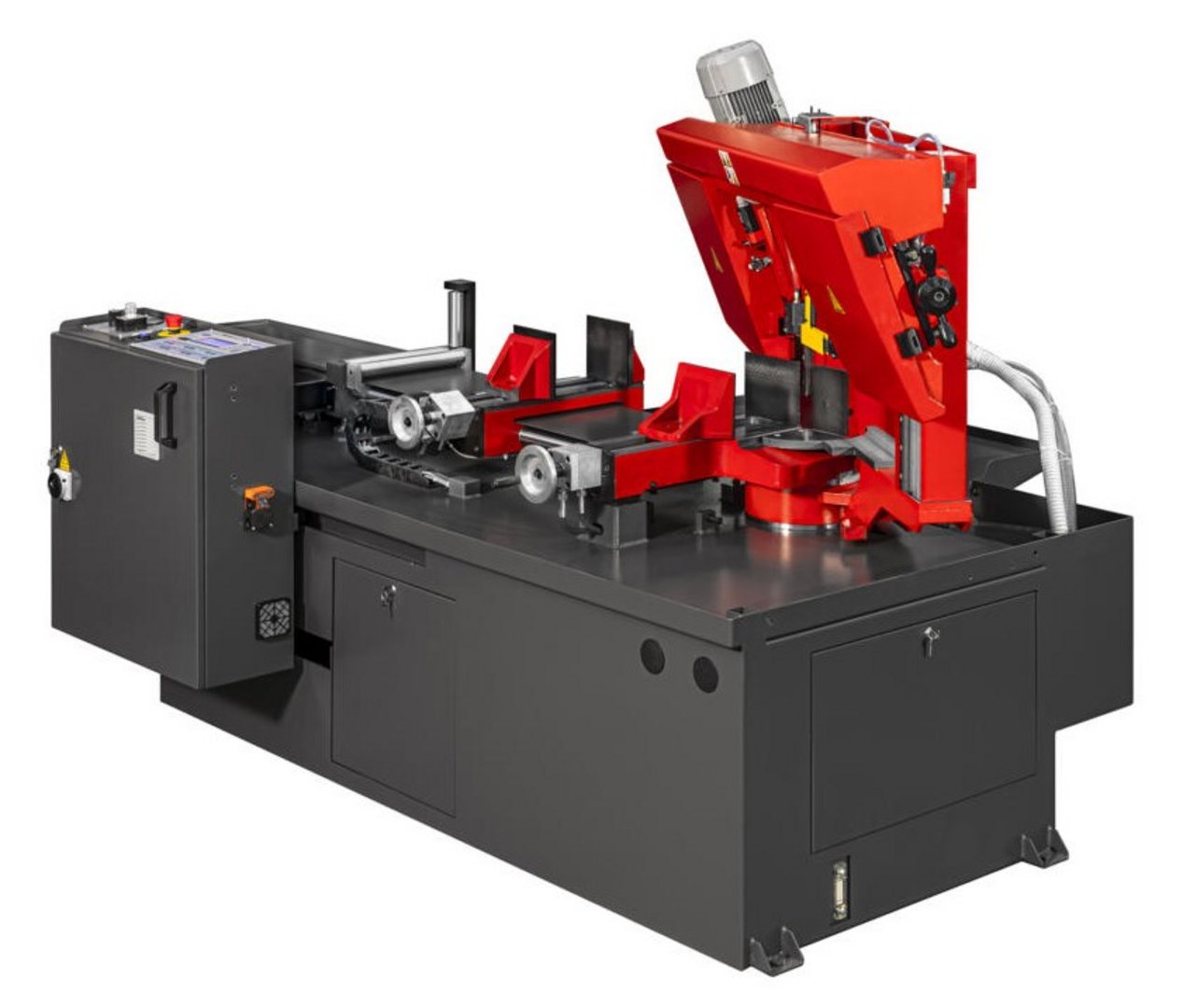

| Cutting capacity 60° | round 110 mm, square 110 mm, rectangular 110 x 150 mm |
| Working height | 840 mm |
| Hydraulic motor | 0.75 kW |
| Motor | 1.5 kW |
| Coolant pump motor | 0.06 kW |
Dimensions and weight
| Length | 3070 mm |
| Width | 2060 mm |
| Height | 1930 mm |
| Transport dimensions | 2400 x 1700 x 1700 mm |
| Weight | 1210 kg |
Description

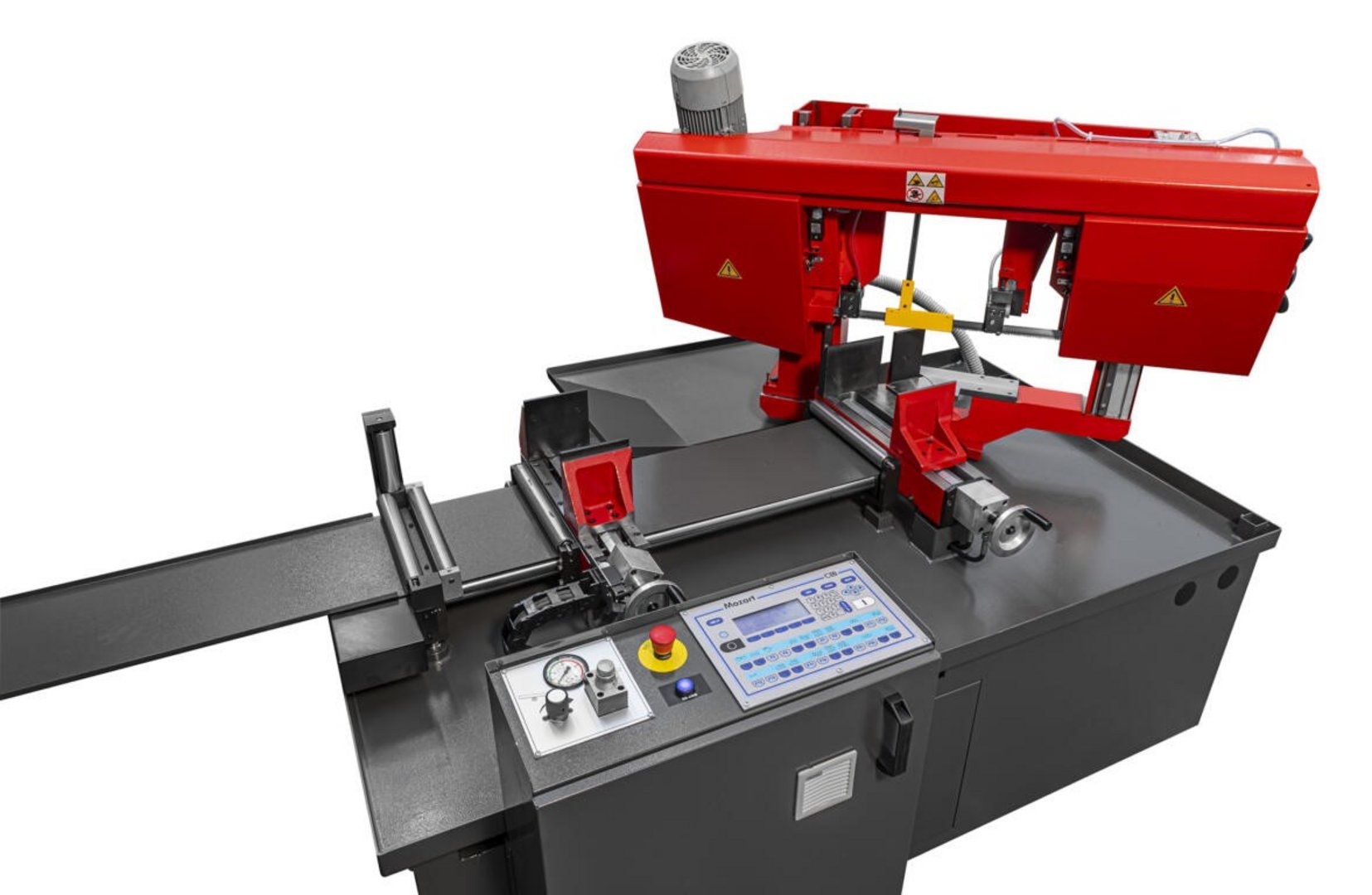

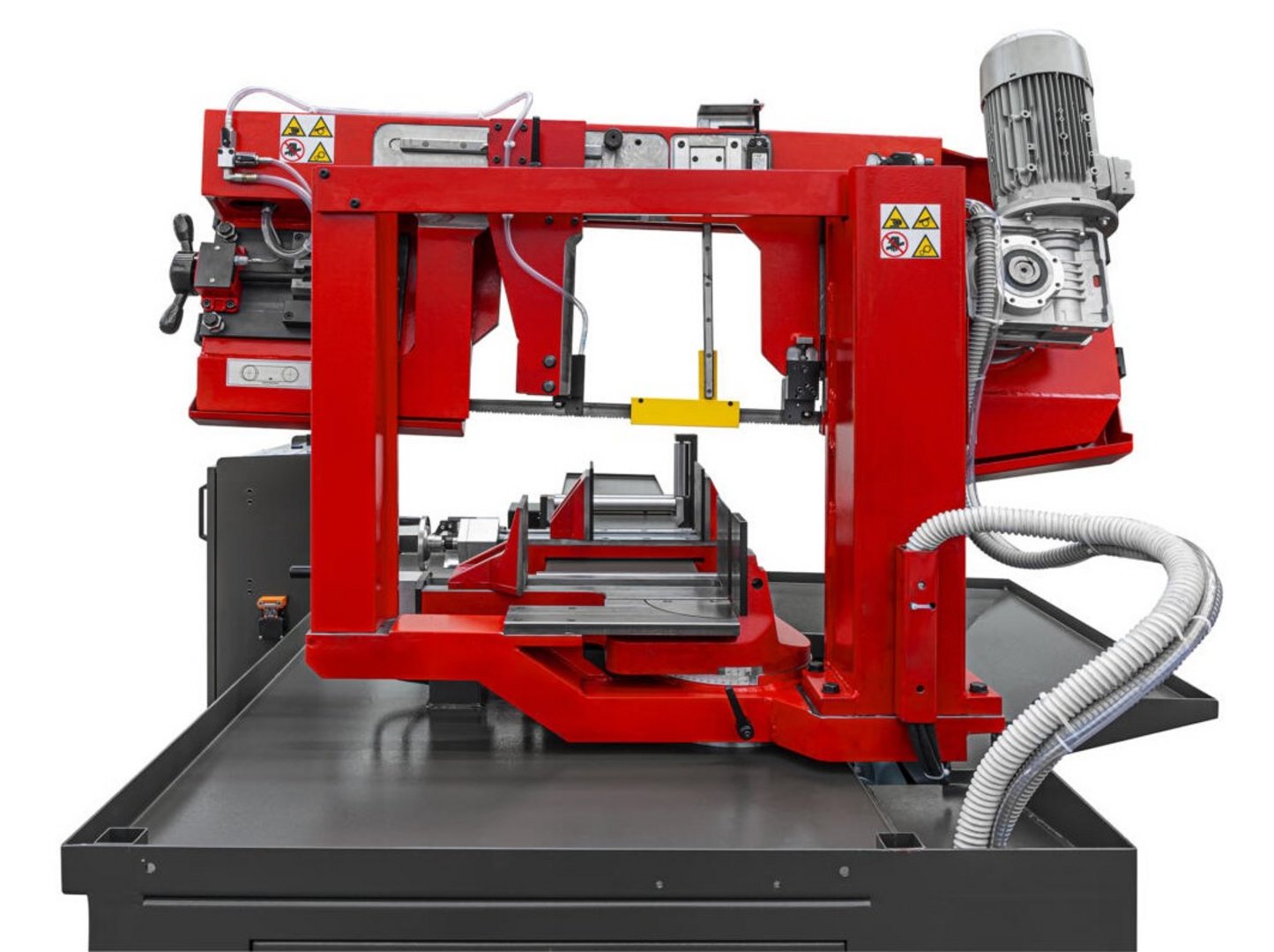

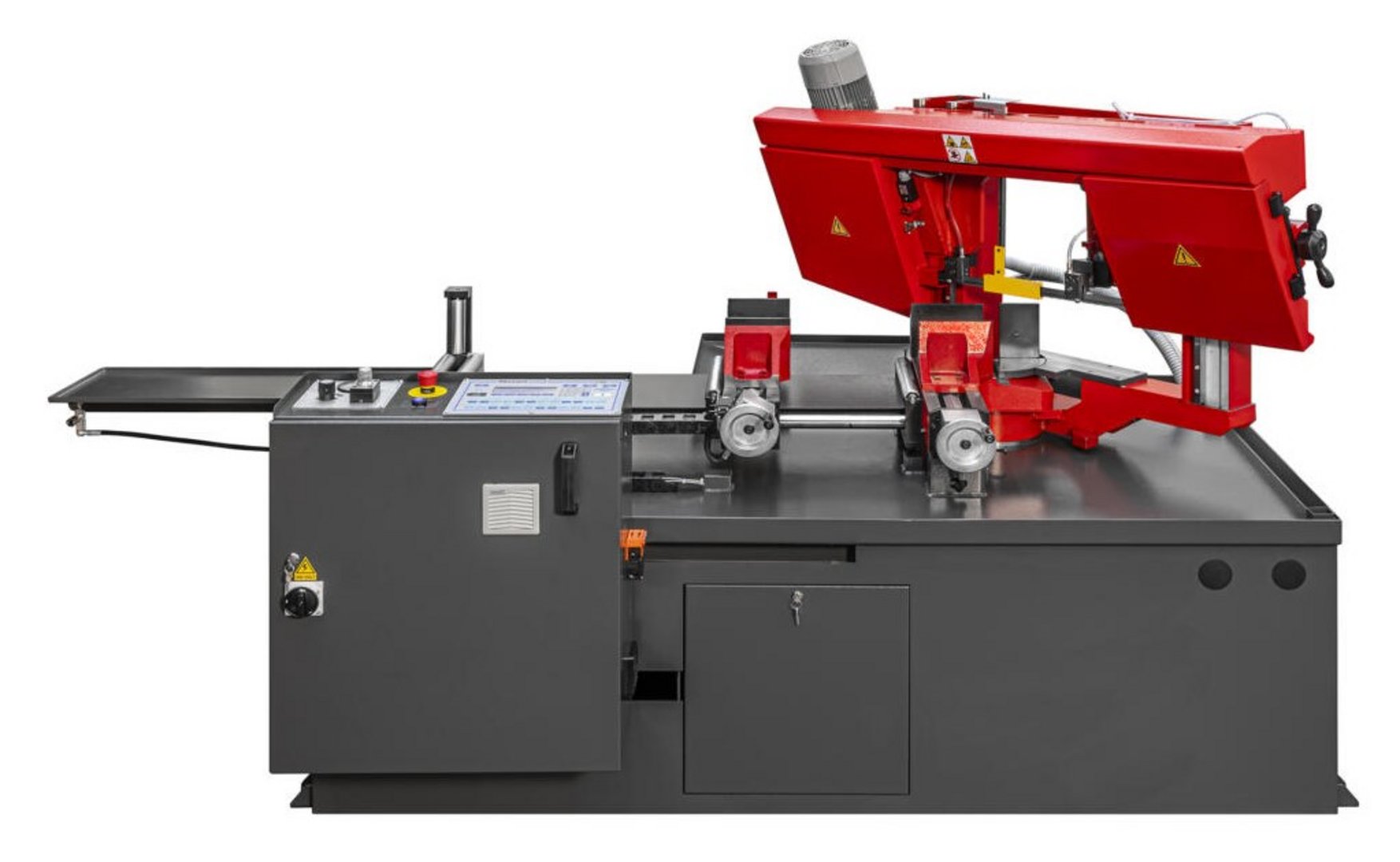

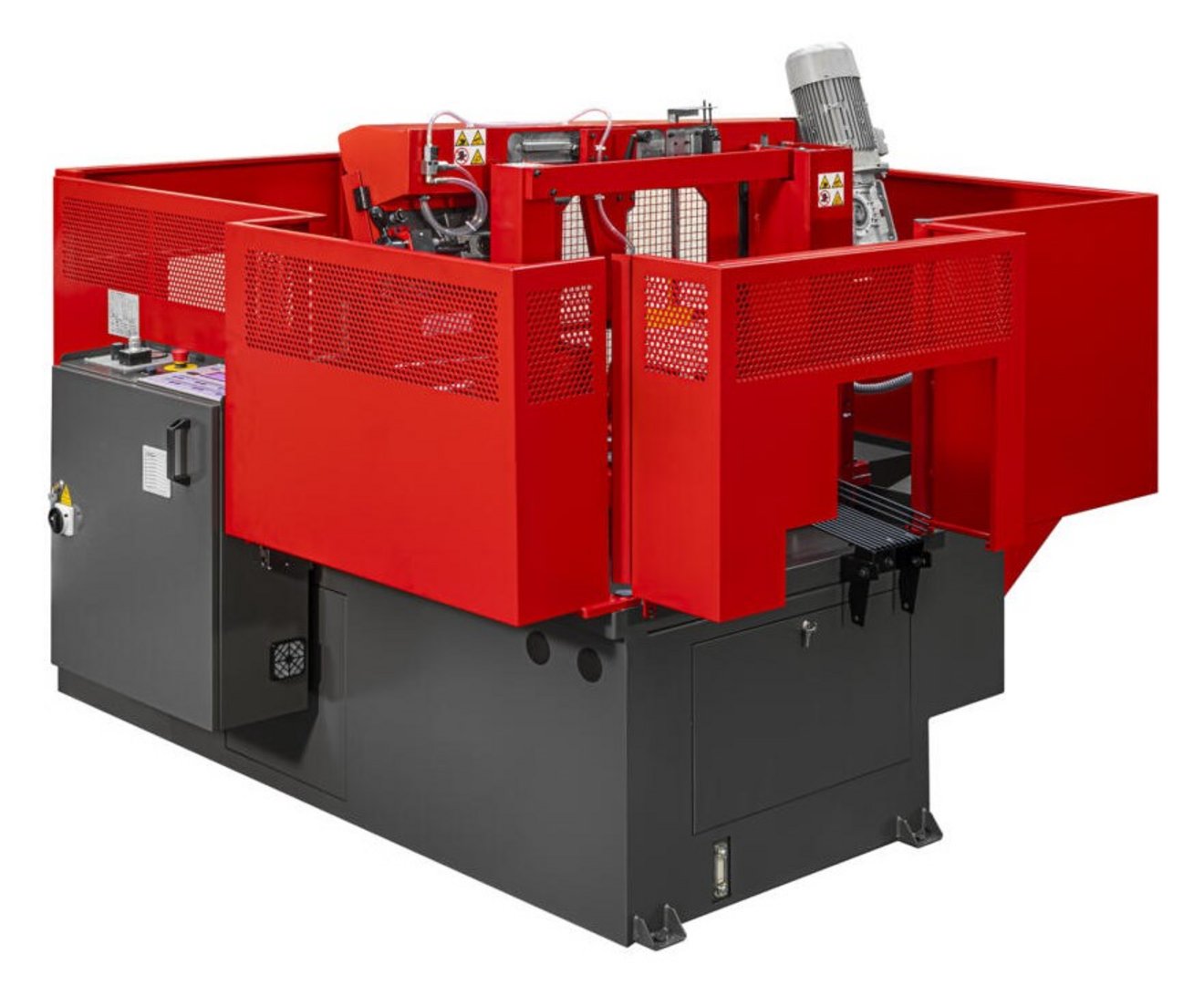

Double-column guided automatic band saw
Vertical infeed by means of longitudinal ball bearing guides
Feed length and number of pieces via CNC (up to 99 programmes)
Automatic cutting cycle with sensor pin
Automatic material feed 800 mm / stroke
Variable cutting pressure and infeed speed
Infinitely adjustable band speed
Cooling lubricant device
Chip brush
Chip conveyor
Hydraulic clamping vices for clamping during the cut and on the feed carriage
Operating instructions in GERMAN or ENGLISH
Alternative:
Version with 7" touchscreen control, additionally included:
Automatic preselection of cutting parameters
Belt deviation control
Adjustable vice pressure
Further information
Brochures
Product video

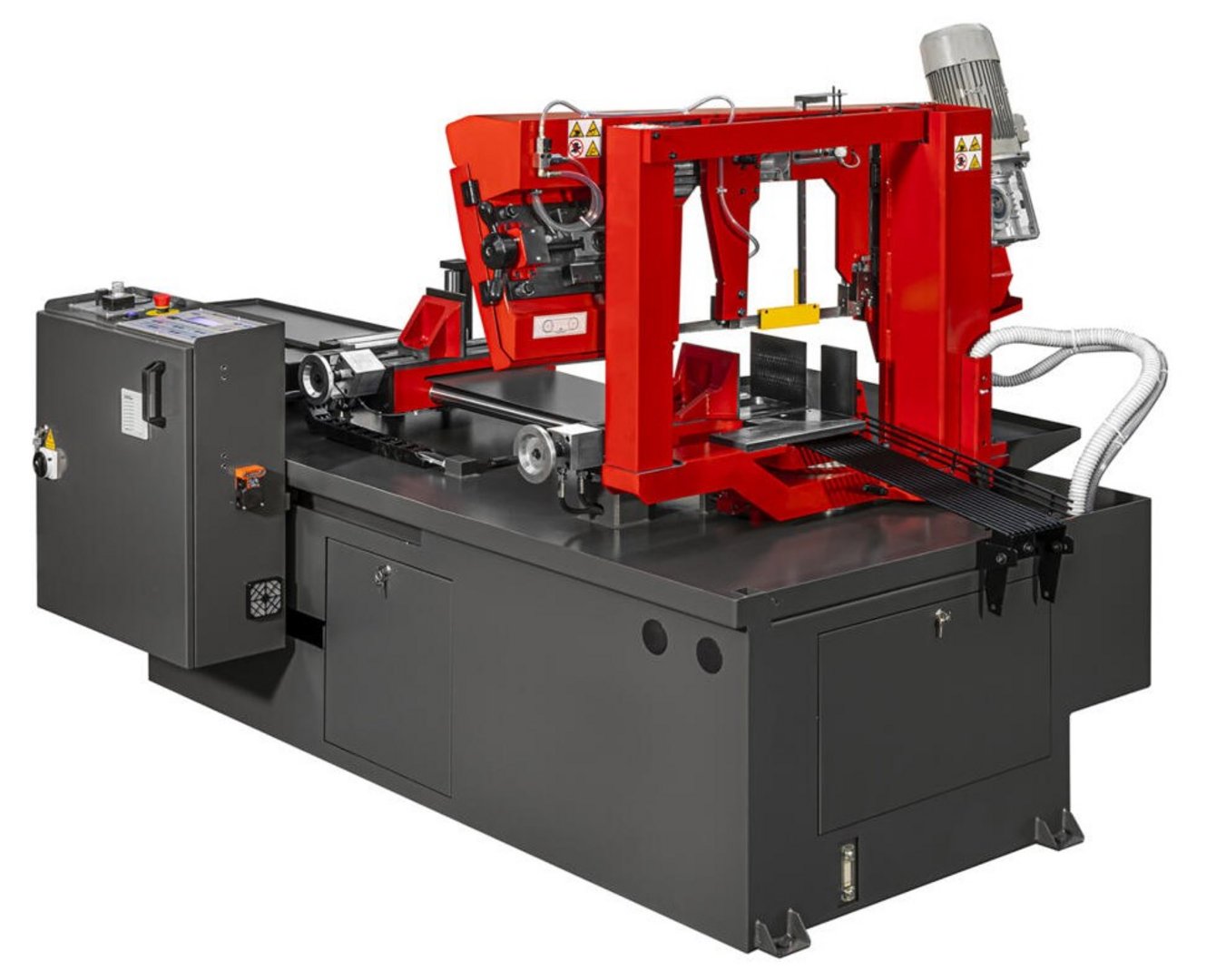

Fully automatic band saw 370 A DV
