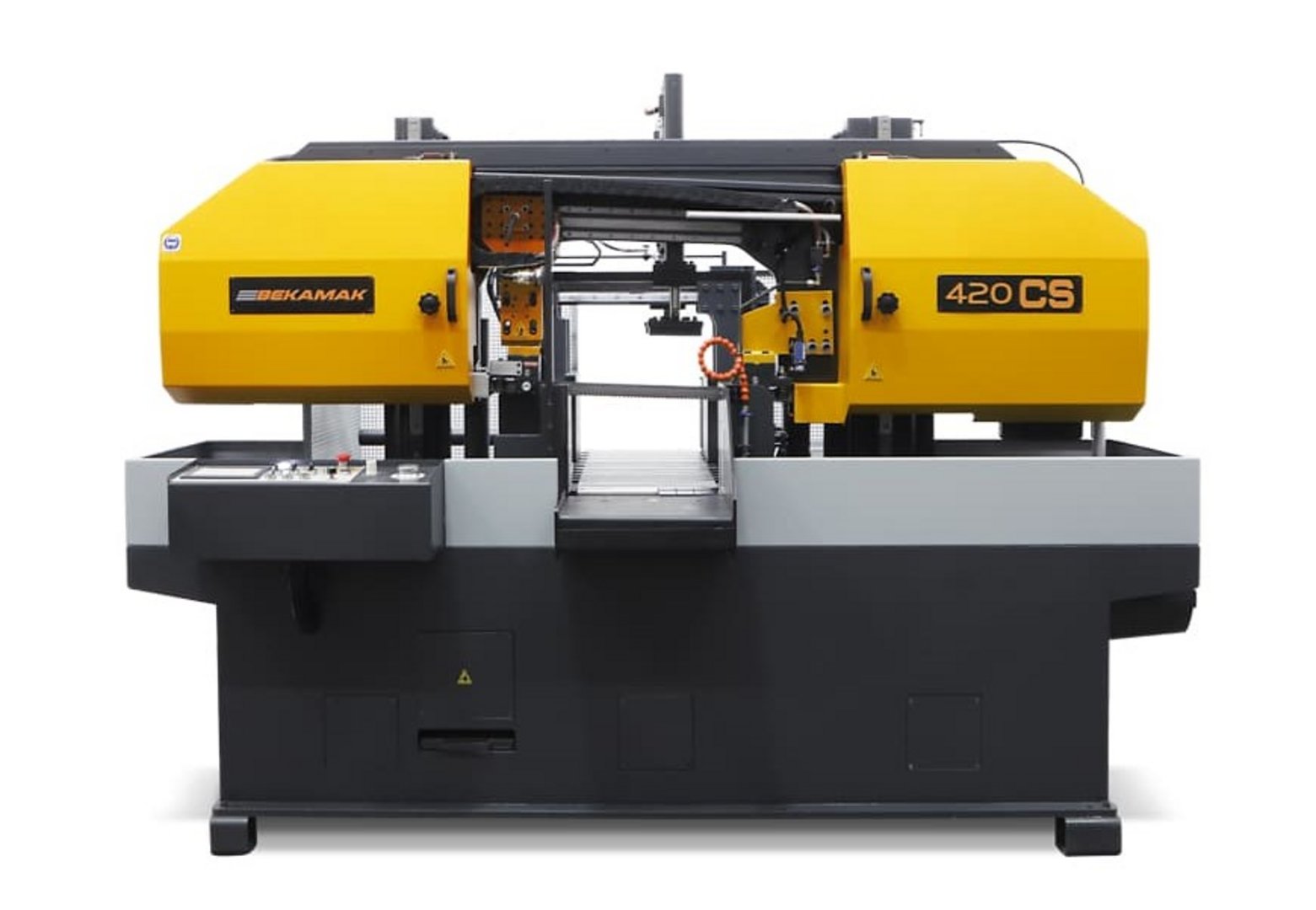

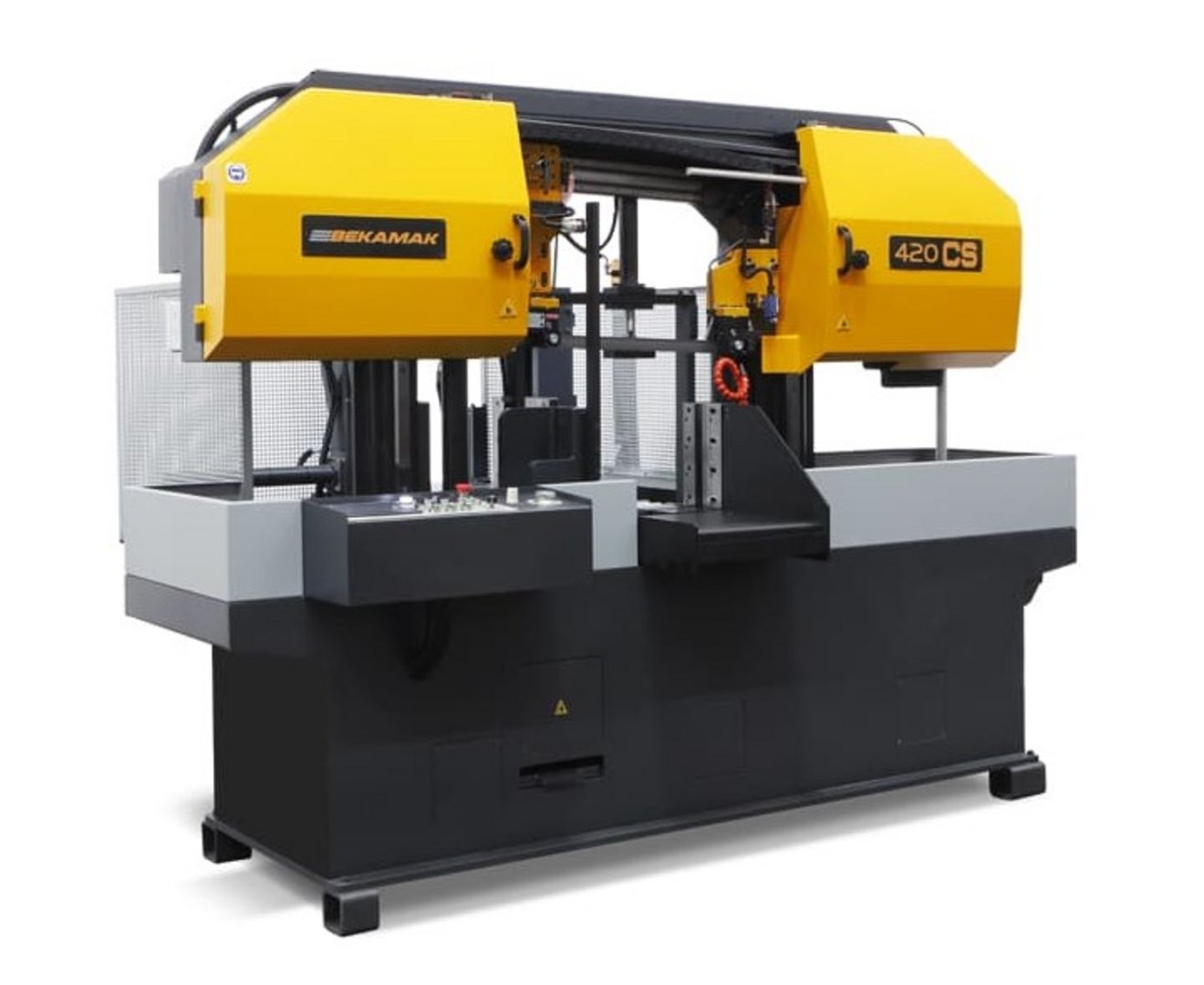

Fully automatic band saw HESSE by BEKA-MAK BMSO 420 CS NC
| Model | BMSO 420 CS NC |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 420 mm |
| Cutting capacity 0° square | 420 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 5750 x 41 x 1,3 mm |
| Band speed continous | 15 - 120 m/min |
| Cutting capacity 0° round | 420 mm |
| Cutting capacity 0° square | 420 mm |
| Cutting capacity 0° flat | 420 x 420 mm |
| Working height | 805 mm |
| Hydraulic motor | 1.1 kW |
| Motor | 5.5 kW |
| Servomotor | 1 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2860 mm |
| Width | 1980 mm |
| Height | 2100 mm |
| Weight | 3700 kg |
Description
Servo feed with 700 mm stroke
Cutting length up to 9,999 mm (multiple feeds)
Omron touchscreen, 50 different cutting lengths and 30 programs can be saved
Linear guide
41 mm saw blade
Control panel
Hydraulic vice
Hydromechanical blade tension
Heavy duty gearbox
Coolant device
Sensitive pressure
Inverter for stepless blade speed
Chip brush
Optical height adjustment
Chip conveyor
Operating instructions in GERMAN or ENGLISH
