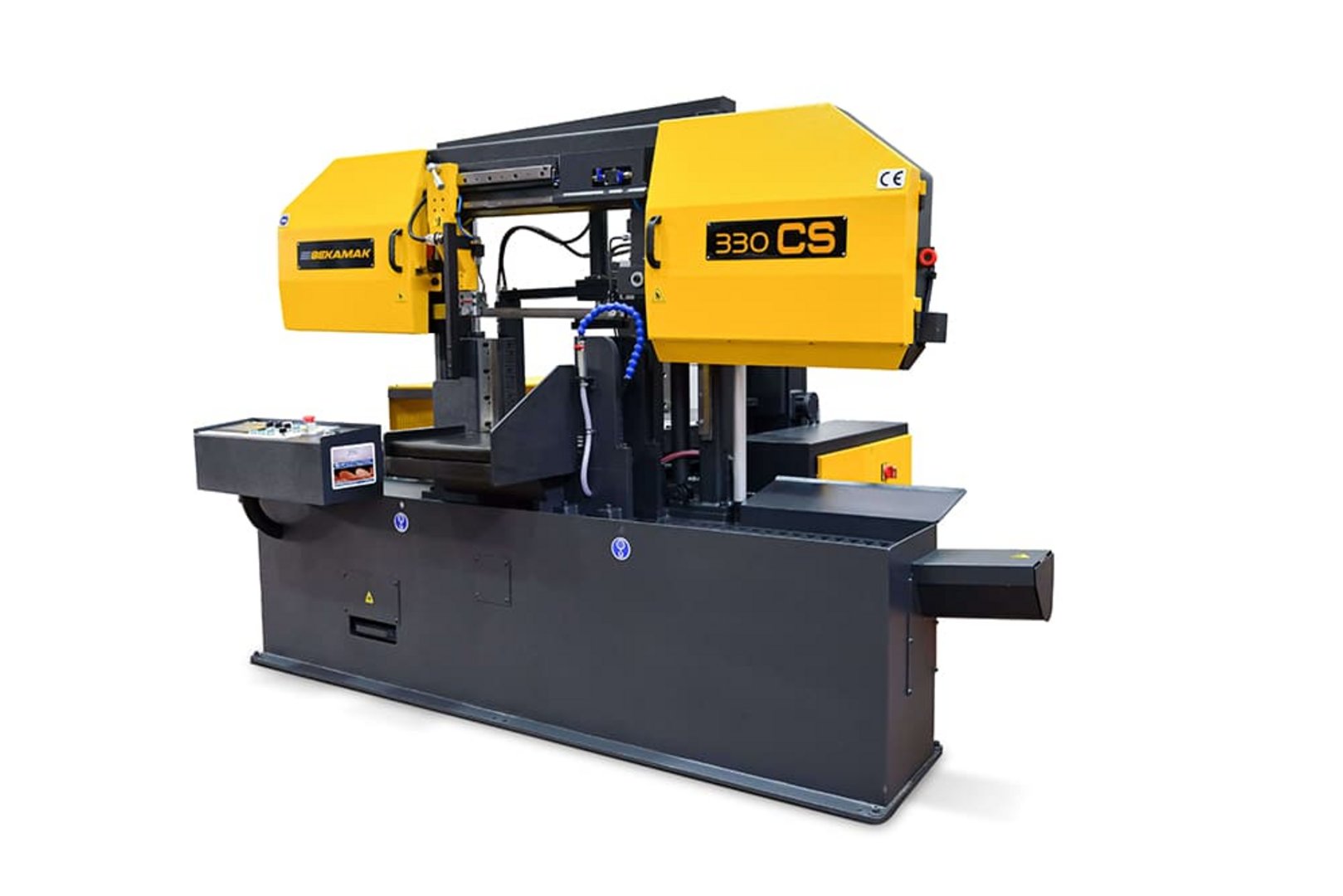

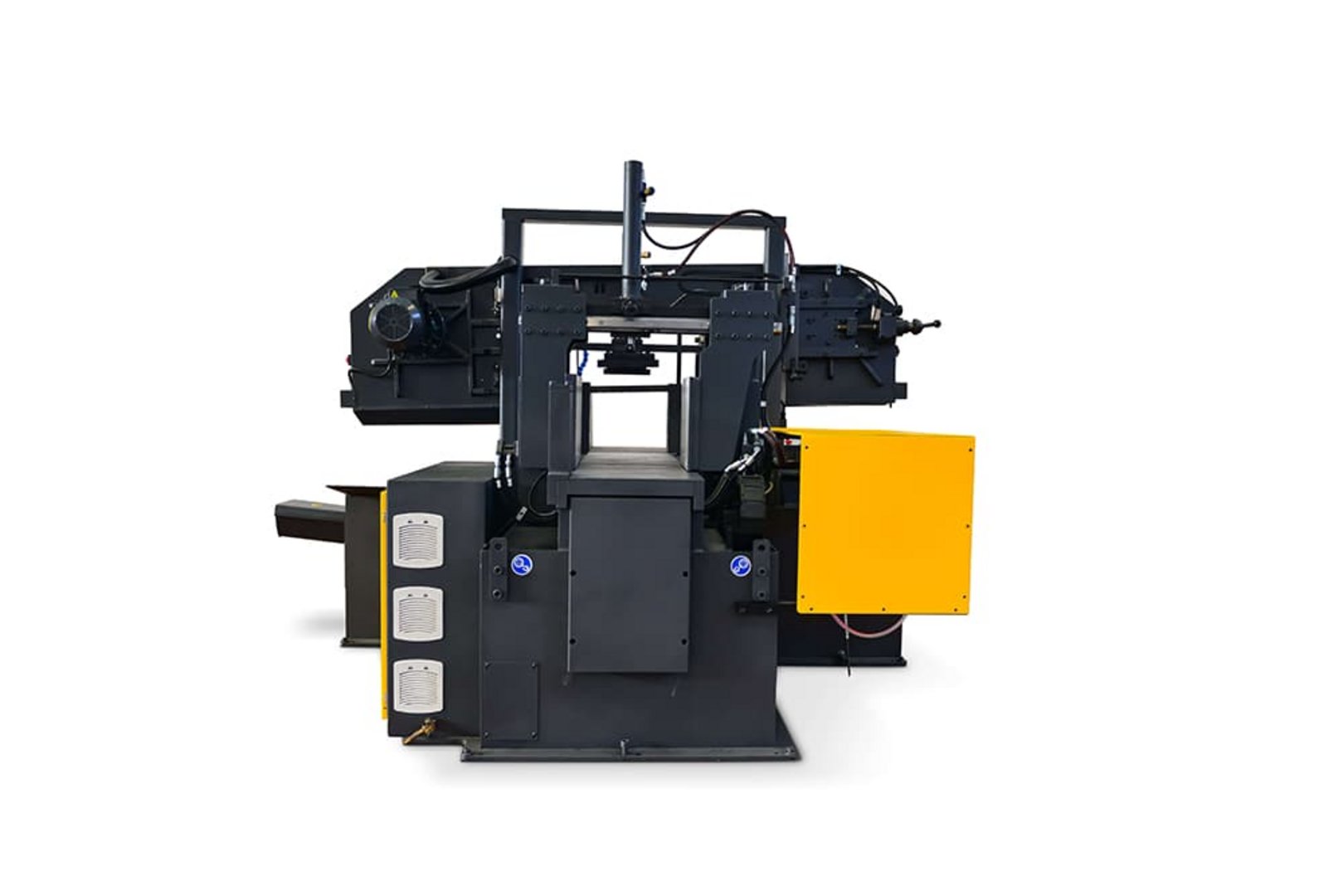

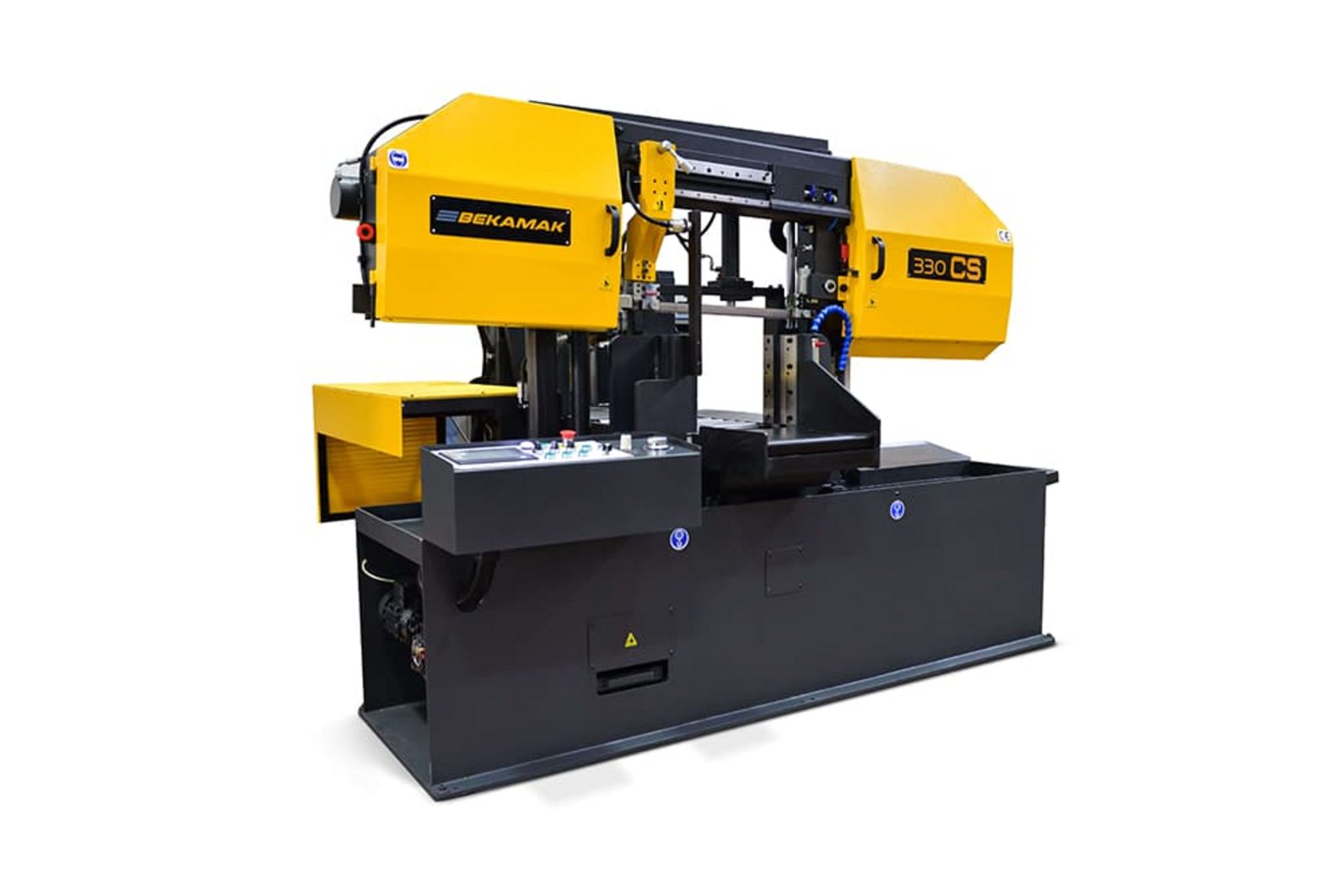

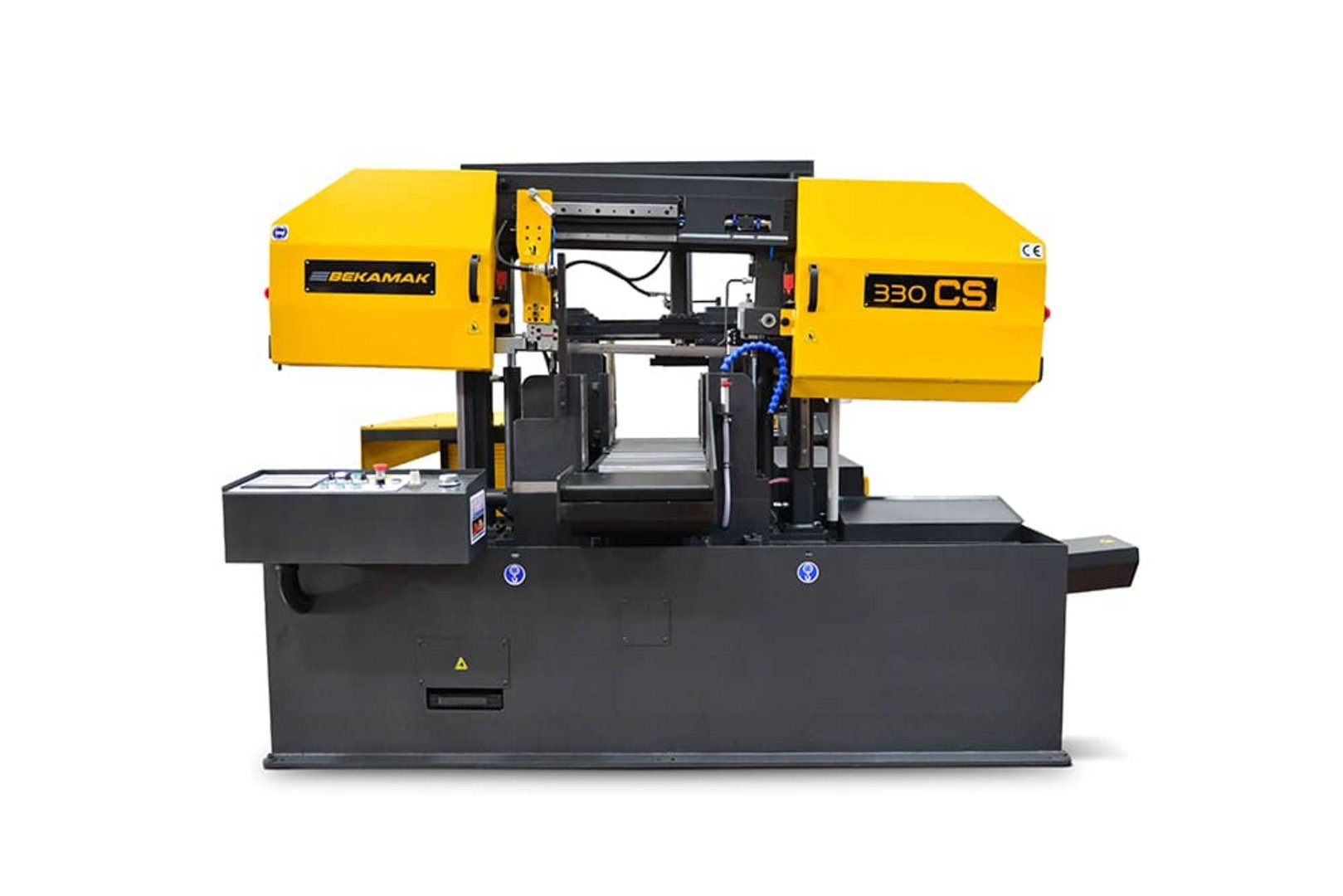

Fully automatic band saw HESSE by BEKA-MAK BMSO 330 CS NC
| Model | BMSO 330 CS NC |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 330 mm |
| Cutting capacity 0° square | 330 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 5000 x 34 x 1,1 mm mm |
| Band speed continous | 20 - 120 m/min |
| Cutting capacity 0° round | 330 mm |
| Cutting capacity 0° square | 330 mm |
| Cutting capacity 0° flat | 350 x 330 mm |
| Working height | 845 mm |
| Hydraulic motor | 1.1 kW |
| Motor | 3 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2815 mm |
| Width | 1935 mm |
| Height | 1855 mm |
| Weight | 2560 kg |
Description
Servo feed with 700 mm stroke
Cutting length up to 9,999 mm (multiple feeds)
Omron touchscreen, 50 different cutting lengths and 30 programs can be saved
Linear guide
41 mm saw blade
Control panel
Hydraulic vice
Hydromechanical blade tension
Heavy duty gearbox
Coolant device
Sensitive pressure
Inverter for stepless blade speed
Chip brush
Optical height adjustment
Chip conveyor
Operating instructions in GERMAN or ENGLISH
Further information
Brochures
Product video
Fully automatic band saw BMSO 330 CS NC
