General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 3120 x 27 x 0,9 mm |
| Band speed continous | 15 - 101 m/min |
| Cutting capacity 0° round | 280 mm |
| Cutting capacity 0° square | 240 mm |
| Cutting capacity 0° flat | 310 x 240 mm |
| Cutting capacity 45° | round 230 mm, square 230 mm, rectangular 230x230 mm |
| Cutting capacity 60° | round 140 mm, square 140 mm, rectangular 140x140 mm |
| Cutting capacity - 45° | round 200 mm, square 170 mm, rectangular 220x100 mm |
| Min. rest piece length | 240 mm |
| Working height | 835 mm |
| Hydraulic motor | 0.37 kW |
| Motor | 1.5 kW |
| Coolant pump motor | 0.12 kW |
| Torque feeding carriage motor | 1.95 Nm |
| Torque motor for automatic bow rotation | 1.95 Nm |
Dimensions and weight
| Length | 5150 mm |
| Width | 3200 mm |
| Height | 1950 mm |
| Transport dimensions | 5000 x 2200 x 1900 mm |
| Weight | 2150 kg |
Description
CNC control with 7" touchscreen for the following functions:
Feed length, workpiece count, and automatic saw frame rotation for frame adjustment
Automatic feed 3000 mm / stroke
Variable cutting pressure
Machine with infinitely variable speed
Coolant system
Motorized chip brush
Chip conveyor
Automatic saw blade breakage monitoring
Hydraulic vices
Recommended max. diameter of solid material in automatic mode: 150 mm
Operating manual in German or English
Options:
Hydraulic bundle clamping device, micro-spray device, variable clamping pressure,
10" screen, remote maintenance, roller conveyors, feed system, and saw blades available upon request
Further information
Brochures
Product video

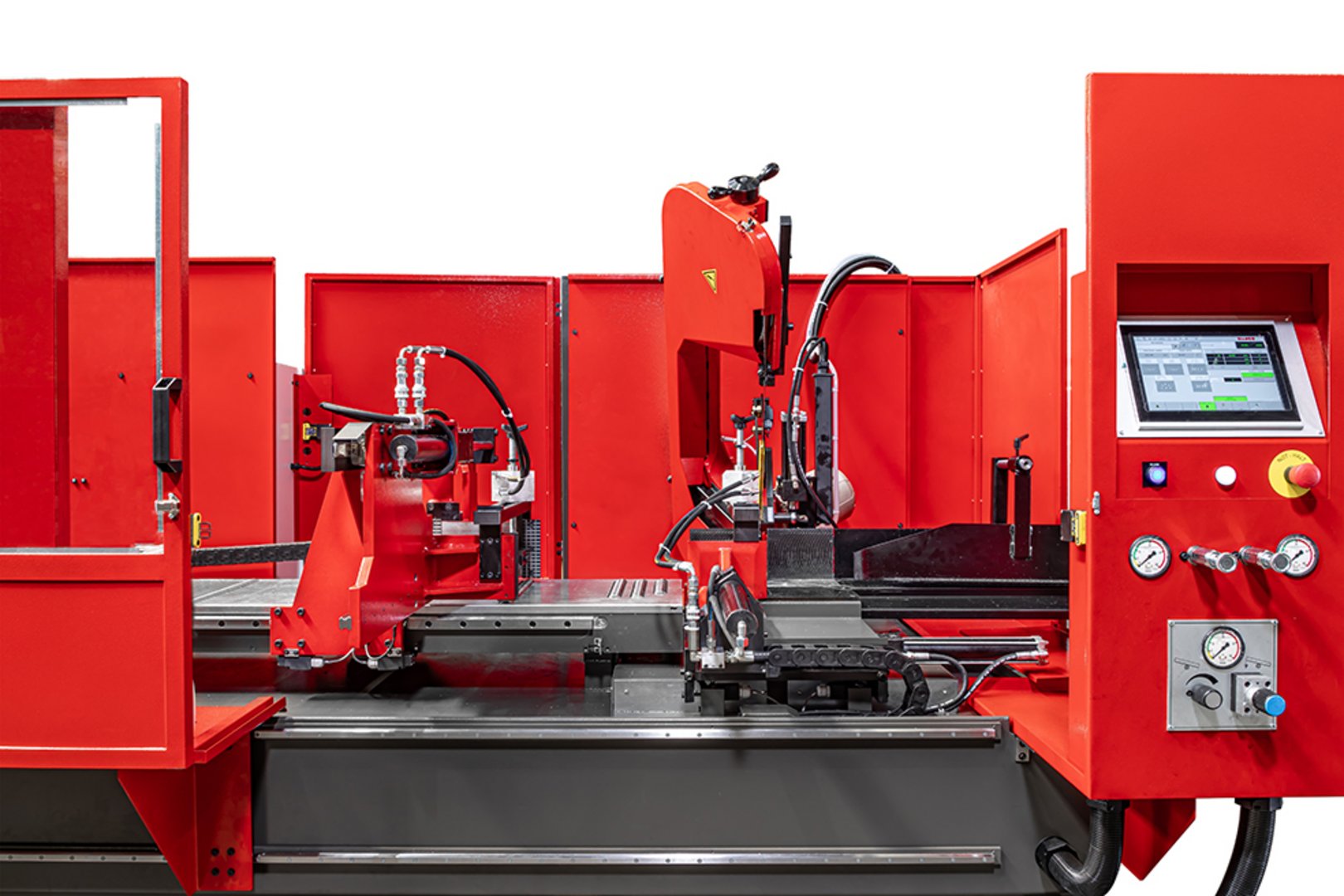

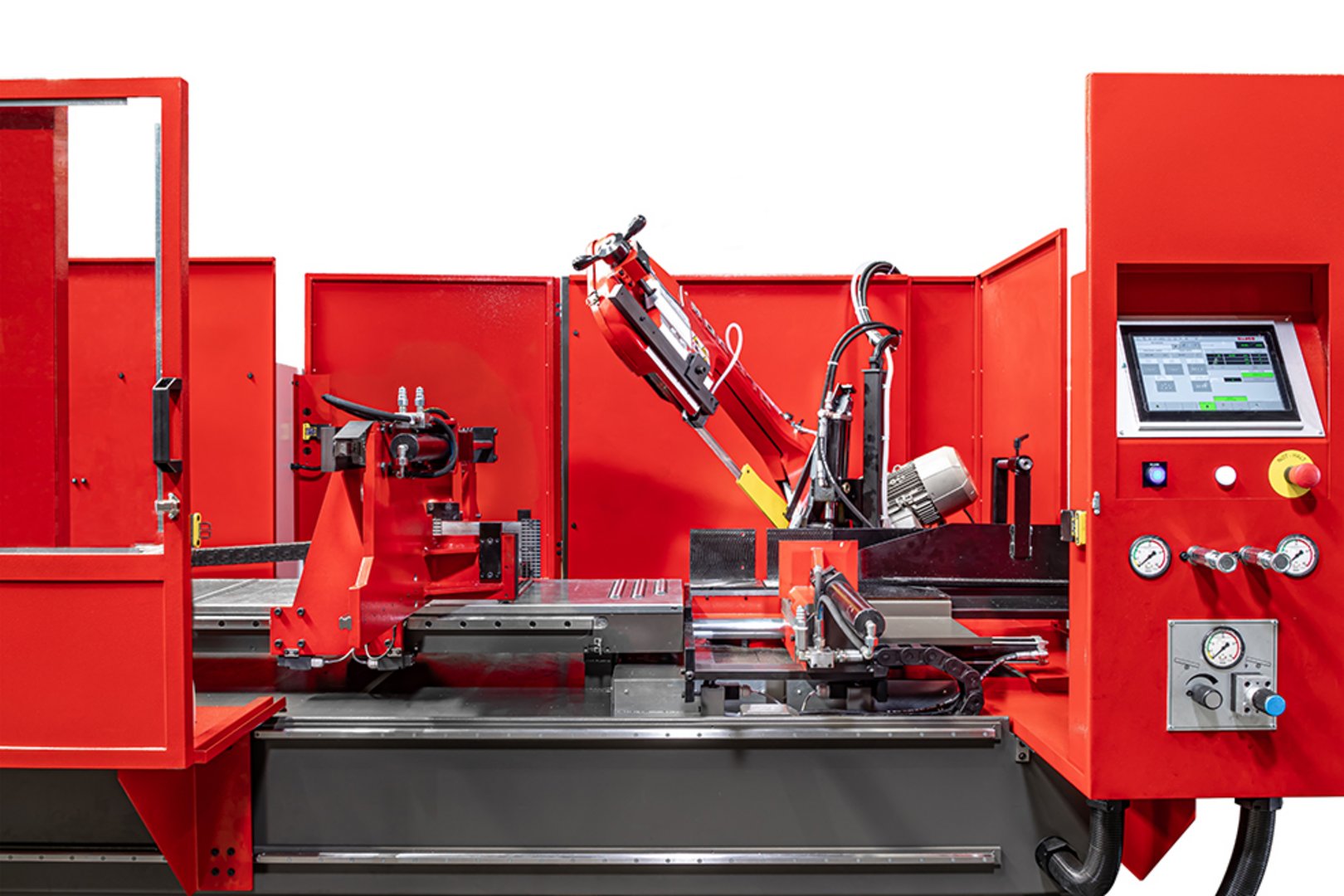

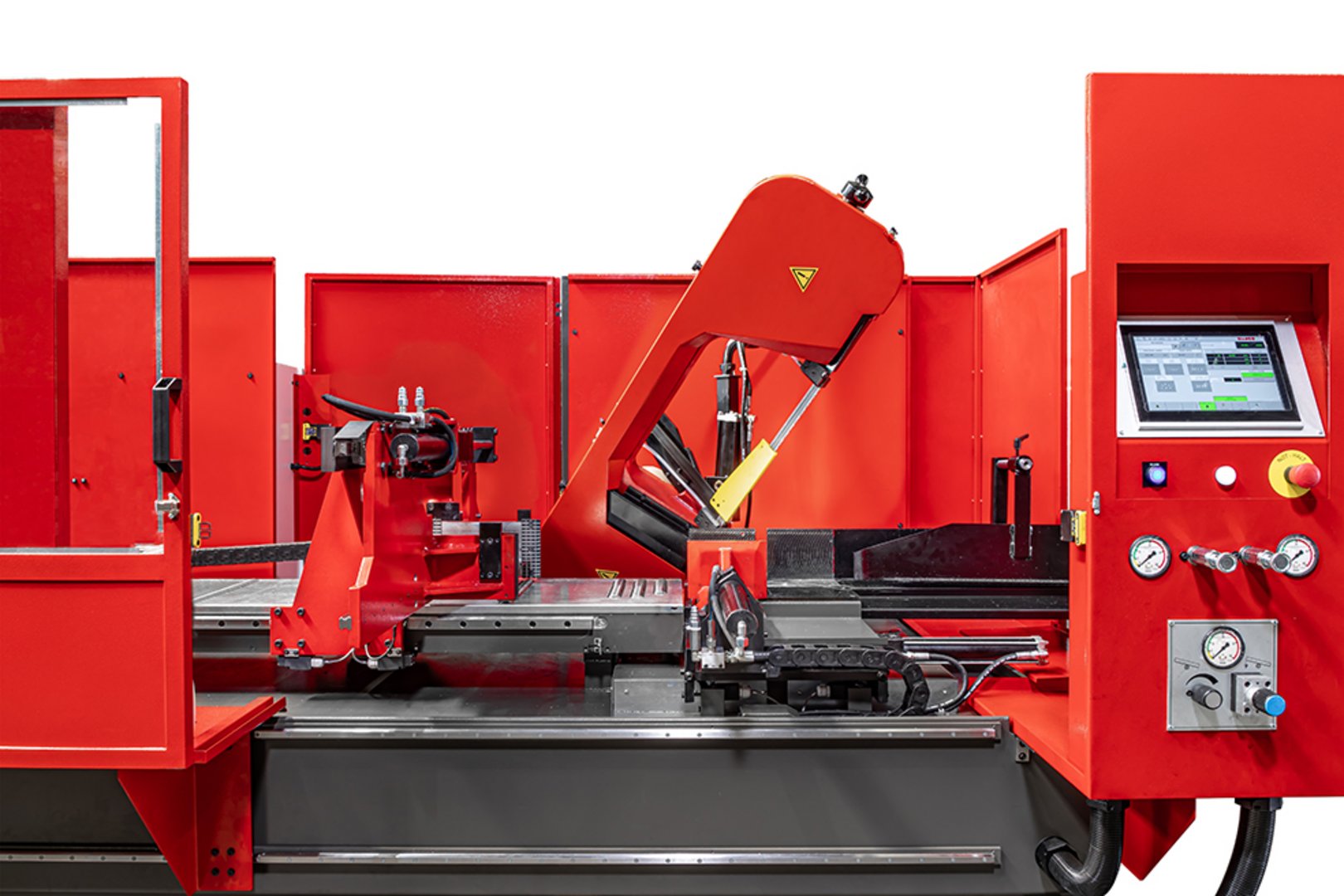

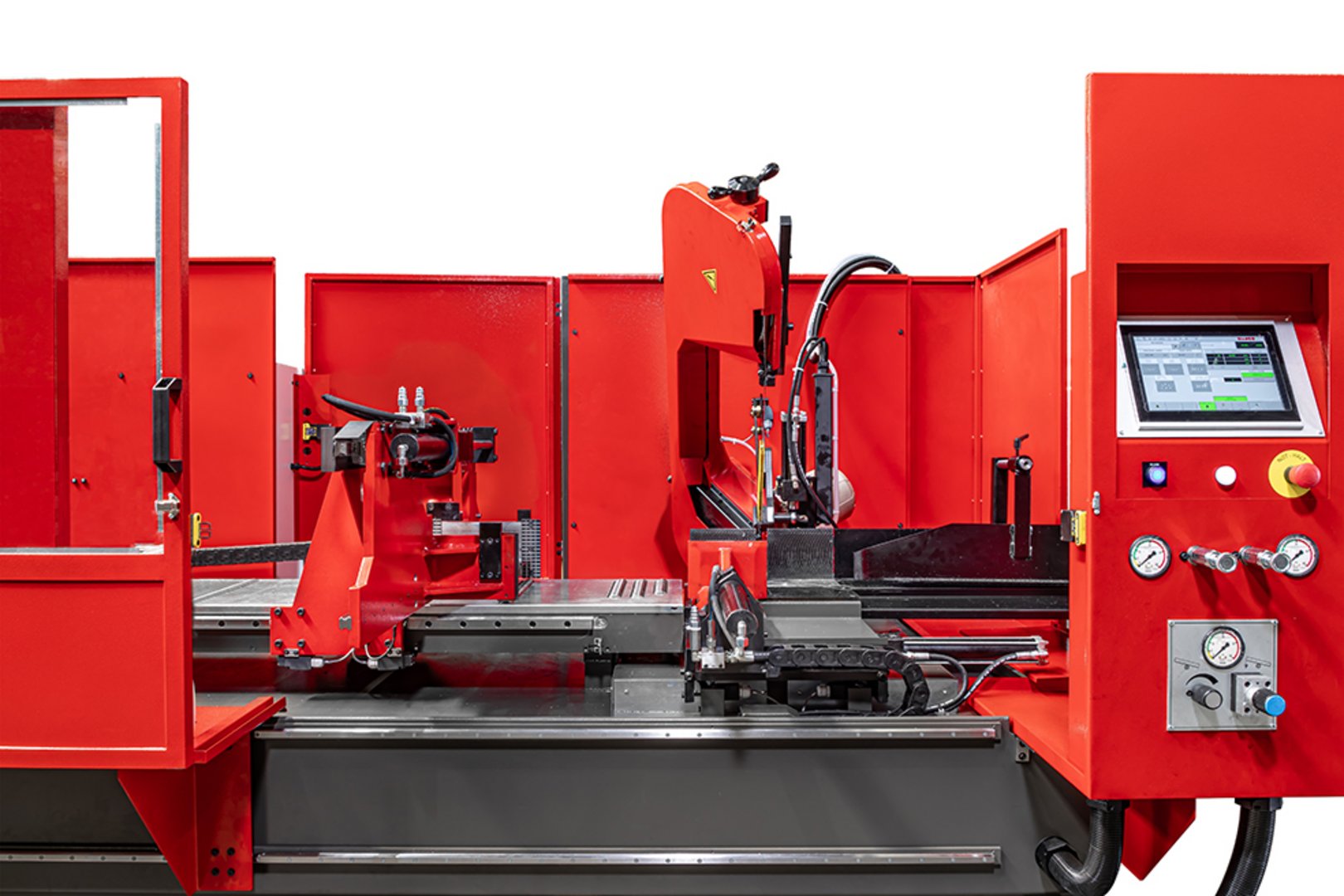

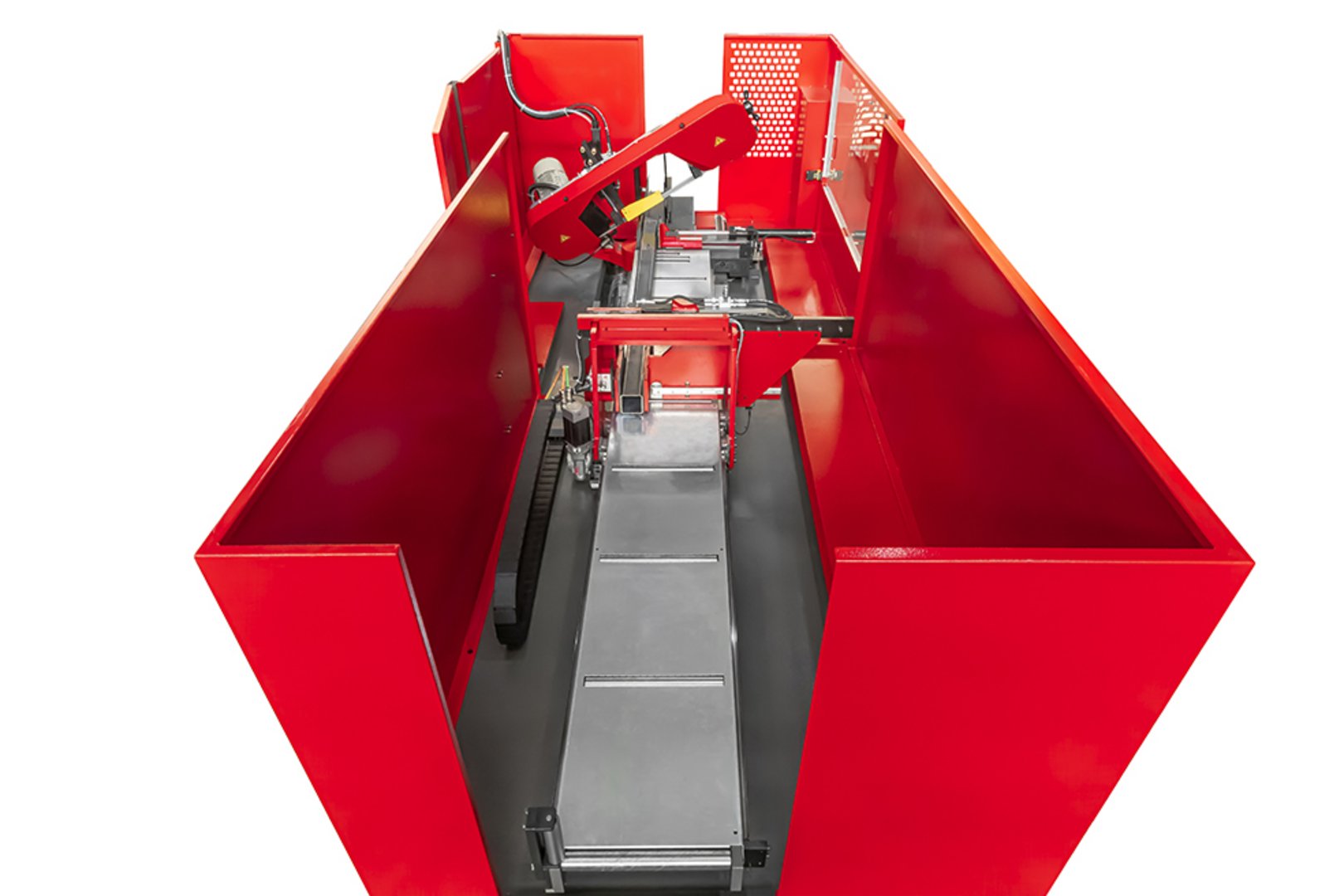

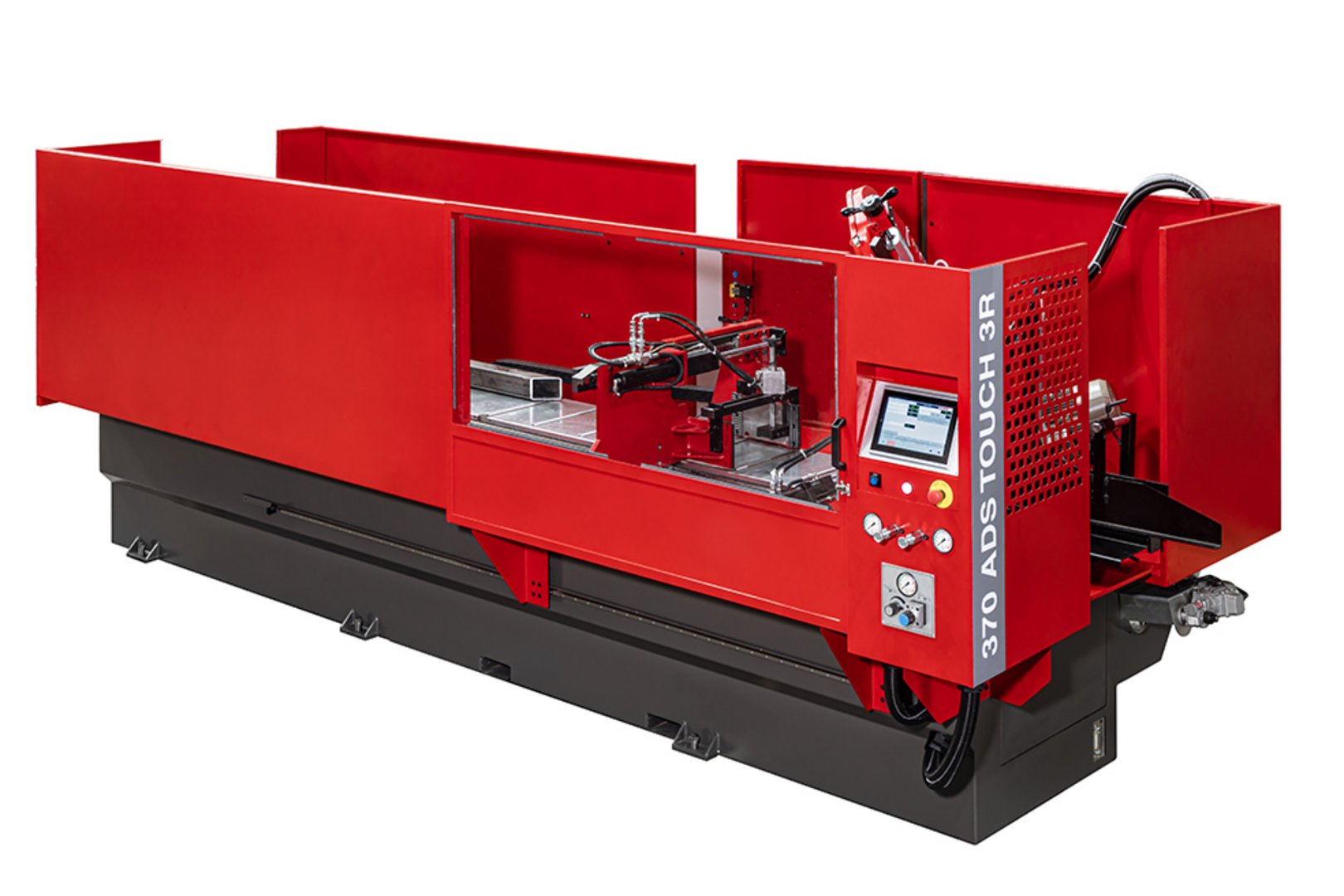

Fully automatic band saw 370 A DS 3R
