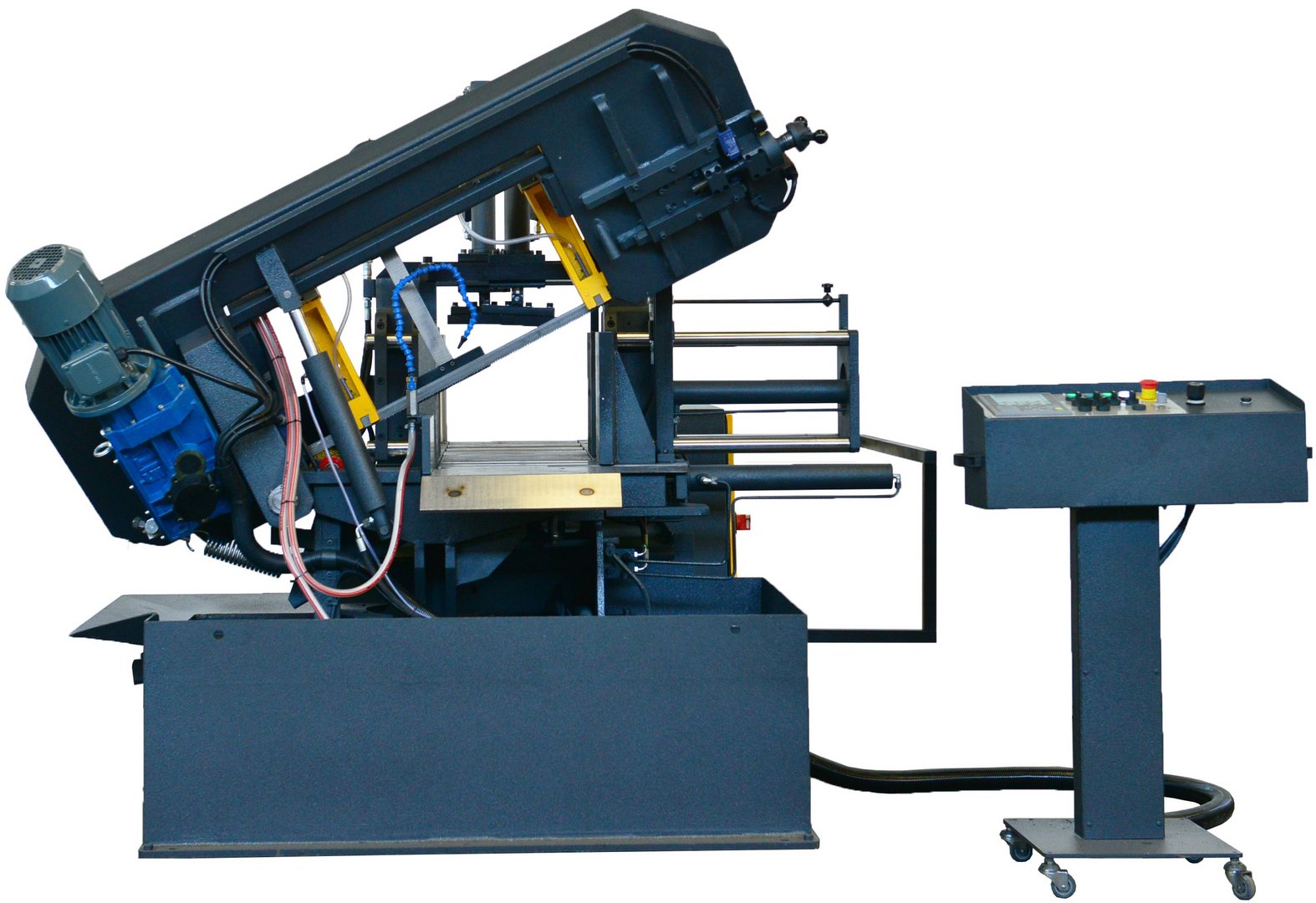

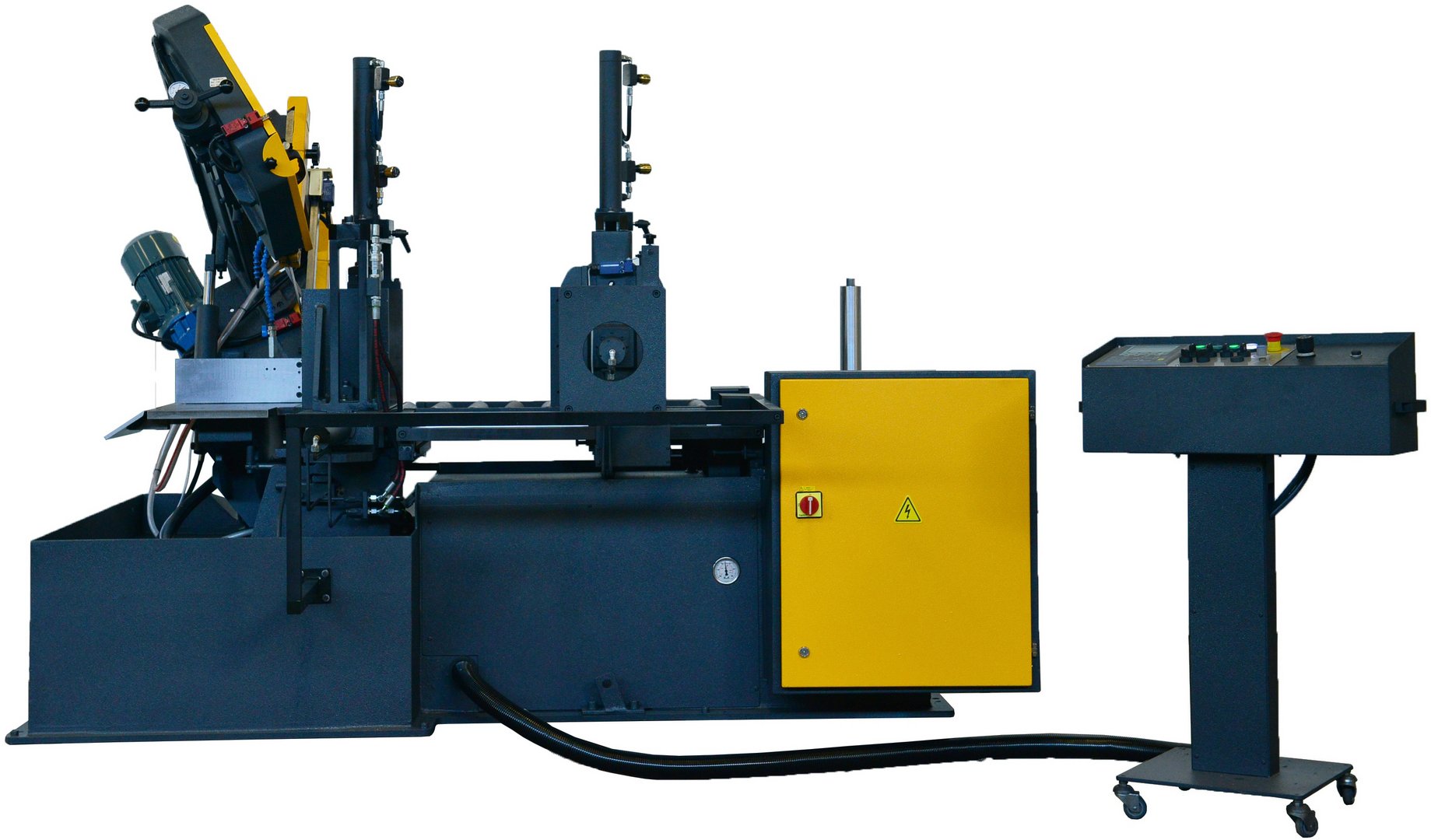

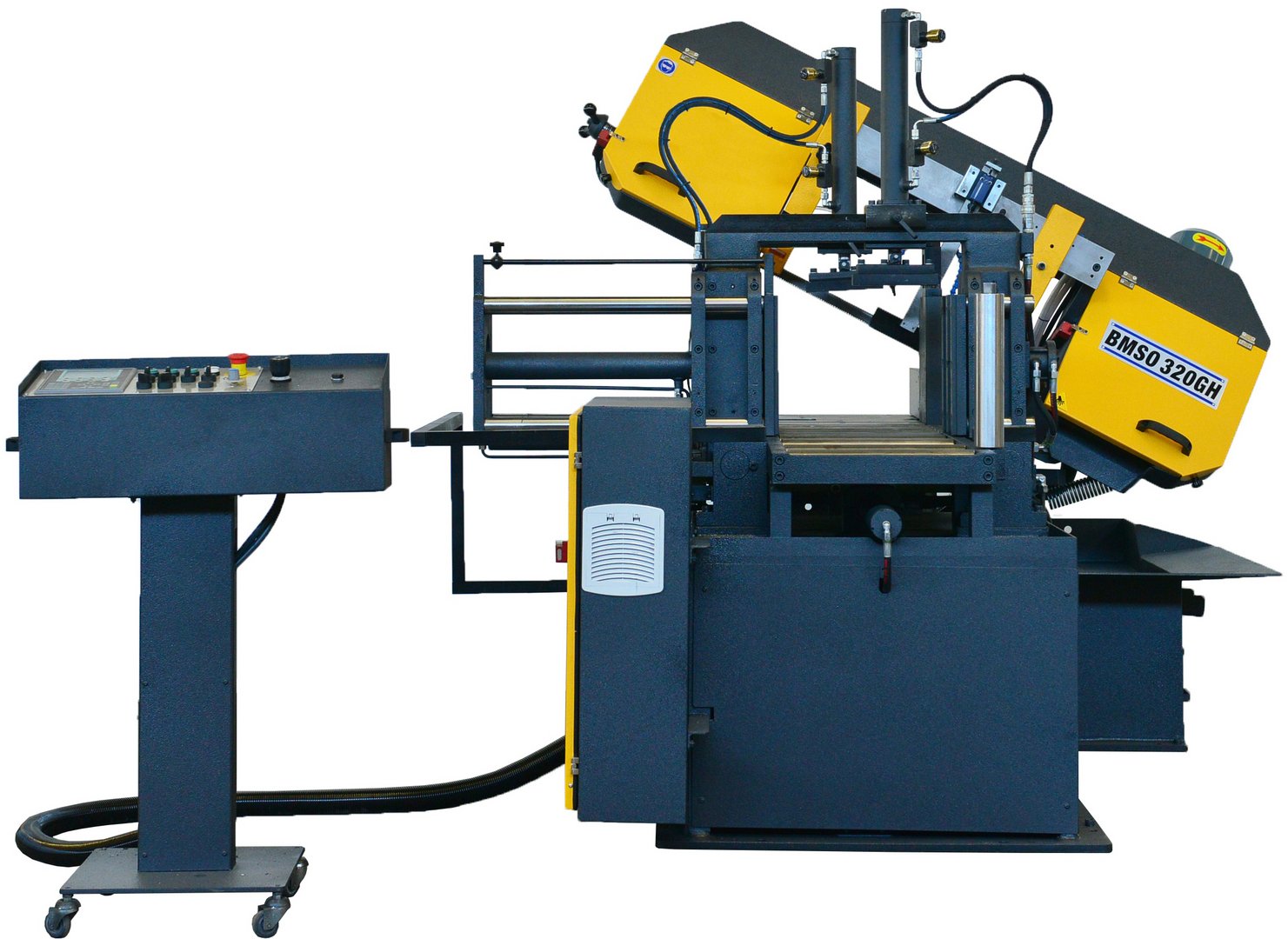

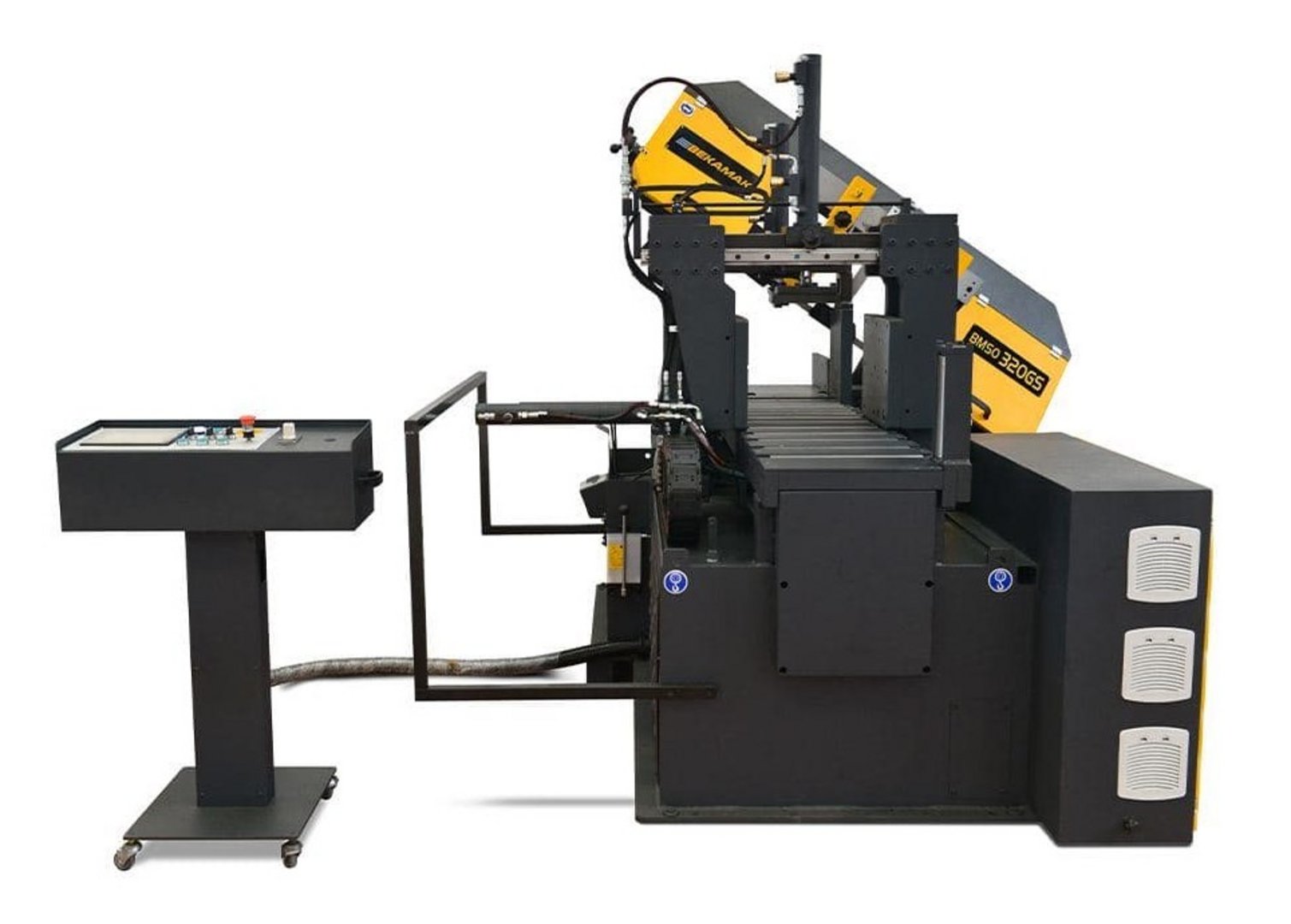

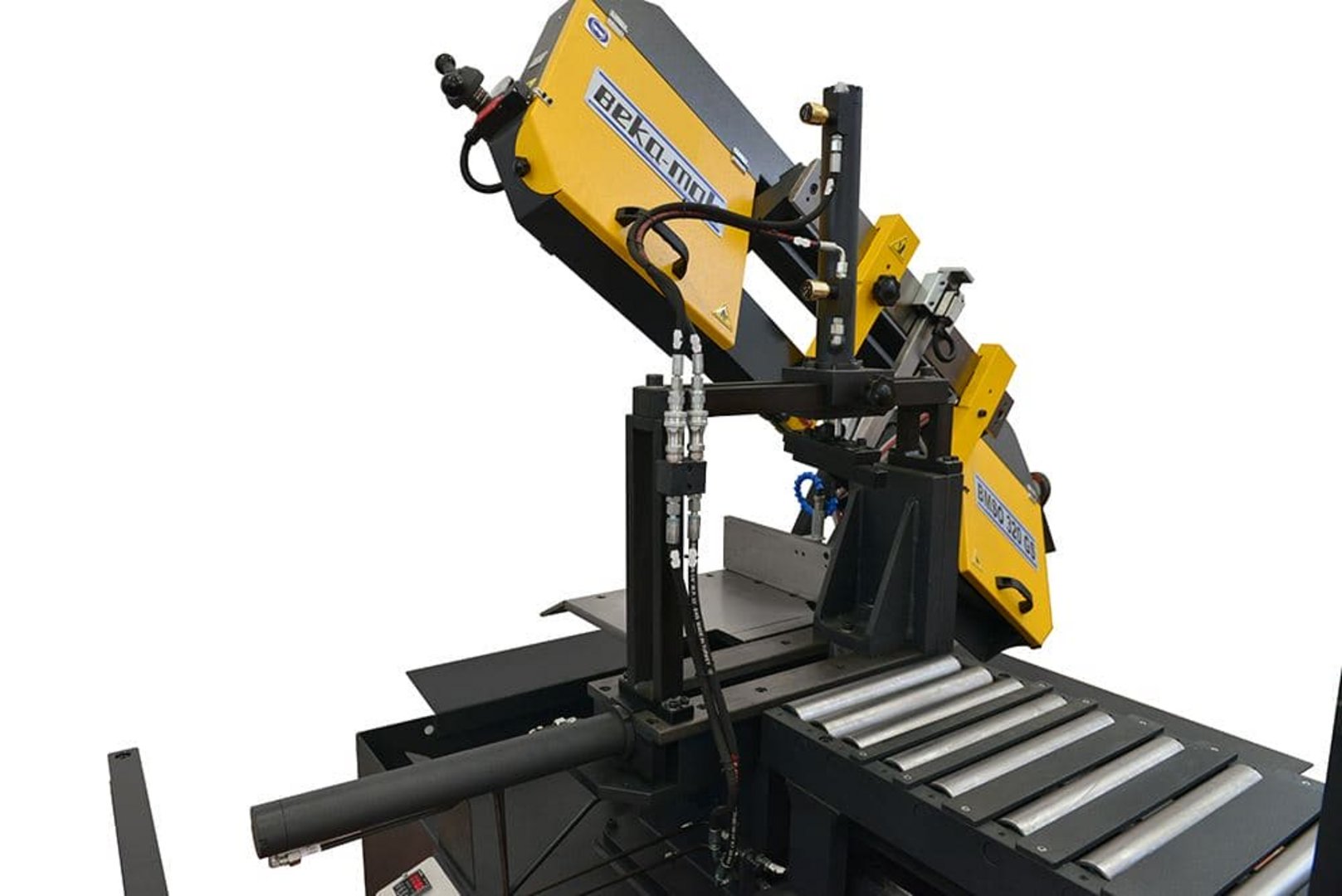

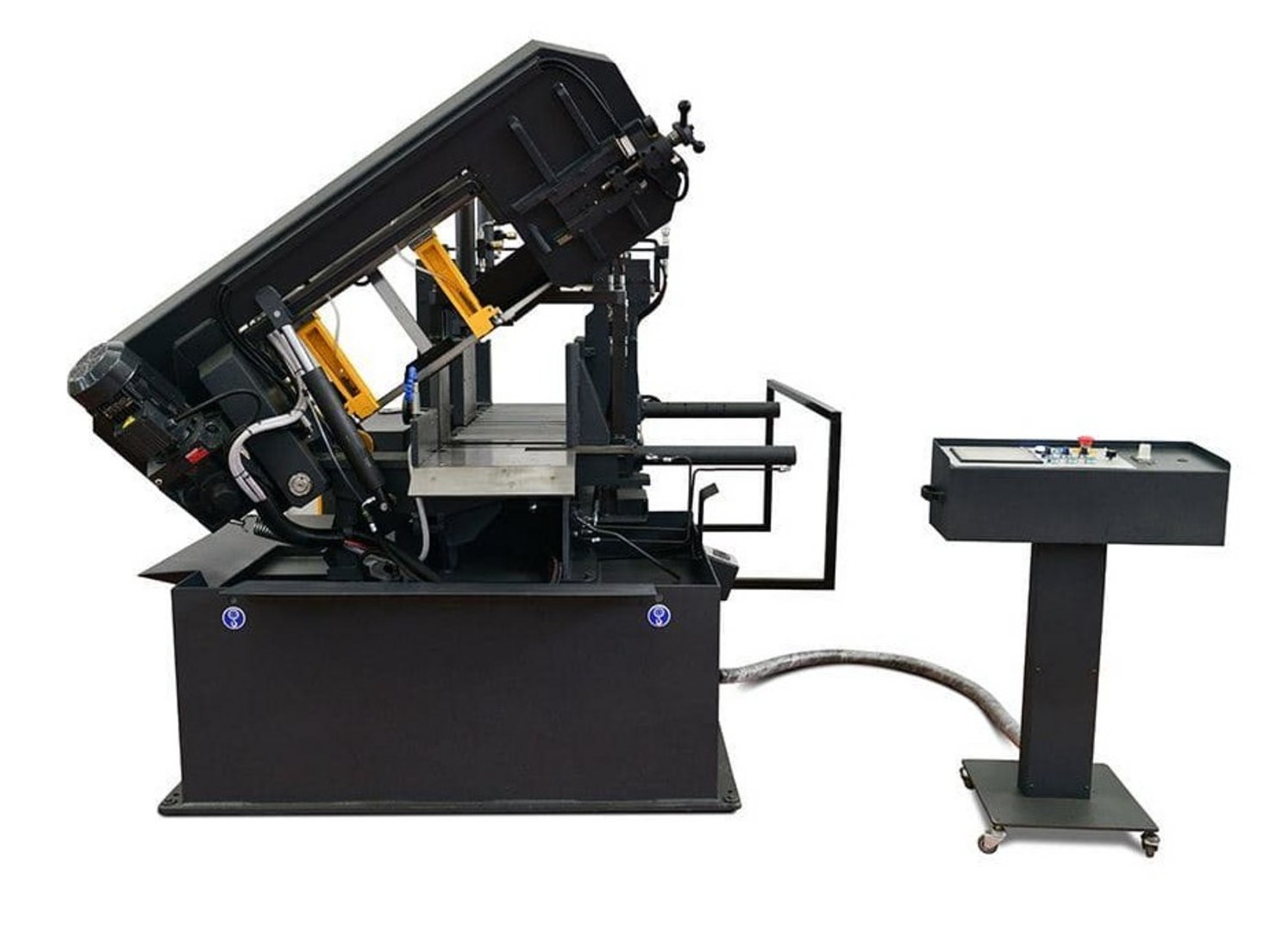

Fully automatic band saw HESSE by BEKAMAK BMSO 320 GS NC
| Model | BMSO 320 GS NC |
| Brand | HESSE by BEKAMAK |
| Condition | new |
| Cutting capacity 0° round | 320 mm |
| Cutting capacity 0° square | 320 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 3660x27x0,9 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 320 mm |
| Cutting capacity 0° square | 320 mm |
| Cutting capacity 0° flat | 350x320 mm |
| Cutting capacity 30° | rund 160 mm, quadrat 150 mm, rechteck 150 x 150 mm |
| Cutting capacity 45° | rund 260 mm, quadrat 180 mm, rechteck 250 x 180 mm |
| Cutting capacity 60° | rund 300 mm, quadrat 250 mm, rechteck 300 x 200 mm |
| Working height | 740 mm |
| Hydraulic motor | 1.1 kW |
| Motor | 2.2 kW |
| Servomotor | 1 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2120 mm |
| Width | 2100 mm |
| Height | 1810 mm |
| Weight | 1810 kg |
Description

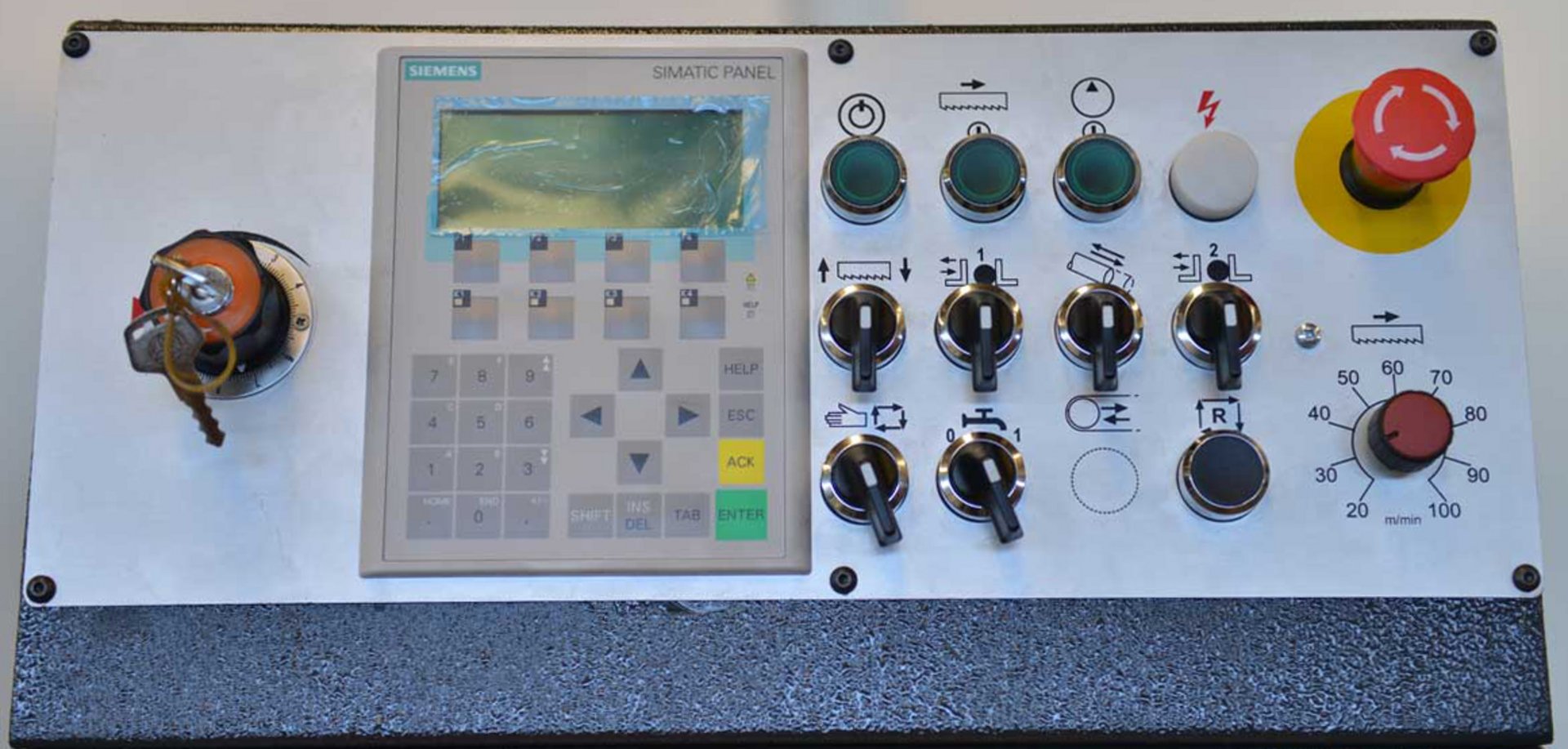

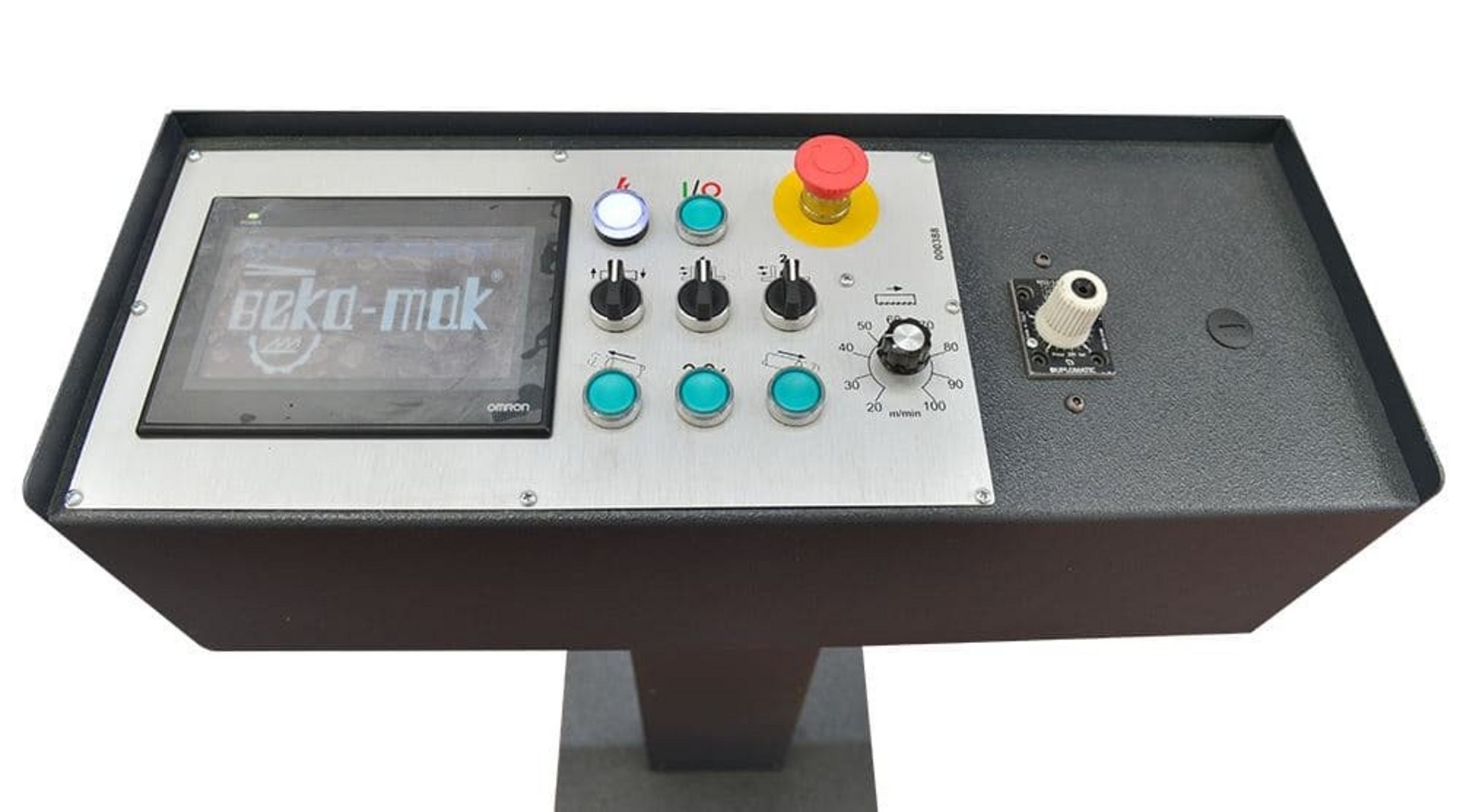

NC control panel
servo feed with ballscrew spindles
hydraulic vice
hydromechanical blade tension
inverter
coolant pump
saw blade
blade brush
security switch
height adjustment
user manual in GERMAN or ENGLISH
option:
hydraulic blade tentioning
