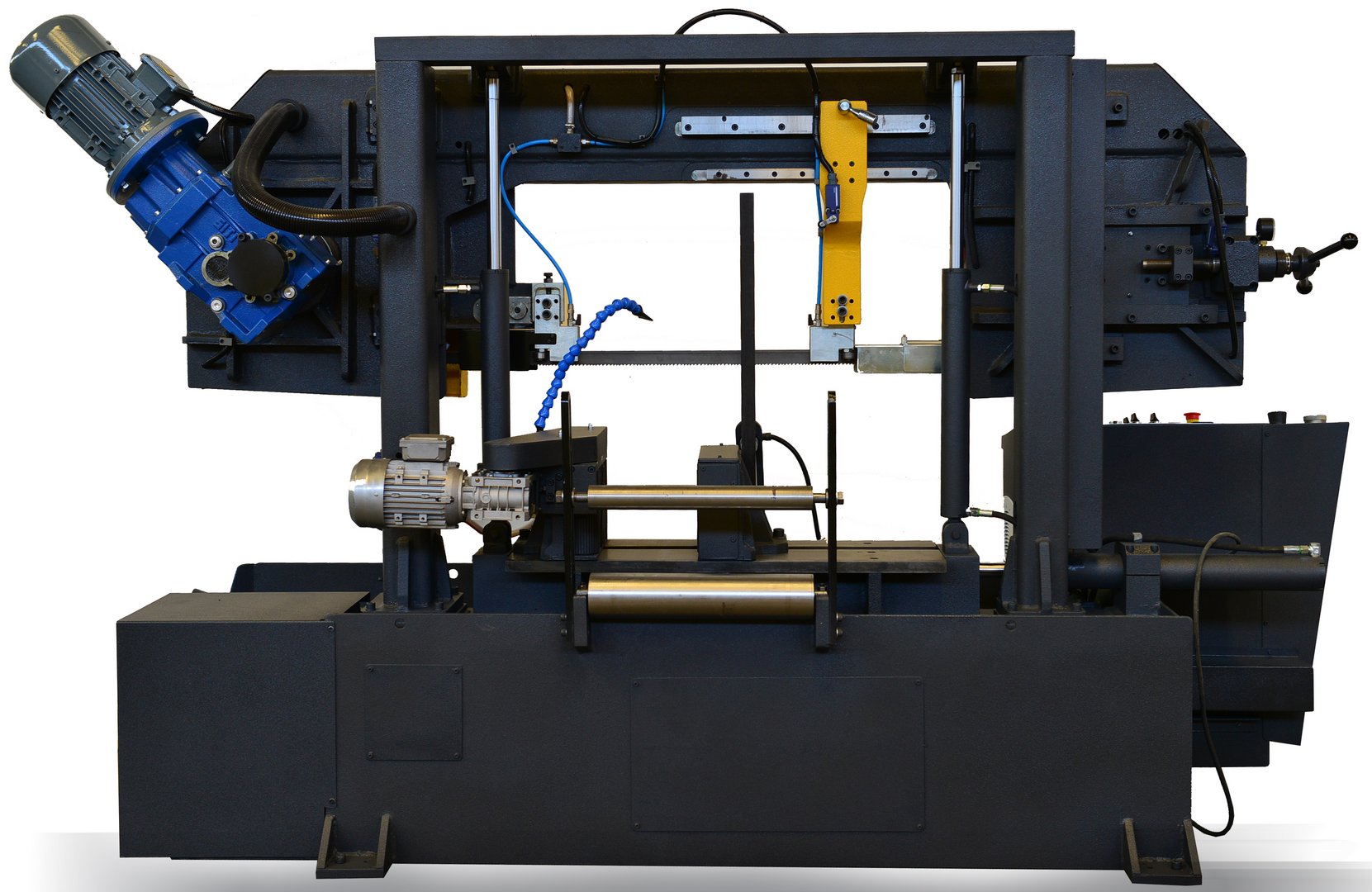

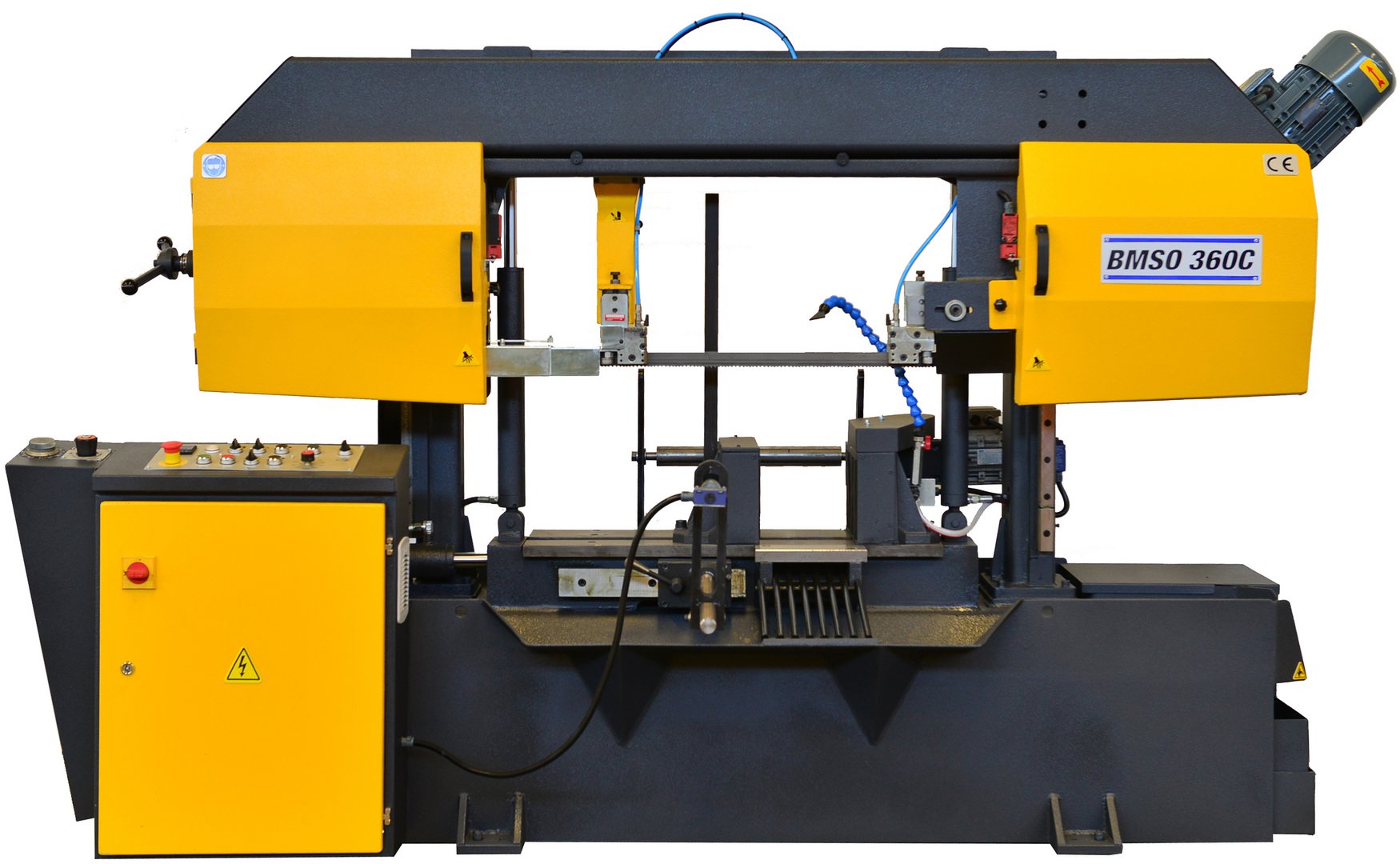

Fully automatic band saw HESSE by BEKA-MAK BMSO 360 C
| Model | BMSO 360 C |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 380 mm |
| Cutting capacity 0° square | 380 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 4800x34x1,1 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 380 mm |
| Cutting capacity 0° square | 380 mm |
| Cutting capacity 0° flat | 430x380 mm |
| Working height | 590 mm |
| Hydraulic motor | 0.55 kW |
| Motor | 3 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2900 mm |
| Width | 950 mm |
| Height | 1660 mm |
| Weight | 1342 kg |
Description
blade brush

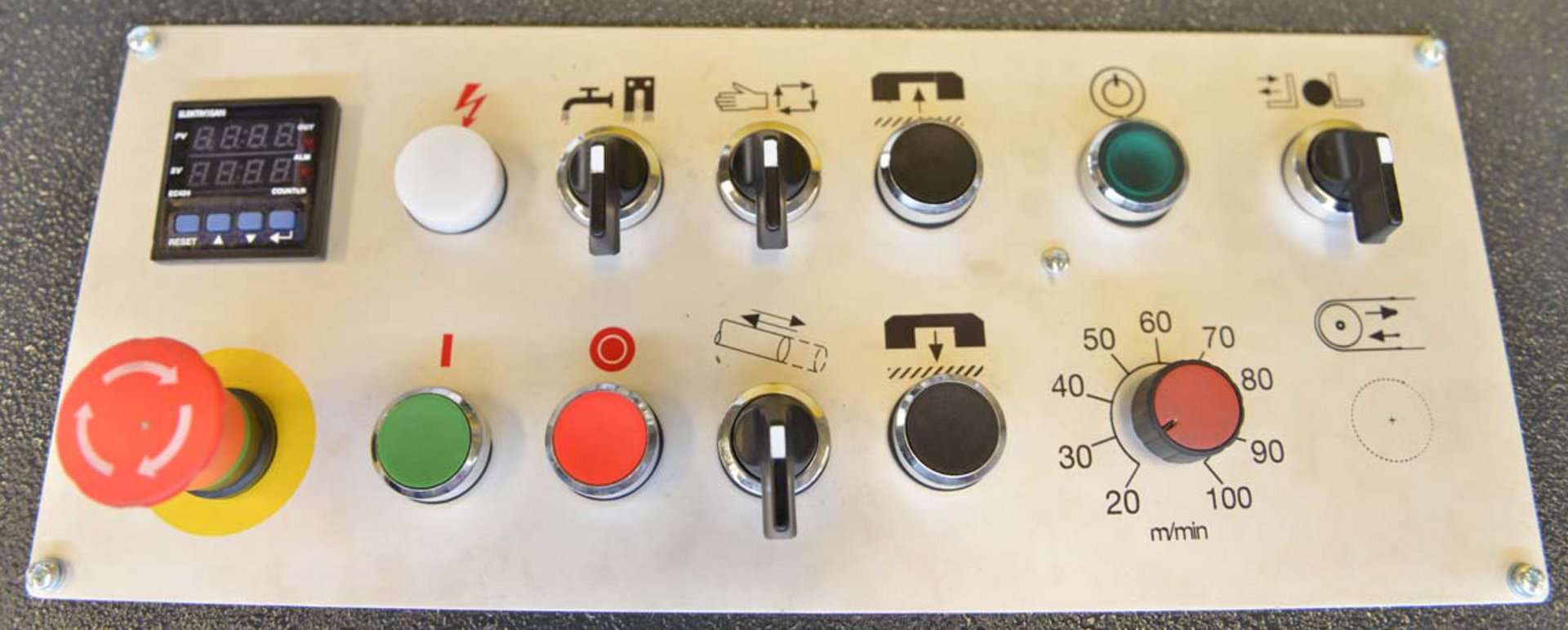

control panel
hydraulic vice
optical adjustment switch
hydromechanical blade tension
inverter
mechanic top clamping
material limit shaft
coolant pump
saw blade
security switch
gearbox
pressure adjustment

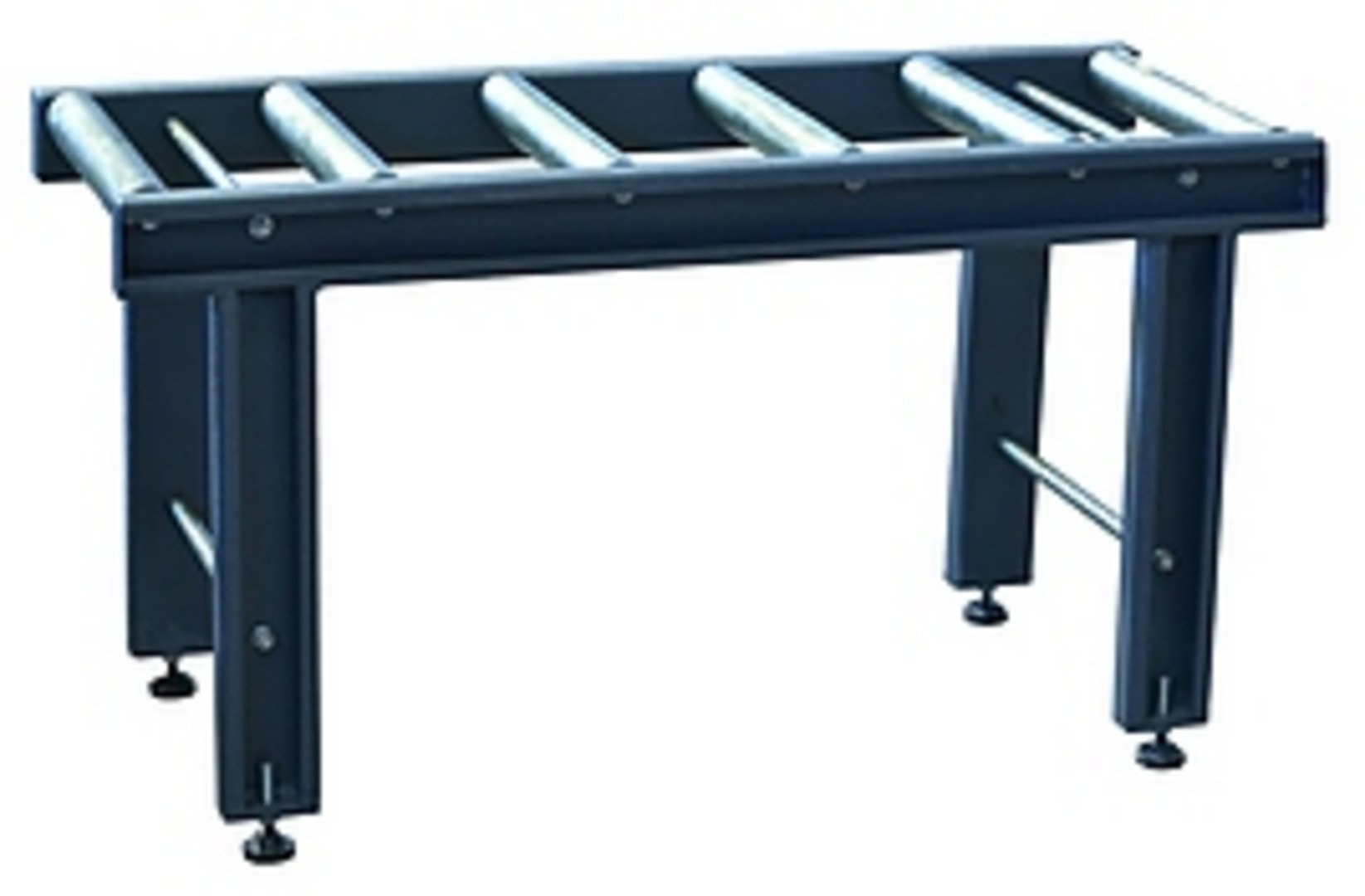

1,2 meter roller table
user manual in GERMAN or ENGLISH
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
