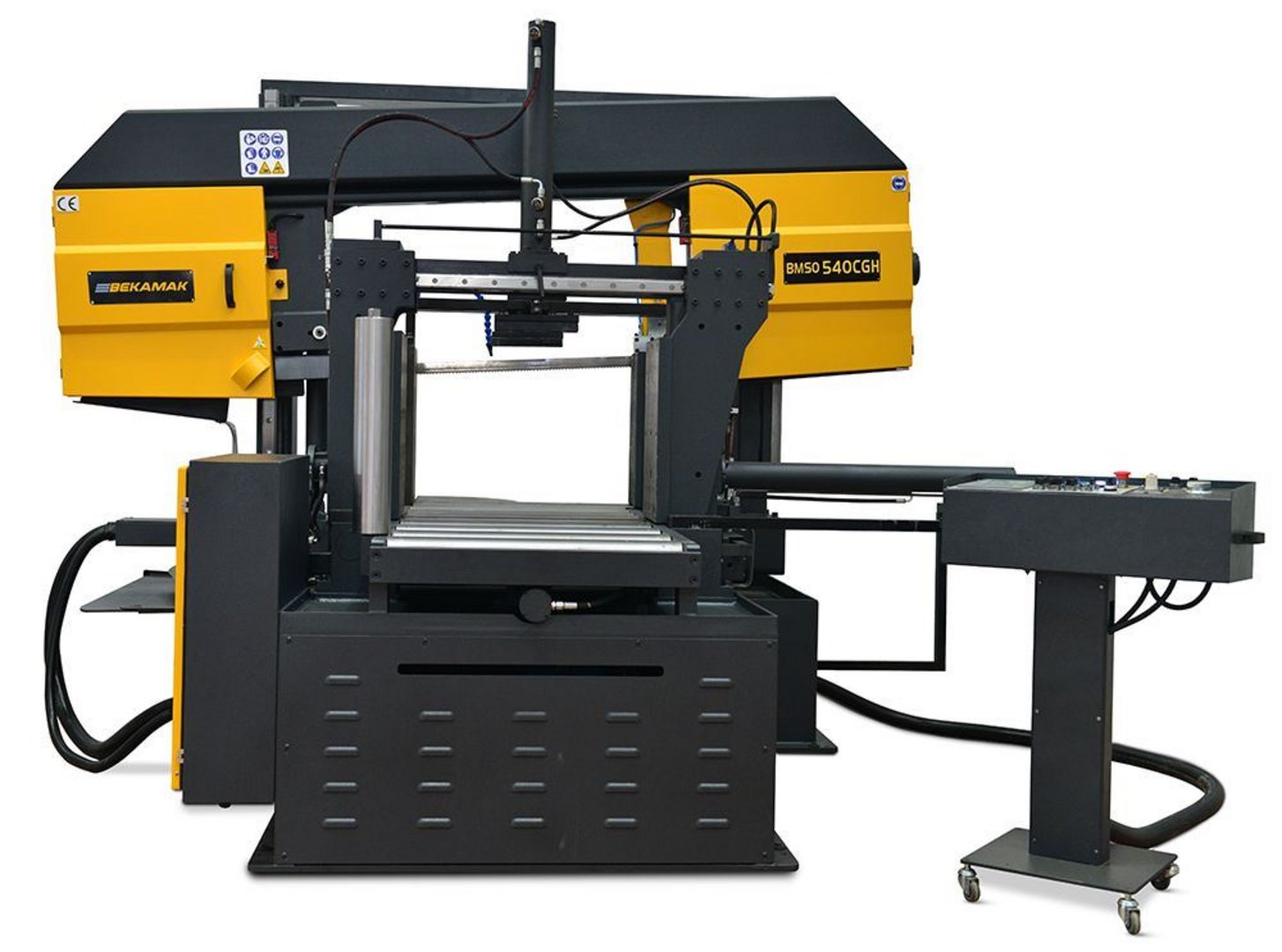

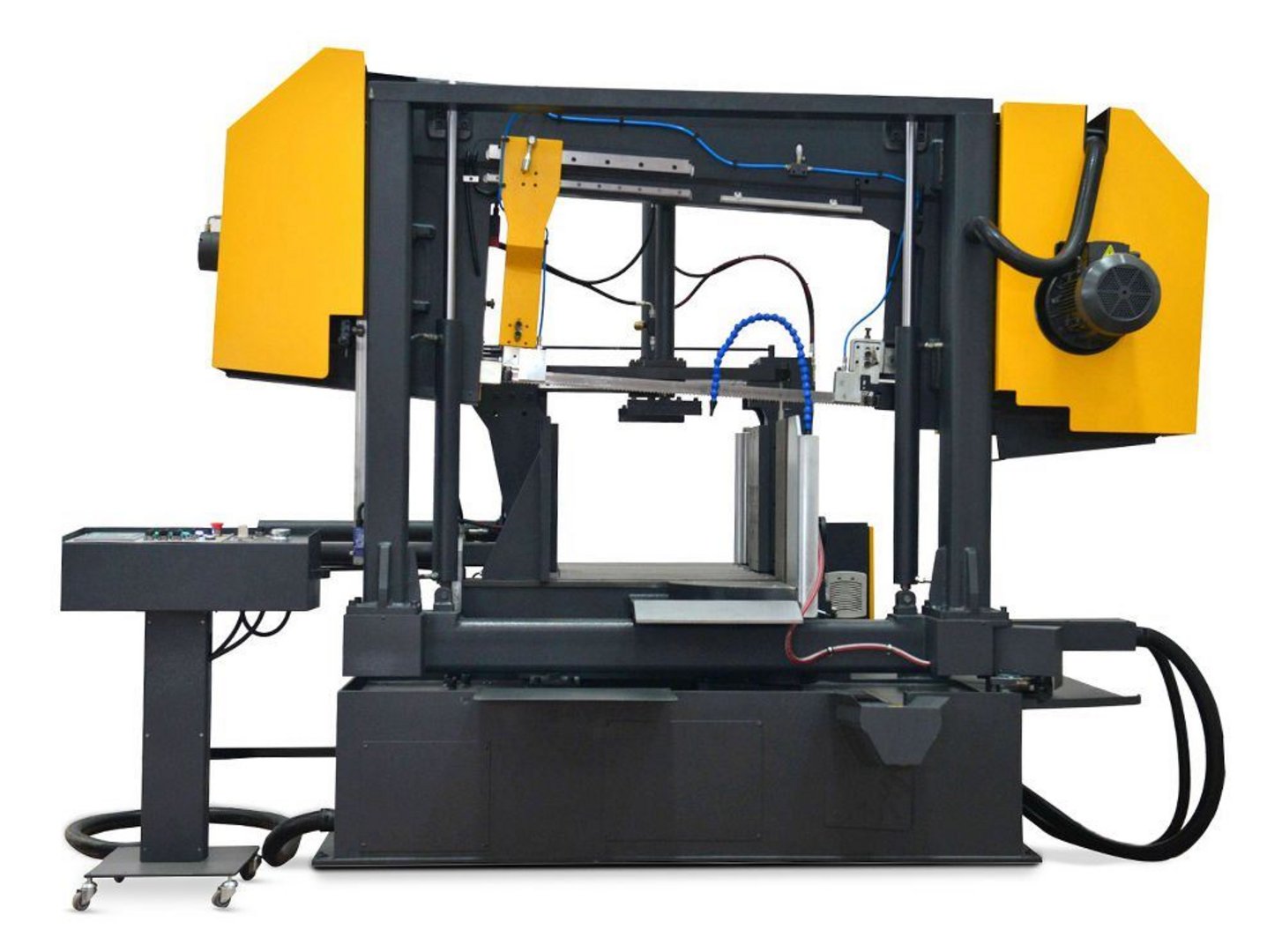

Fully automatic band saw HESSE by BEKA-MAK BMSO 540 CGH NC
| Model | BMSO 540 CGH NC |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 540 mm |
| Cutting capacity 0° square | 540 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 6000x41x1,3 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 540 mm |
| Cutting capacity 0° square | 540 mm |
| Cutting capacity 0° flat | 670x540 mm |
| Cutting capacity 30° | rund 540 mm, quadrat 540 mm, rechteck 575 x 540 mm |
| Cutting capacity 45° | rund 510 mm, quadrat 450 mm, rechteck 450 x 540 mm |
| Cutting capacity 60° | rund 270 mm, quadrat 250 mm, rechteck 250 x 540 mm |
| Working height | 810 mm |
| Hydraulic motor | 2.2 kW |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3100 mm |
| Width | 2350 mm |
| Height | 2150 mm |
| Weight | 3800 kg |
Description
NC control
double column band saw on linear guidelines
3° cutting angle

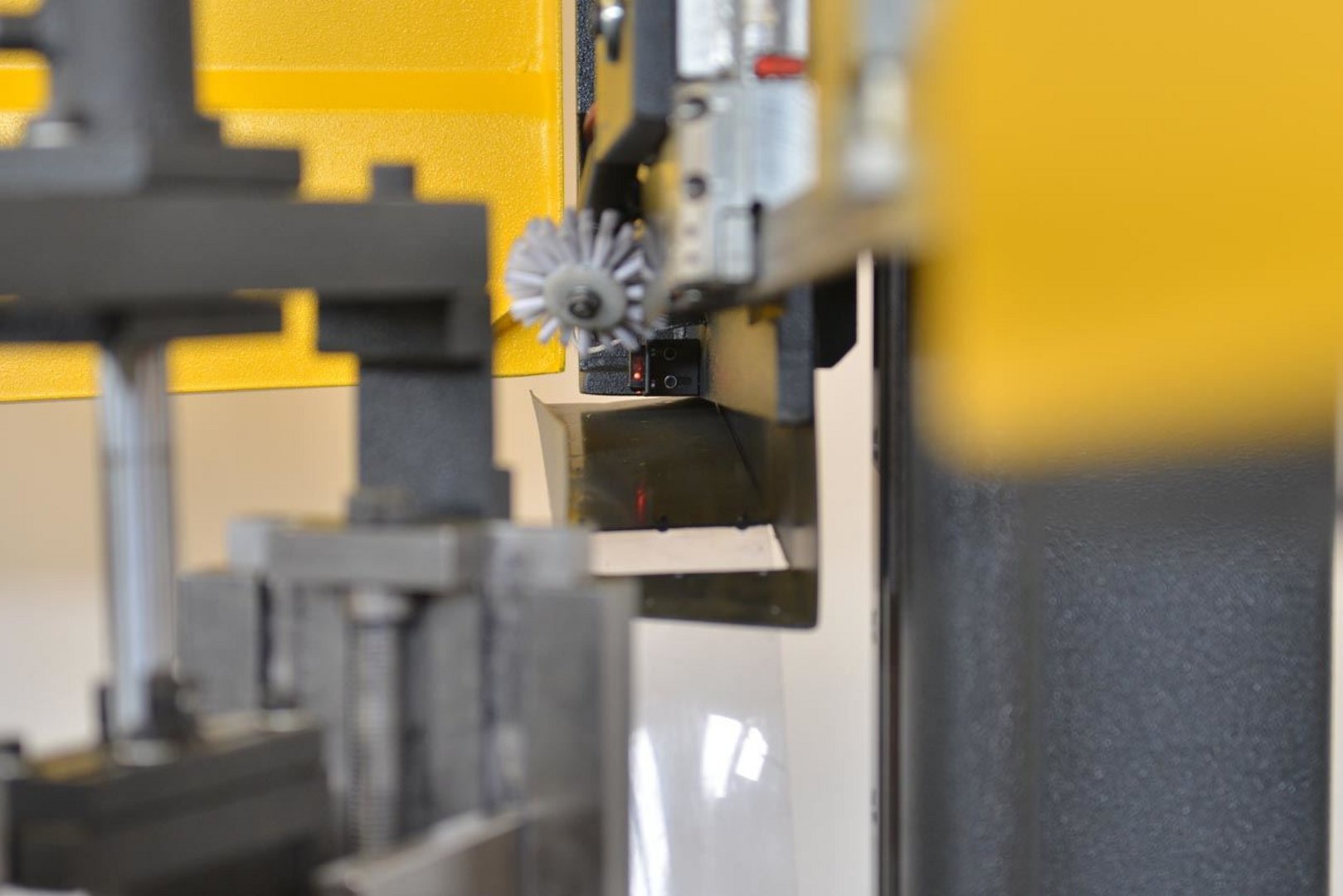

blade brush

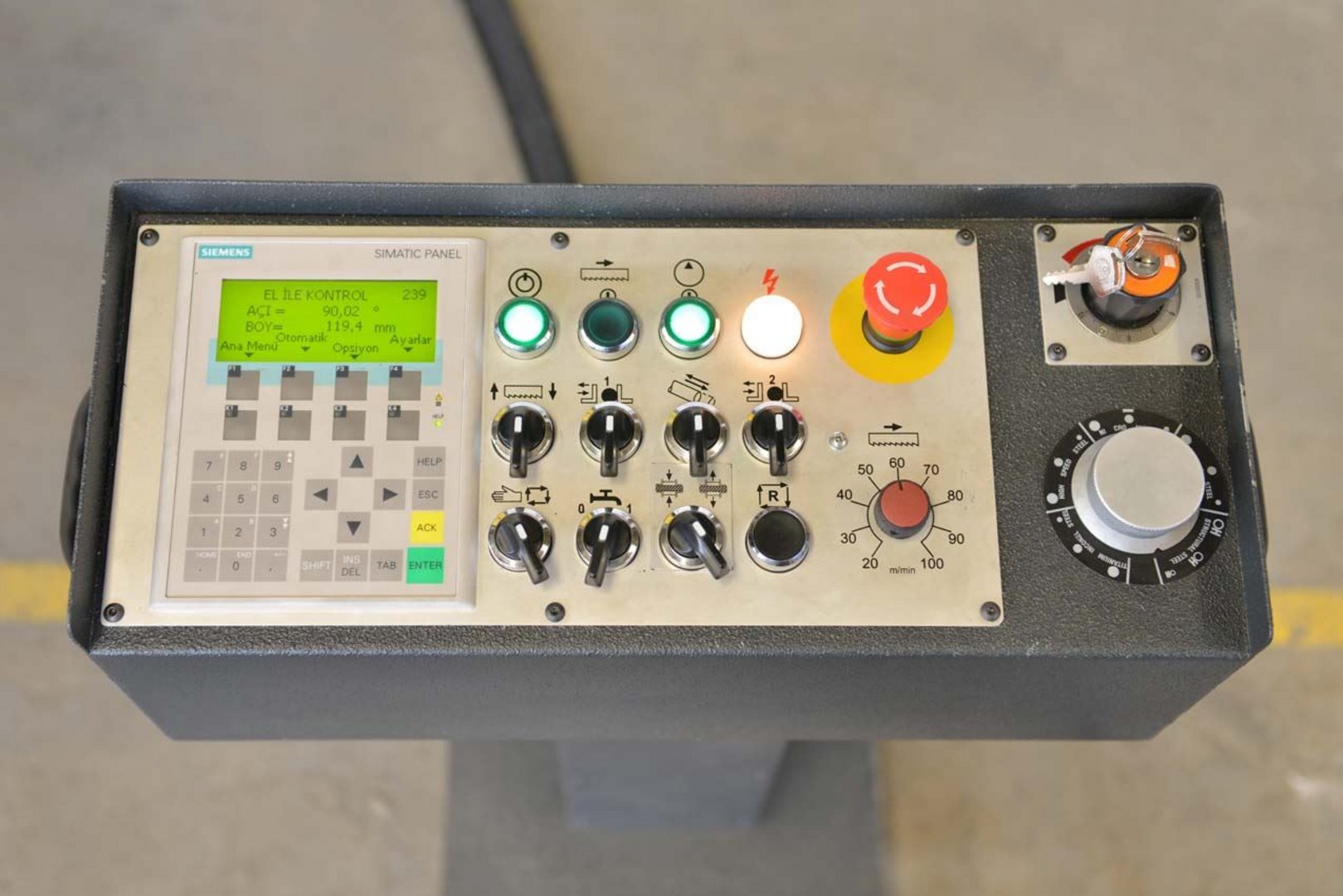

control panel
hydraulic feeding vice
hydraulic vice
hydromechanical blade tensioning
inverter
optical height adjustment

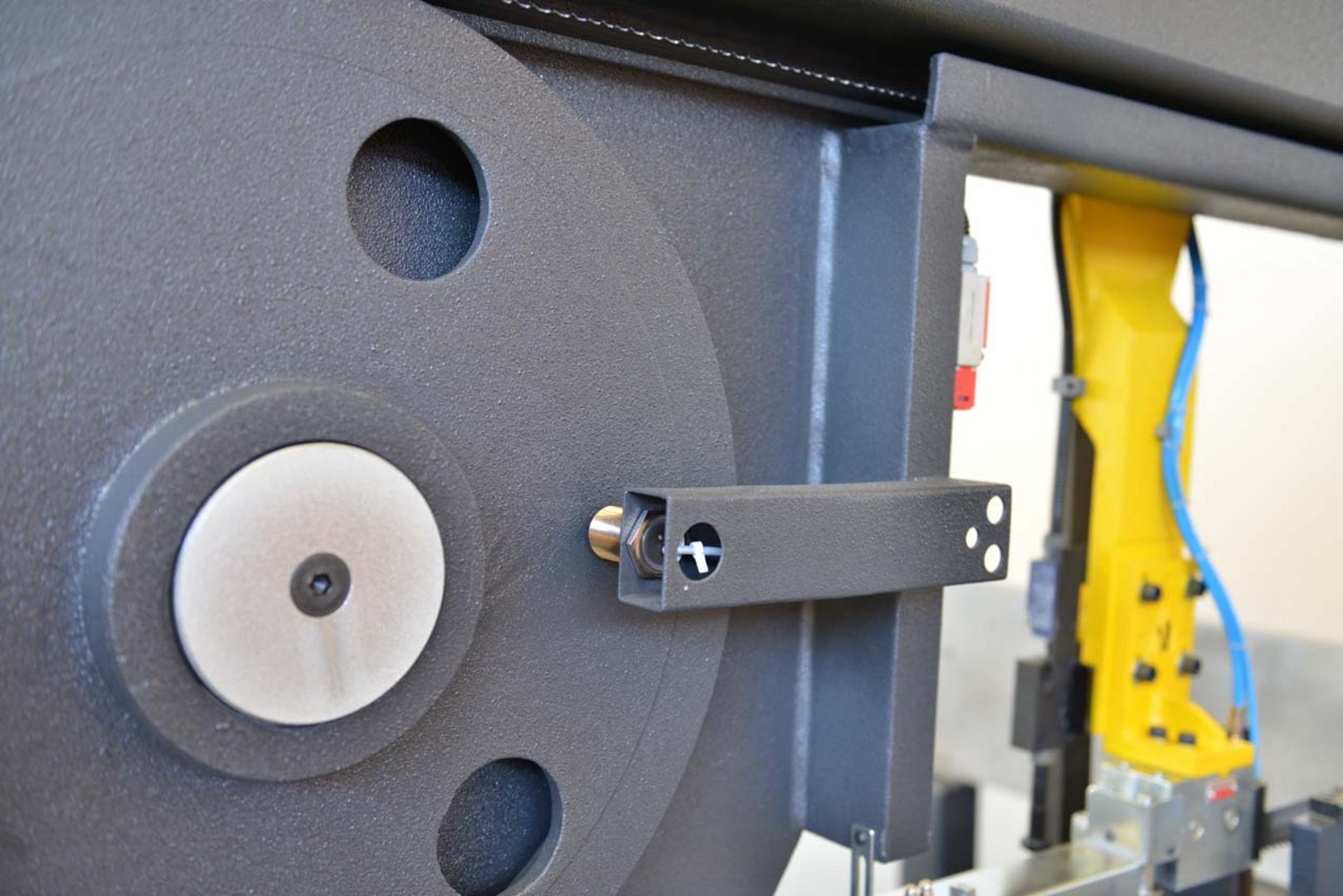

proximity switch for sensing blade slippage
material limit shaft
pressure adjustment
coolant pump
saw blade
security switch
user manual in GERMAN or ENGLISH
options:
hydraulic top clamping
micro coolant equipment
laser cutting line
alternative:
model BMSO 540 CGS NC (with servo instead of hyraulic feed) € 70.200,--
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
