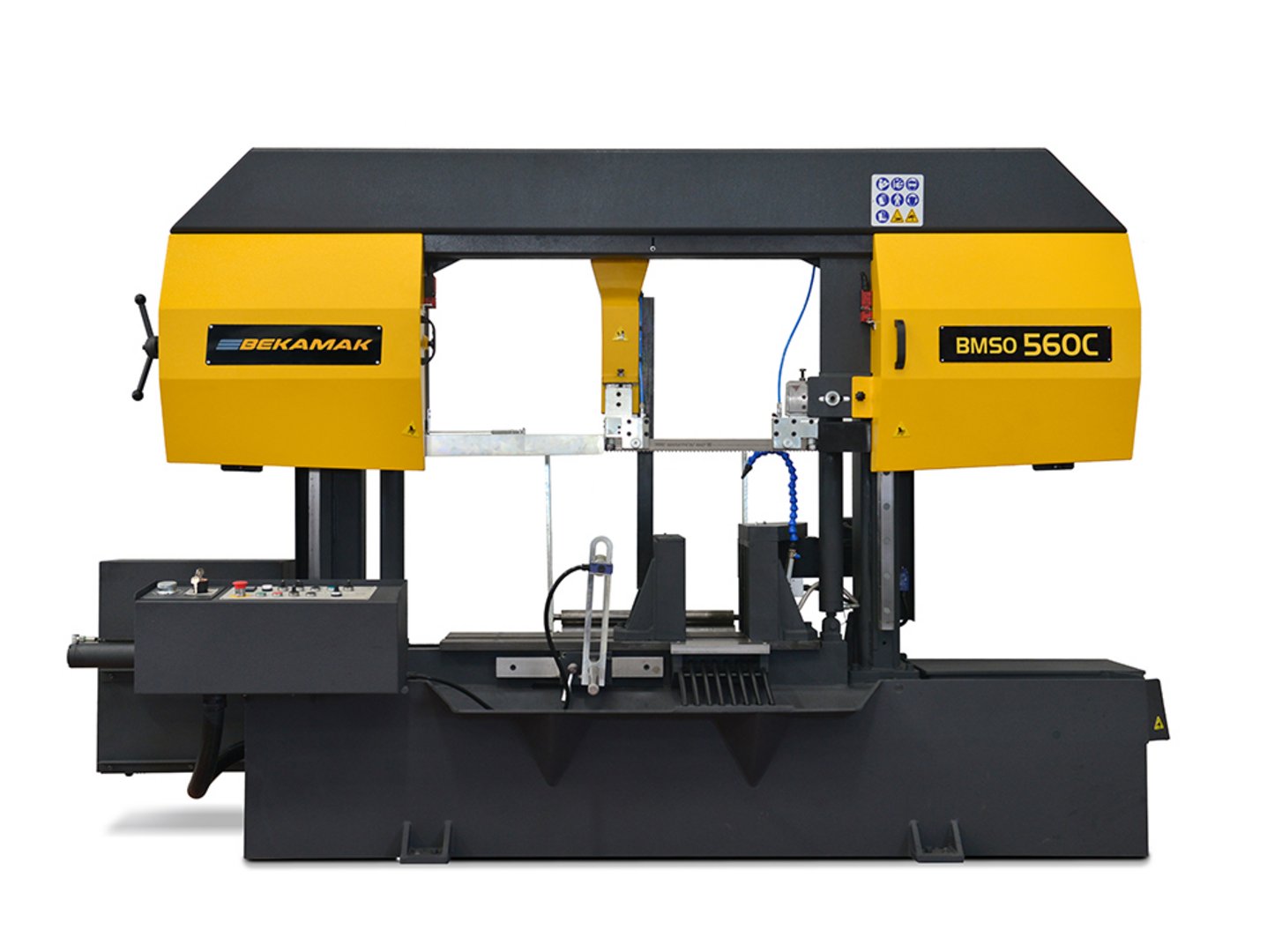

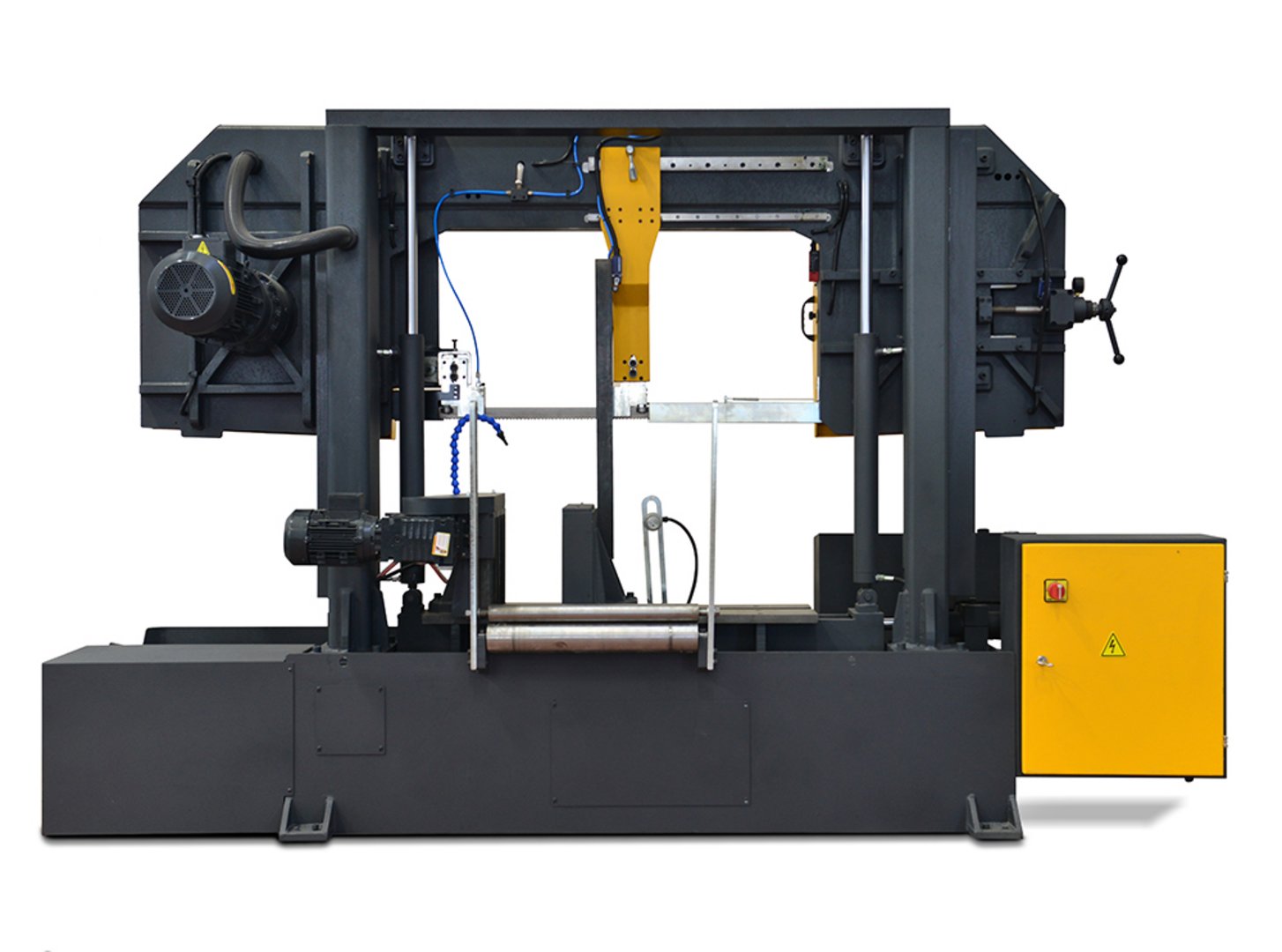

Fully automatic band saw HESSE by BEKA-MAK BMSO 560 C
| Model | BMSO 560 C |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 560 mm |
| Cutting capacity 0° square | 560 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 6000x41x1,3 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 560 mm |
| Cutting capacity 0° square | 560 mm |
| Cutting capacity 0° flat | 570x560 mm |
| Working height | 590 mm |
| Hydraulic motor | 1.1 kW |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 500 mm |
| Width | 1050 mm |
| Height | 2050 mm |
| Weight | 2242 kg |
Description
NC control
double column band saw
3° cutting angle
blade brush

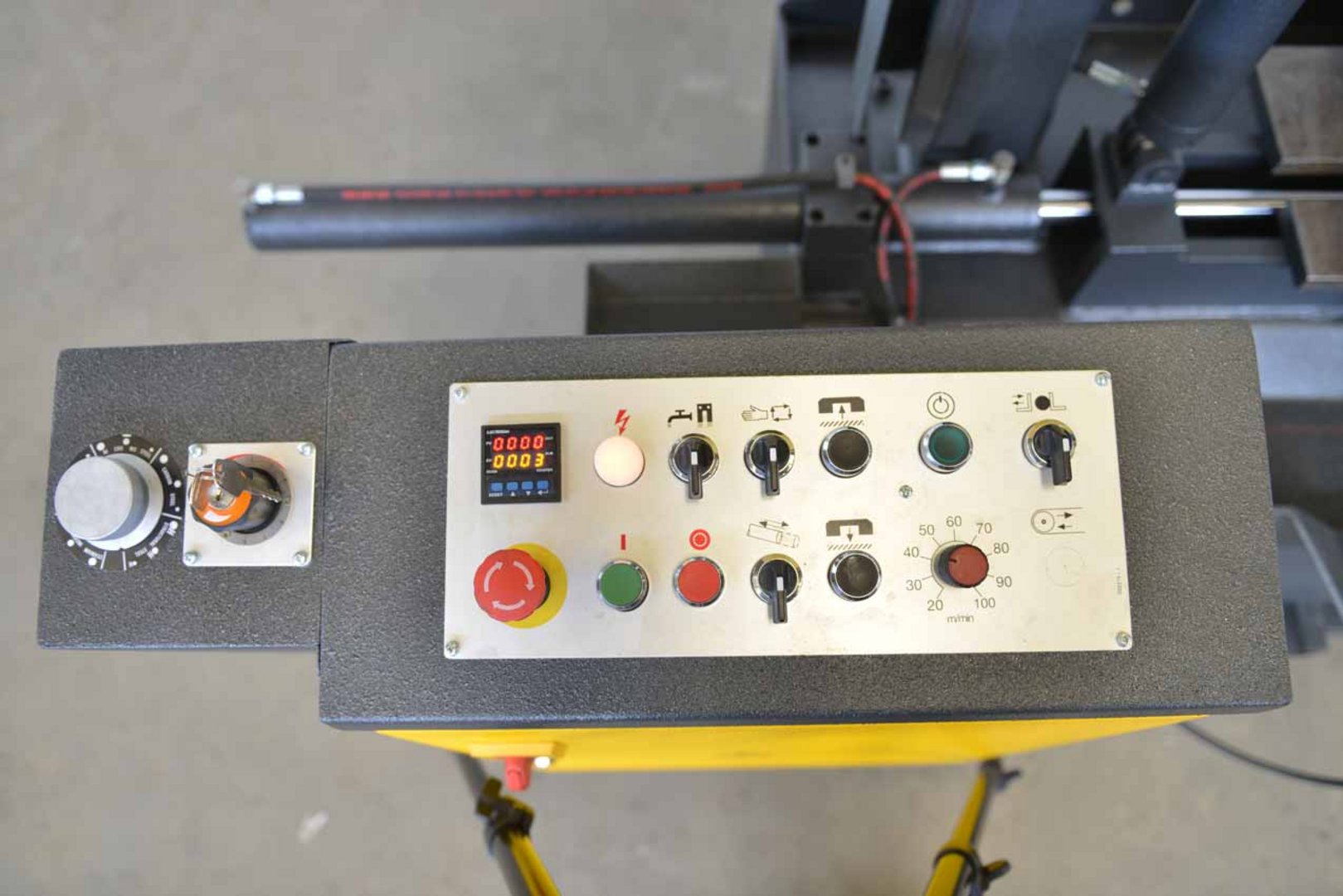

control panel

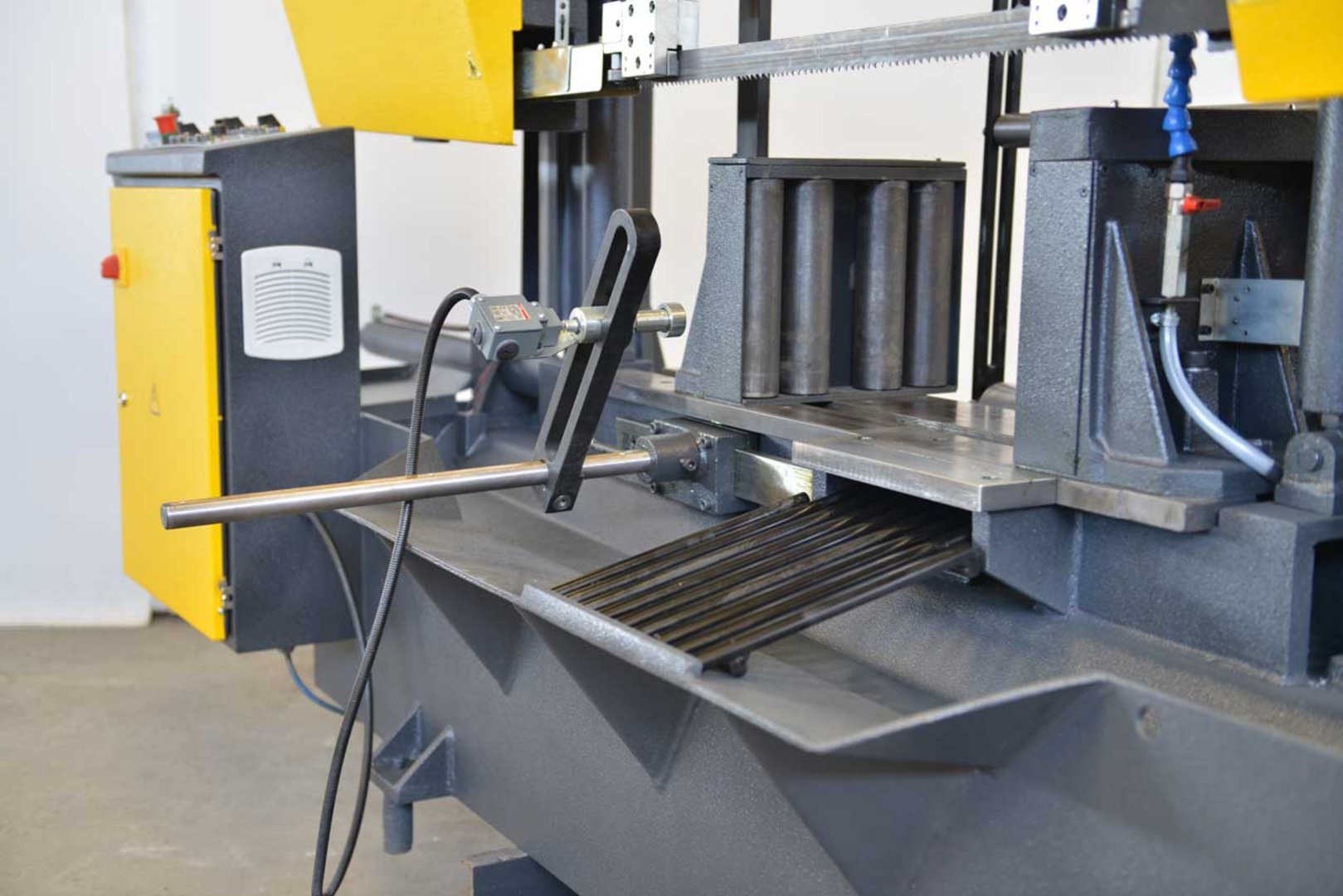

hydraulic feeding vice
hydraulic vice
hydromechanical blade tension
inverter
linear way
optical height adjustment
proximity switch for sensing blade slippage
material limit shaft
pressure adjustment
coolant pump
saw blade
security switch
gearbox
user manual in GERMAN or ENGLISH
