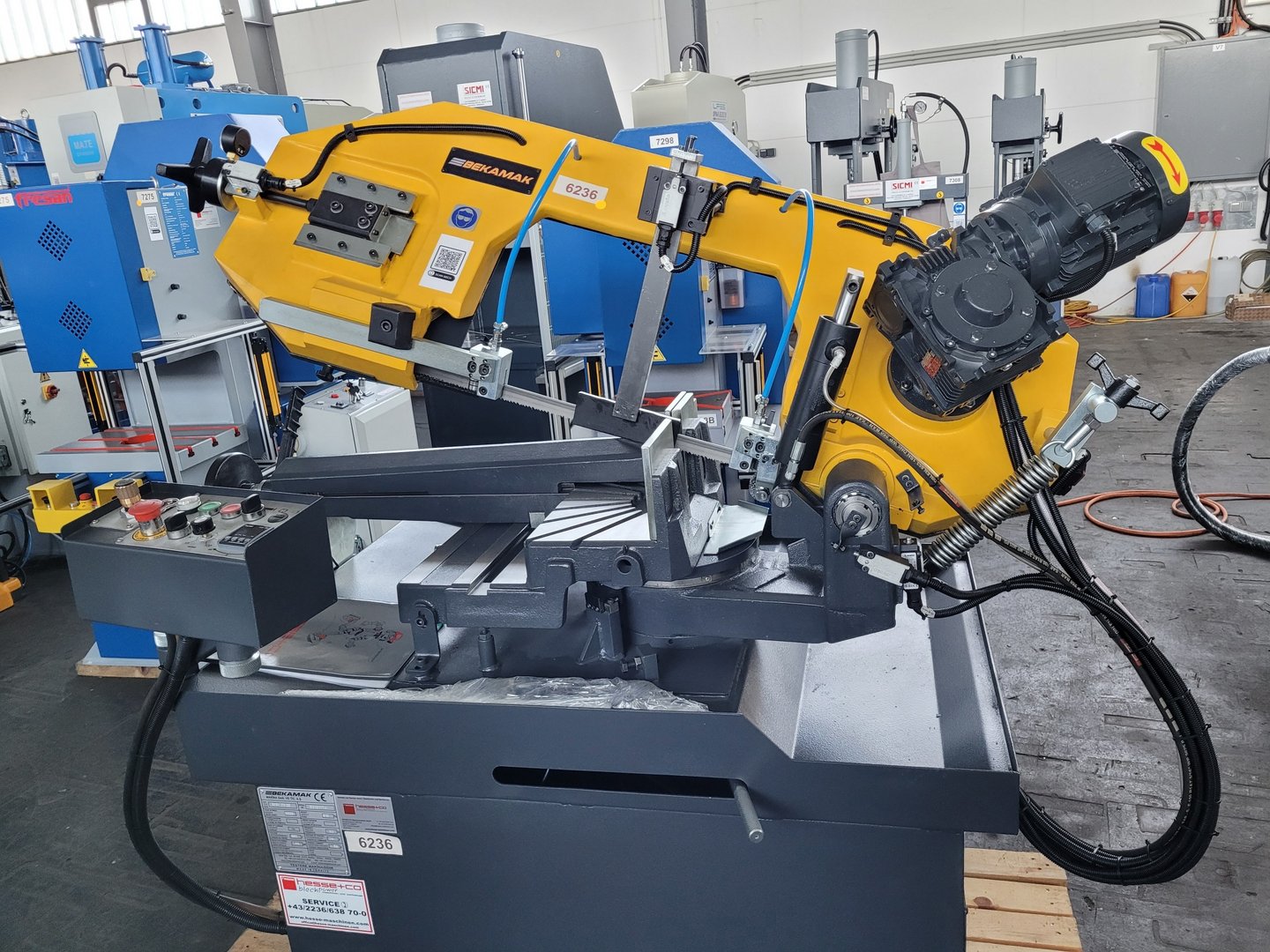

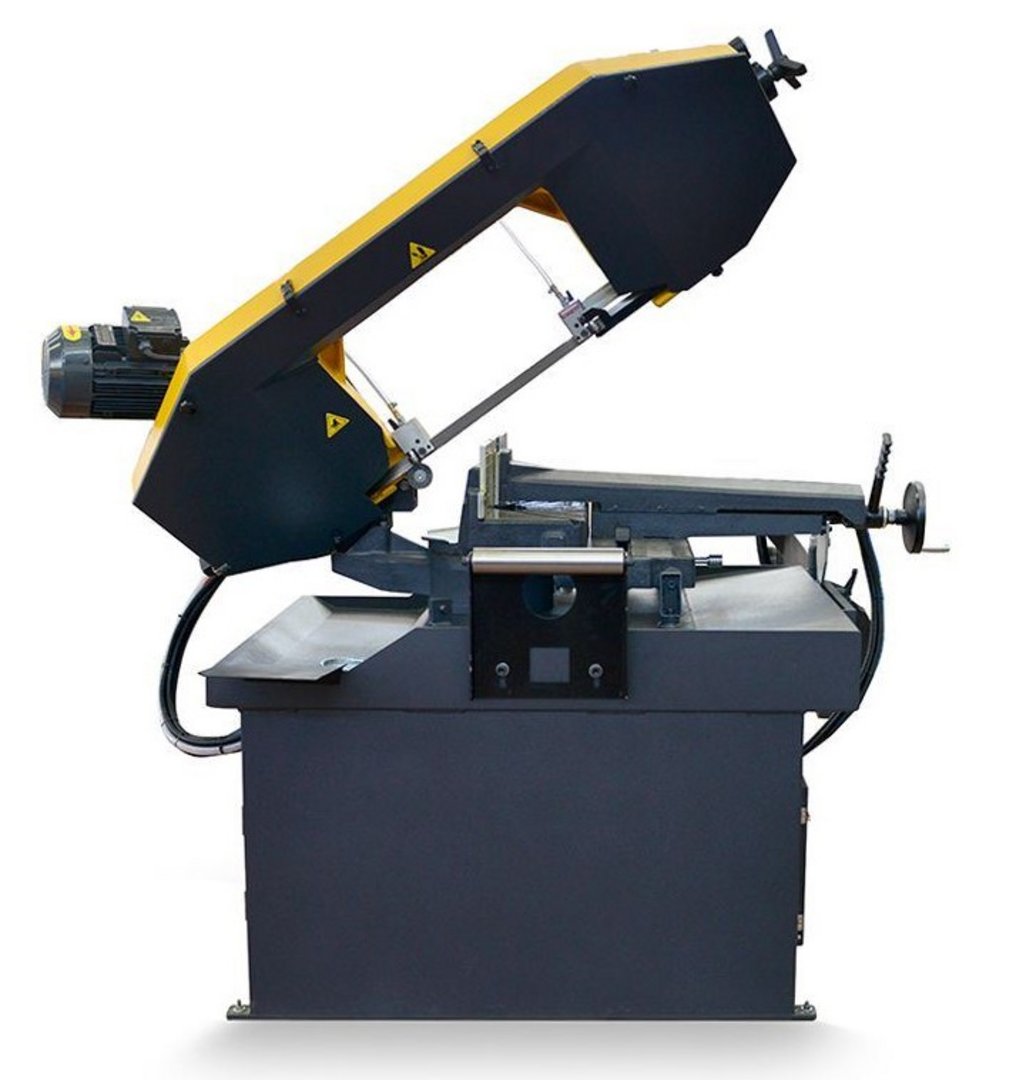

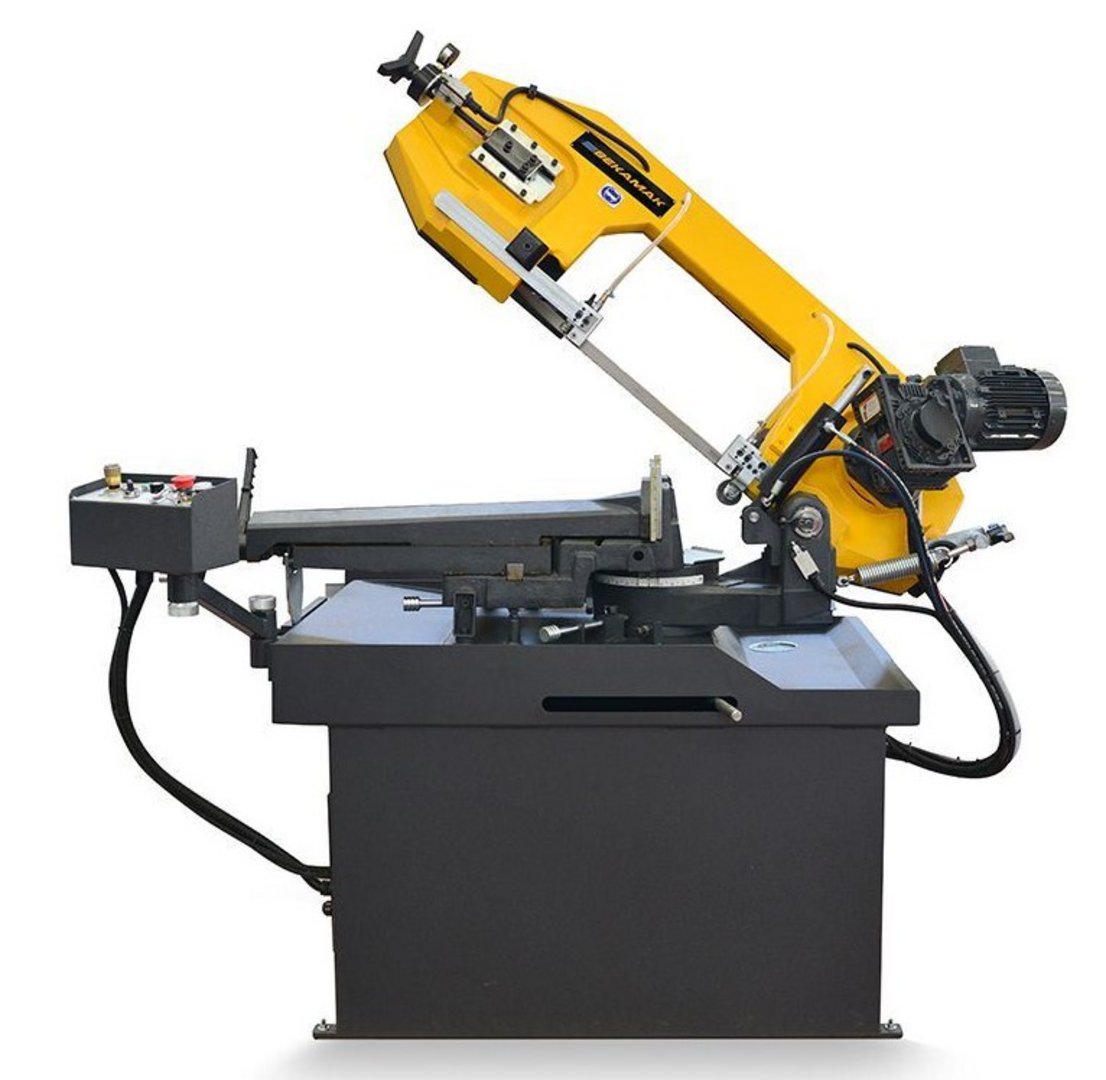

Semiautomatic band saw HESSE by BEKA-MAK BMSY 270 DG
| Model | BMSY 270 DG |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 270 mm |
| Cutting capacity 0° square | 270 mm |
| Stock number | 60028 |
| Origin | Türkiye |
General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 3160x27x0,9 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 270 mm |
| Cutting capacity 0° square | 270 mm |
| Cutting capacity 0° flat | 340 x 220 mm |
| Cutting capacity 45° | round 230 mm, square 200 mm, flat 220 x 200 mm |
| Cutting capacity 60° | round 150 mm, square 150 mm, flat 150 x 100 mm |
| Cutting capacity - 45° | round 180 mm, square 160 mm, flat 210 x 100 mm |
| Working height | 910 mm |
| Hydraulic motor | 0.37 kW |
| Motor | 1.5 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 1730 mm |
| Width | 770 mm |
| Height | 1460 mm |
| Weight | 476 kg |
Description
digital angle read out

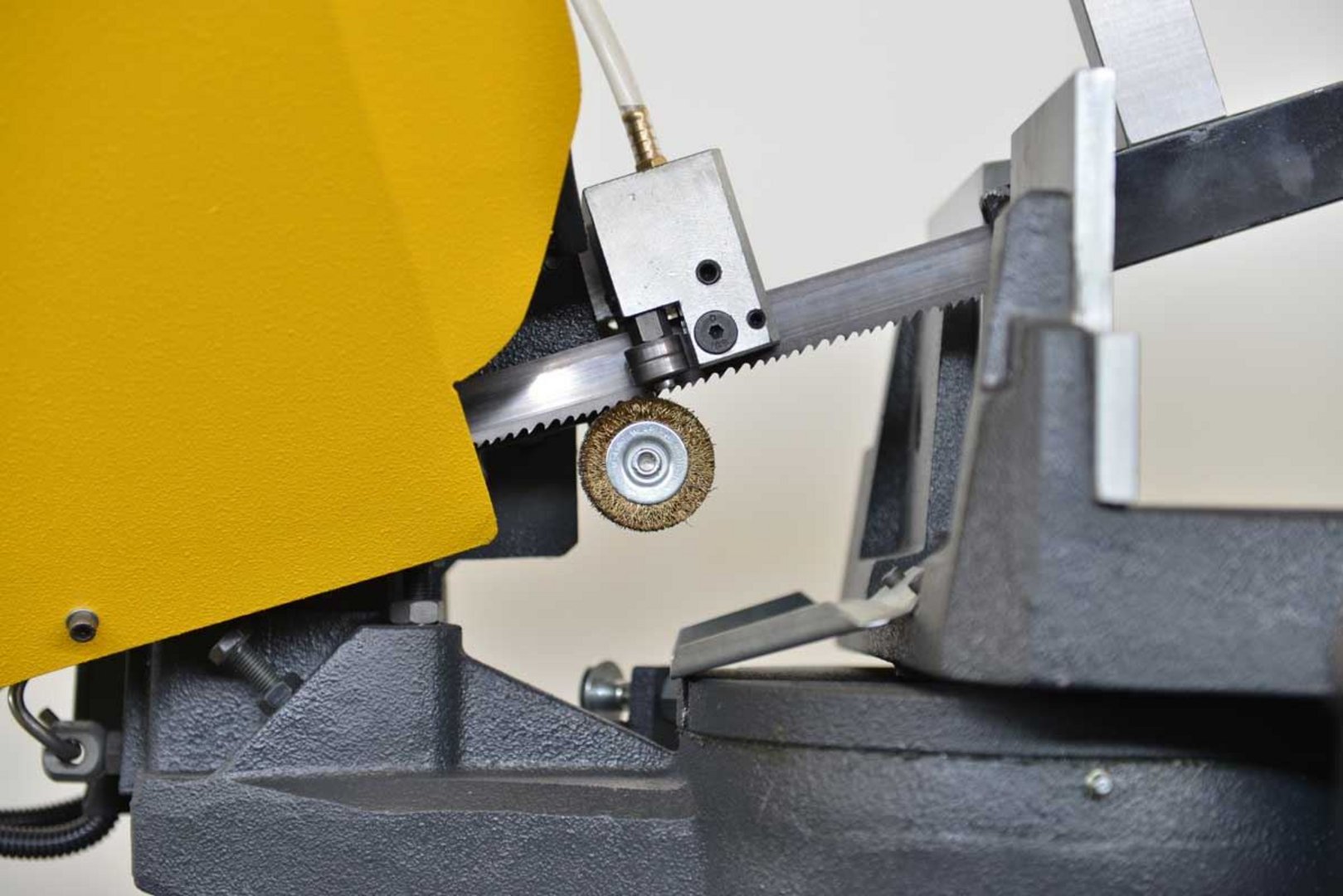

blade brush

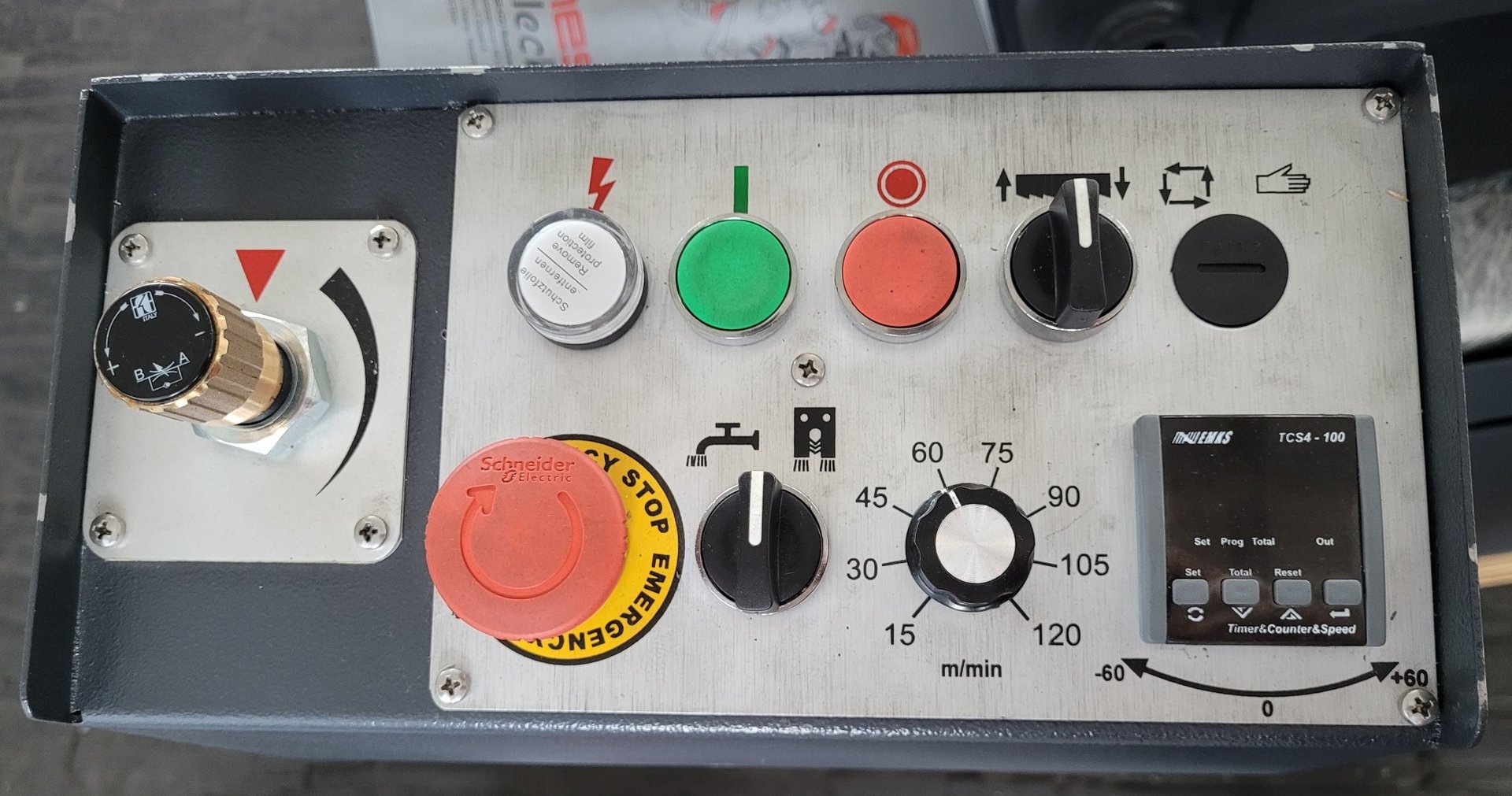

control panel
swivel frame
infinitely adjustable lowering with hydraulic cylinder
hydraulic lifting of the saw frame
quick lowering with automatic switchover to working speed using a sensor pin

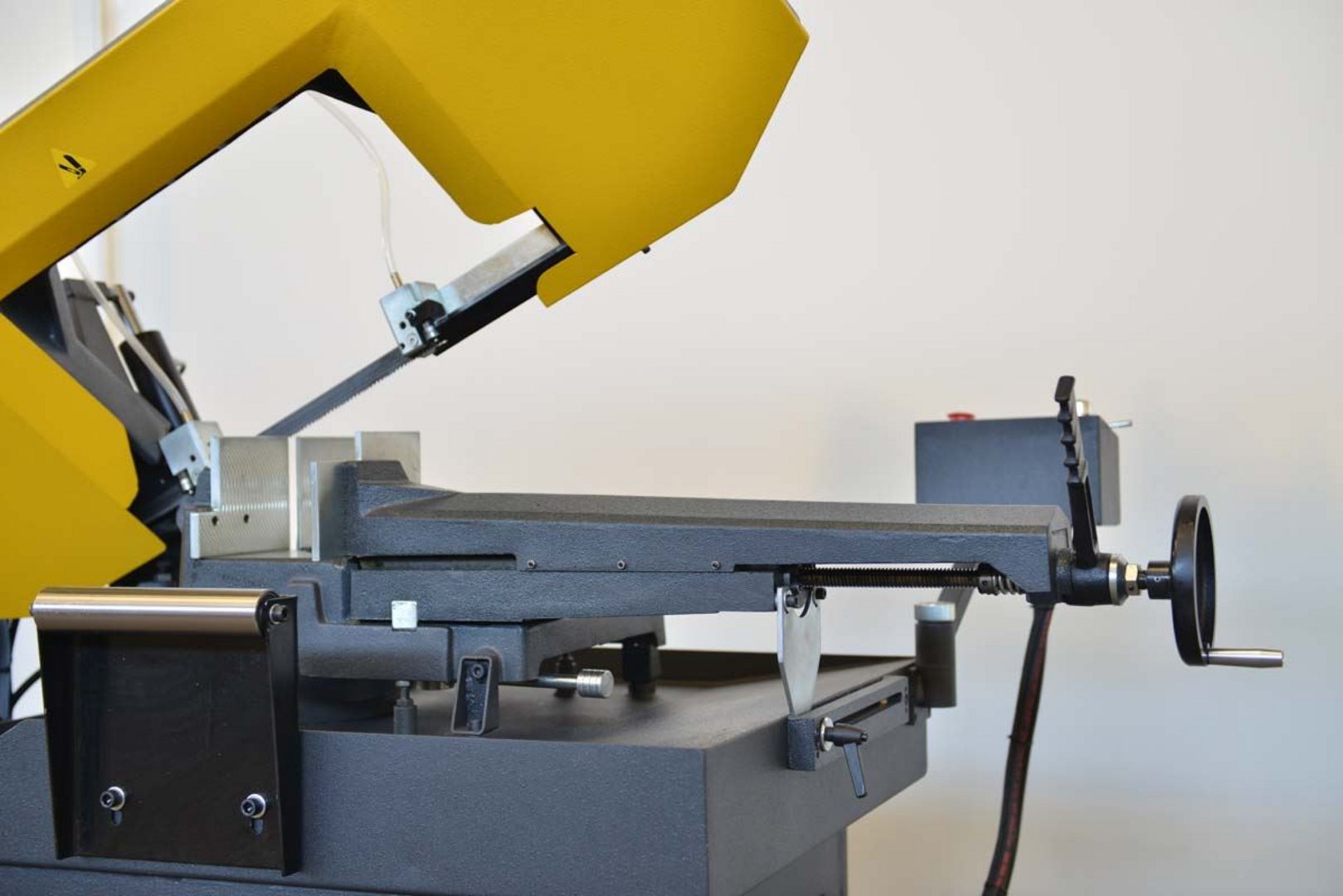

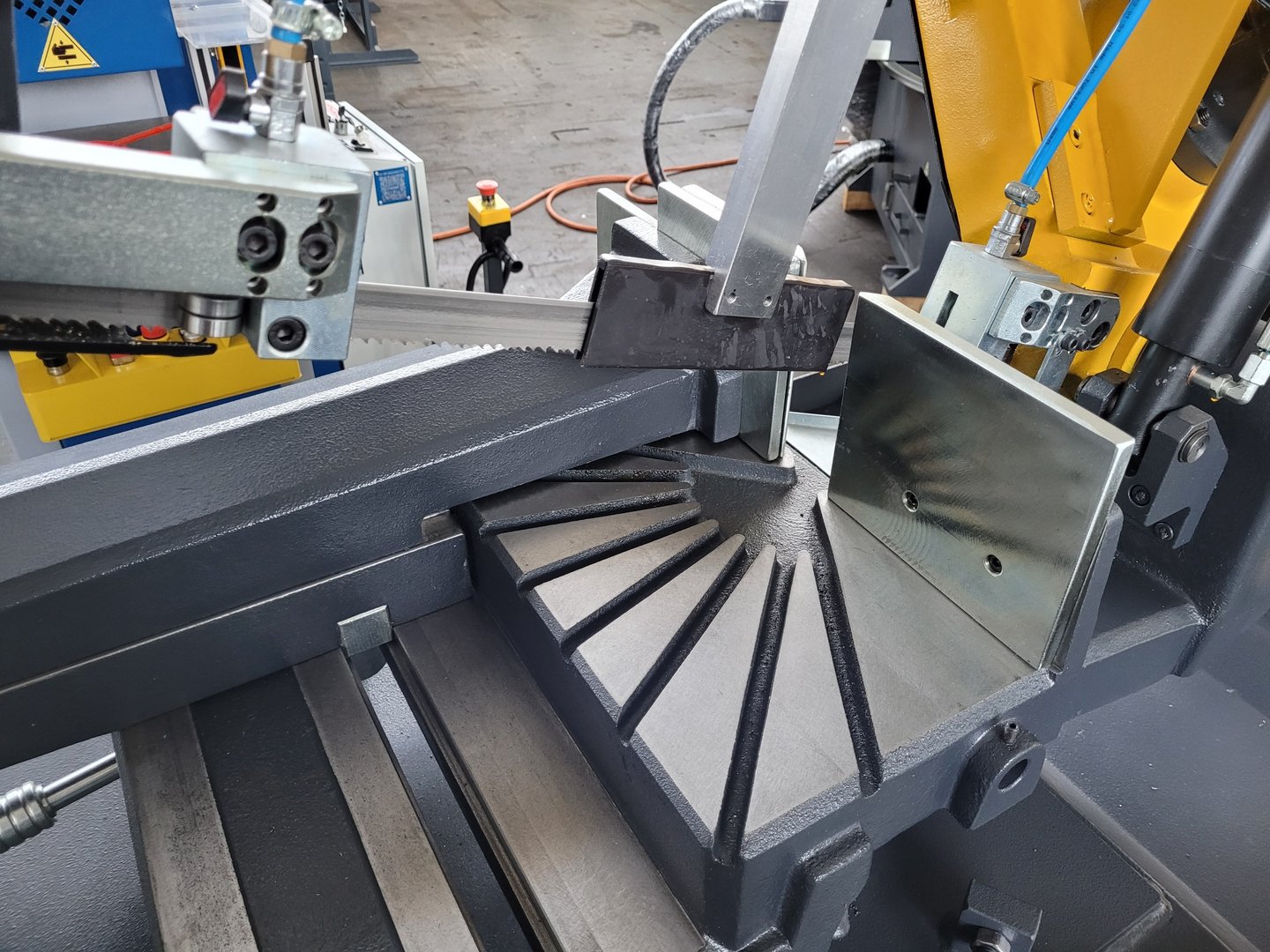

mech. Vice with quick clamping
coolant equipment
machine base
chip collecting tray
user manual in GERMAN or ENGLISH
Options:
Roller tables and band saw blades on request
