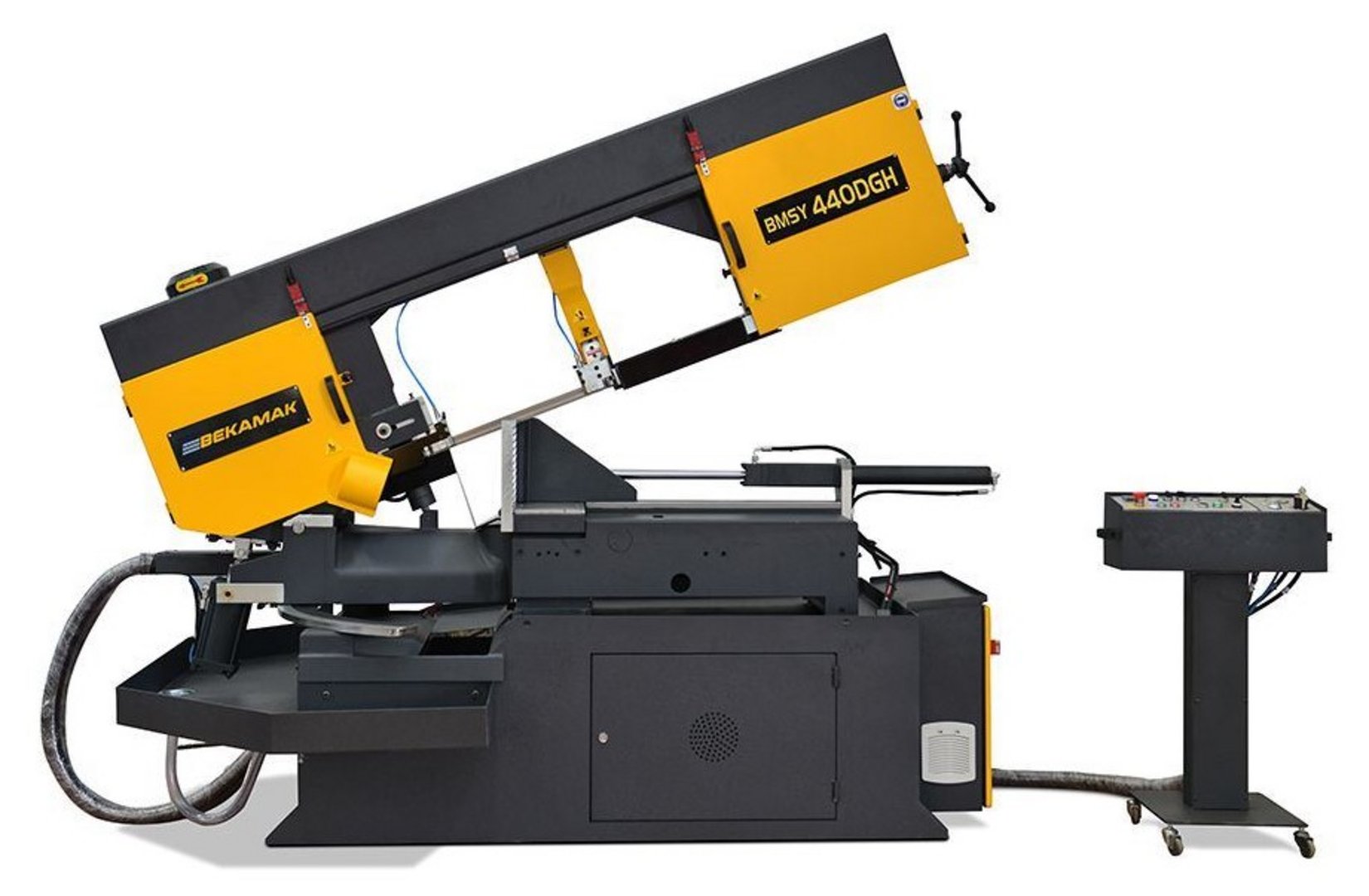

Semiautomatic band saw HESSE by BEKA-MAK BMSY 440 DGH
| Model | BMSY 440 DGH |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 440 mm |
| Cutting capacity 0° square | 440 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 5200x34x1,1 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 440 mm |
| Cutting capacity 0° square | 440 mm |
| Cutting capacity 0° flat | 610x440 mm |
| Cutting capacity 45° | rund 410 mm, quadrat 410 mm, rechteck 410 x 440 mm |
| Cutting capacity 60° | rund 320 mm, quadrat 250 mm, rechteck 250 x 440 mm |
| Cutting capacity - 45° | rund 410 mm, quadrat 410 mm, rechteck 410 x 440 mm |
| Cutting capacity - 60° | rund 320 mm, quadrat 285 mm, rechteck 285 x 440 mm |
| Working height | 860 mm |
| Hydraulic motor | 0.55 kW |
| Motor | 3 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2800 mm |
| Width | 1210 mm |
| Height | 1870 mm |
| Weight | 1540 kg |
Description
hydraulic vice
digital readout for scale of bending angle
hydraulic clamping of sawing arm
turning of sawing arm by hand
continuously variable down speed of sawing arm
automatic sawing frame lifting after cutting
sensitive cutting pressure adjustment subject to material condition
hydromechanic tape tension readout by manometer
mobile control panel
angular geared conical heavy duty gear unit
driven chip brush
tape guiding by hard metal sheet plates and rolls
automatic tape break lock
hydraulic uplift of sawing frame
user manual in GERMAN or ENGLISH
Options:
Roller tables and band saw blades on request
