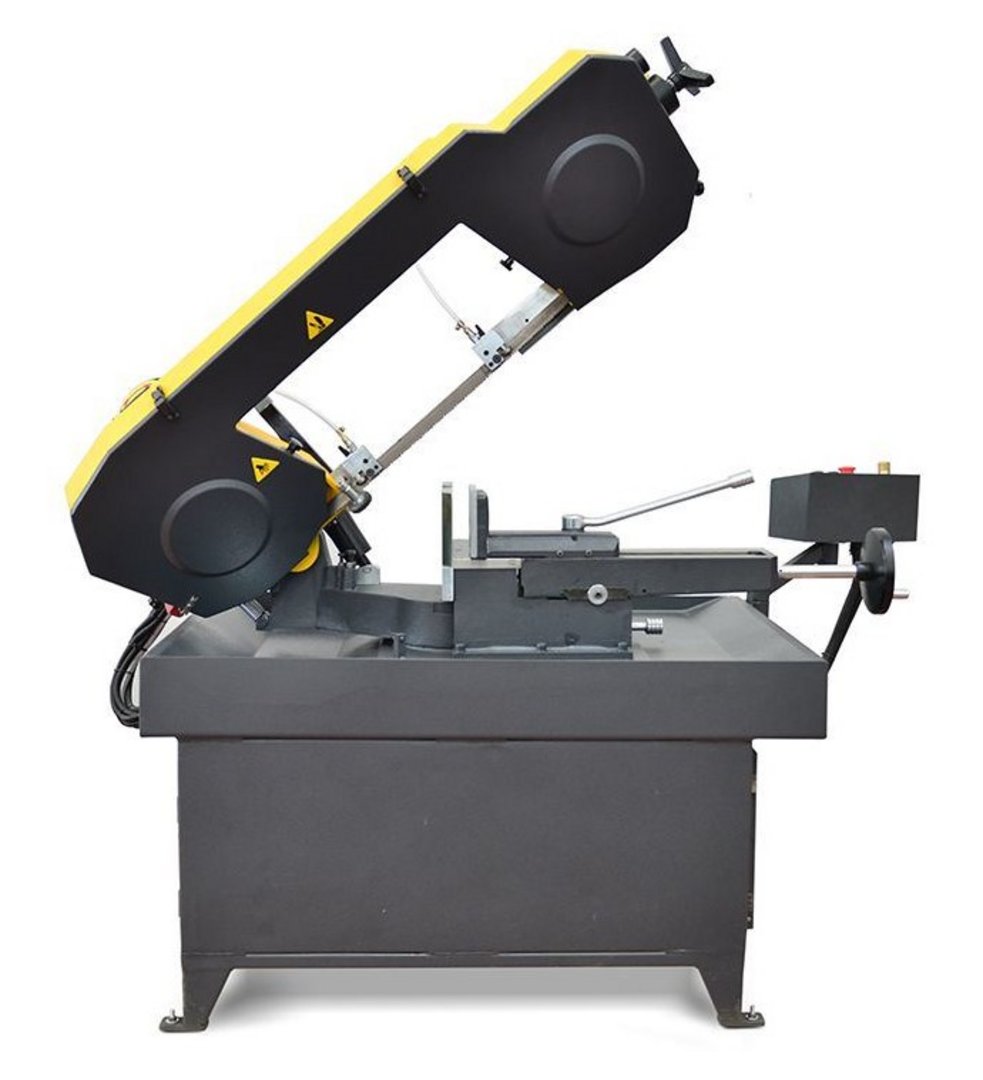

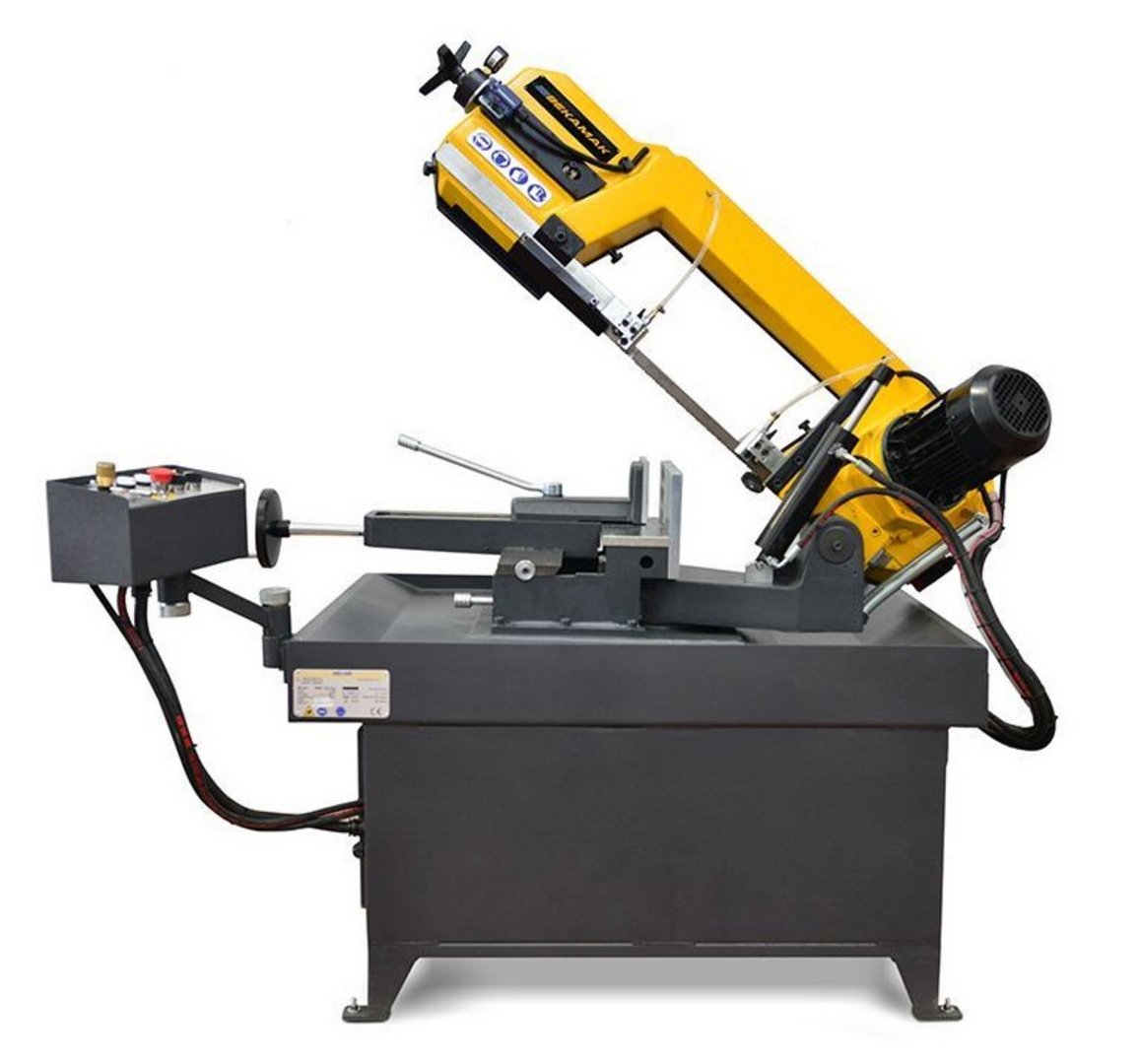

Semiautomatic band saw HESSE by BEKA-MAK BMSY 230 DG
| Model | BMSY 230 DG |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 230 mm |
| Cutting capacity 0° square | 230 mm |
| Stock number | 60027 |
| Origin | Türkiye |
General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 2730x27x0,9 mm |
| Band speed | 35/70 m/min |
| Cutting capacity 0° round | 230 mm |
| Cutting capacity 0° square | 230 mm |
| Cutting capacity 0° flat | 320x130 mm |
| Cutting capacity 45° | rund 210 mm, quadrat 180 mm, rechteck 230 x 160 mm |
| Cutting capacity 60° | rund 120 mm, quadrat 100 mm, rechteck 120 x 100 mm |
| Cutting capacity - 45° | rund 180 mm, quadrat 150 mm, rechteck 230 x 100 mm |
| Working height | 760 mm |
| Hydraulic motor | 0.37 kW |
| Motor | 1.3 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 1350 mm |
| Width | 700 mm |
| Height | 1300 mm |
| Weight | 430 kg |
Description
swivel frame
infinitely adjustable lowering with hydraulic cylinder
hydraulic lifting of the saw frame

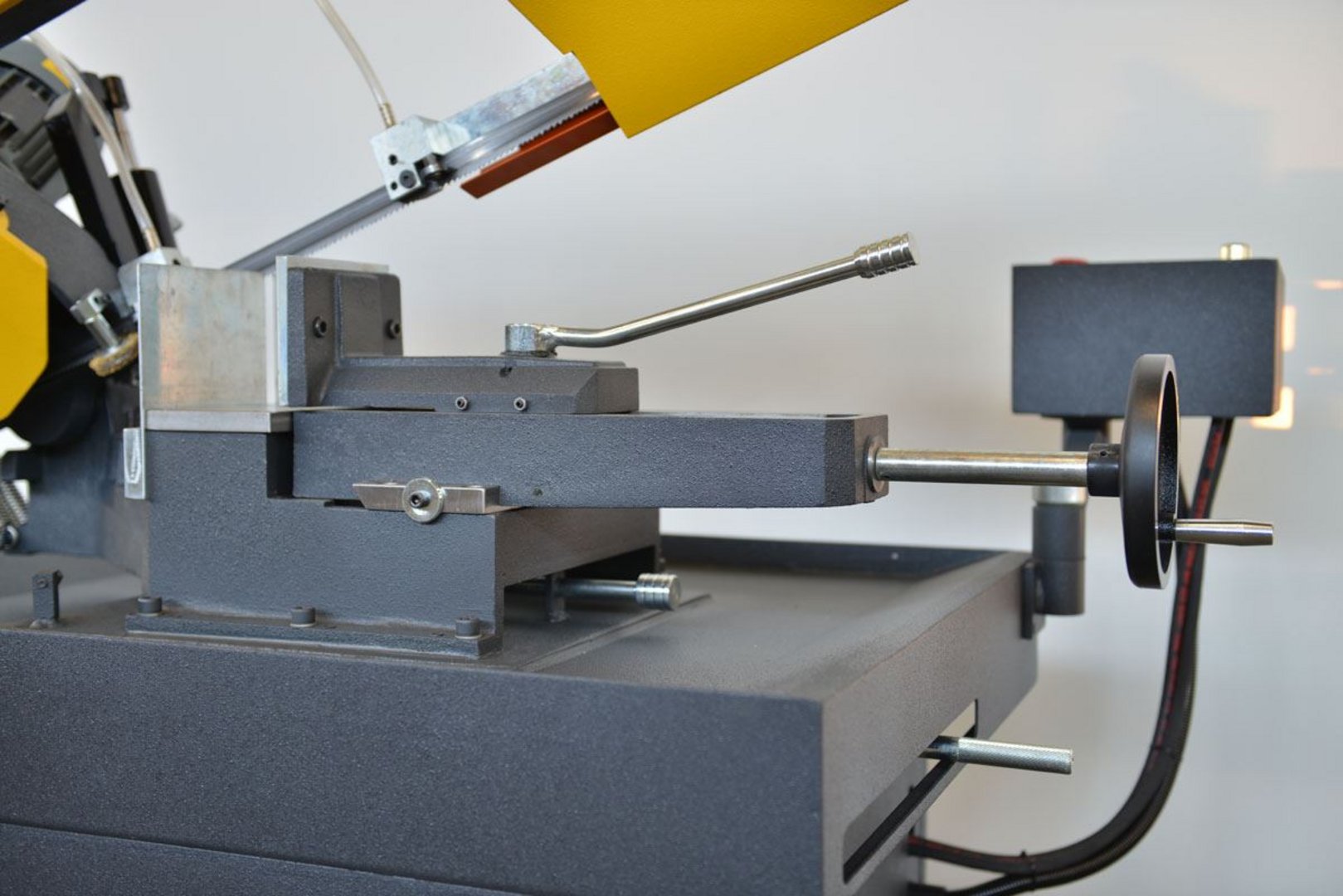

mechanical vice with quick clamping
coolant equipment
machine base
chip collecting tray
user manual in GERMAN or ENGLISH
Options:
Roller tables and band saw blades on request
