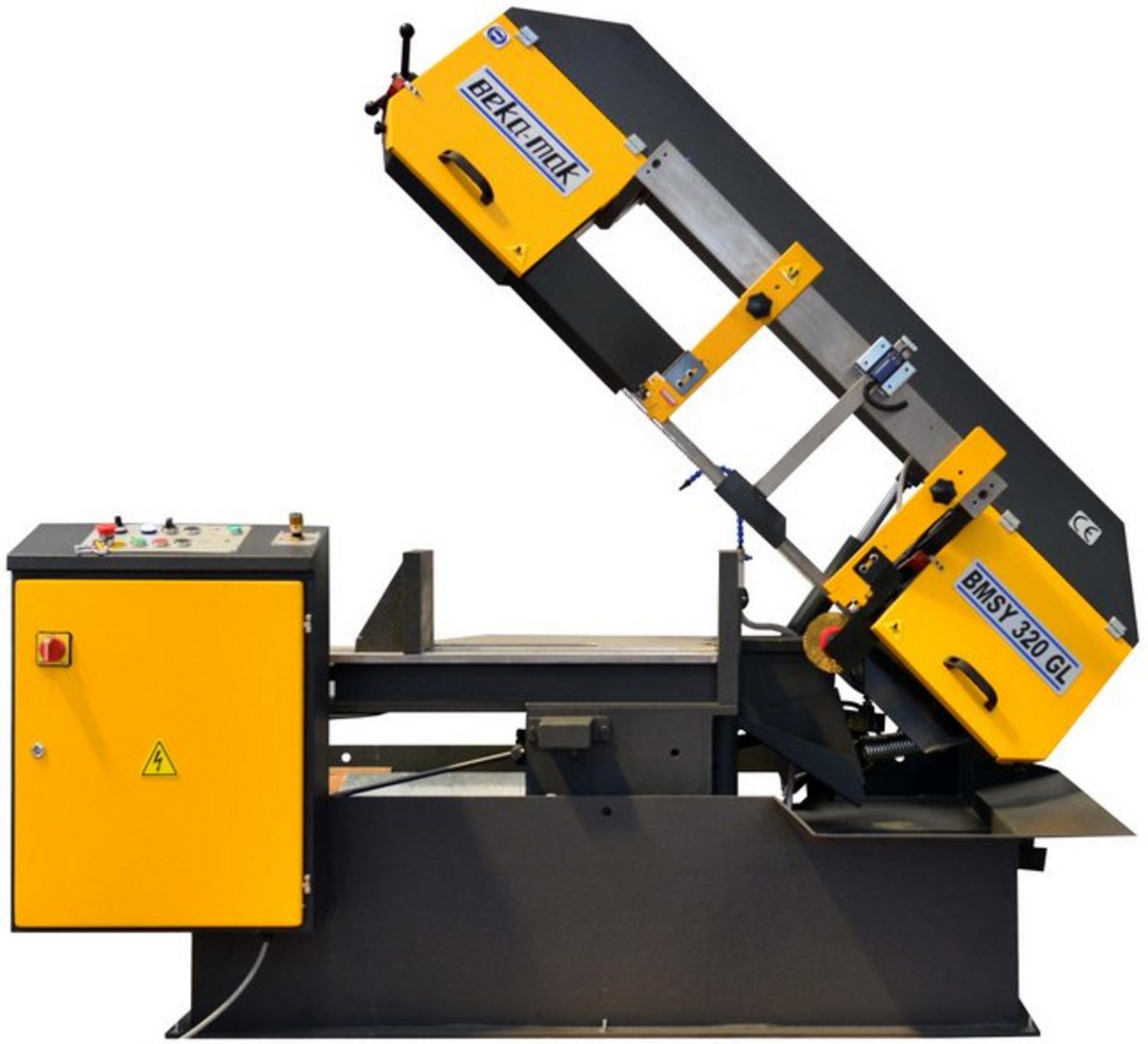

Semiautomatic band saw HESSE by BEKA-MAK BMSY 320 GL
| Model | BMSY 320 GL |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 320 mm |
| Cutting capacity 0° square | 320 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 4160x34x1,1 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 320 mm |
| Cutting capacity 0° square | 320 mm |
| Cutting capacity 0° flat | 610x320 mm |
| Cutting capacity 30° | rund 260 mm, quadrat 225 mm, rechteck 280 x 200 mm |
| Cutting capacity 45° | rund 320 mm, quadrat 320 mm, rechteck 355 x 320 mm |
| Cutting capacity 60° | rund 320 mm, quadrat 320 mm, rechteck 510 x 320 mm |
| Working height | 740 mm |
| Hydraulic motor | 0.37 kW |
| Motor | 2.2 kW |
| Coolant pump motor | 0.12 kW |
| Cutting capacity 75° | rund 320 mm, quadrat 320 mm, rechteck 580 x 320 mm |
Dimensions and weight
| Length | 2100 mm |
| Width | 1200 mm |
| Height | 1350 mm |
| Weight | 1150 kg |
Description
blade brush
control panel
height adjustment by switch
hydromechanical belt tension
inverter
material limitation shaft
cooling equipment
saw blade
security switch
gearbox
adjustable graduation scale for miter cuts
1,2 meter roller conveyor
hydraulic lifting of the saw frame
user manual in GERMAN or ENGLISH
option:
hydraulic top clamping
