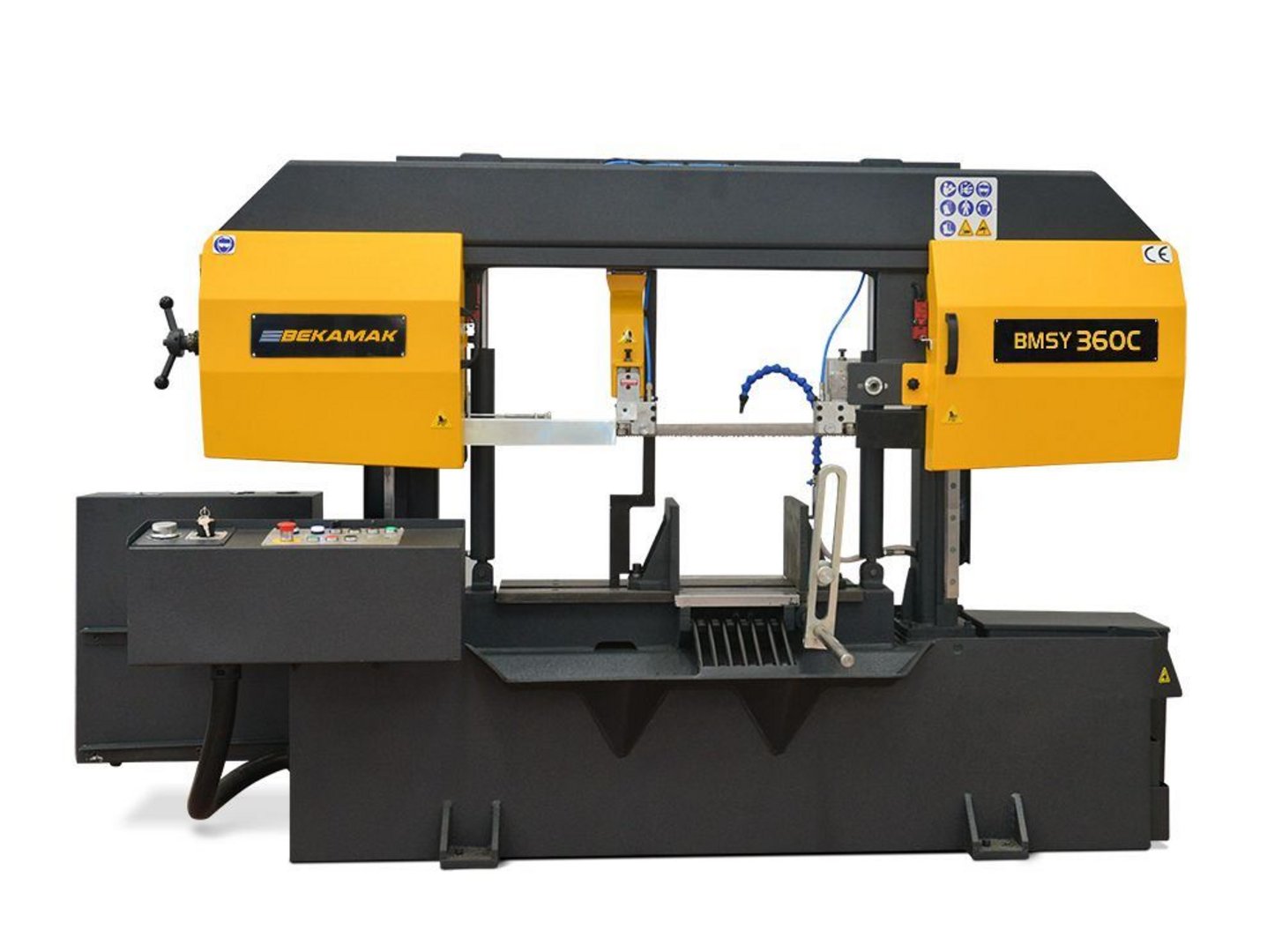

Semiautomatic band saw HESSE by BEKA-MAK BMSY 360 C
| Model | BMSY 360 C |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 380 mm |
| Cutting capacity 0° square | 380 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 4800x34x1,1 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 380 mm |
| Cutting capacity 0° square | 380 mm |
| Cutting capacity 0° flat | 520x380 mm |
| Cutting capacity 45° | rund 300 mm, quadrat 300 mm, rechteck 300 x 380 mm |
| Working height | 590 mm |
| Hydraulic motor | 0.55 kW |
| Motor | 3 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 2850 mm |
| Width | 930 mm |
| Height | 1660 mm |
| Weight | 1330 kg |
Description
2° inclined band
blade brush

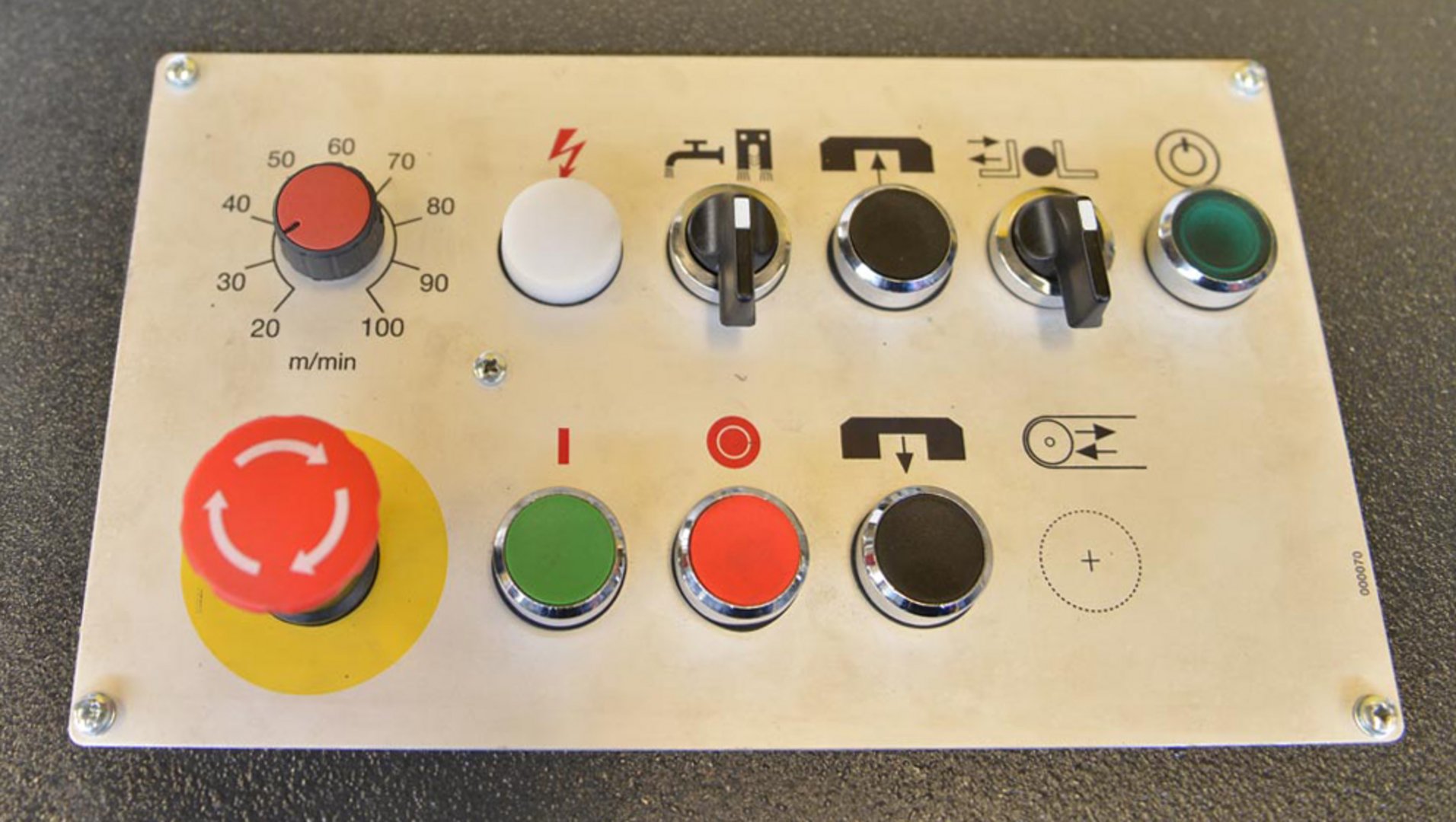

control panel
hydraulic vice
hydromechanical blade tension
inverter for continous adjustable cutting speed

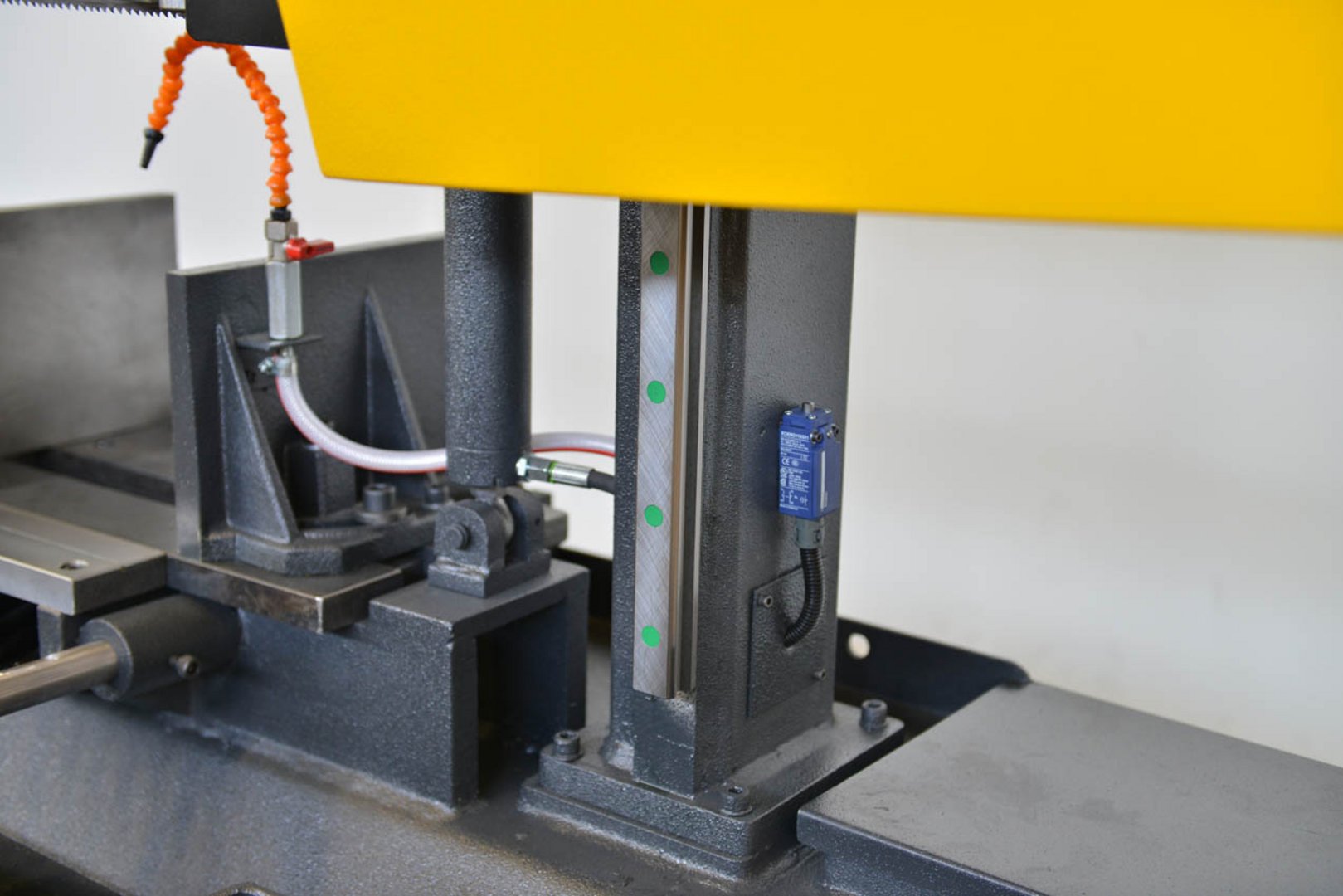

linear guides
optical height adjustment
pressure adjustment
coolant pump
saw band
security switch
heavy duty gearbox

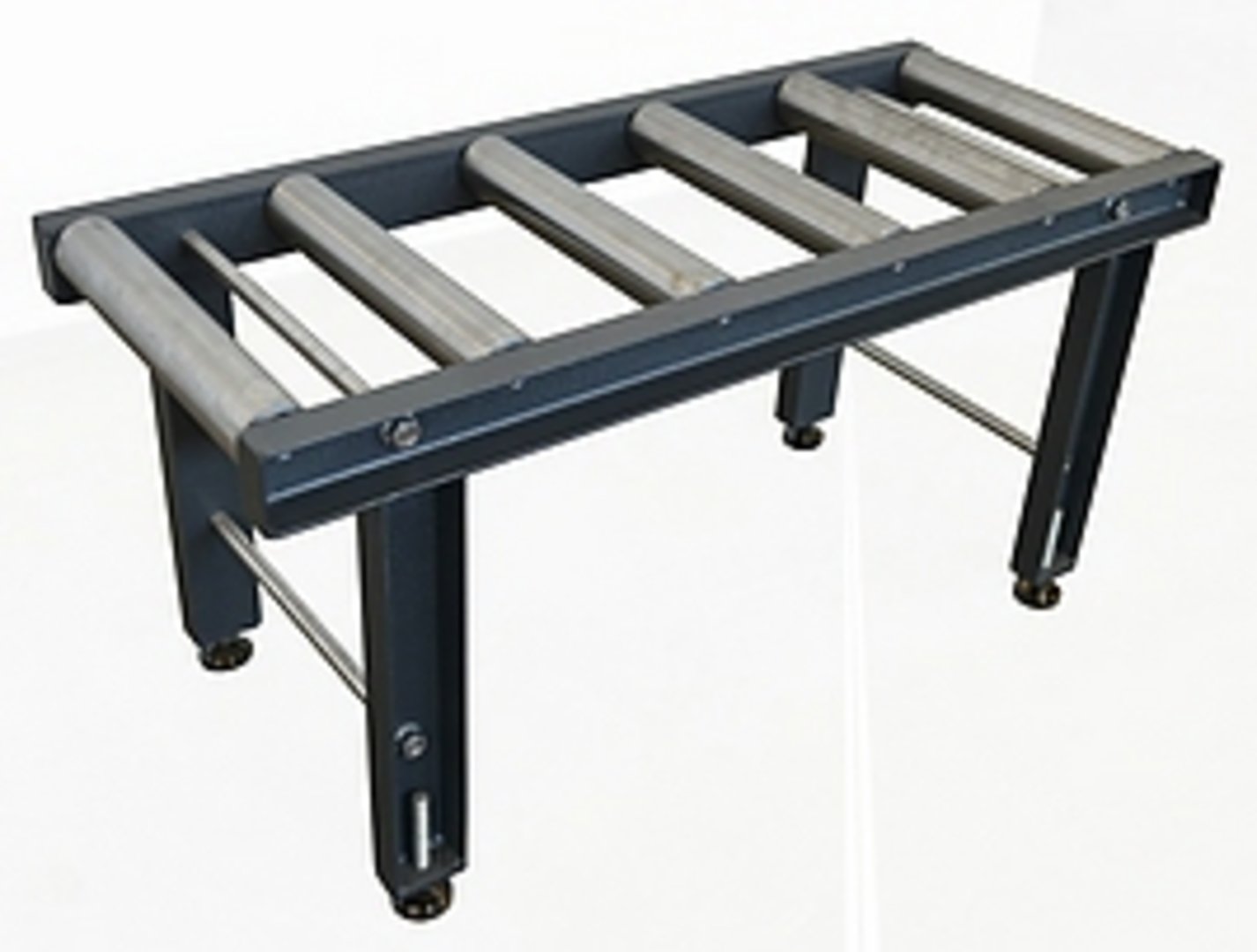

1,2 meter roller table
user manual in GERMAN or ENGLISH
option:
turn table for mitre cuts
hydraulic top clamping
