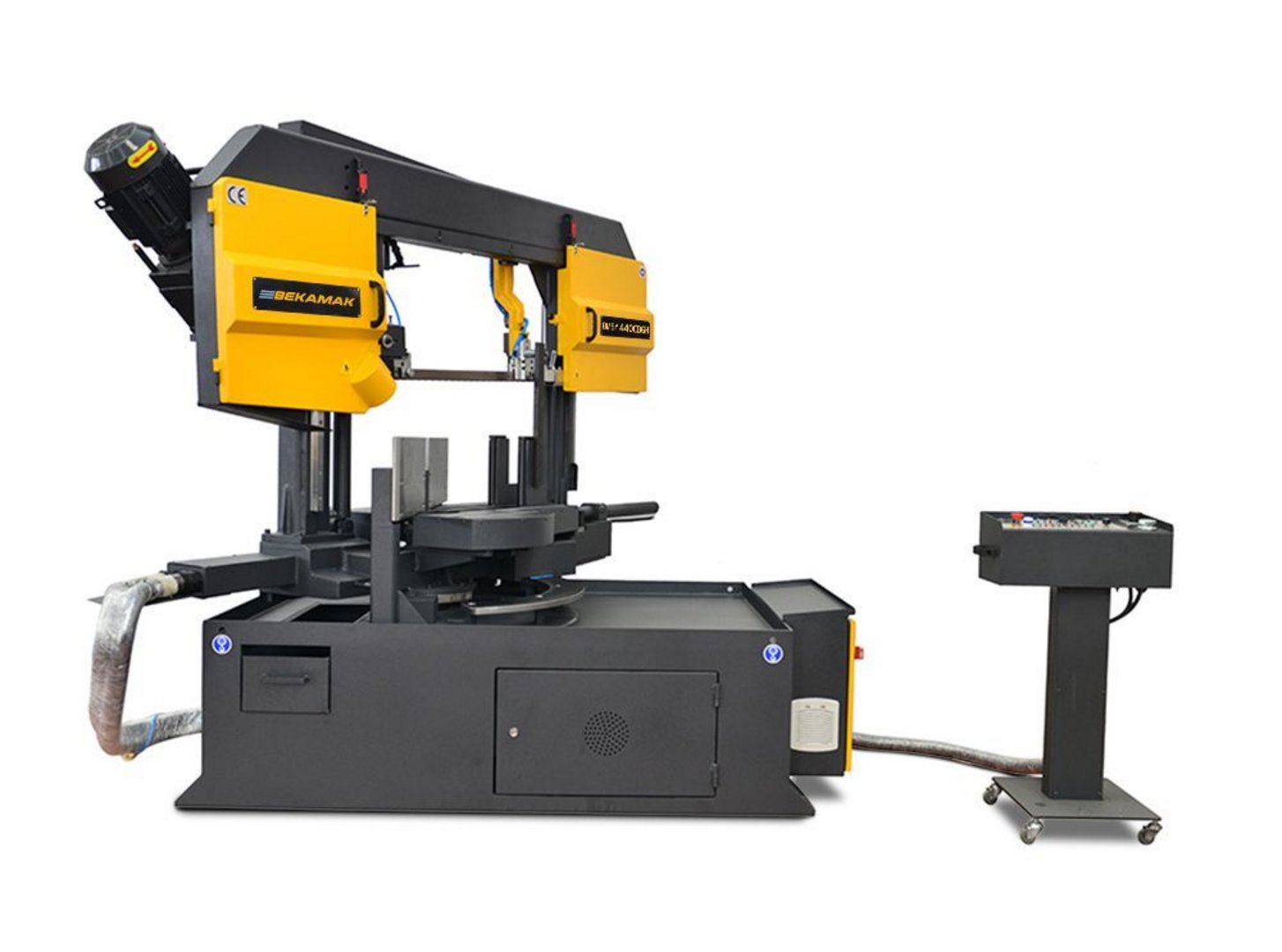

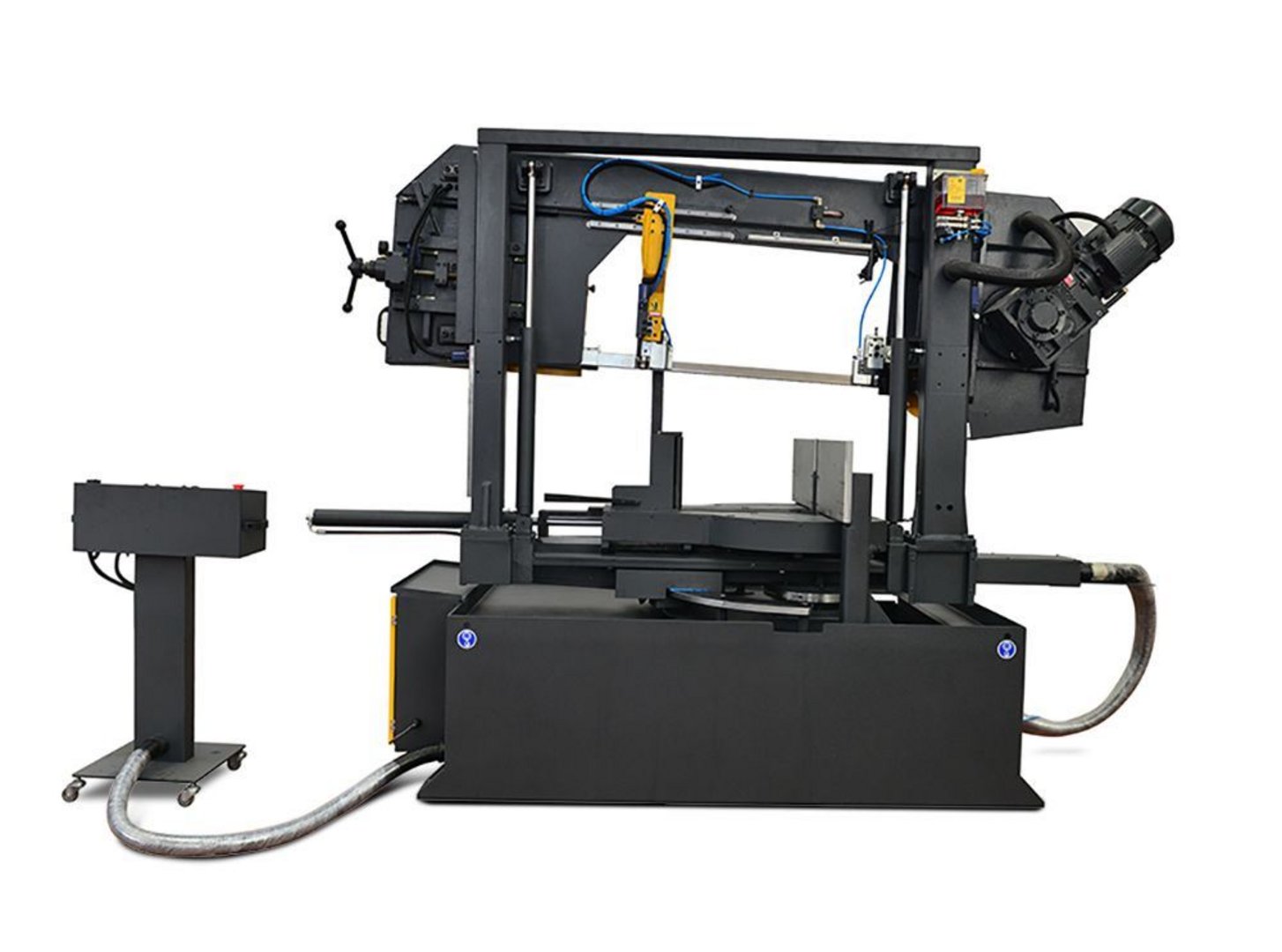

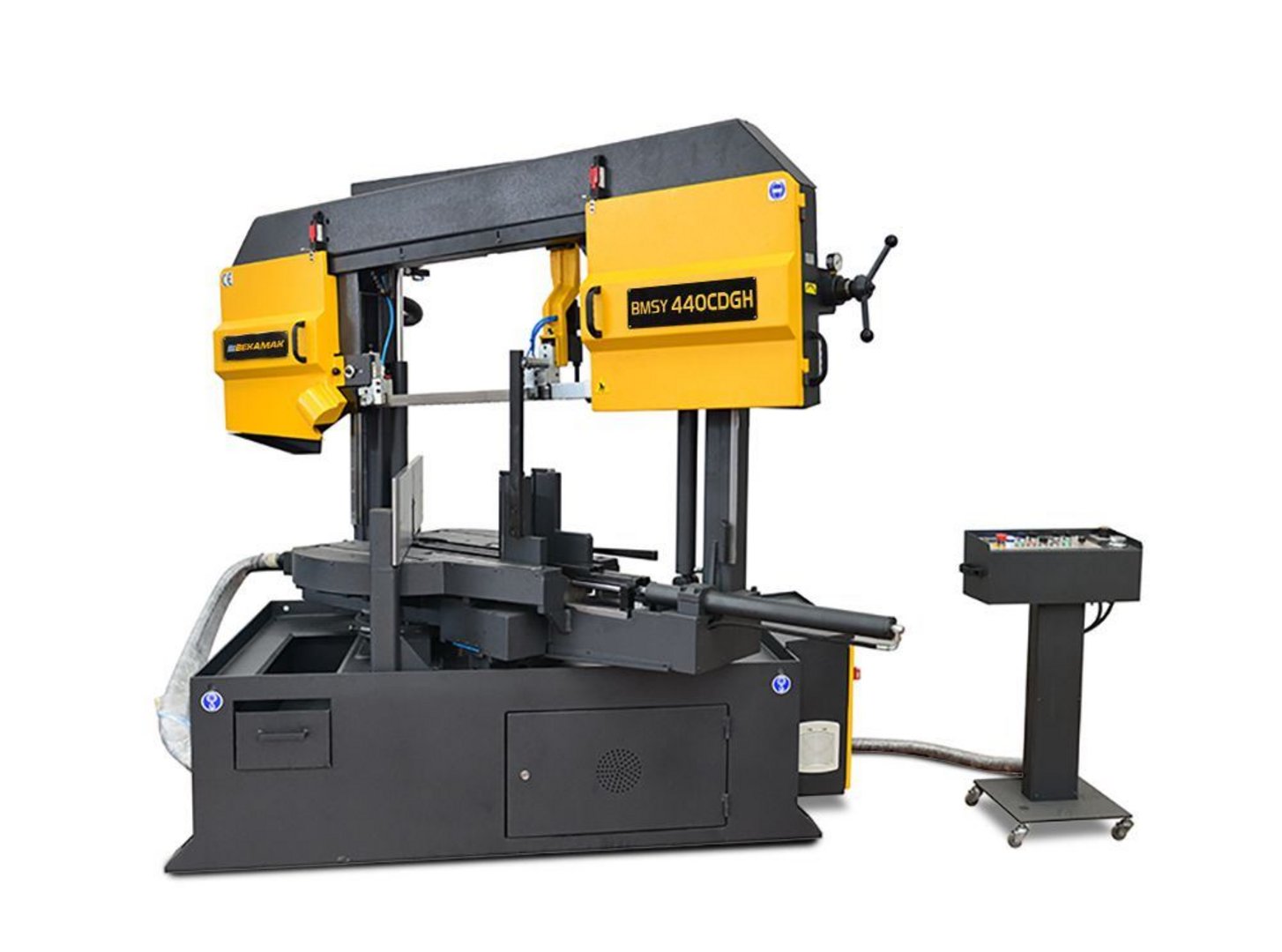

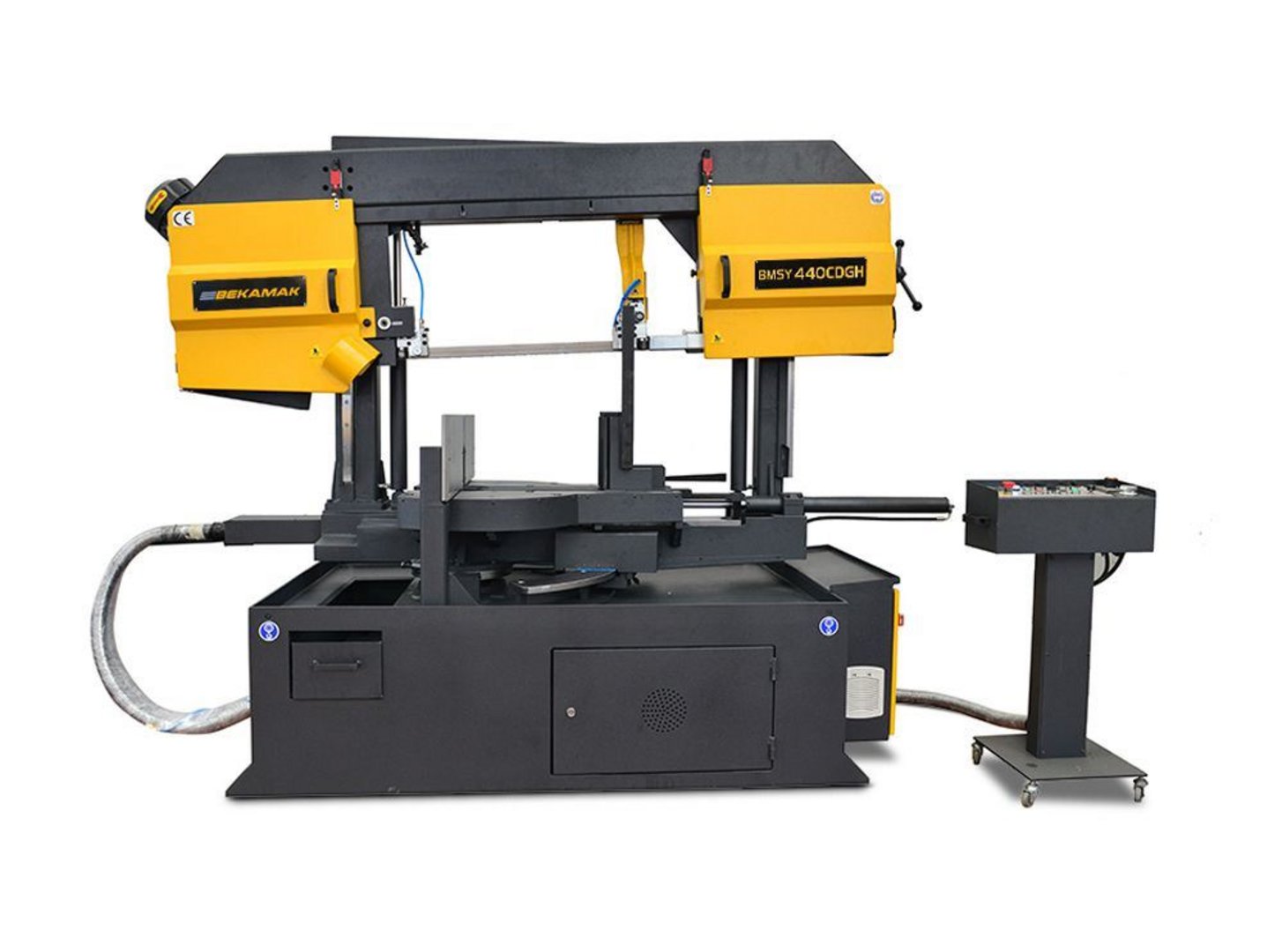

Semiautomatic band saw HESSE by BEKA-MAK BMSY 440 CDGH
| Model | BMSY 440 CDGH |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 440 mm |
| Cutting capacity 0° square | 440 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 6300x41x1,3 mm |
| Band speed continous | 15 - 120 m/min |
| Cutting capacity 0° round | 440 mm |
| Cutting capacity 0° square | 440 mm |
| Cutting capacity 0° flat | 640 x 440 mm |
| Cutting capacity 45° | round 440 mm, rectangular 400 x 440 mm, square 400 mm |
| Cutting capacity 60° | round 250 mm, rectangular 250 x 440 mm, square 250mm |
| Cutting capacity - 45° | round 390 mm, rectangular 390 x 440 mm, square 390 mm |
| Working height | 860 mm |
| Hydraulic motor | 1.1 kW |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3150 mm |
| Width | 1850 mm |
| Height | 2115 mm |
| Weight | 2050 kg |
Description
3° inclined sawing band
blade brush

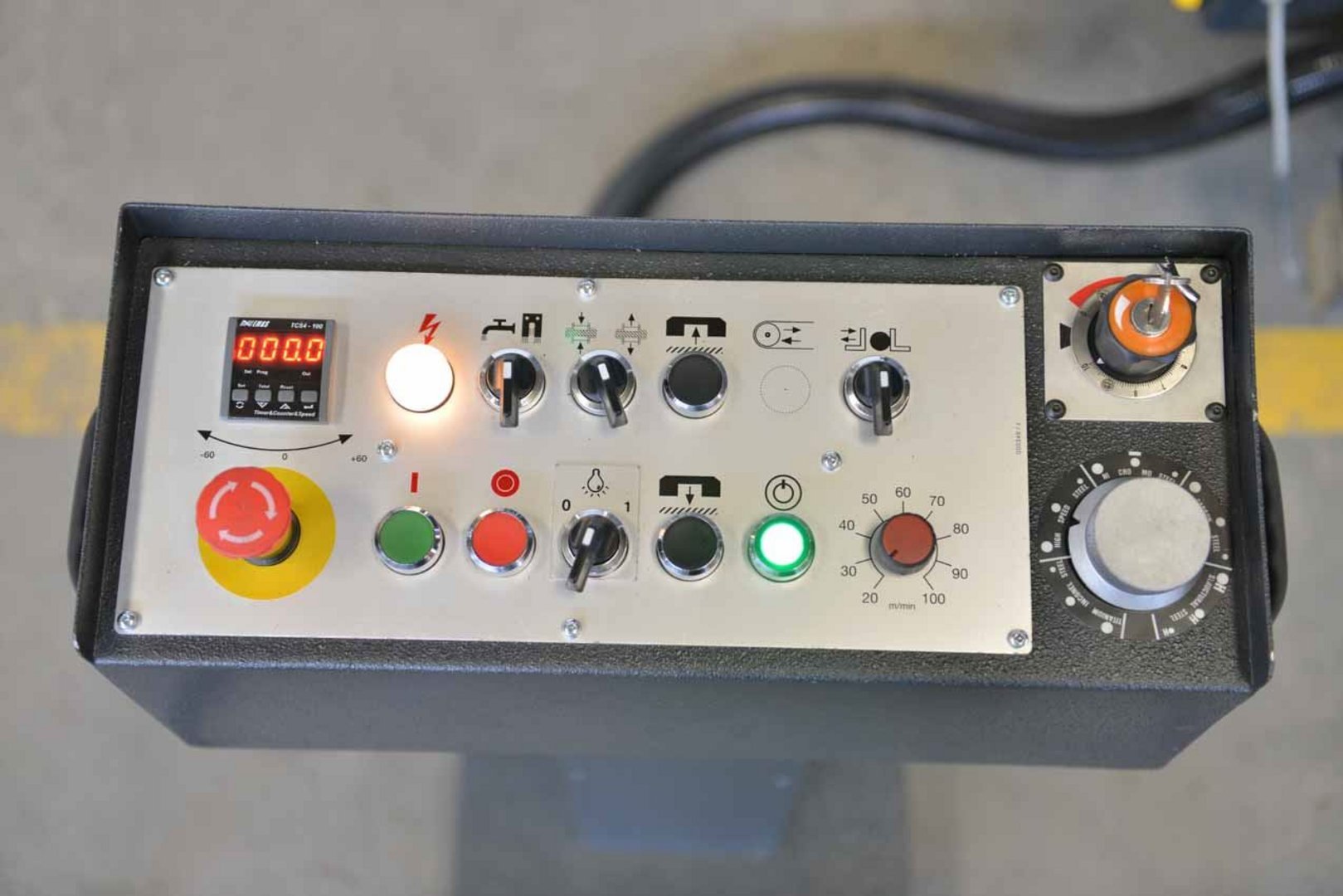

control panel
hydraulic vice
hydromechanical blade tension
inverter
linear way
height adjustment
pressure adjustment
coolant pump
saw blade
security switch
gearbox
syncronized movement of sawing arm/clamping jaw
hydraulic uplift of sawing frame
user manual in GERMAN or ENGLISH
Alternativ:

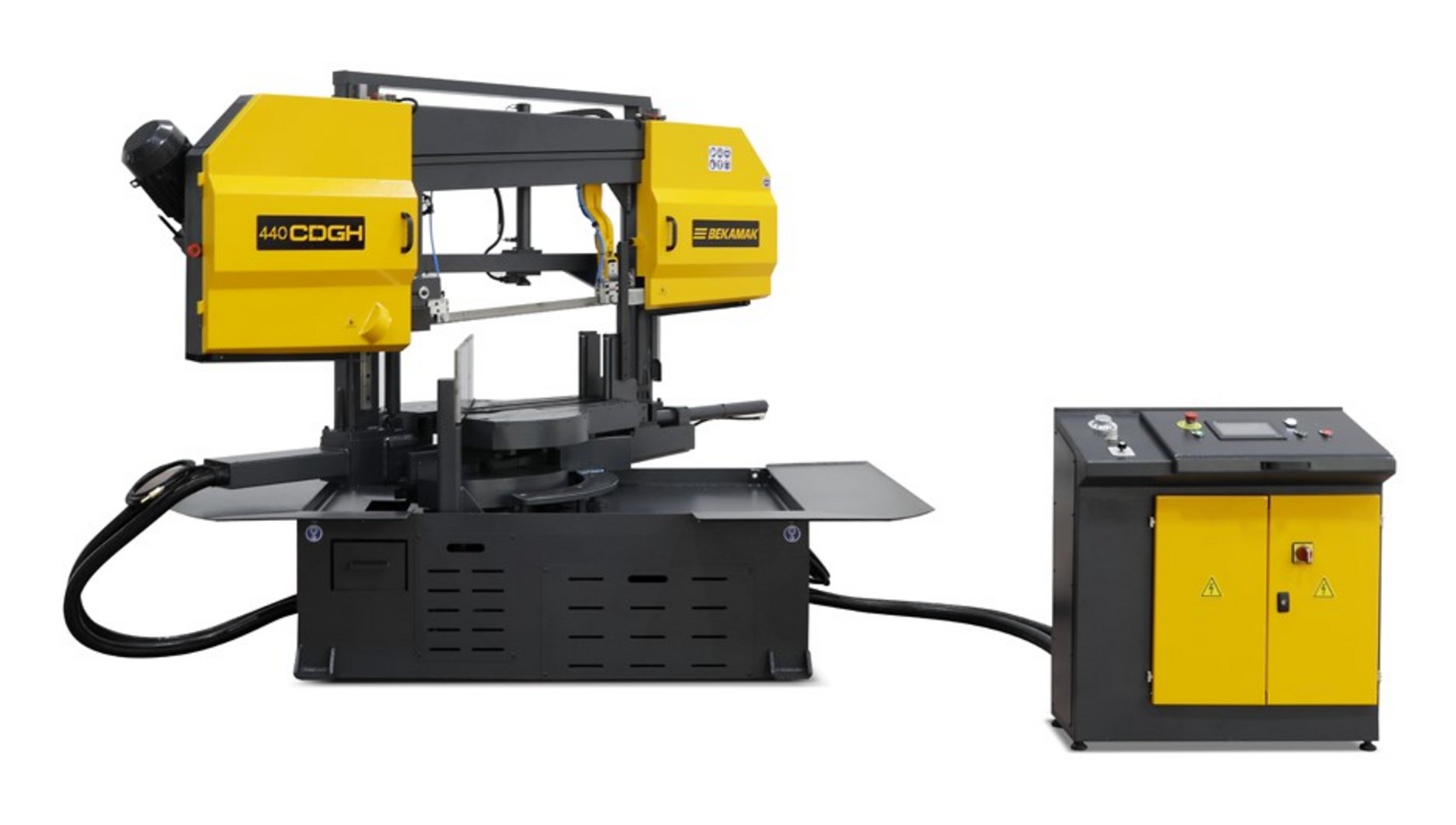

Version BMSY 440 CDGH NC
with automatic mitre adjustment by NC control
