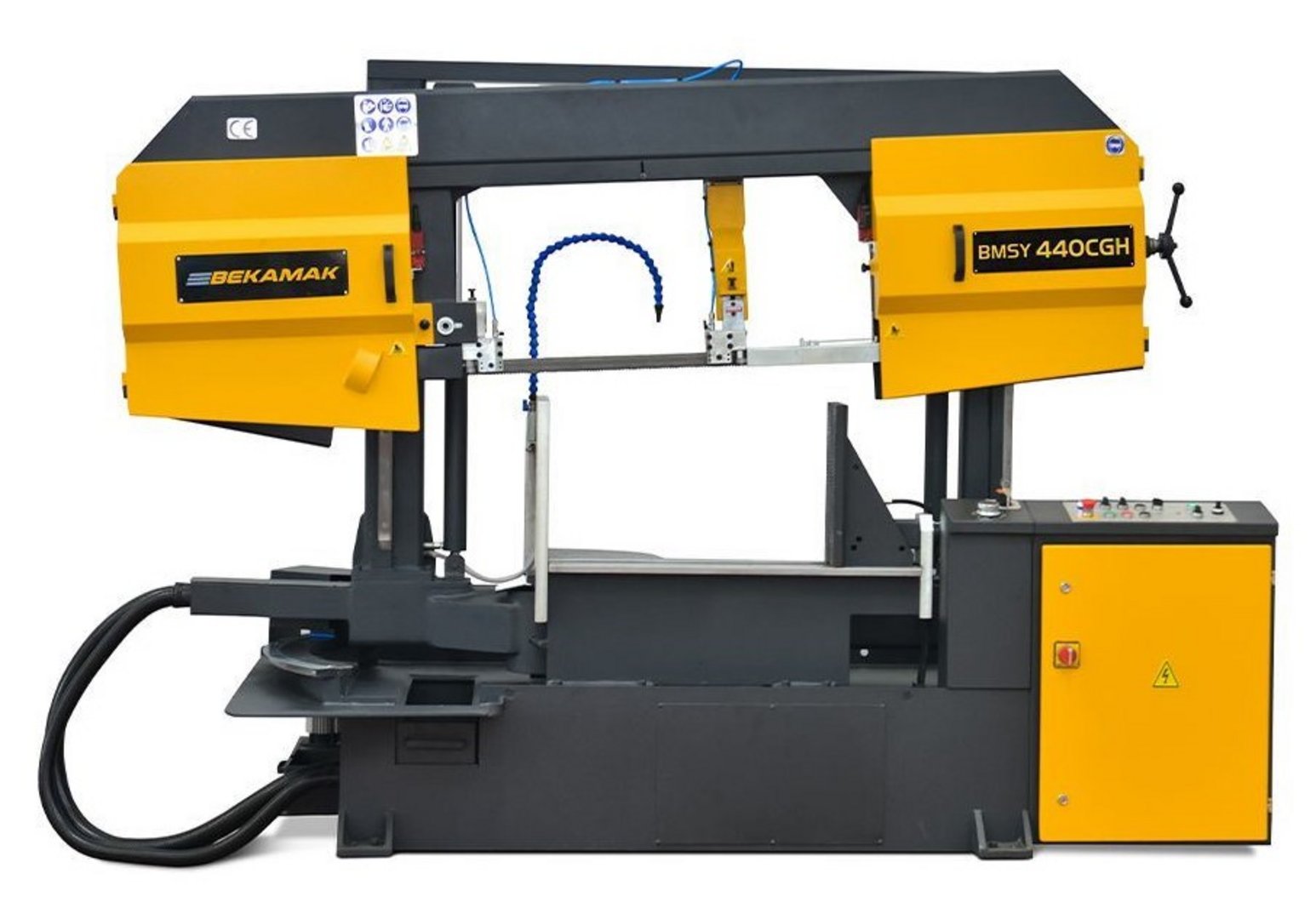

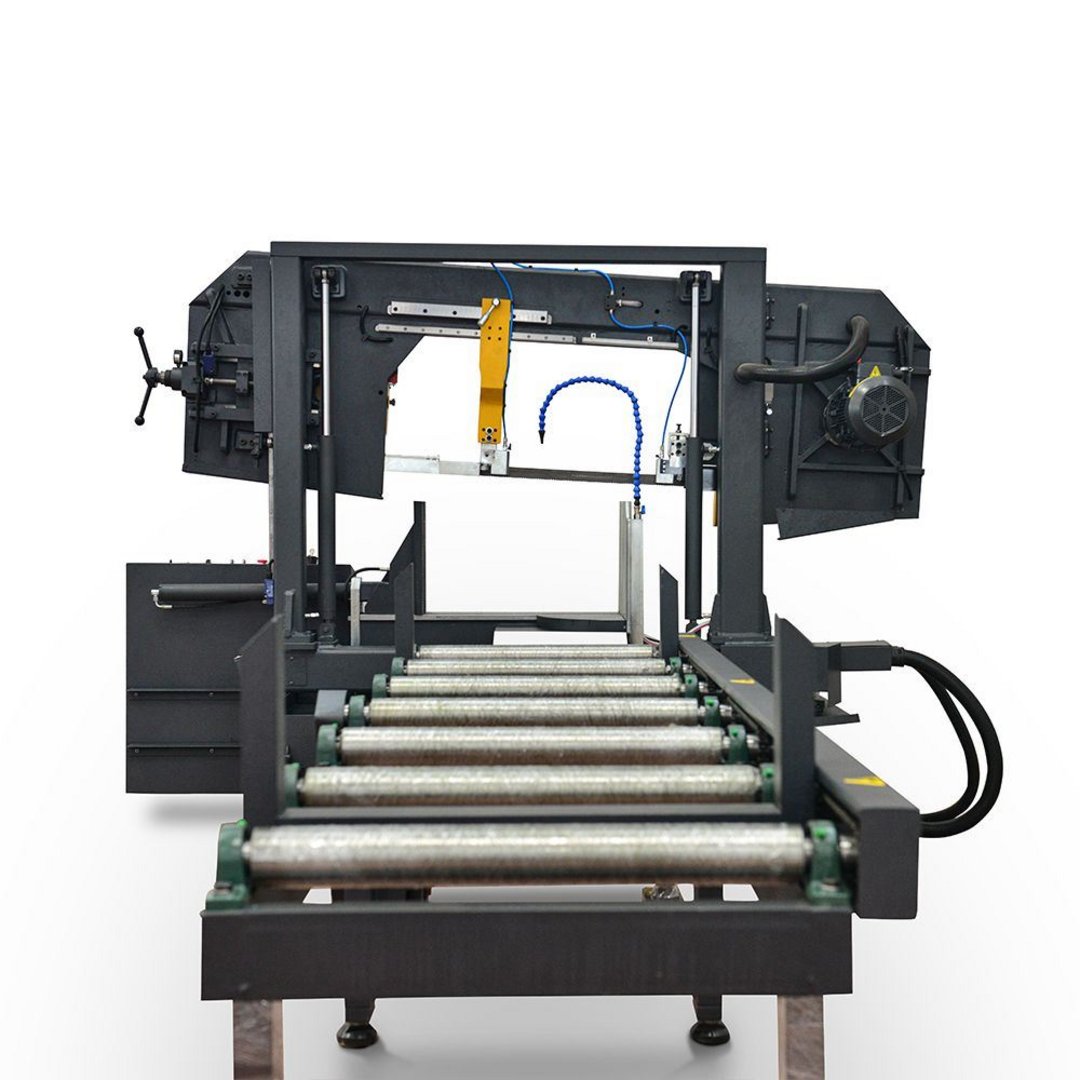

Semiautomatic band saw HESSE by BEKA-MAK BMSY 440 CGH
| Model | BMSY 440 CGH |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 450 mm |
| Cutting capacity 0° square | 425 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 5400x41x1,3 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 450 mm |
| Cutting capacity 0° square | 425 mm |
| Cutting capacity 0° flat | 560x425 mm |
| Cutting capacity 45° | rund 430 mm, quadrat 425 mm, rechteck 430 x 425 mm |
| Cutting capacity 60° | rund 320 mm, quadrat 290 mm, rechteck 425 x 260 mm |
| Working height | 690 mm |
| Hydraulic motor | 0.55 kW |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3090 mm |
| Width | 1200 mm |
| Height | 1940 mm |
| Weight | 1630 kg |
Description

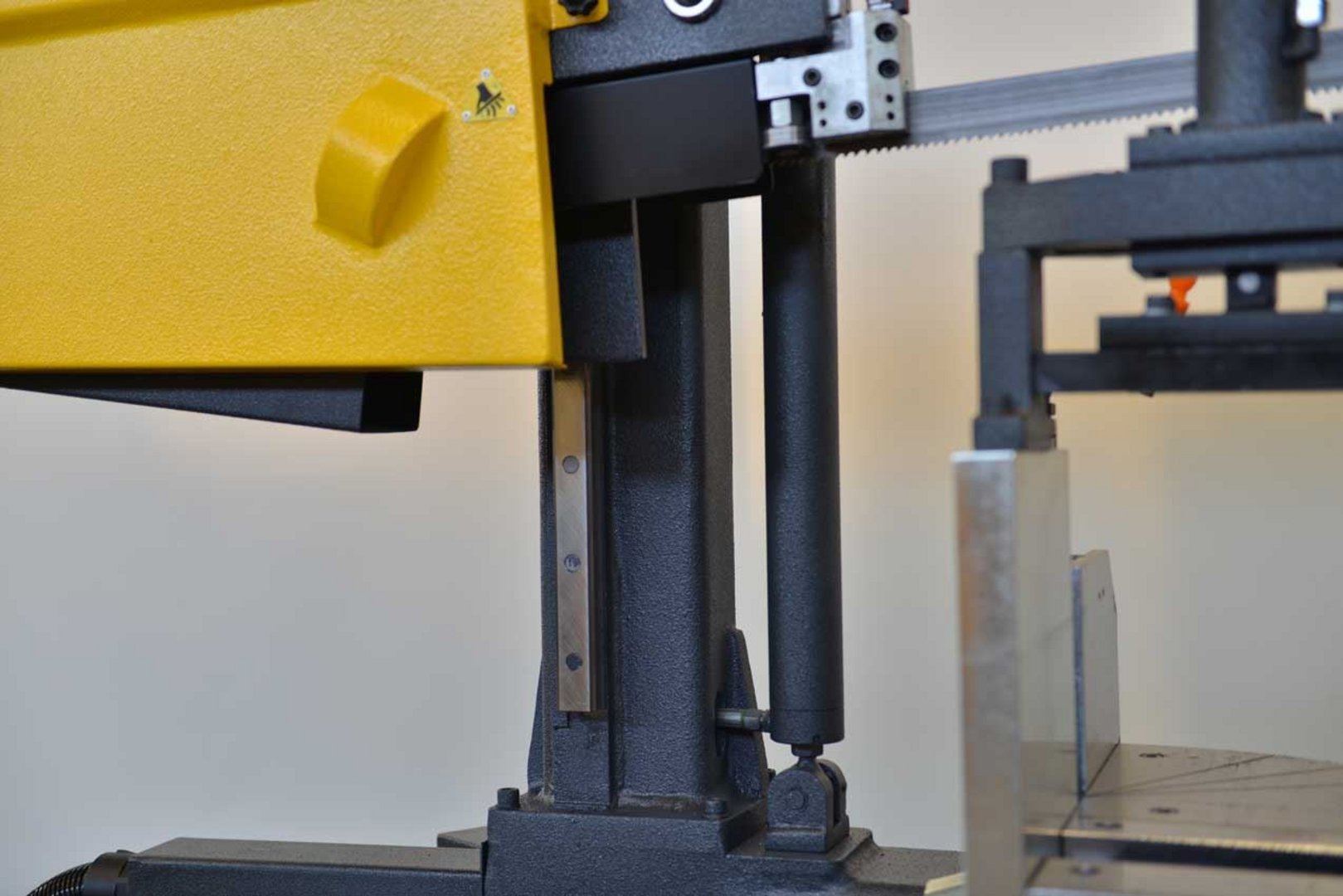

double linear guides
hydraulic-mechanical band tension

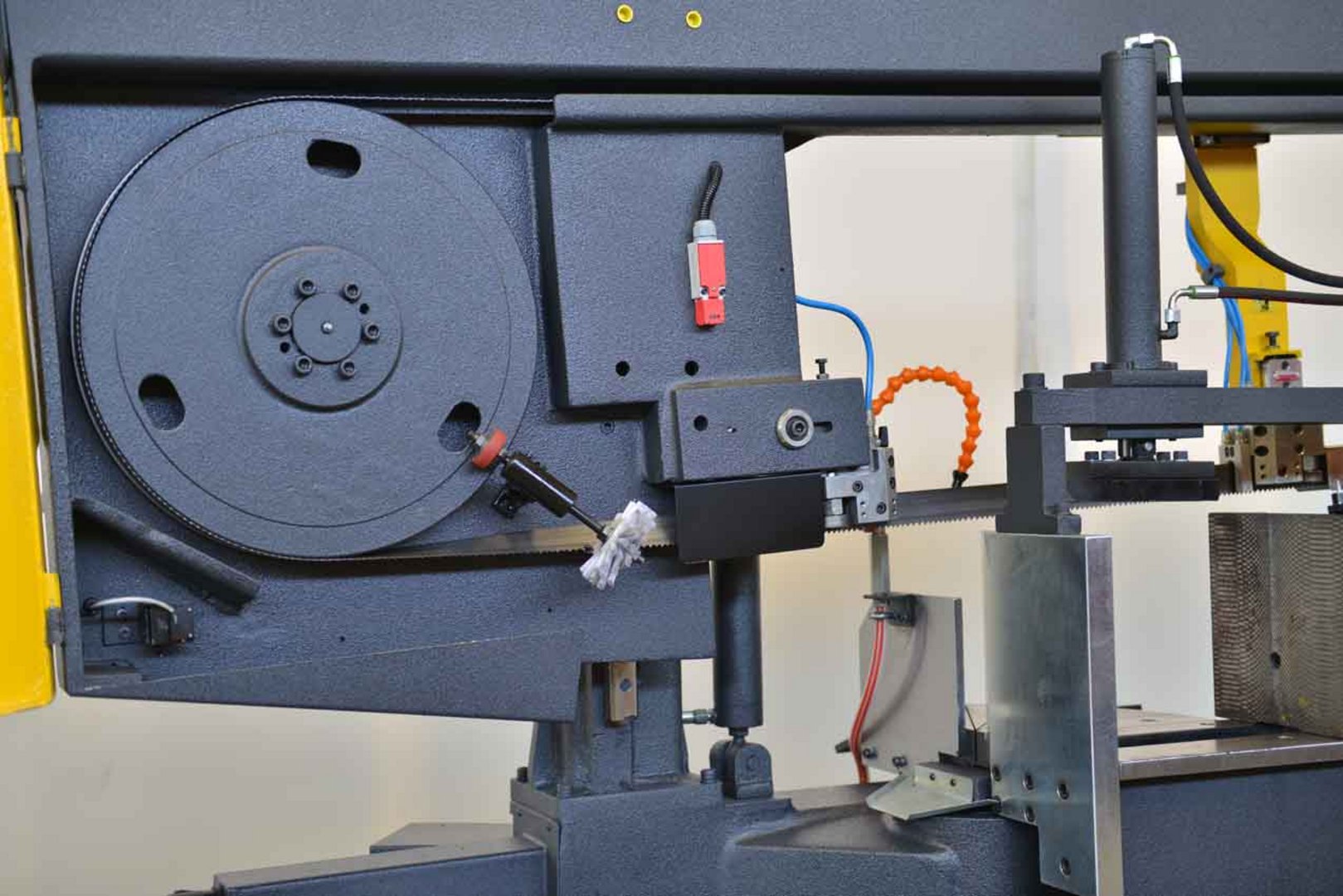

saw band brush

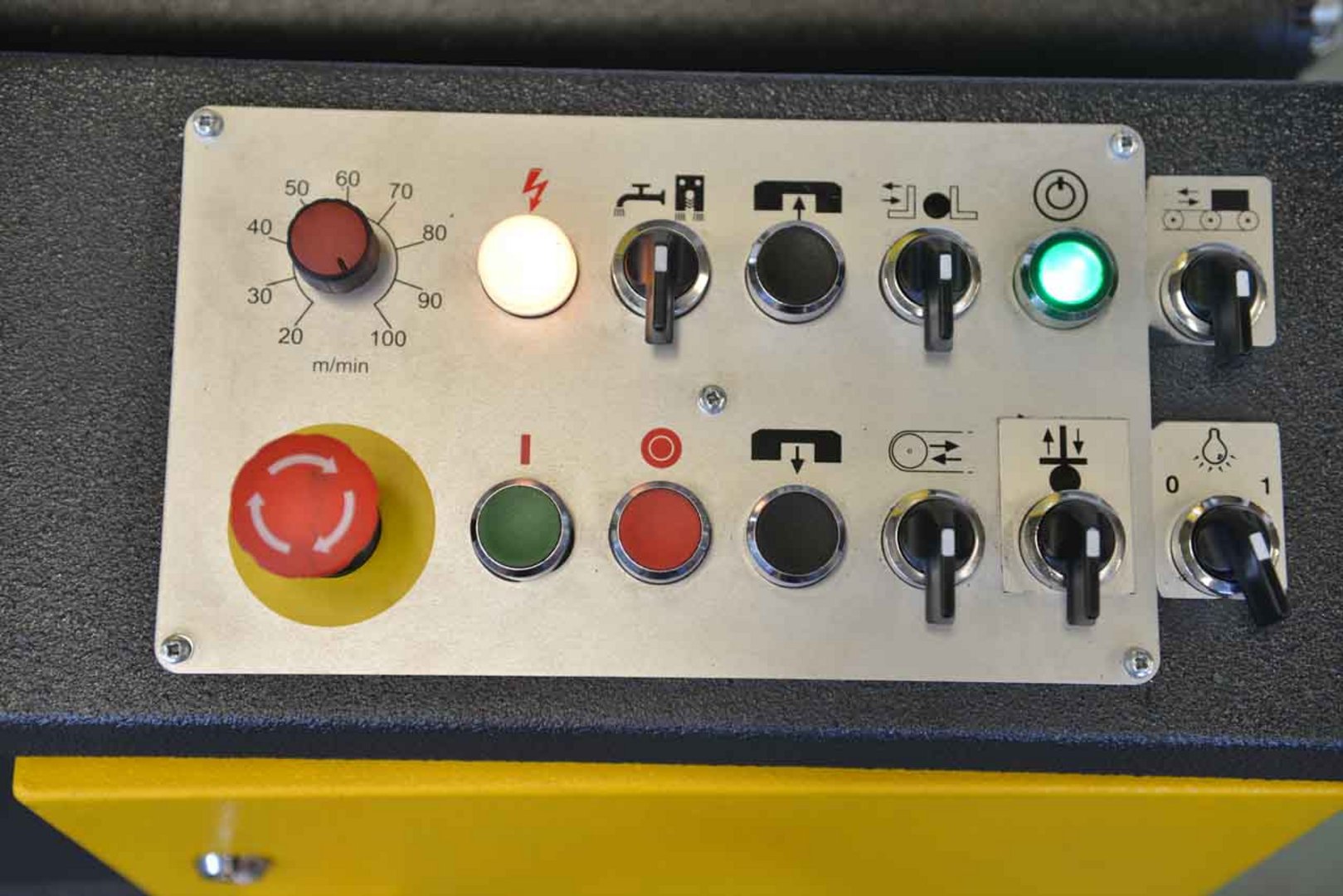

infinitely variable cutting speed
sensitive cut regulation
bi-metal saw band 41
coolant device
thermal overload protection
heavy duty gear
optical height adjustment
3 ° inclined band
hydraulic clamping of the vice
user manual in GERMAN or ENGLISH
Options:
| hydraulic vertical clamping |
| micro cooling unit |
| chip conveyer |
| laser cutting line |
