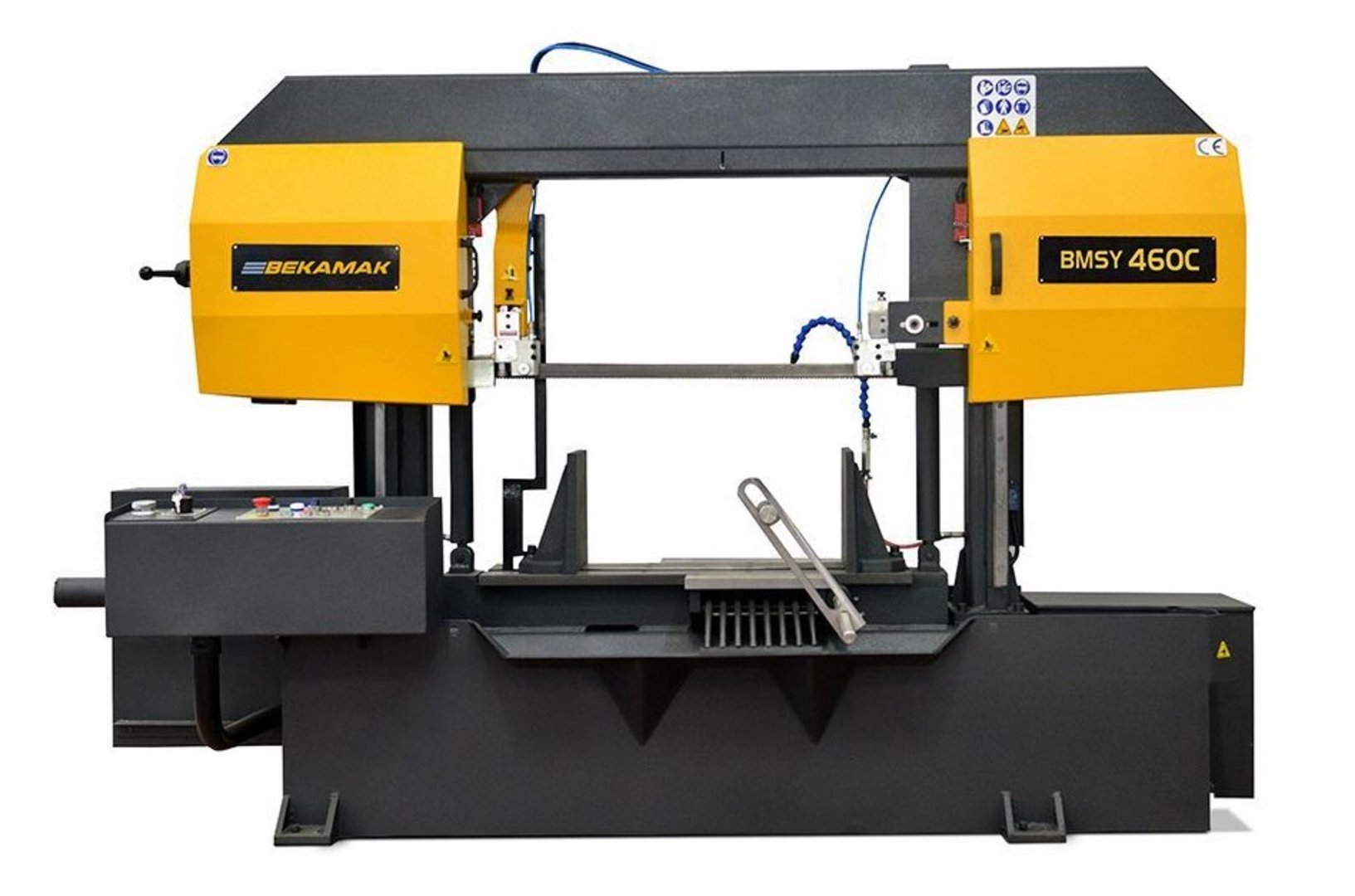

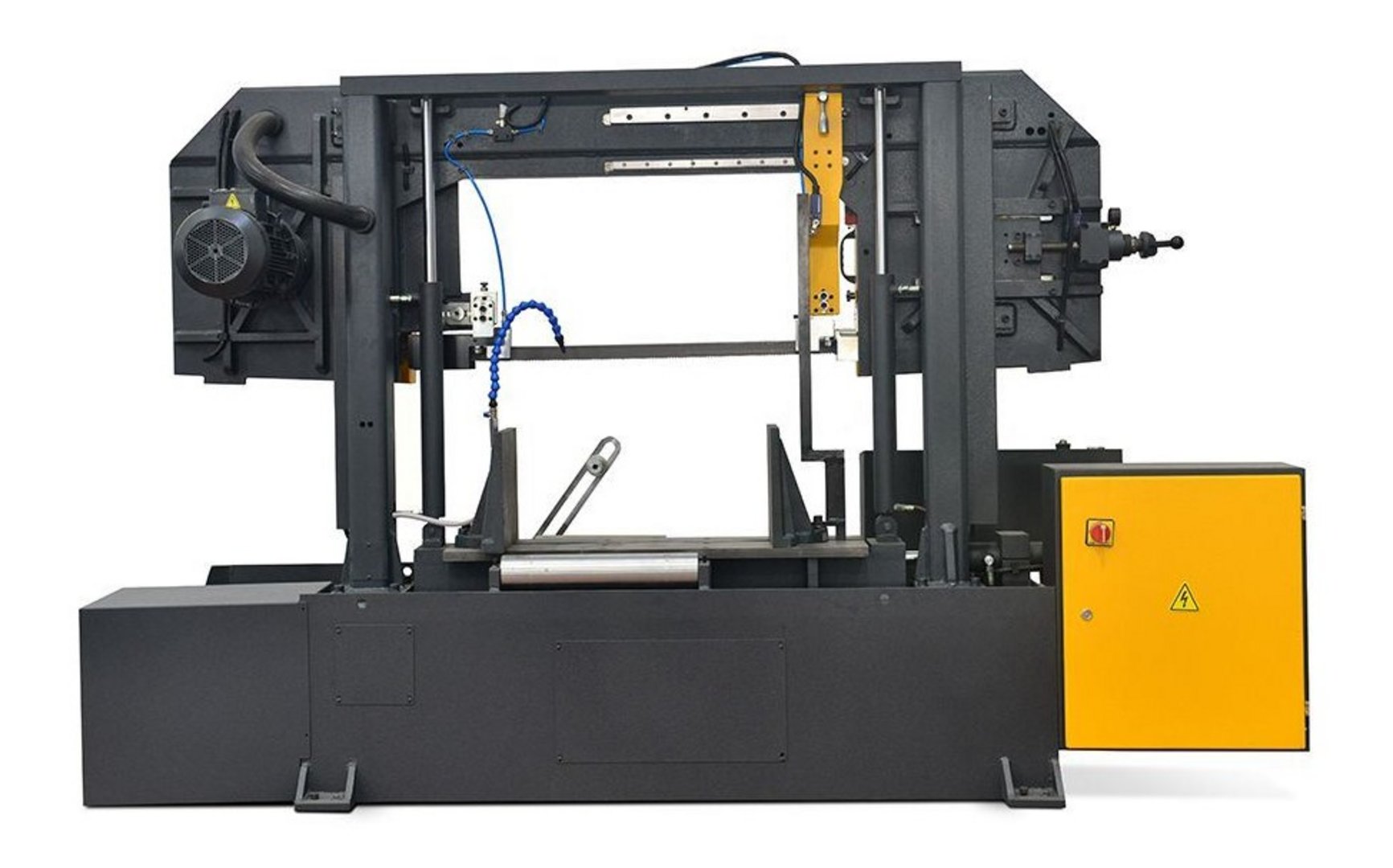

Semiautomatic band saw HESSE by BEKA-MAK BMSY 460 C
| Model | BMSY 460 C |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 460 mm |
| Cutting capacity 0° square | 460 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 5200x41x1,3 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 460 mm |
| Cutting capacity 0° square | 460 mm |
| Cutting capacity 0° flat | 650x460 mm |
| Cutting capacity 45° | rund 380 mm, quadrat 380 mm, rechteck 380 x 460 mm |
| Working height | 590 mm |
| Hydraulic motor | 0.55 kW |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3100 mm |
| Width | 1000 mm |
| Height | 1800 mm |
| Weight | 1520 kg |
Description
blade brush

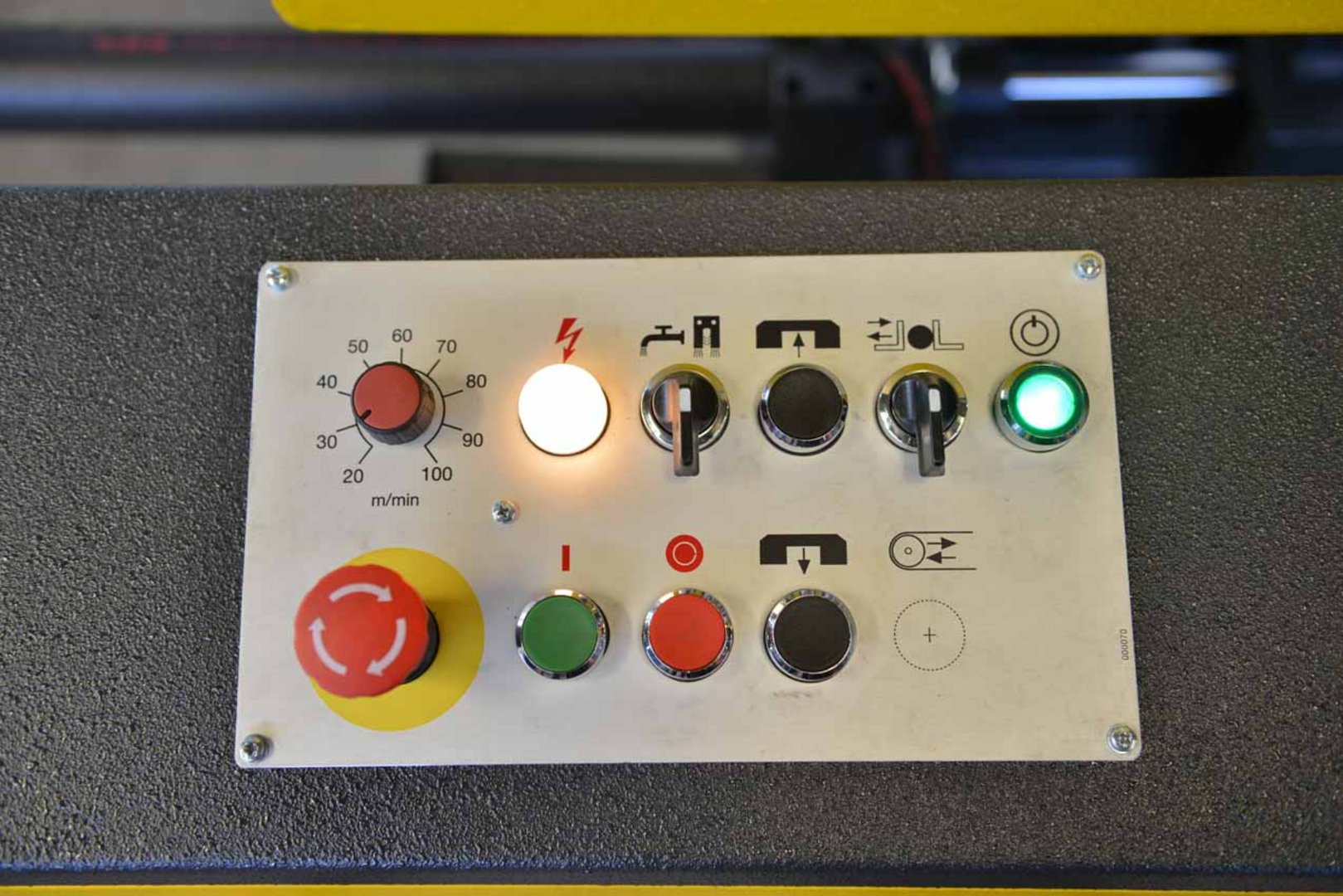

control panel
hydraulic vice
hydromechanical blade tension
inverter
linear way
material limit shaft
height adjustment
pressure adjustment
coolant pump
saw blade
security switch
gearbox

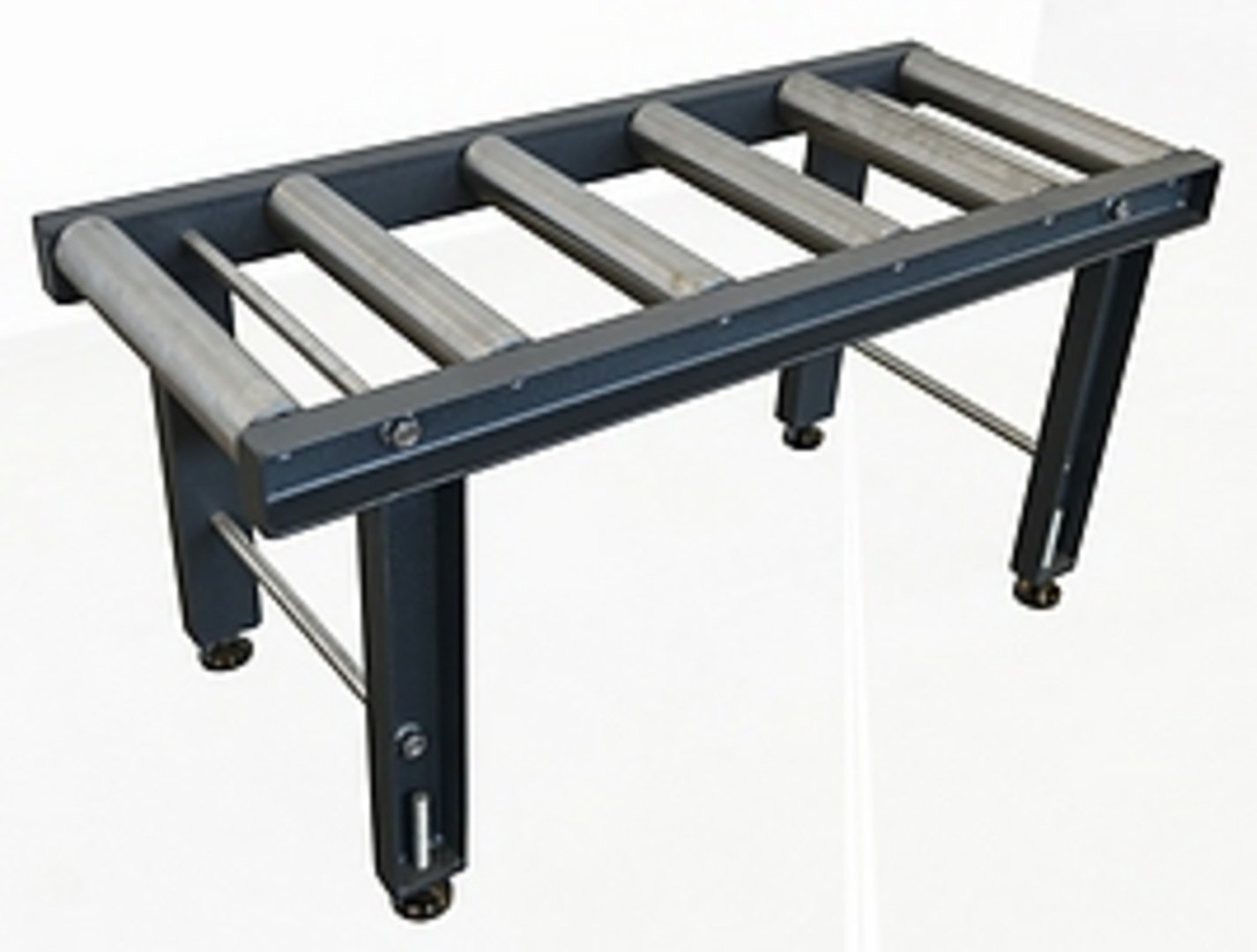

1,2 meter roller table
user manual in GERMAN or ENGLISH
option:

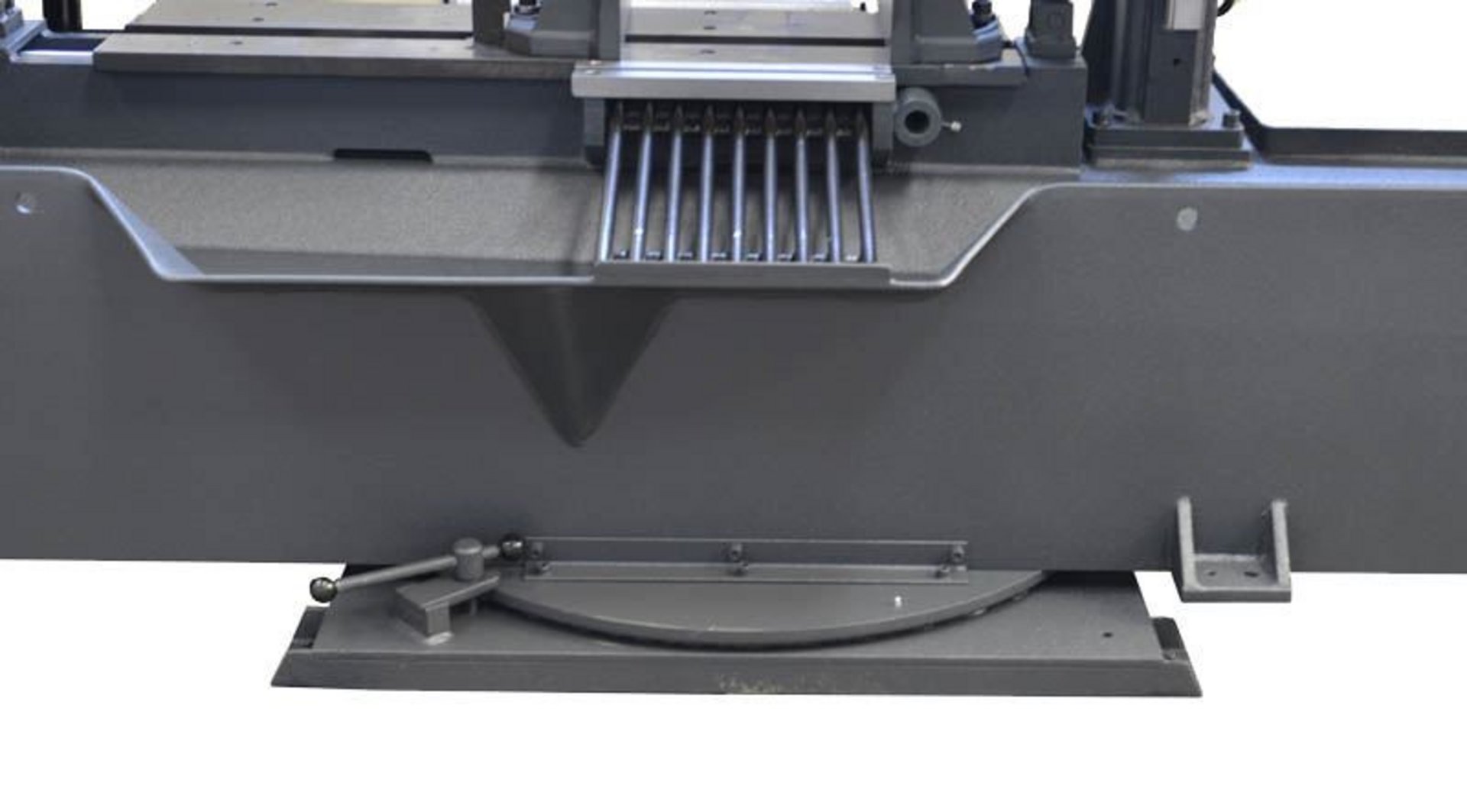

turn table for mitre cuts
hydraulic top clamping from above
