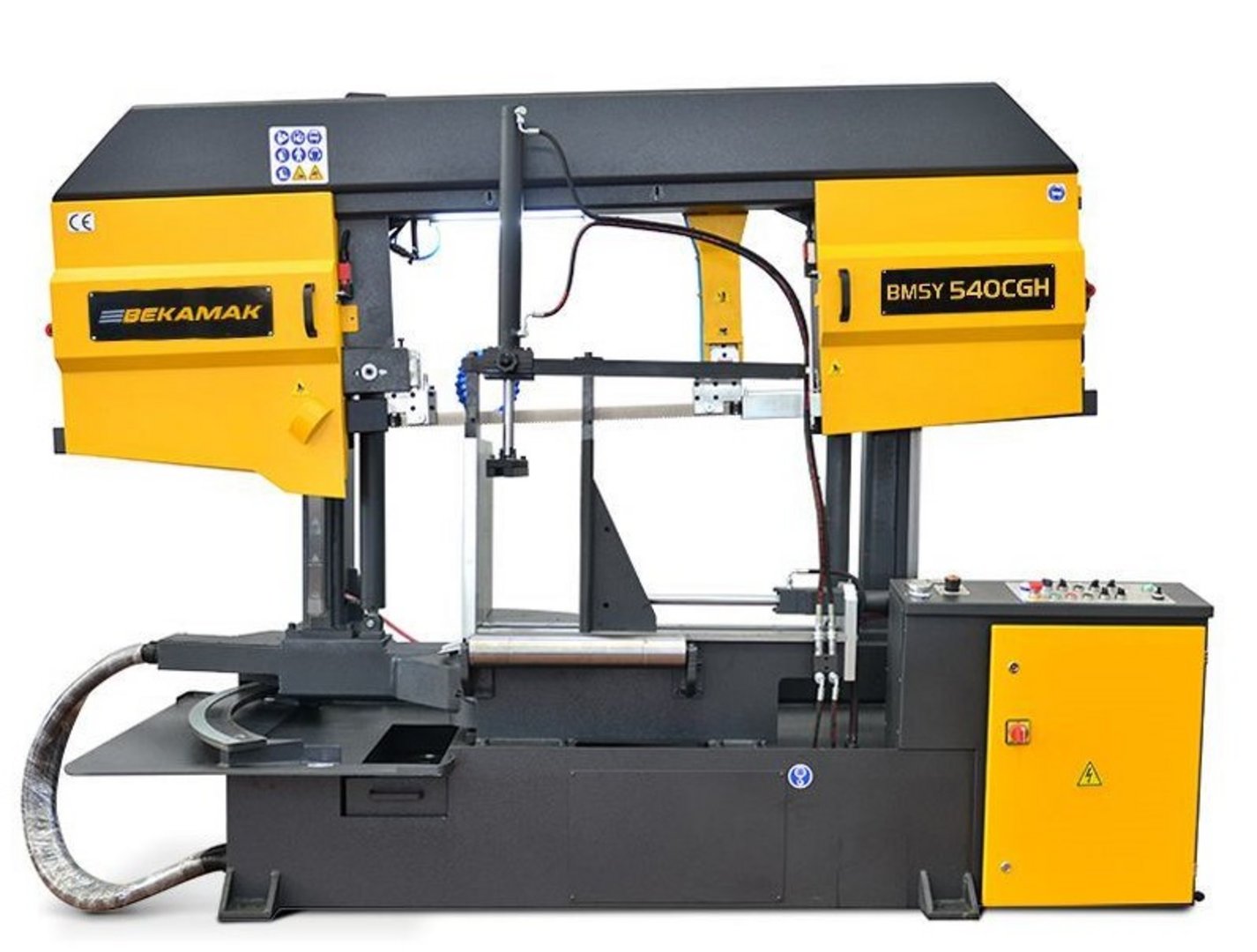

Semiautomatic band saw HESSE by BEKA-MAK BMSY 540 CGH
| Model | BMSY 540 CGH |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 540 mm |
| Cutting capacity 0° square | 540 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 6000x41x1,3 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 540 mm |
| Cutting capacity 0° square | 540 mm |
| Cutting capacity 0° flat | 750x540 mm |
| Cutting capacity 45° | rund 510 mm, quadrat 450 mm, rechteck 450 x 540 mm |
| Cutting capacity 60° | rund 270 mm, quadrat 250 mm, rechteck 250 x 540 mm |
| Working height | 695 mm |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3000 mm |
| Width | 1300 mm |
| Height | 2150 mm |
| Weight | 2445 kg |
Description
hydraulic vice
digital readout for scale of bending angle
hydraulic clamping of sawing arm
turning of sawing arm by hand
continuously variable down speed of sawing arm
automatic sawing frame lifting after cutting
sensitive cutting pressure adjustment subject to material condition
hydromechanic tape tension readout by manometer
mobile control panel
angular geared conical heavy duty gear unit
driven chip brush
tape guiding by hard metal sheet plates and rolls
automatic tape break lock
coolant equipment
hydraulic uplift of sawing frame
3° inclined saw band
user manual in GERMAN or ENGLISH

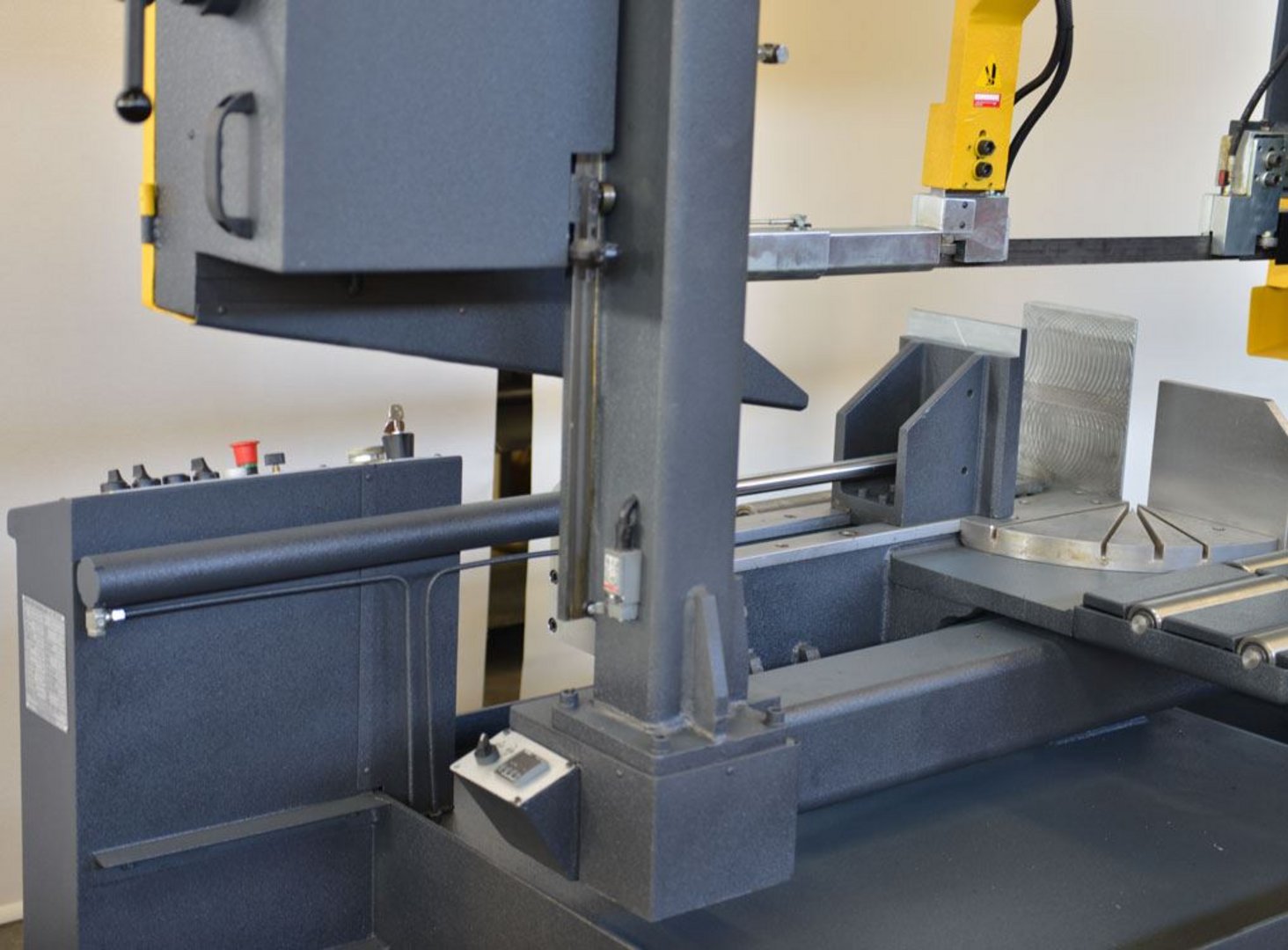

(the vertical hydraulic clamping shown on the photos ist optional equipment)
