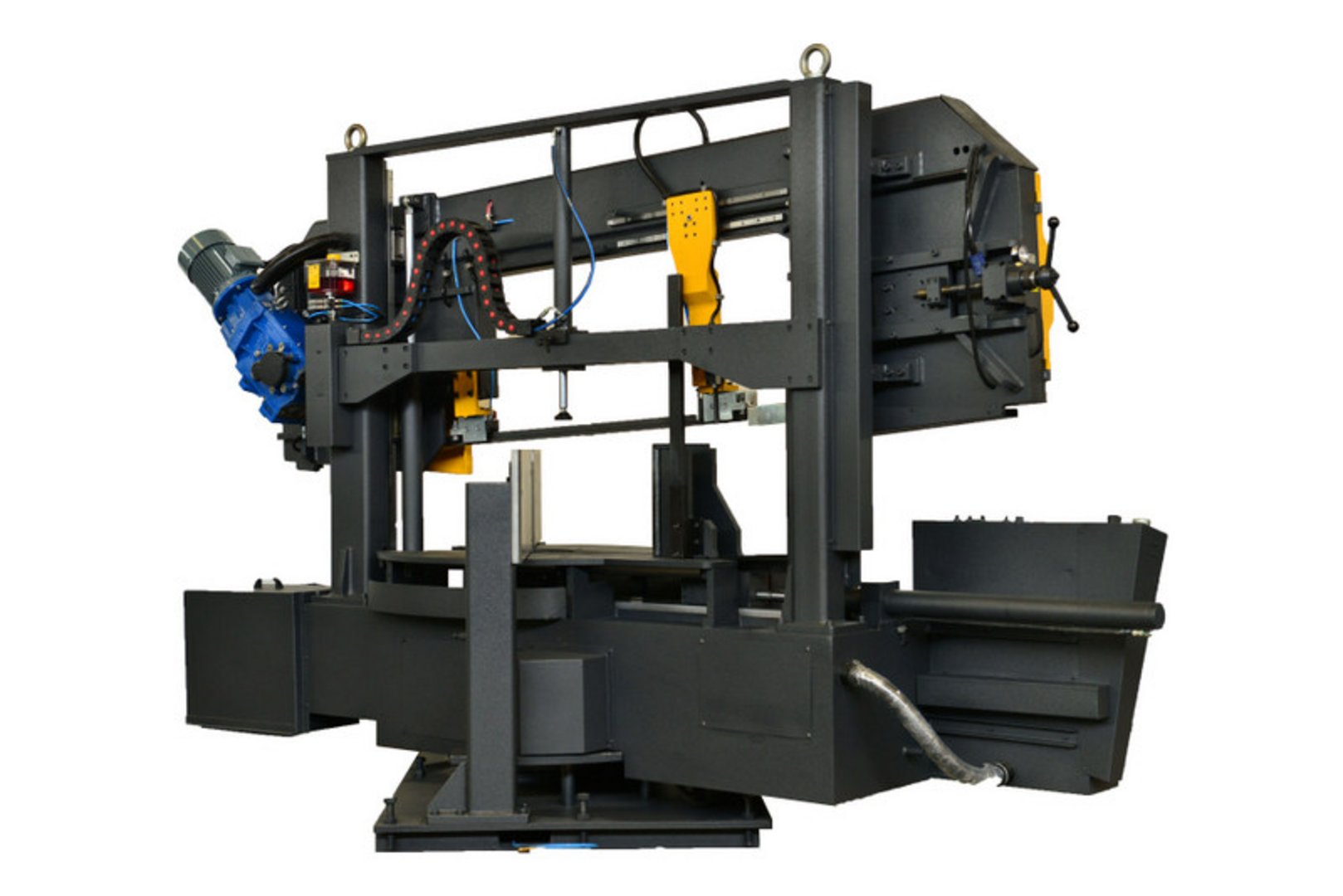

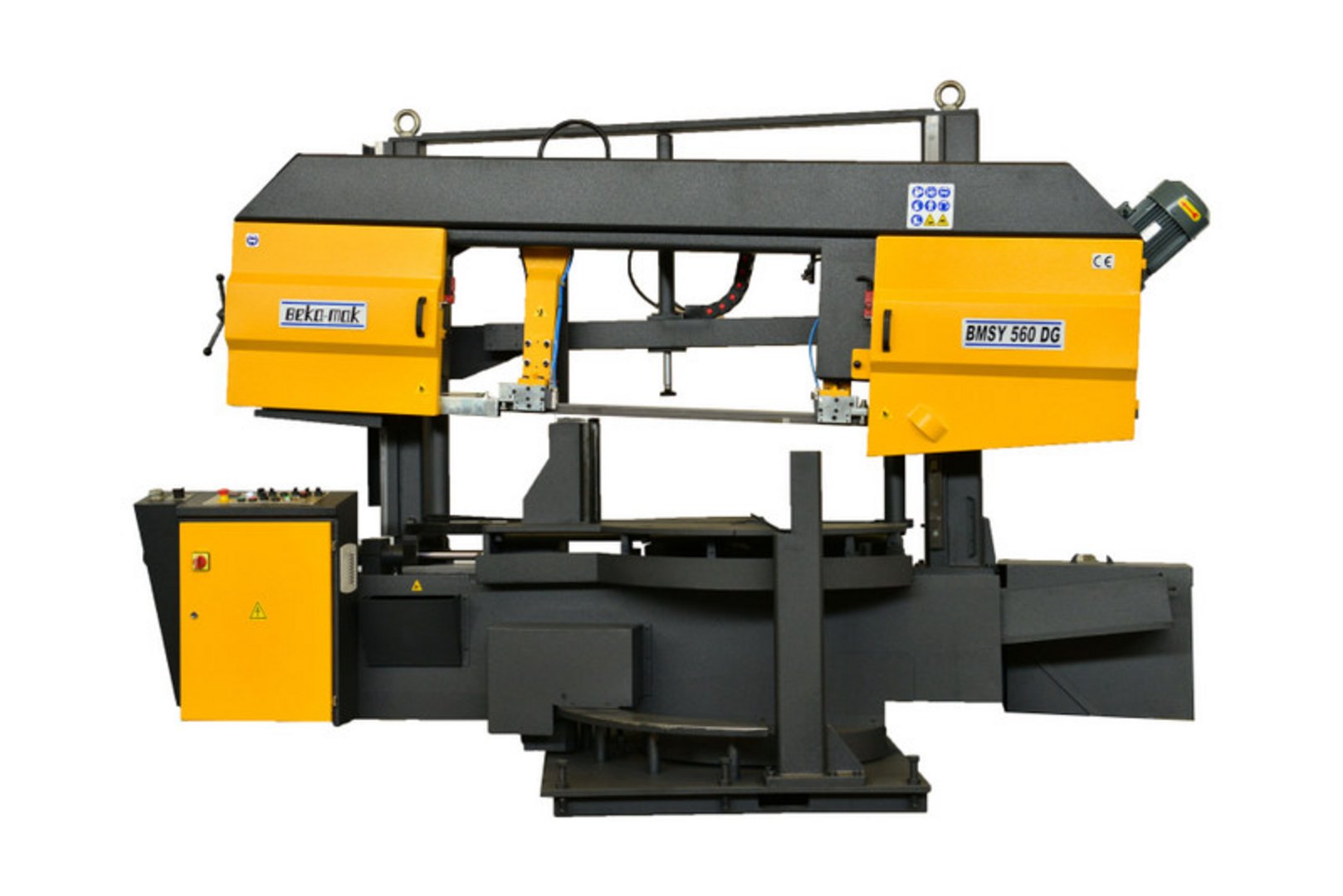

Semiautomatic band saw HESSE by BEKA-MAK BMSY 560 DG
| Model | BMSY 560 DG |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 560 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 6800x41x1,3 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 560 mm |
| Cutting capacity 0° flat | 820 x 540 mm |
| Cutting capacity 45° | rechteck 550 x 540 mm |
| Cutting capacity 60° | rechteck 360 x 540 mm |
| Cutting capacity - 45° | rechteck 550 x 540 mm |
| Working height | 880 mm |
| Hydraulic motor | 1.1 kW |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3800 mm |
| Width | 1750 mm |
| Height | 2350 mm |
| Weight | 3200 kg |
Description
hydraulic vice
digital readout for scale of bending angle
hydraulic clamping of sawing arm
turning of sawing arm by hand
continuously variable down speed of sawing arm
automatic sawing frame lifting after cutting
sensitive cutting pressure adjustment subject to material condition
hydromechanic tape tension readout by manometer
mobile control panel
angular geared conical heavy duty gear unit
driven chip brush
tape guiding by hard metal sheet plates and rolls
automatic tape break lock
coolant equipment
hydraulic uplift of sawing frame
user manual in GERMAN or ENGLISH

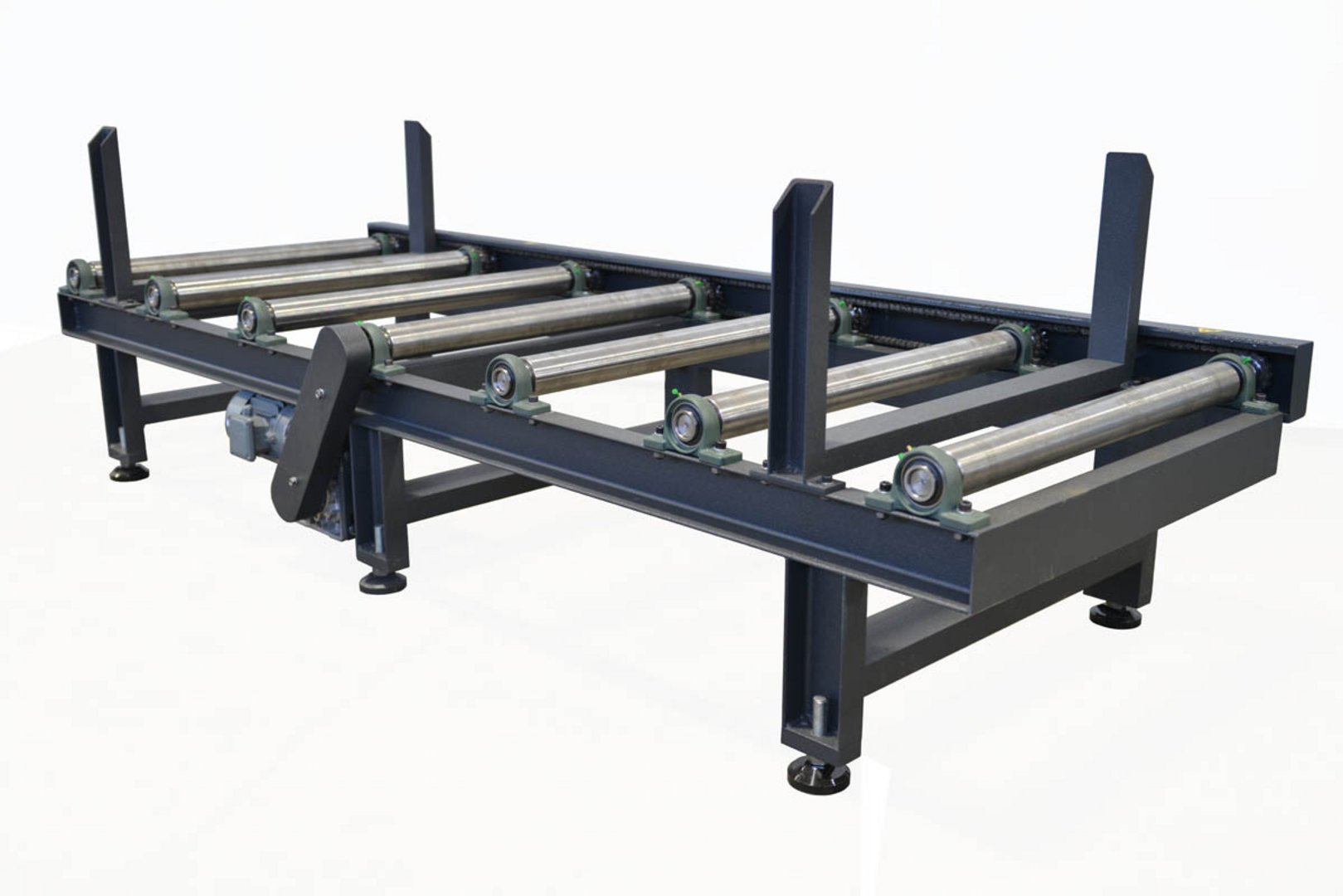

(roller table see photo - optional available, additional price)
