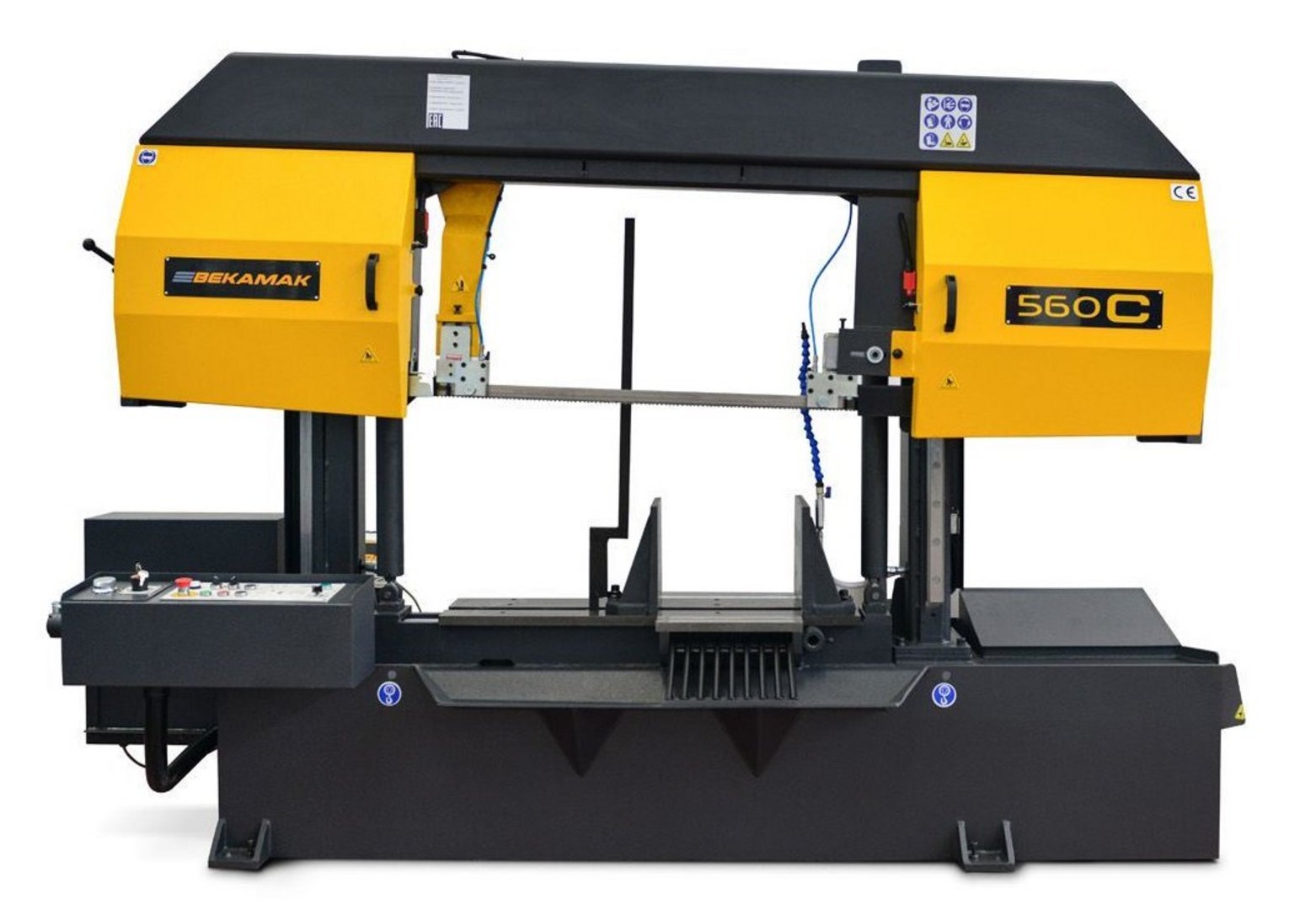

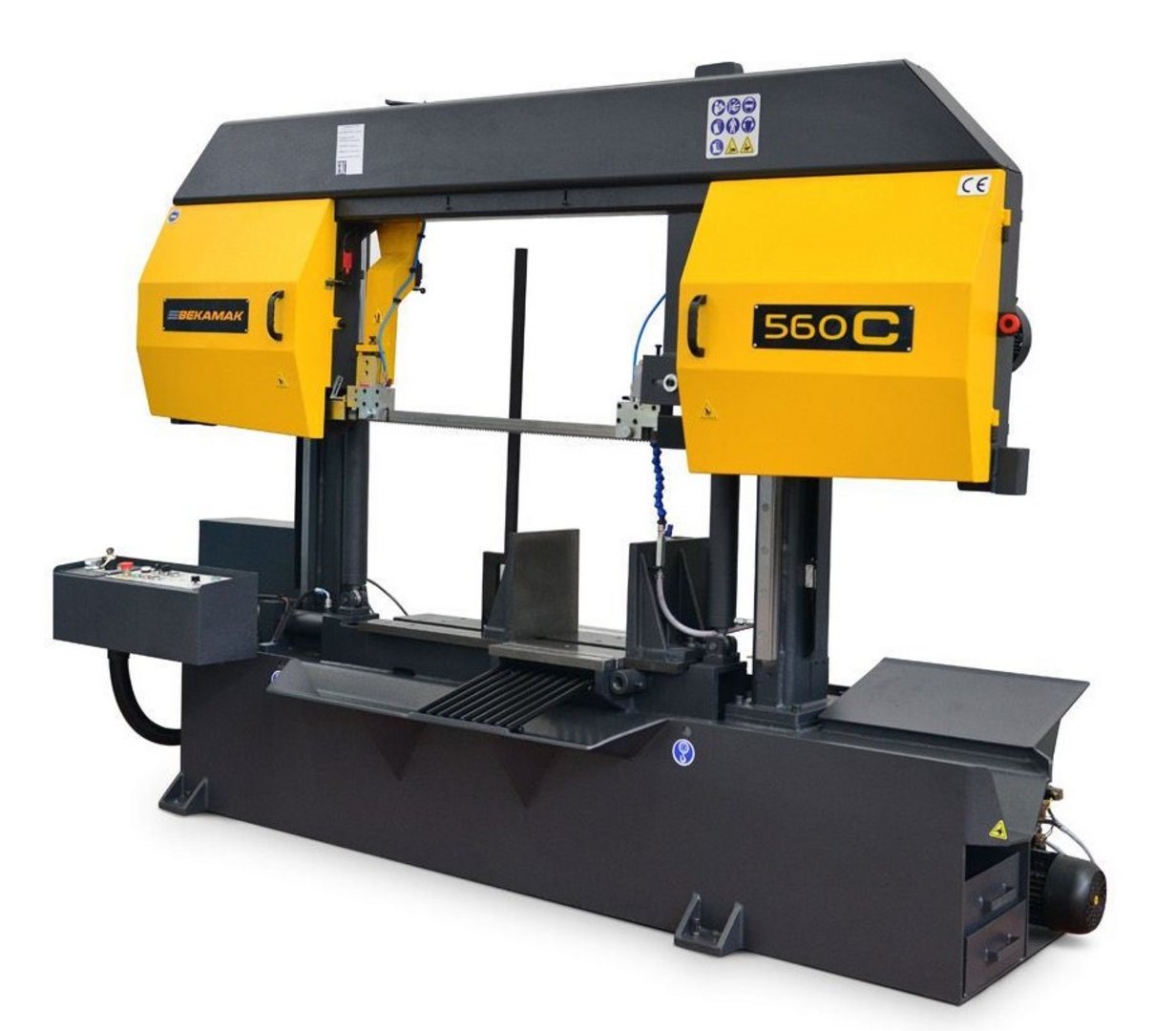

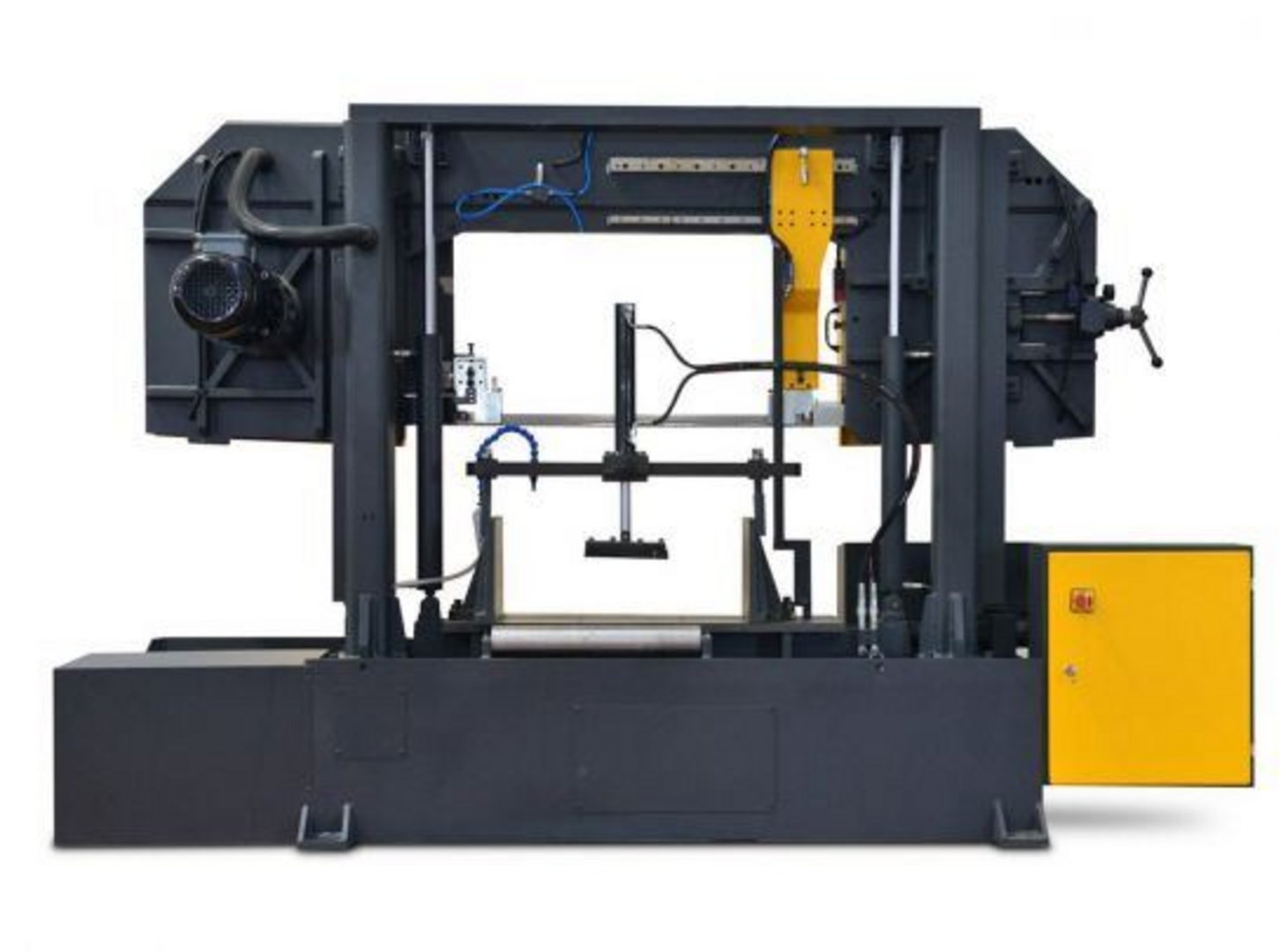

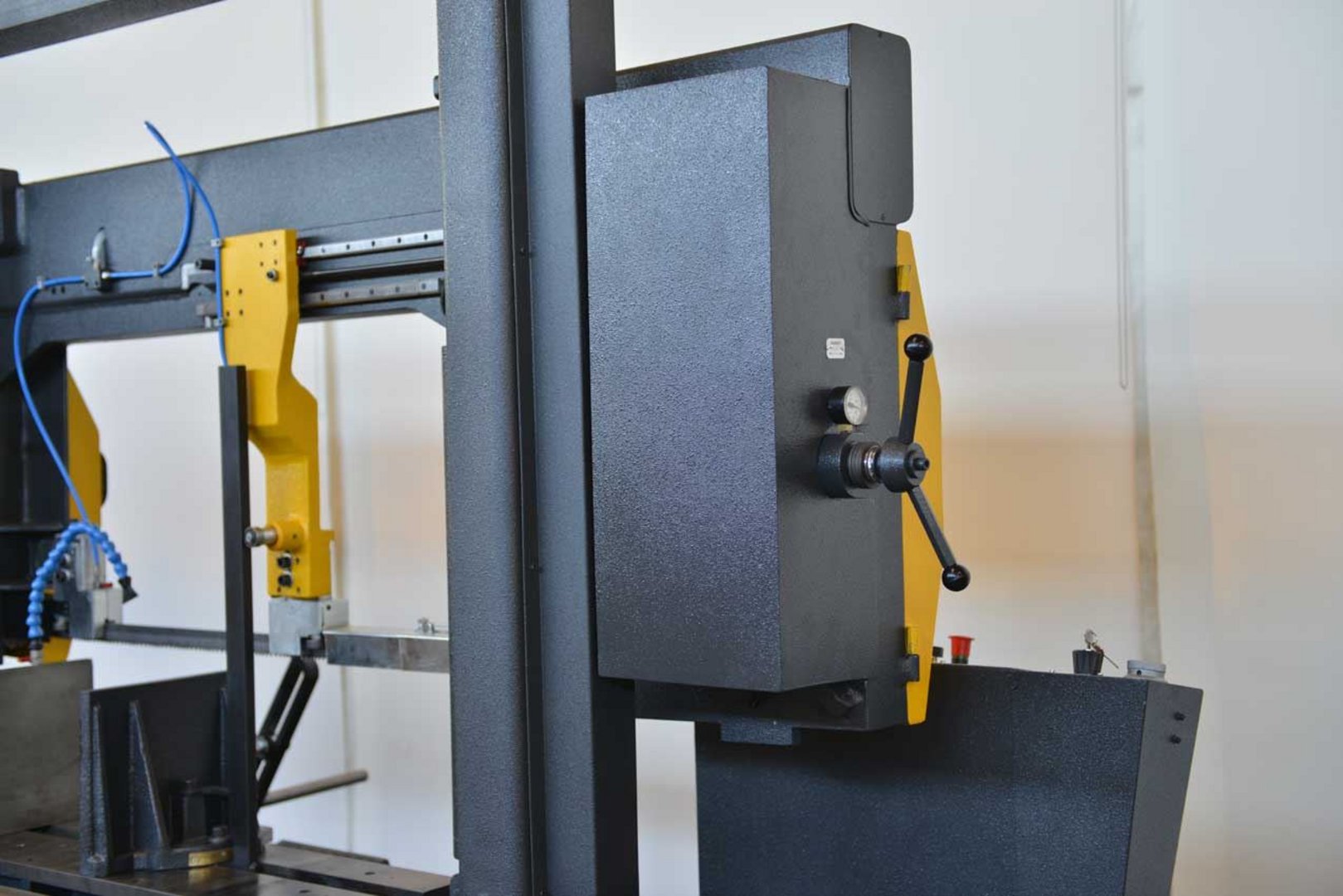

Semiautomatic band saw HESSE by BEKA-MAK BMSY 560 C
| Model | BMSY 560 C |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 560 mm |
| Cutting capacity 0° square | 560 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 6000x41x1,3 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 560 mm |
| Cutting capacity 0° square | 560 mm |
| Cutting capacity 0° flat | 750x560 mm |
| Cutting capacity 45° | rund 410 mm, quadrat 410 mm, rechteck 410 x 560 mm |
| Working height | 590 mm |
| Hydraulic motor | 1.1 kW |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3400 mm |
| Width | 1000 mm |
| Height | 2050 mm |
| Weight | 2045 kg |
Description
2° inclined band

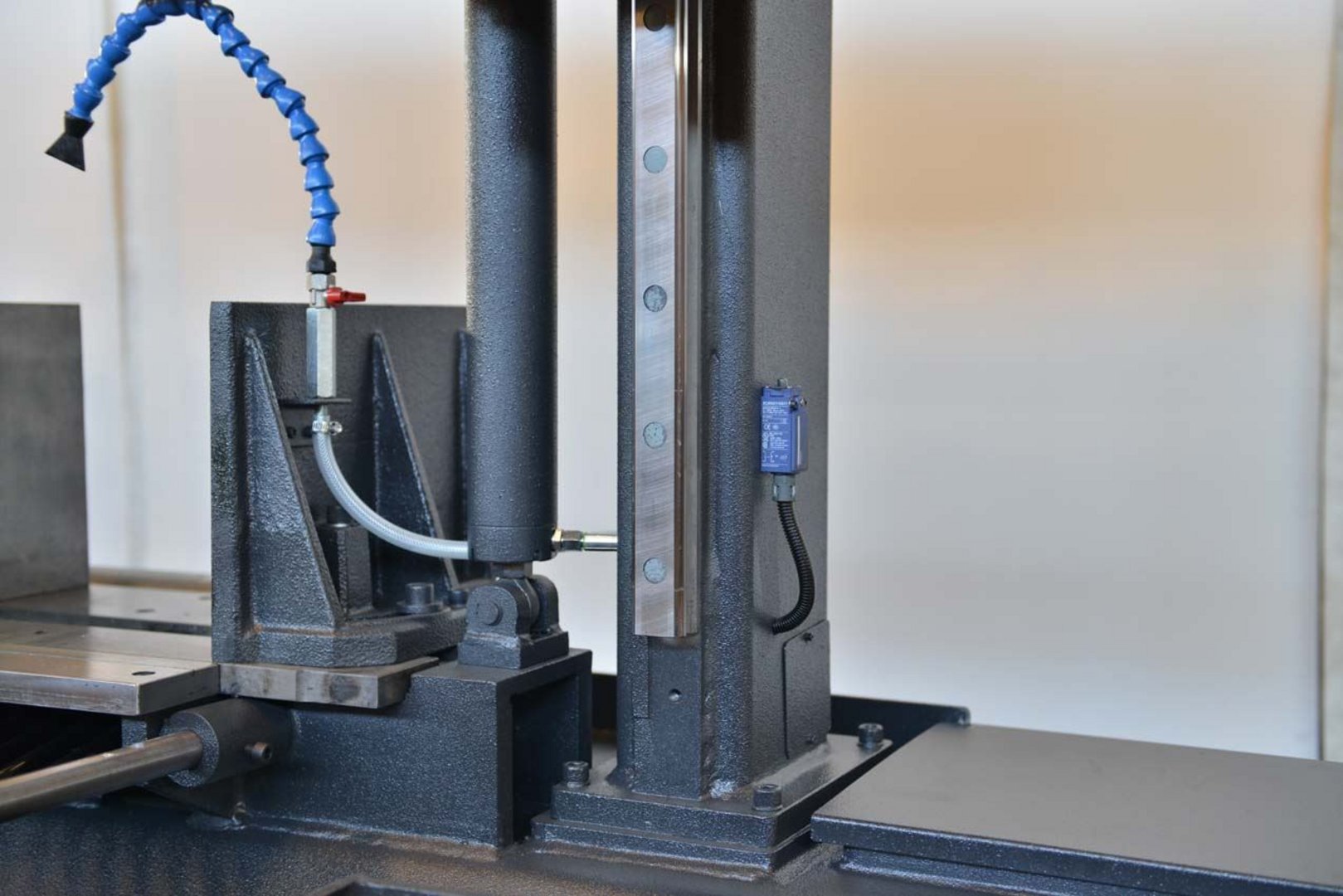

linear guides

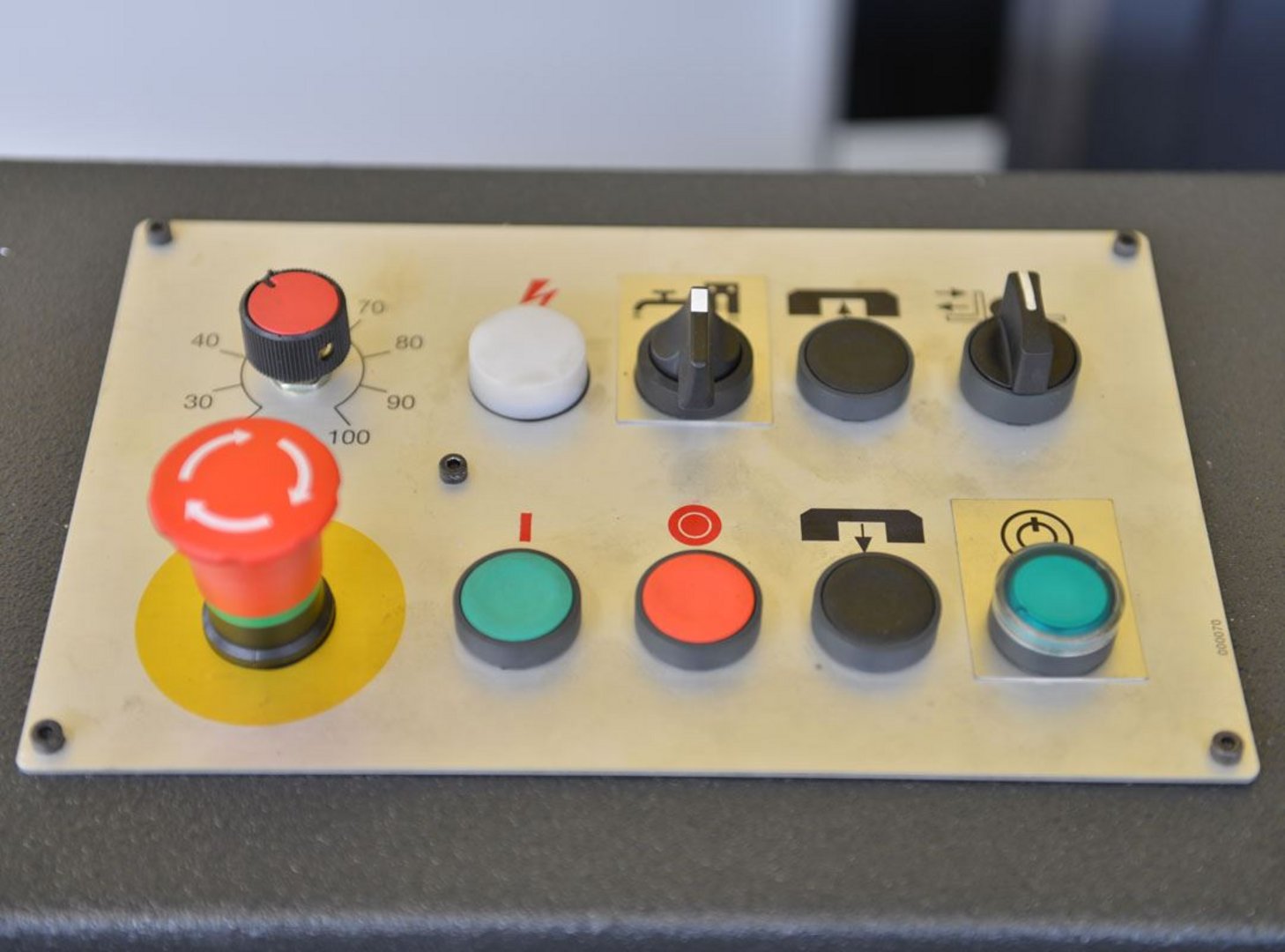

control panel
material limit shaft
coolant pump
1200 mm roller table

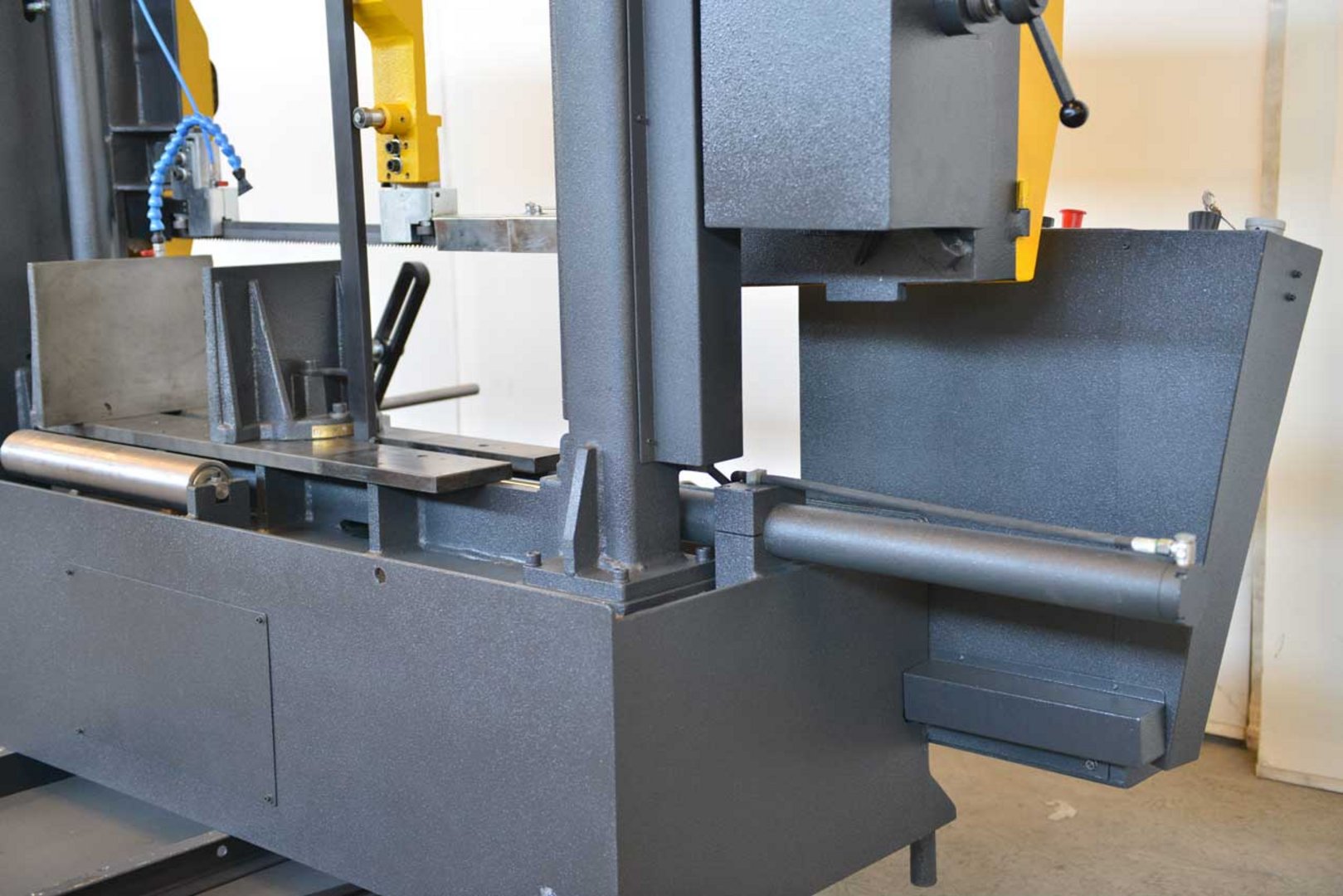

hydraulic vice
hydromechanic band tensioning
inverter
presser adjustment

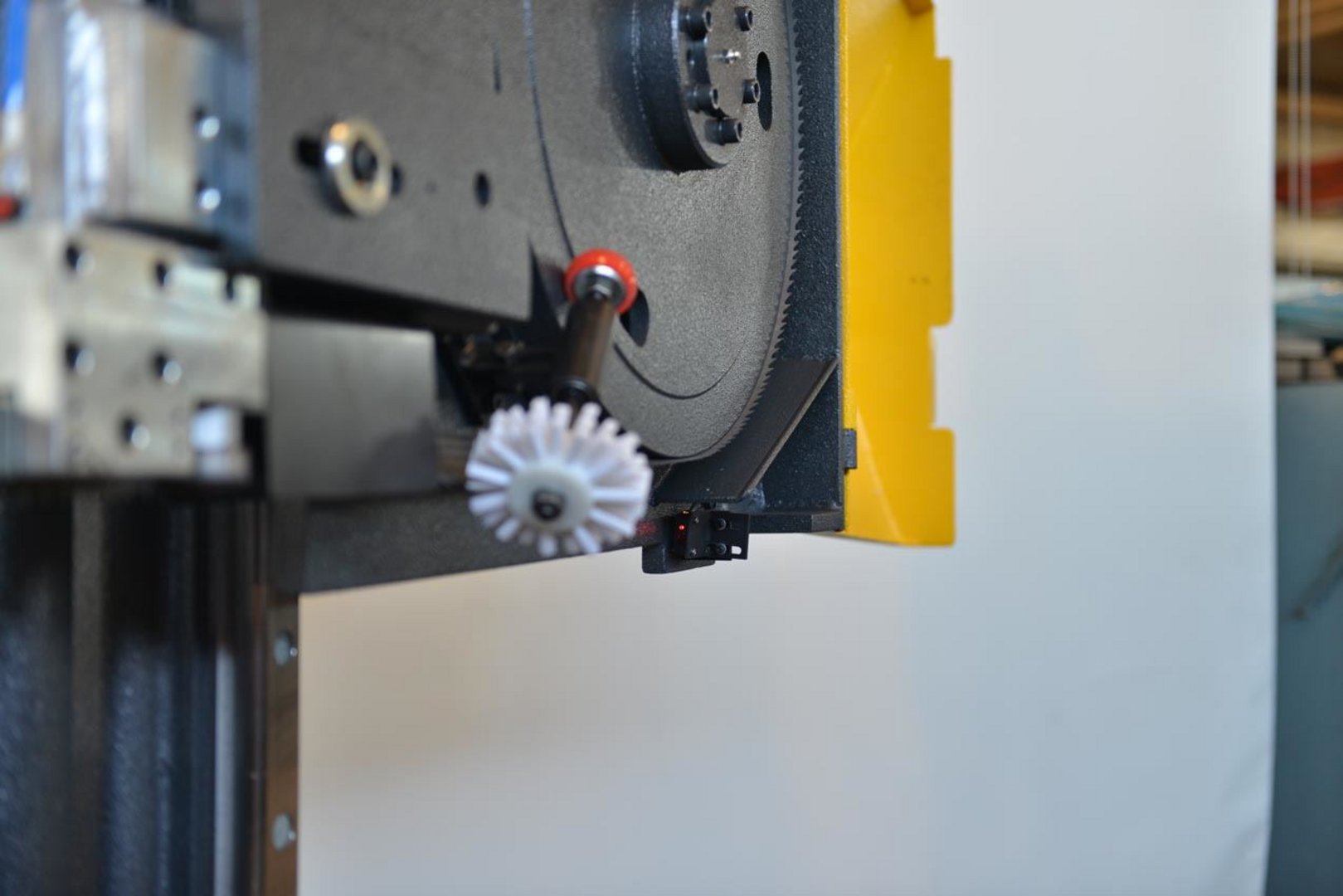

band brush
optical height adjustment
security switch
operating manual in Englisch
option:
turn table for mitre cuts
hydraulic top clamping from above
micro cooling unit
laser cutting line
