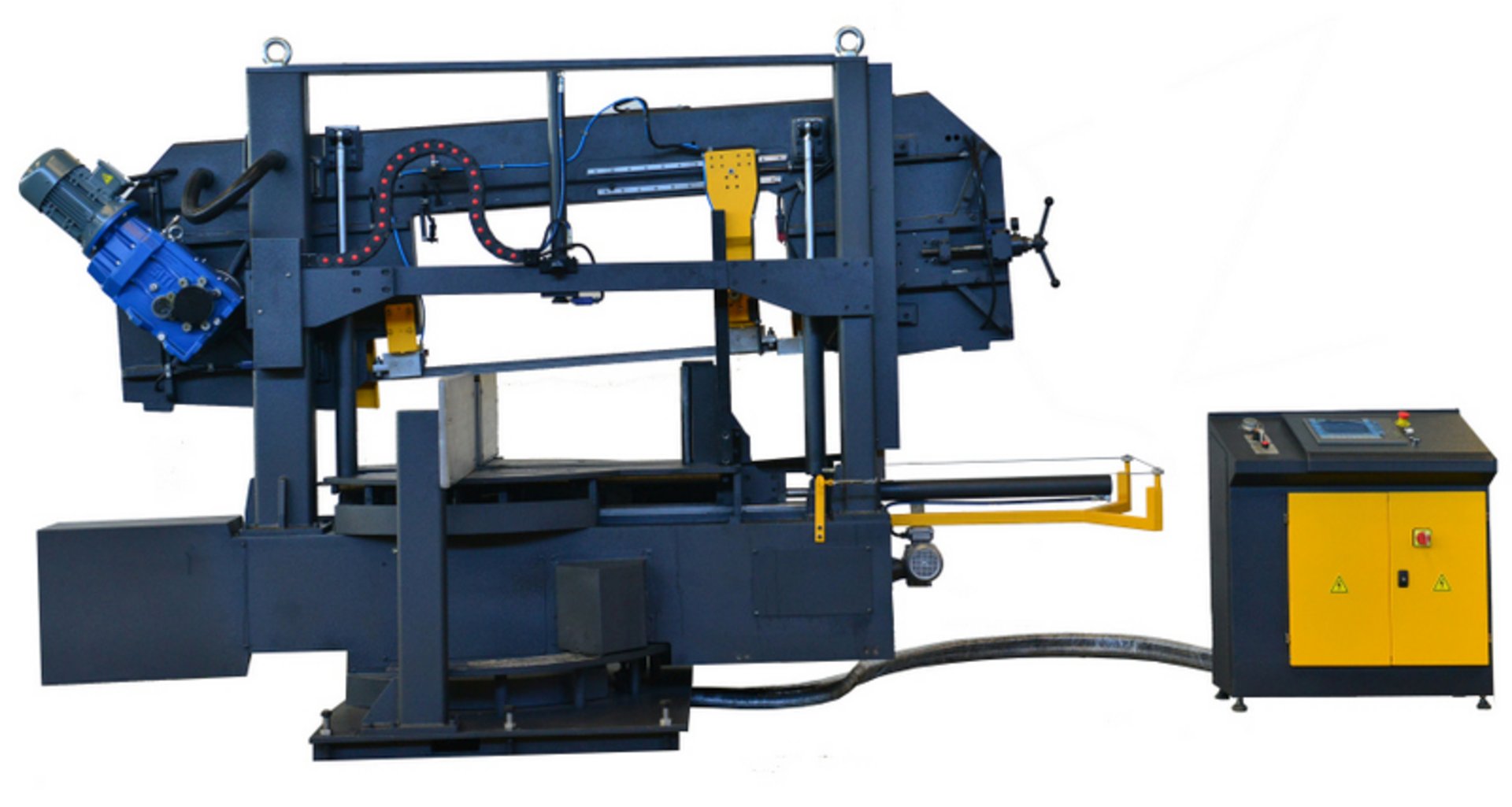

Semiautomatic band saw HESSE by BEKA-MAK BMSY 750 DG NC
| Model | BMSY 750 DG NC |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 750 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 10430x54x1,6 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 750 mm |
| Cutting capacity 0° flat | 1300x700 mm |
| Cutting capacity 45° | rechteck 850 x 750 mm |
| Cutting capacity 60° | rechteck 570 x 750 mm |
| Cutting capacity - 45° | rechteck 850 x 750 mm |
| Working height | 930 mm |
| Hydraulic motor | 4 kW |
| Motor | 11 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 5500 mm |
| Width | 2280 mm |
| Height | 3400 mm |
| Weight | 8500 kg |
Description
Hydraulic vice
Digital display for angle indication
Hydraulic saw arm clamping
Manual saw arm rotation
Continuously adjustable saw arm lowering speed
Automatic saw frame lifting after cutting
Sensitive cutting pressure regulation depending on material properties
Hydromechanical blade tension readable via pressure gauge
Mobile control panel
Heavy-duty, helical-toothed conical gear
Driven chip brush
Blade guidance via carbide plates and rollers
Automatic blade breakage protection
Coolant system
Hydraulic saw frame lifting
Operating instructions in GERMAN or ENGLISH
Options:
Roller tables and band saw blades on request
