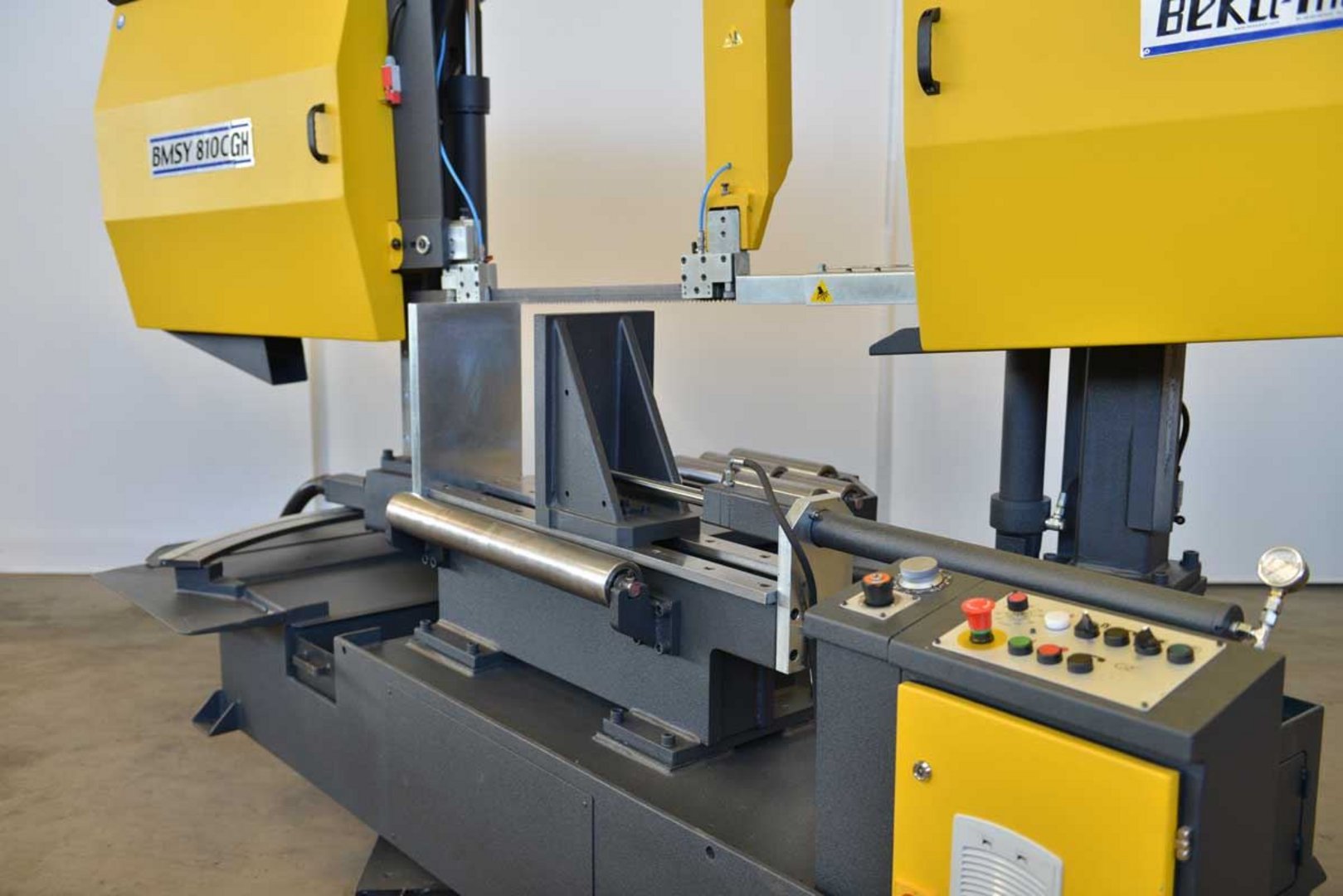

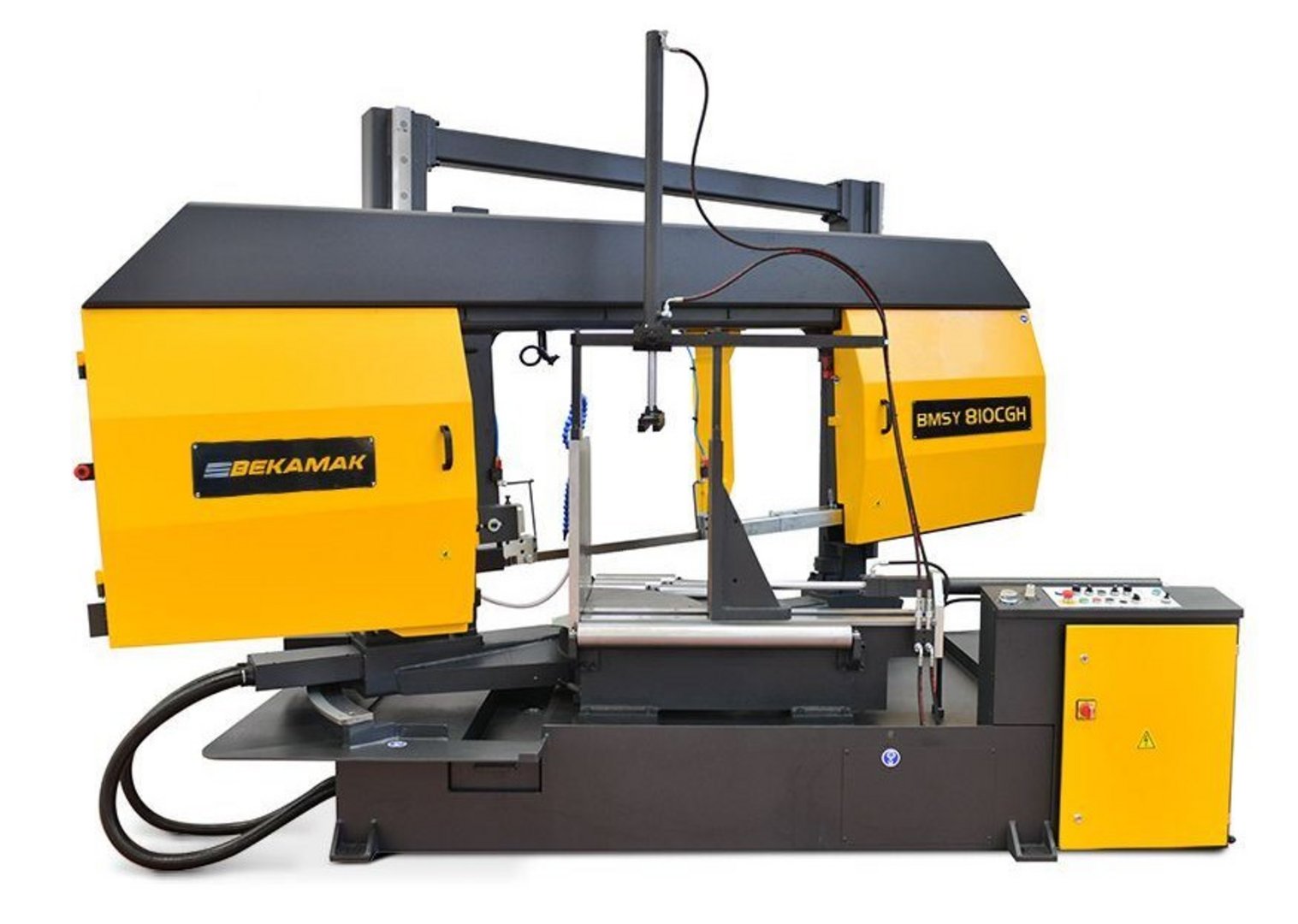

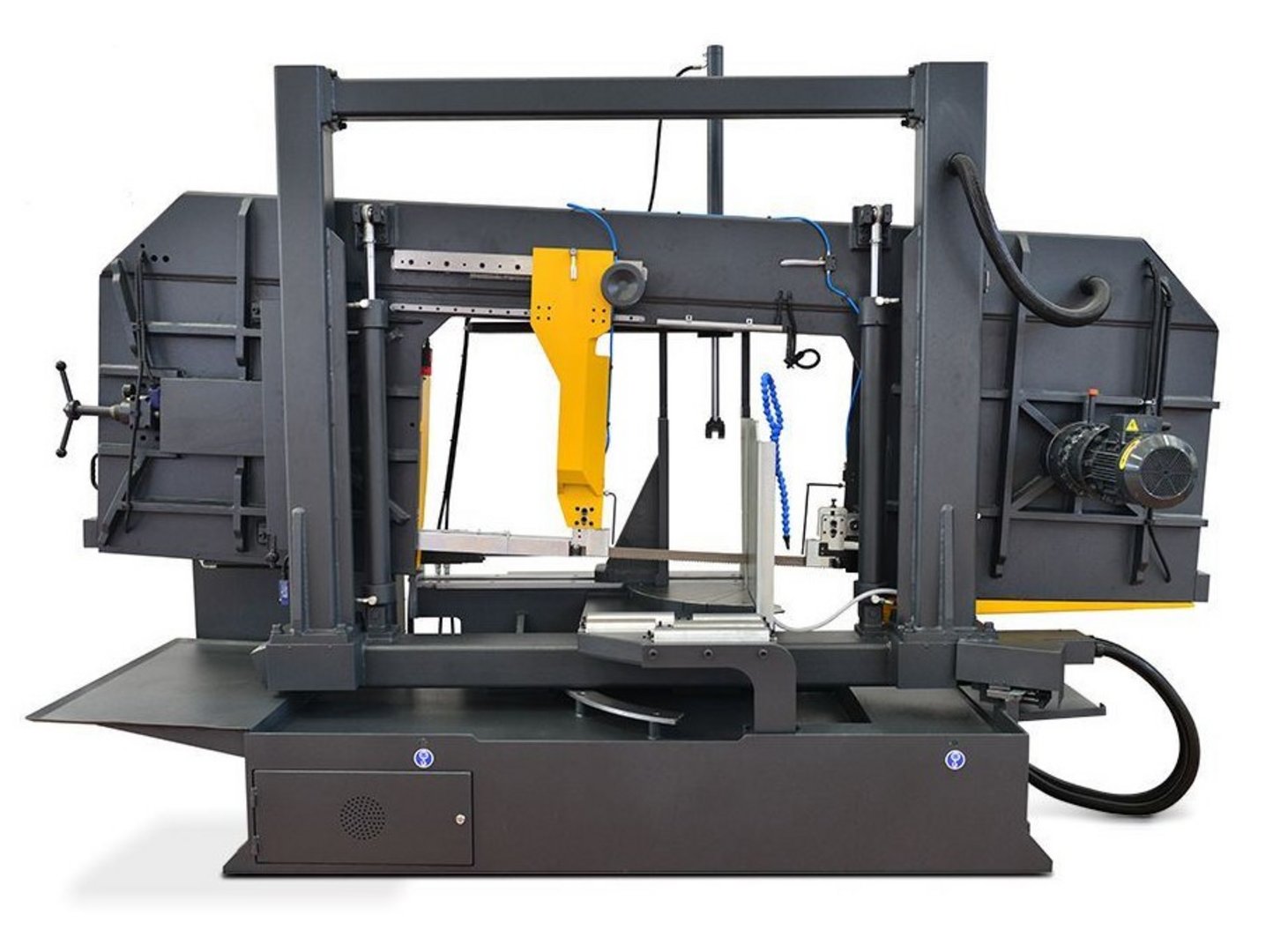

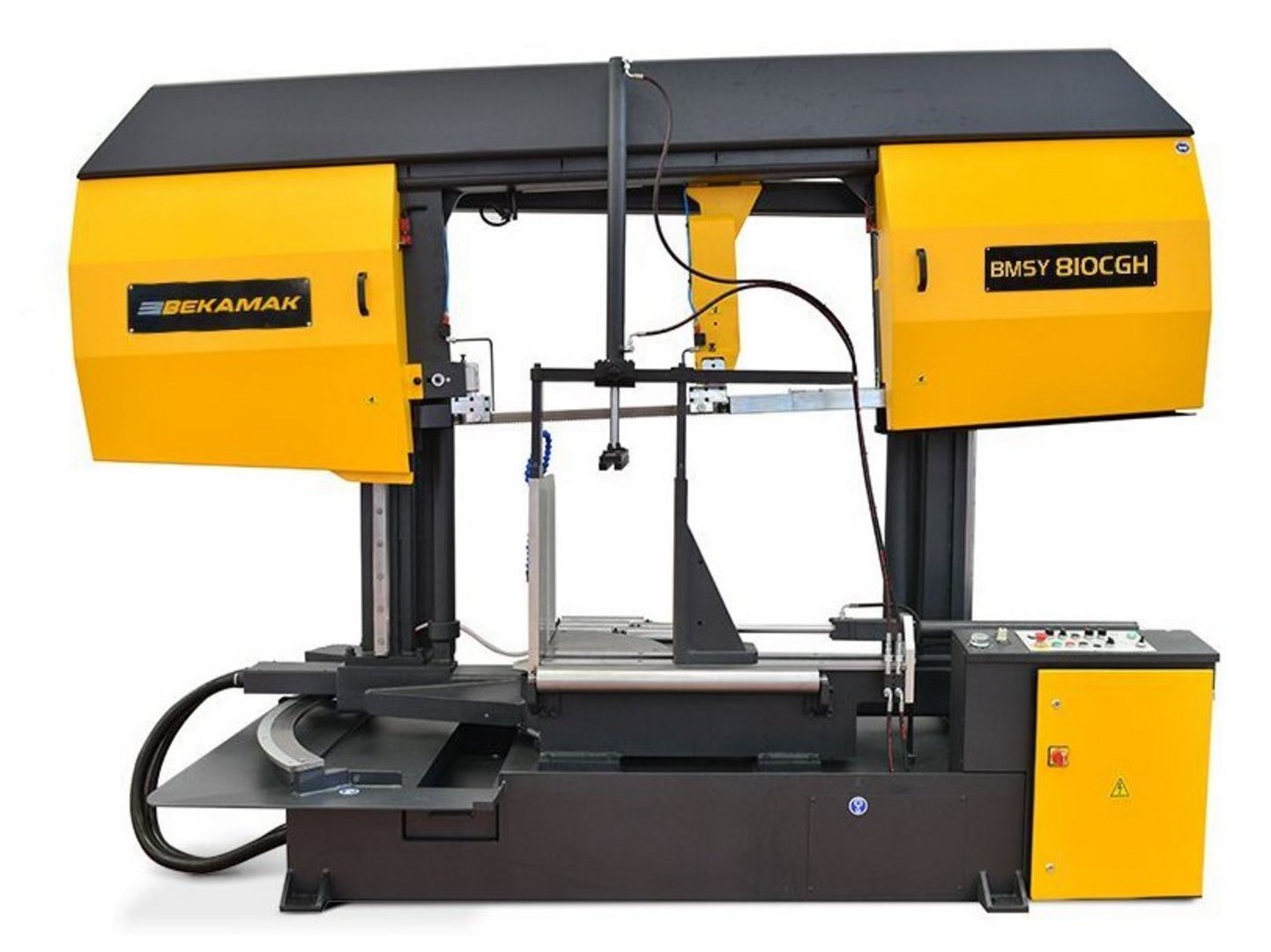

Semiautomatic band saw HESSE by BEKA-MAK BMSY 810 CGH
| Model | BMSY 810 CGH |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 810 mm |
| Cutting capacity 0° square | 750 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 8200x41x1,3 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 810 mm |
| Cutting capacity 0° square | 750 mm |
| Cutting capacity 0° flat | 910x750 mm |
| Cutting capacity 45° | rund 600 mm, quadrat 600 mm, rechteck 750 x 600 mm |
| Cutting capacity 60° | rund 360 mm, quadrat 360 mm, rechteck 750 x 360 mm |
| Working height | 725 mm |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 4020 mm |
| Width | 1600 mm |
| Height | 2450 mm |
| Weight | 3970 kg |
Description

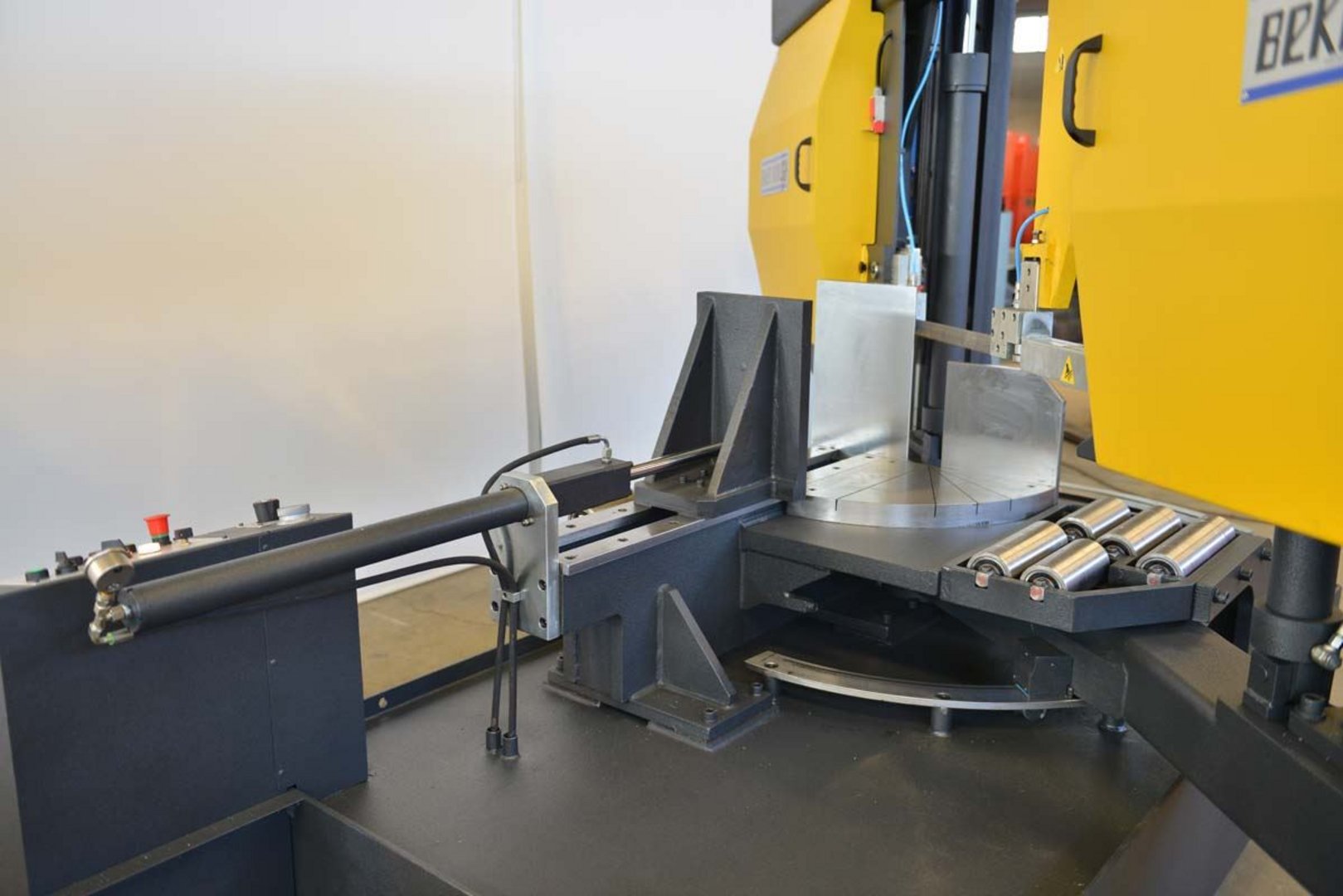

hydraulic vice

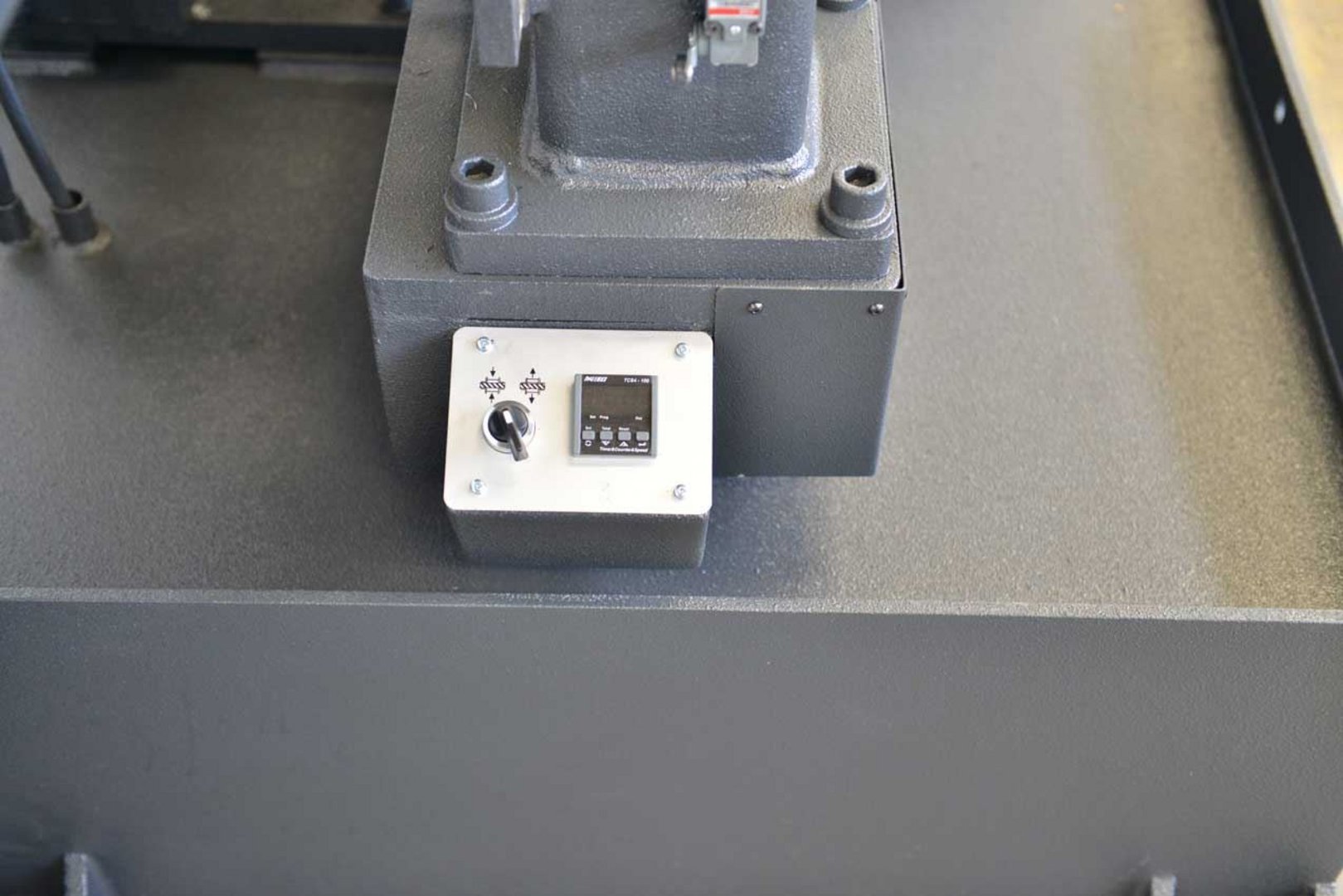

digital readout for scale of bending angle
hydraulic clamping of sawing arm

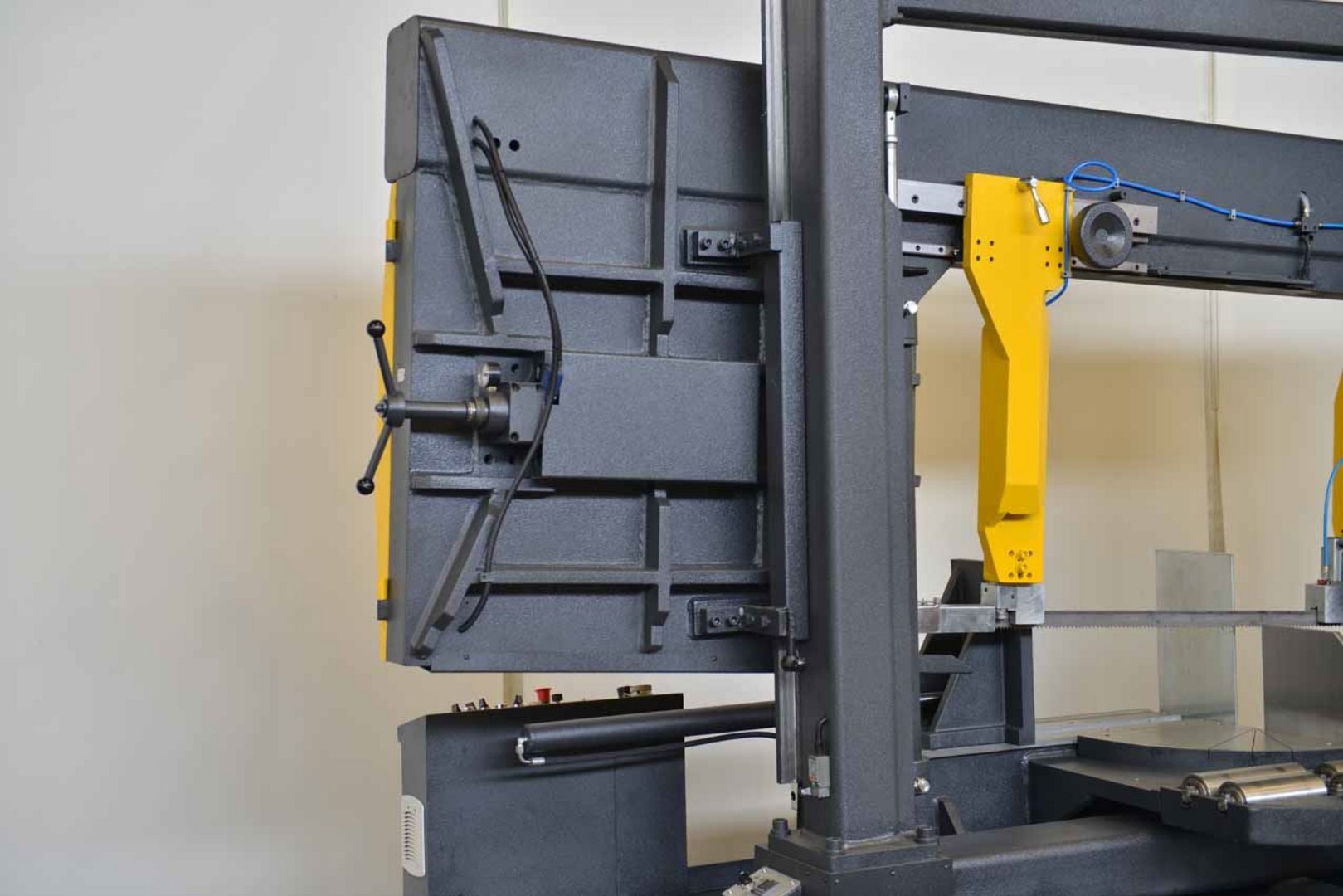

turning of sawing arm by hand
continuously variable down speed of sawing arm
automatic sawing frame lifting after cutting
sensitive cutting pressure adjustment subject to material condition
hydromechanic tape tension readout by manometer

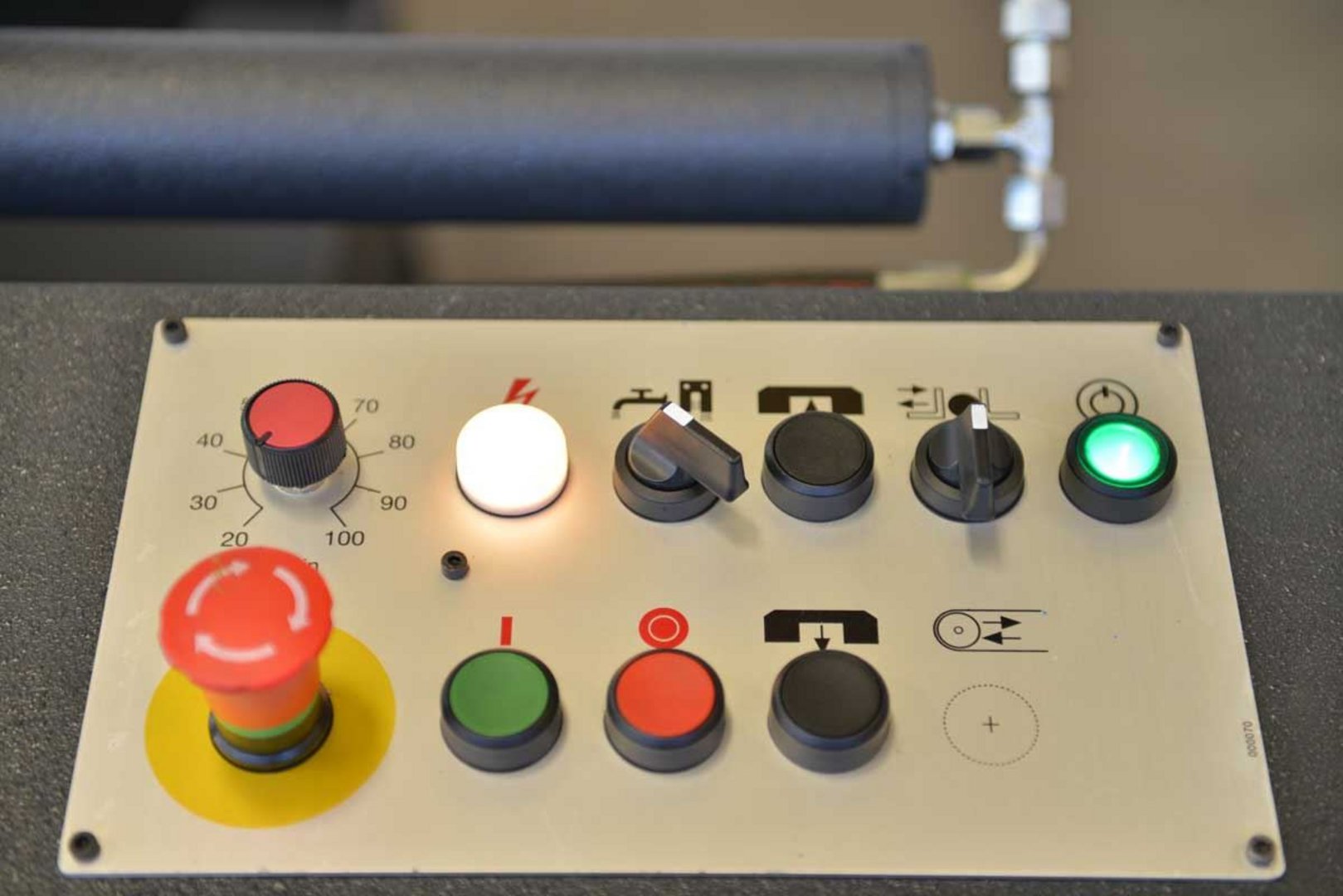

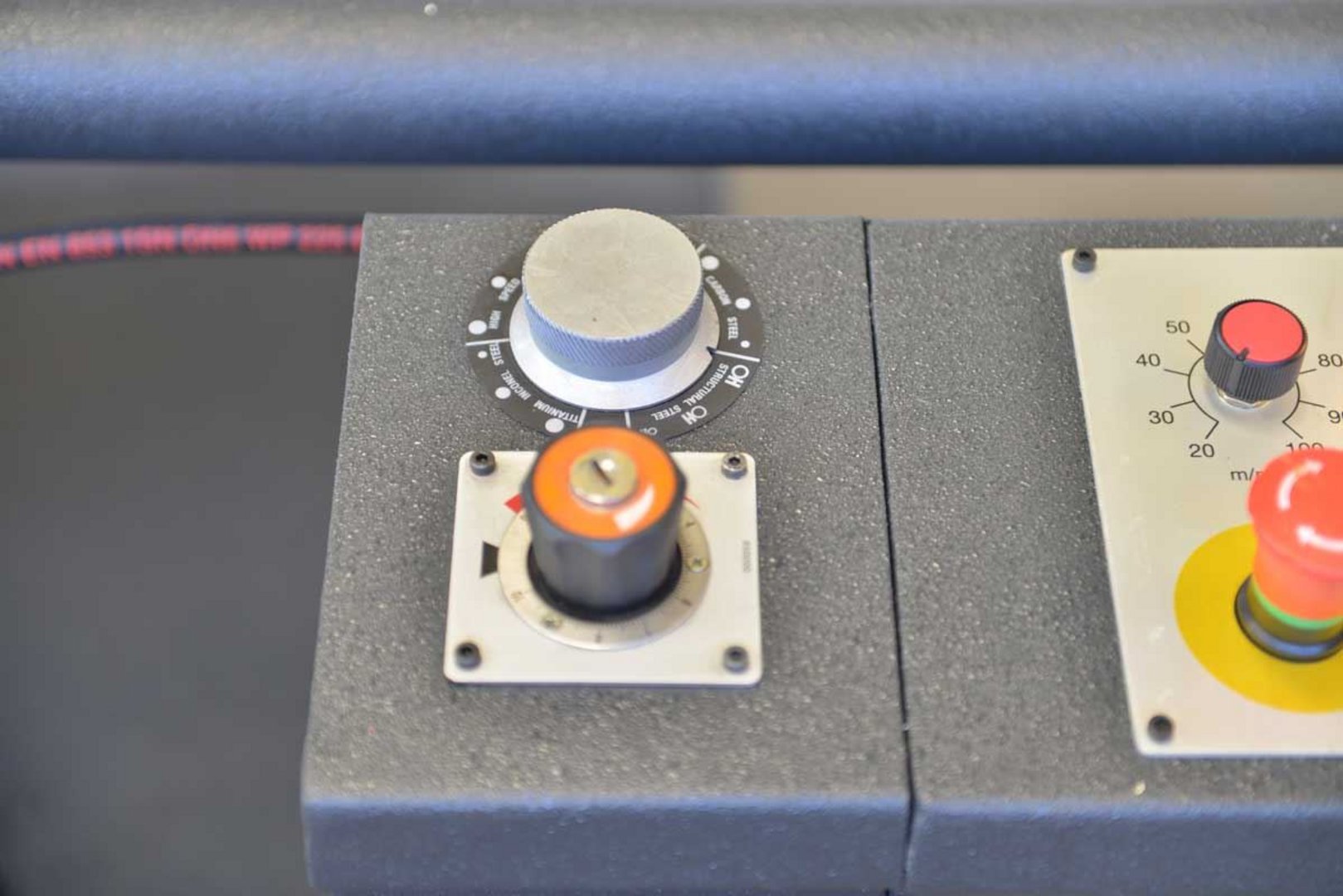

mobile control panel
angular geared conical heavy duty gear unit
driven chip brush
tape guiding by hard metal sheet plates and rolls
automatic tape break lock
coolant equipment
hydraulic uplift of sawing frame
user manual in GERMAN or ENGLISH
Options:
| Hydraulic vertical clamping |
| Micro cooling unit |
| Laser liner |
