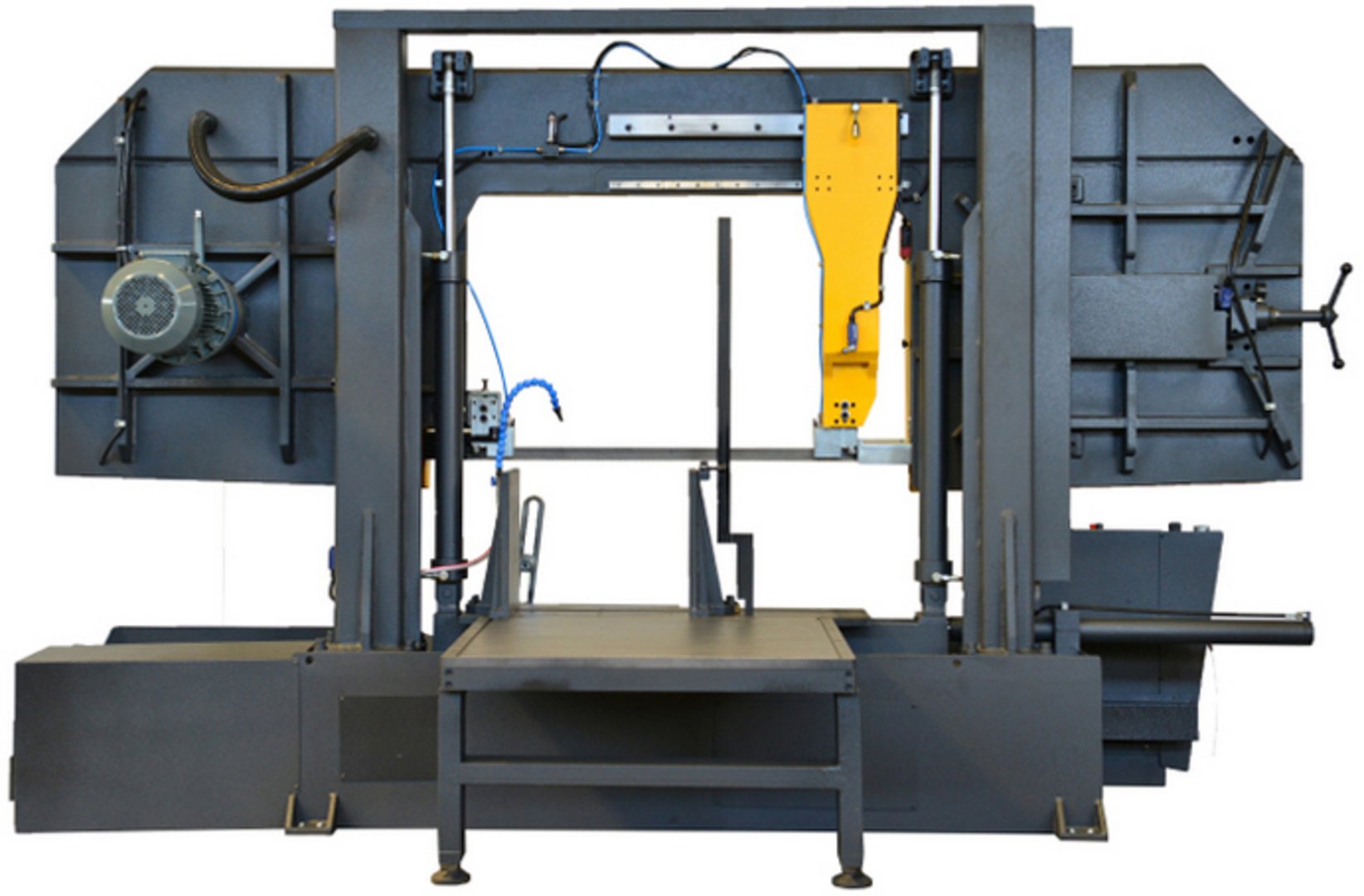

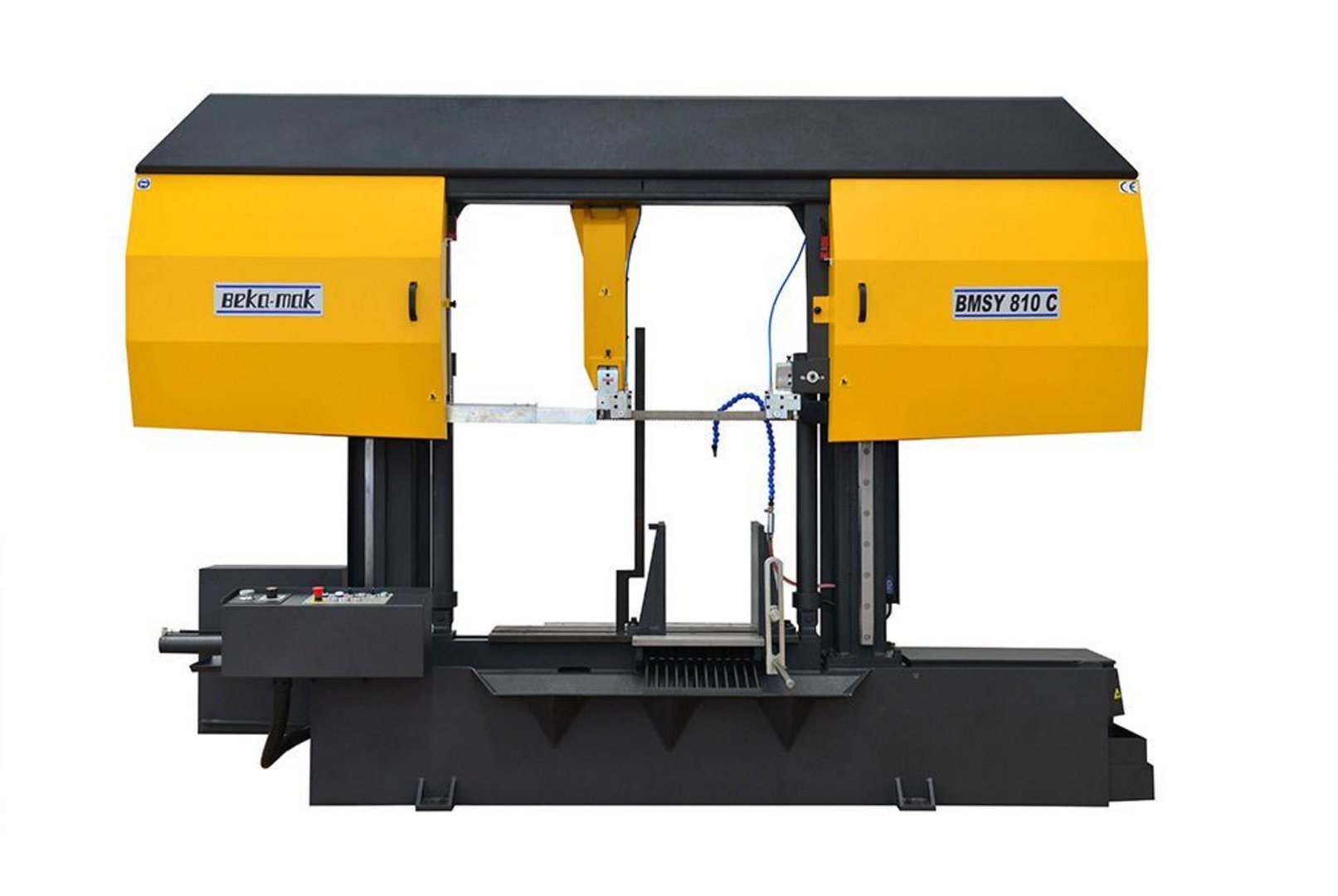

Semiautomatic band saw HESSE by BEKA-MAK BMSY 810 C
| Model | BMSY 810 C |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 810 mm |
| Cutting capacity 0° square | 810 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 8200x41x1,3 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 810 mm |
| Cutting capacity 0° square | 810 mm |
| Cutting capacity 0° flat | 850x810 mm |
| Cutting capacity 45° | rund 480 mm, quadrat 480 mm, rechteck 480 x 810 mm |
| Working height | 585 mm |
| Hydraulic motor | 1.5 kW |
| Motor | 4 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 3900 mm |
| Width | 1200 mm |
| Height | 2350 mm |
| Weight | 3080 kg |
Description
2° inlined saw band
optical height adjustment

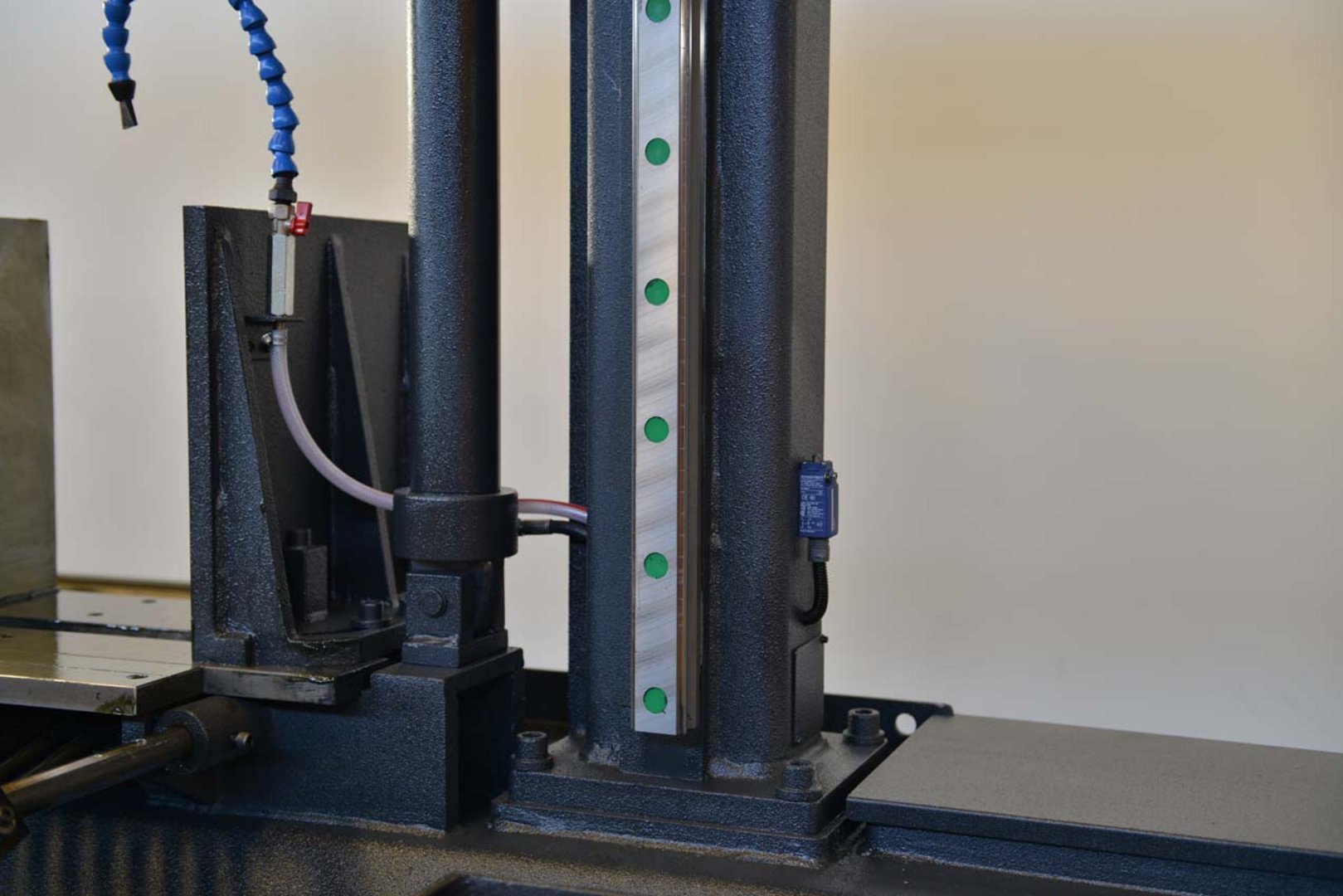

linear guides
control panel
security switch
pressure adjustment
hydraulic vice
chip brush
hydromechanical blade tensioning
coolant pump
heavy duty gearbox
1,2 m roller table
user manual in GERMAN or ENGLISH
options:
turn table for mitre cuts
hydraulic top clamping from above
roller tables and band saw blades
