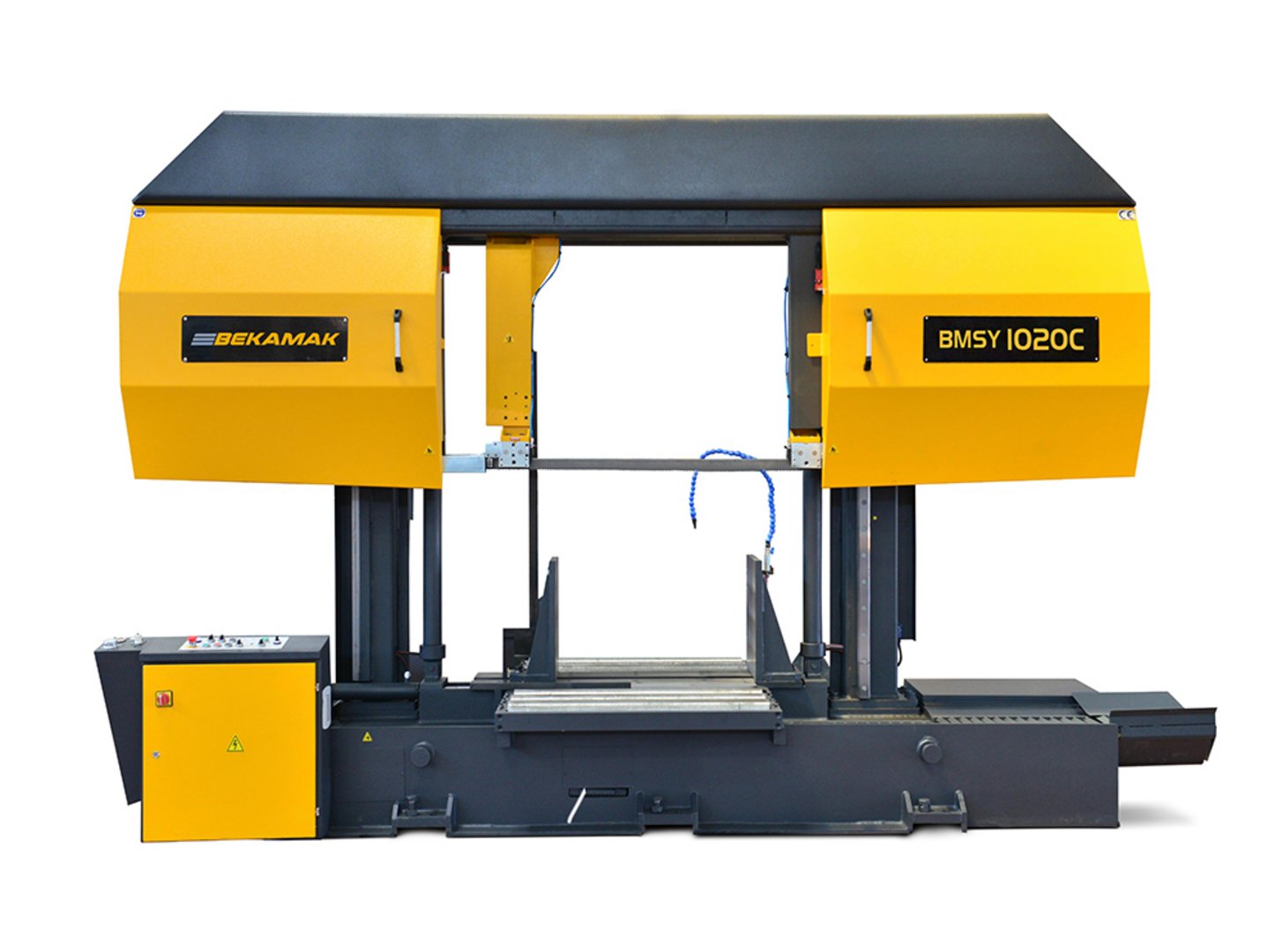

Semiautomatic band saw HESSE by BEKA-MAK BMSY 1020 C
| Model | BMSY 1020 C |
| Brand | HESSE by BEKA-MAK |
| Condition | new |
| Cutting capacity 0° round | 1020 mm |
| Cutting capacity 0° square | 1020 mm |
| Origin | Türkiye |
General characteristics
| Saw frame | Double column |
| Band dimensions | 9500x54x1,6 mm |
| Band speed continous | 20-100 m/min |
| Cutting capacity 0° round | 1020 mm |
| Cutting capacity 0° square | 1020 mm |
| Cutting capacity 0° flat | 1020x1020 mm |
| Cutting capacity 45° | rund 675 mm, quadrat 675 mm, rechteck 675 x 1.020 mm |
| Working height | 535 mm |
| Hydraulic motor | 2.2 kW |
| Motor | 7.5 kW |
| Coolant pump motor | 0.12 kW |
Dimensions and weight
| Length | 4500 mm |
| Width | 1700 mm |
| Height | 2750 mm |
| Weight | 5860 kg |
Description
blade brush

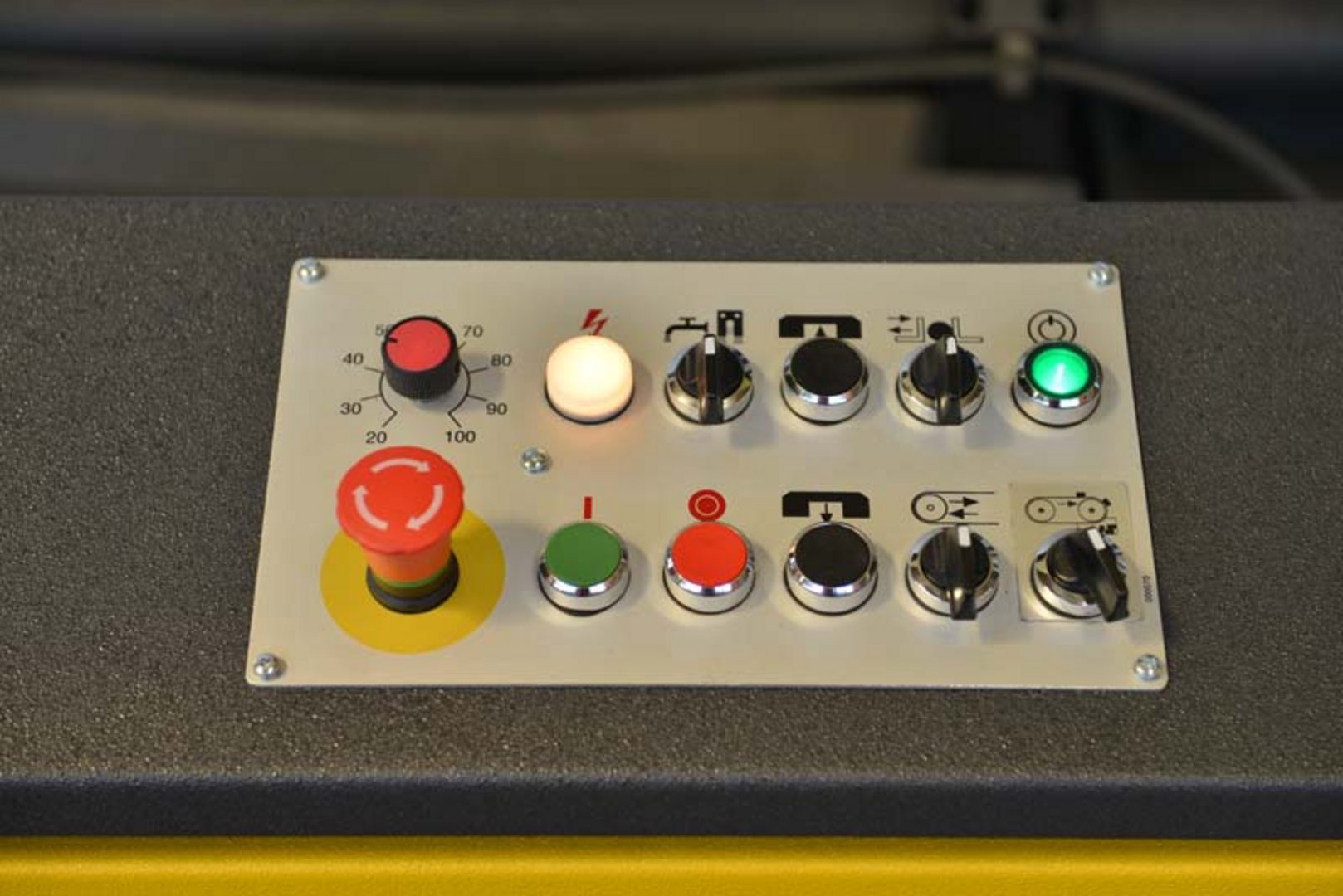

control panel
hydraulic vice
hydraulic blade tension
inverter

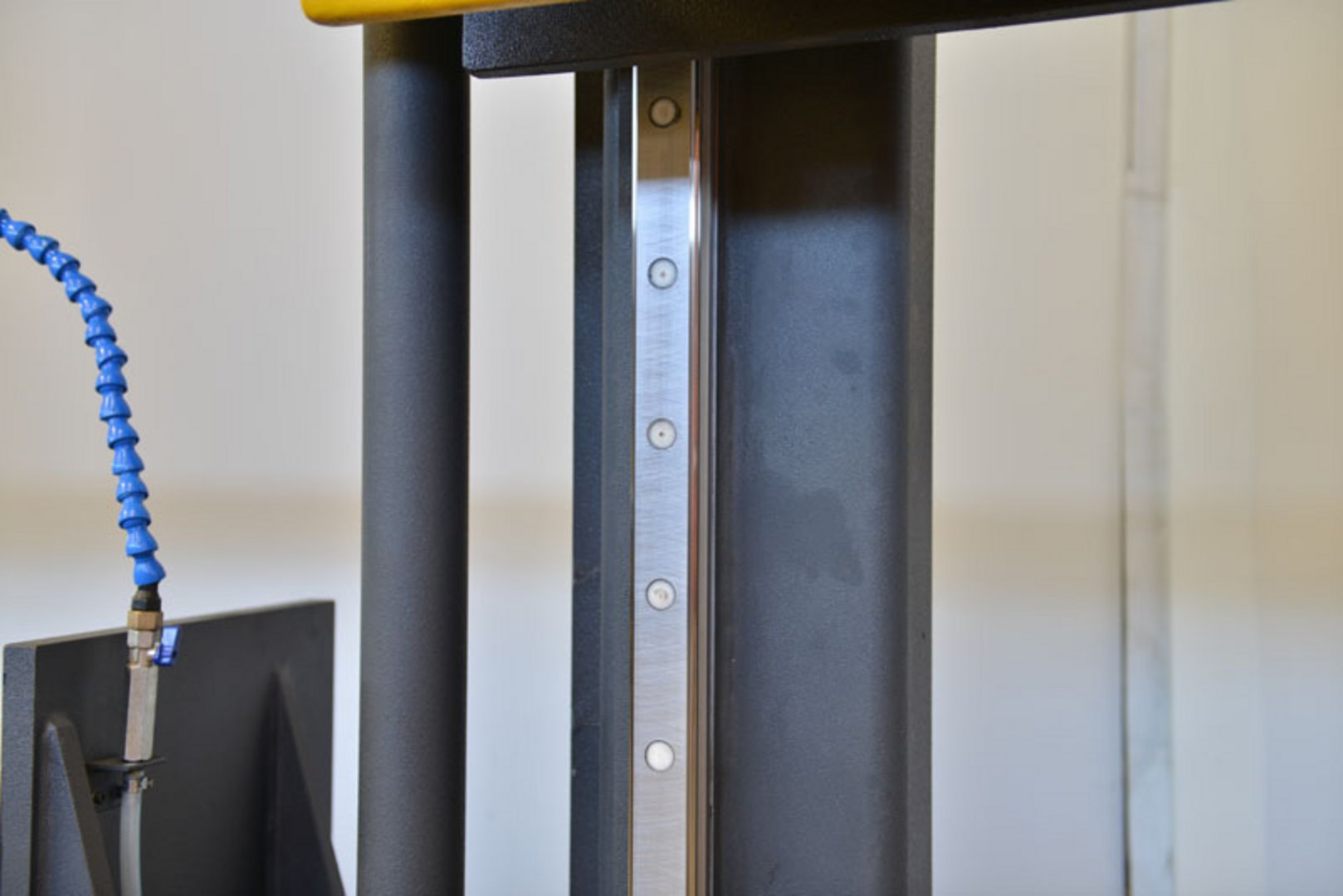

linear ways
height adjustment by optical sensor
automatic adjustment of blade guide arm, syncrounos to vice movement
senitive pressure adjustment
coolant pump
saw blade
user manual in GERMAN or ENGLISH
options:
hydraulic top clamping
chip conveyer
turn table for turning the machine for mitre cutting
roller tables and band saw blades
