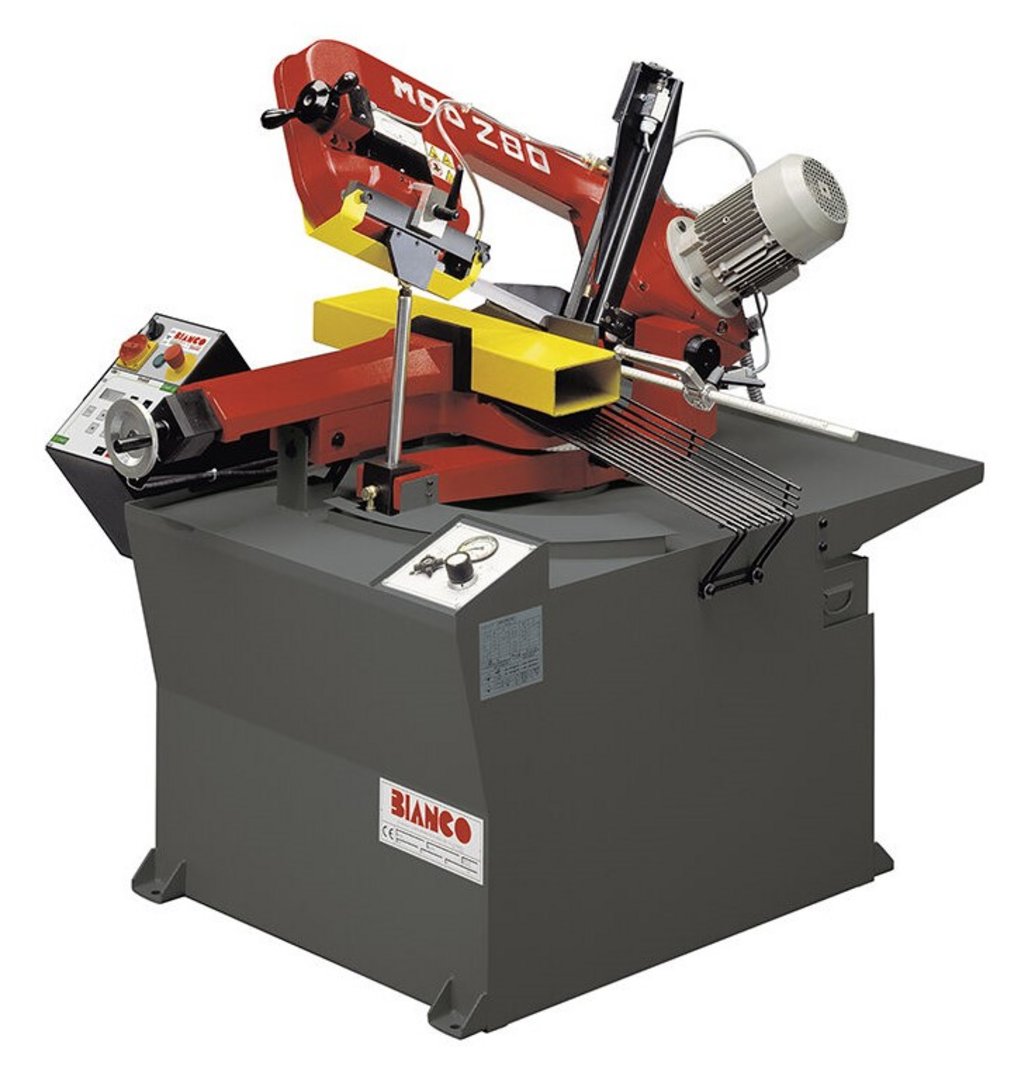

Semiautomatic band saw BIANCO 280 SA
| Model | 280 SA |
| Brand | BIANCO |
| Condition | new |
| Cutting capacity 0° round | 220 mm |
| Cutting capacity 0° square | 200 mm |
| Origin | Italy |
General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 2450x27x0,9 mm |
| Band speed | 35/70 m/min |
| Cutting capacity 0° round | 220 mm |
| Cutting capacity 0° square | 200 mm |
| Cutting capacity 0° flat | 250x150 mm |
| Cutting capacity 45° | rund 160 mm, quadrat 140 mm, rechteck 140 x 140 mm |
| Cutting capacity 60° | rund 90 mm, quadrat 90 mm, rechteck 90 x 90 mm |
| Working height | 800 mm |
| Motor | 0.7 kW |
Dimensions and weight
| Length | 1330 mm |
| Width | 1300 mm |
| Height | 1880 mm |
| Weight | 350 kg |
Description
hydraulic vice
saw beam moves up and down by hydraulic cylinder
fast descent
utomatic fast up/down conrolled by feeler pin
adjustable pressure according to section and type of material
double safety buton for cycle start
2 speeds
coolant equipment
CUTTING CYCLE
Vice locking; Quick bow pull-down hydraulically operated; Blade rotation and cooling liquid start-up;
Working pull-down; end of the cutting cycle; Stop of blade rotation and supply of cooling liquid;
Quick bow lift-up; Stop of bow upwards movement; vice unlocking if selected.
Option:
Adjustable vice pressure (R1) EUR 403,--
