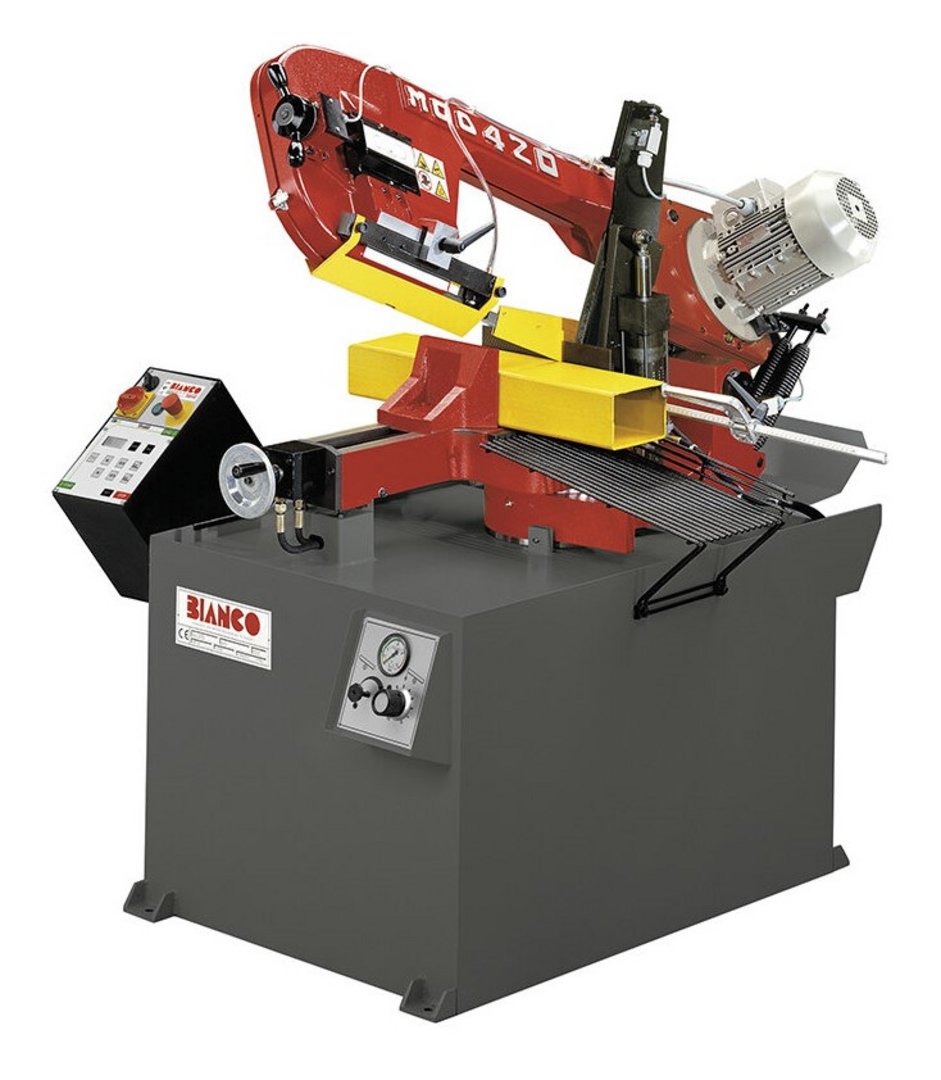

Semiautomatic band saw BIANCO 420 SAE
| Model | 420 SAE |
| Brand | BIANCO |
| Condition | new |
| Cutting capacity 0° round | 300 mm |
| Cutting capacity 0° square | 240 mm |
| Origin | Italy |
General characteristics
| Saw frame | Pivot frame |
| Band dimensions | 3270x27x0,9 mm |
| Band speed | 35/70 m/min |
| Cutting capacity 0° round | 300 mm |
| Cutting capacity 0° square | 240 mm |
| Cutting capacity 0° flat | 420x200 mm |
| Cutting capacity 45° | rund 240 mm, quadrat 230 mm, rechteck 270 x 140 mm |
| Cutting capacity 60° | rund 170 mm, quadrat 170 mm, rechteck 170 x 170 mm |
| Working height | 830 mm |
Dimensions and weight
| Length | 1650 mm |
| Width | 1200 mm |
| Height | 1900 mm |
| Weight | 400 kg |
Description
hydraulic vice
saw beam moves up and down by hydraulic cylinder
fast descent
automatic fast up/down conrolled by feeler pin
adjustable pressure according to section and type of material
double safety buton for cycle start
2 speeds
coolant equipment
CUTTING CYCLE
Vice locking; Quick bow pull-down hydraulically operated; Blade rotation and cooling liquid start-up;
Working pull-down; end of the cutting cycle; Stop of blade rotation and supply of cooling liquid;
Quick bow lift-up; Stop of bow upwards movement; vice unlocking if selected.
Optional equipmente: adjustable vice pressure EUR 330,--
Further information
Brochures
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
