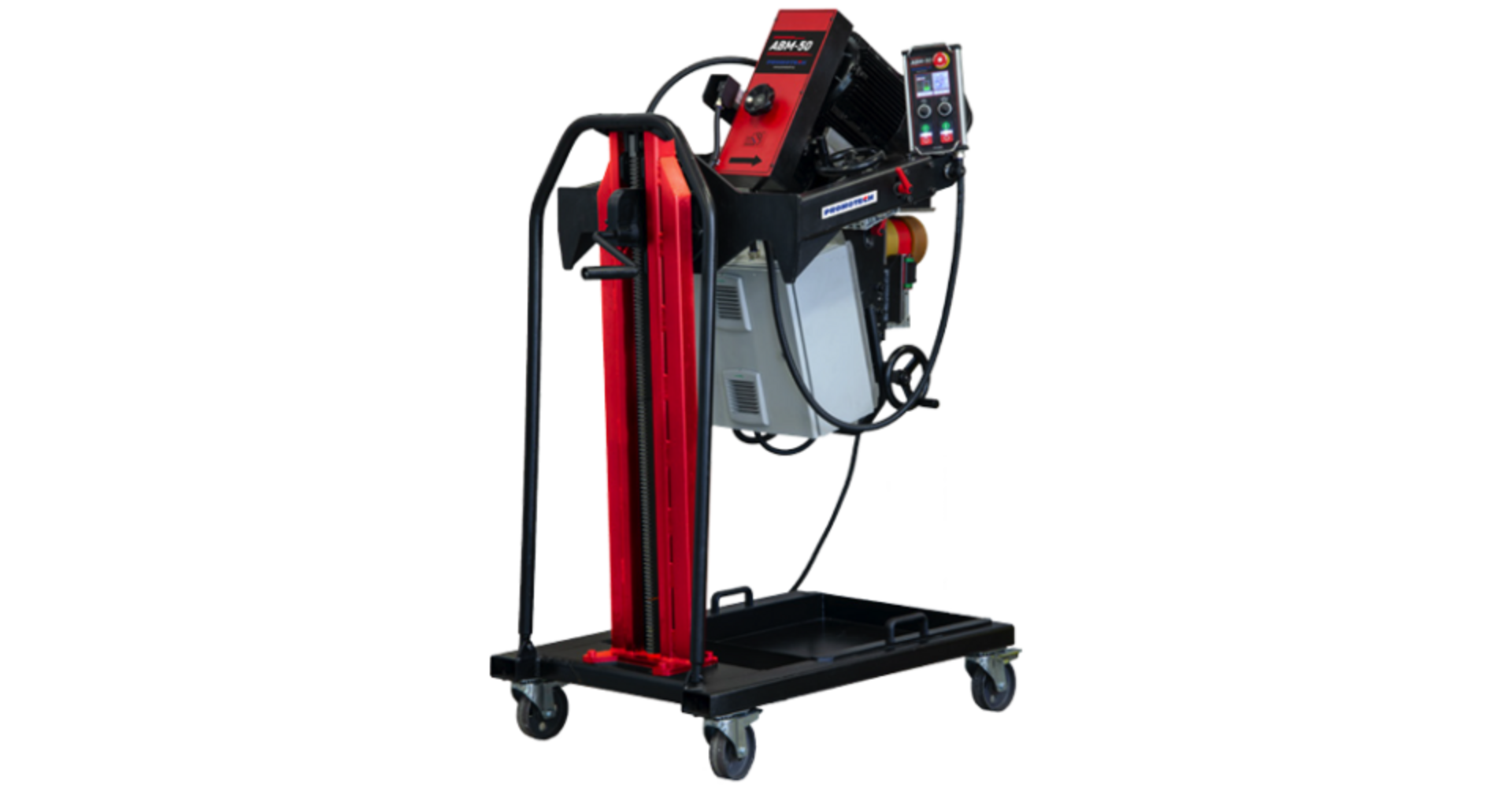

Beveling machine PROMOTECH ABM-50
| Model | ABM-50 |
| Brand | PROMOTECH |
| Condition | new |
| Max. bevel width | 66 mm |
| Origin | Poland |
General characteristics
| Suitable for plates | 1 |
| Max. bevel width | 66 mm |
| Bevel angle | 60 ° |
| Spindle speed (load-free) | 300-800 rpm |
| Feed speed | 0 - 1,2 mm/min |
| Max. cutting depth | 6 mm |
| Motor | 6.5 kW |
Dimensions and weight
| Length | 1179 mm |
| Width | 853 mm |
| Height | 1524 mm |
| Weight | 320 kg |
Description
portable auto-feed bevelling machine
real time measurement and on-screen display
double-sided bevelling
variable spindle speed
milling head including 8 replaceable inserts
remote control panel with LCD display
| max. bevel width: | 66 mm at 15° 52 mm at 30° 50 mm at 45° 51 mm at 60° |
