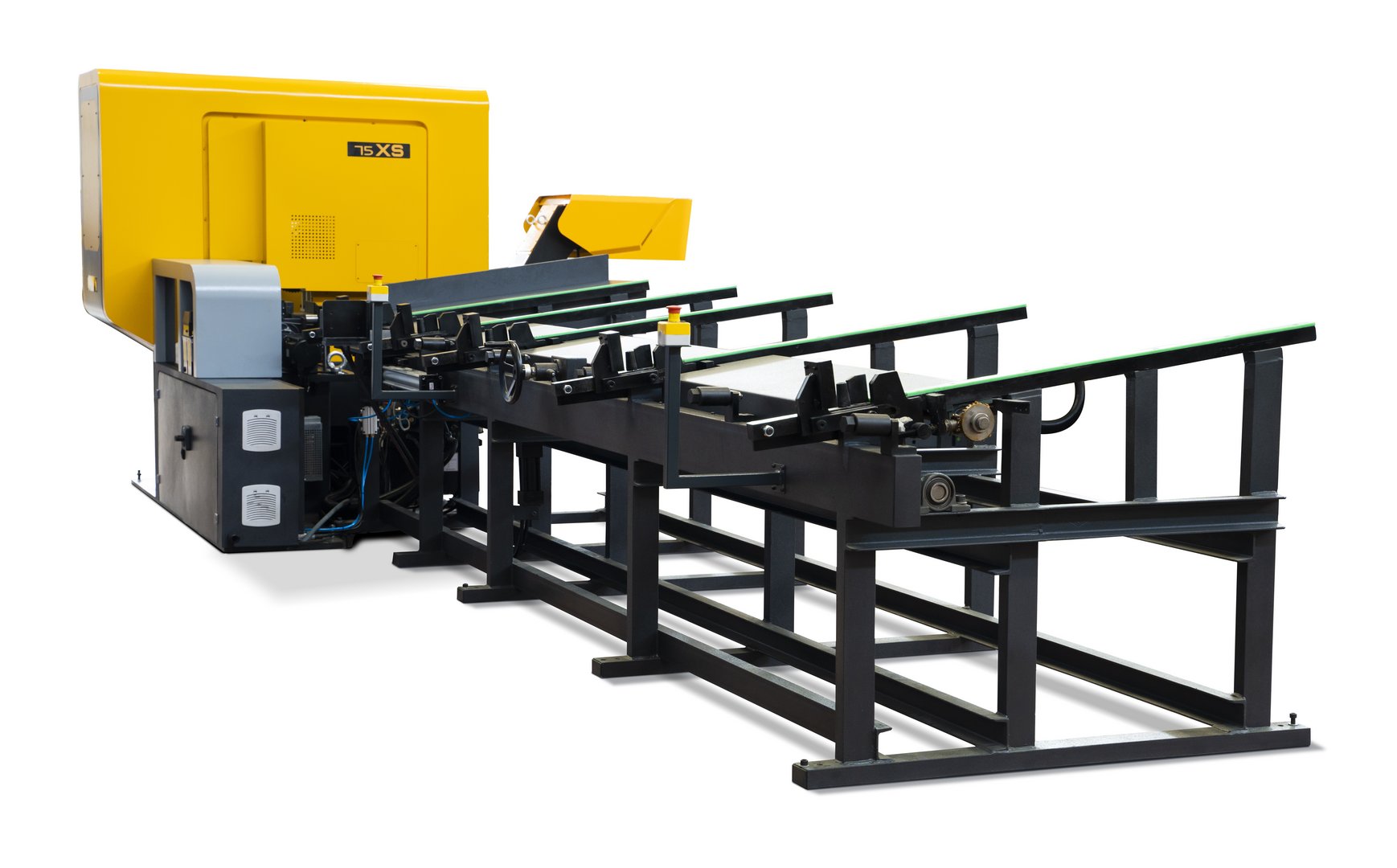

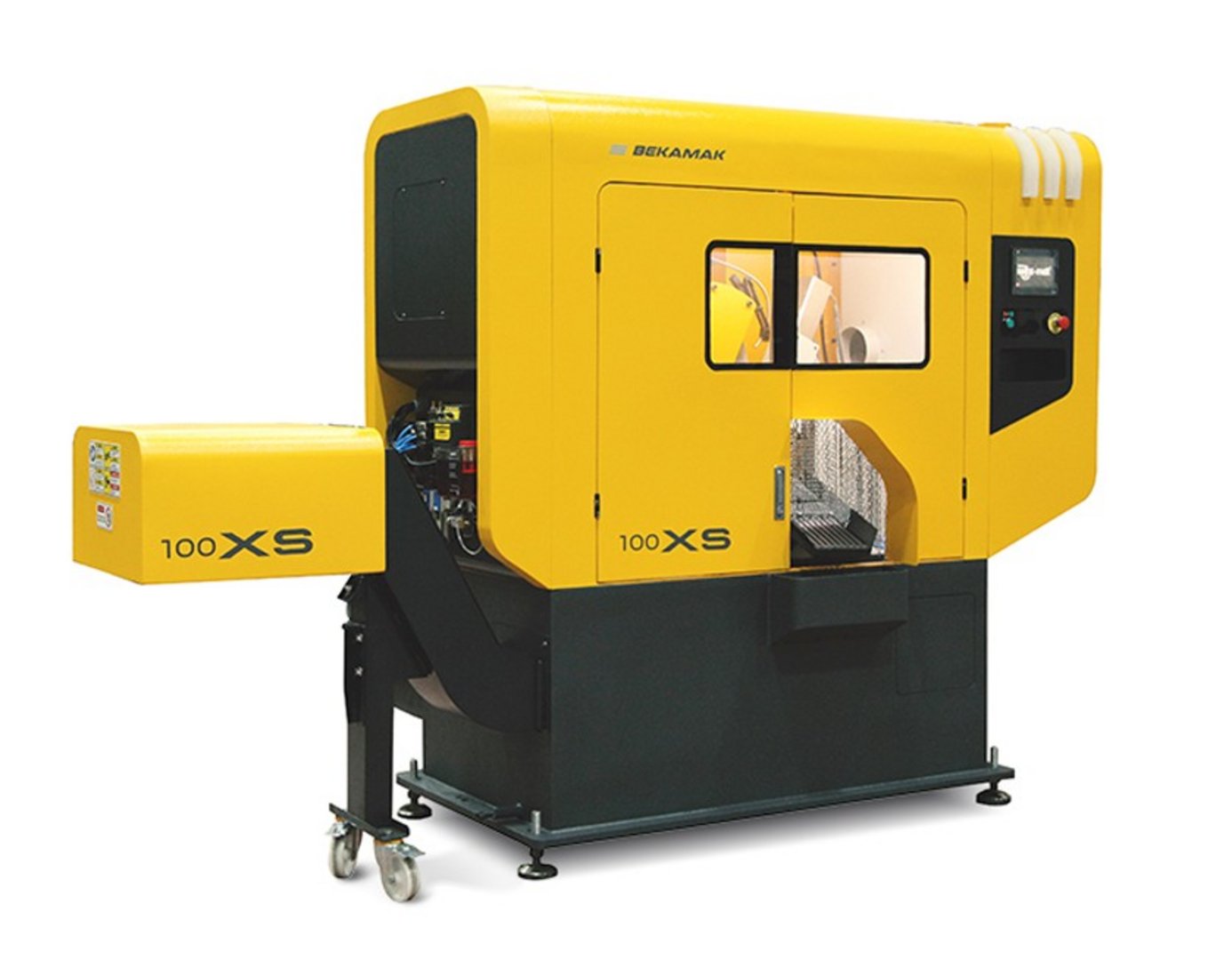

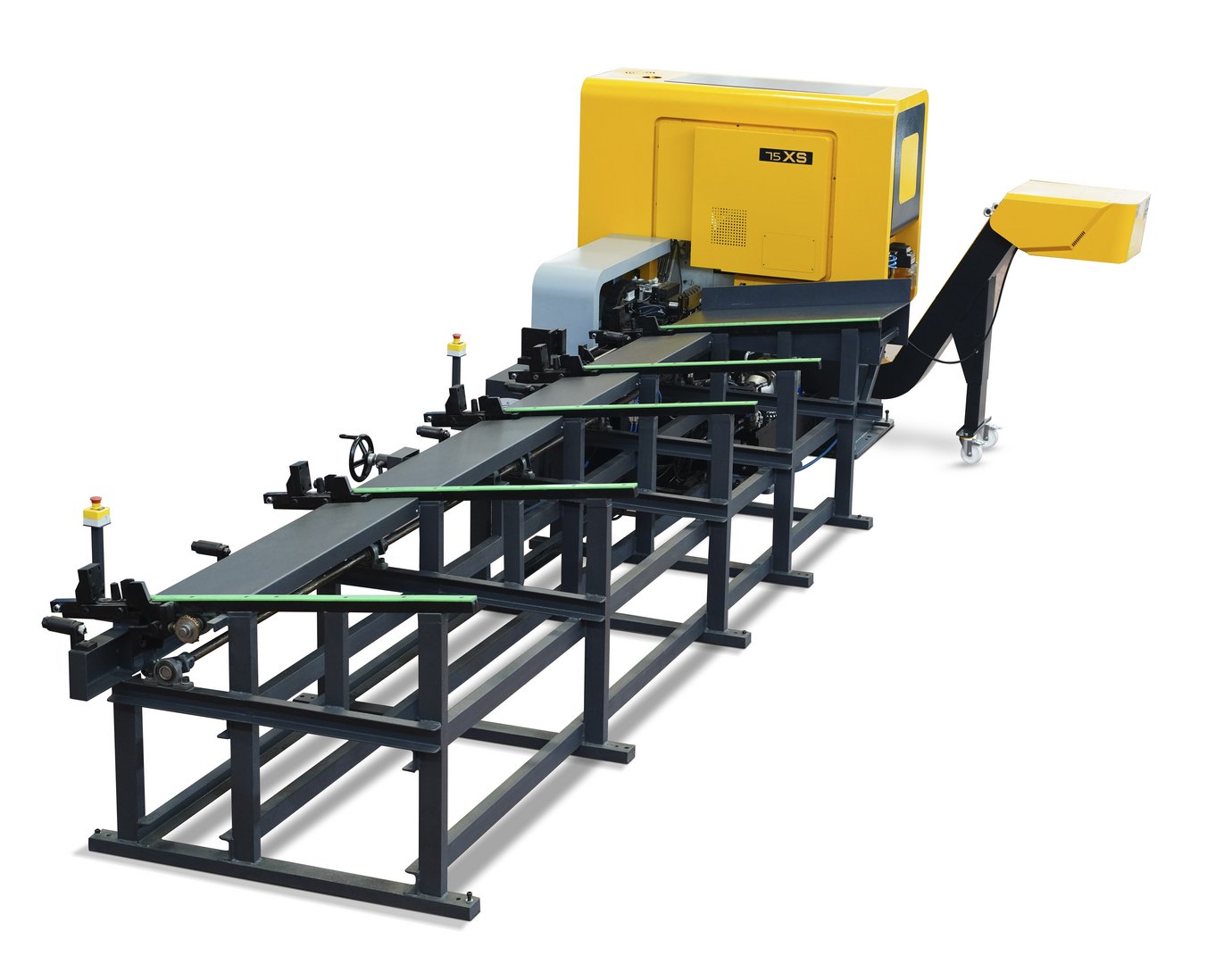

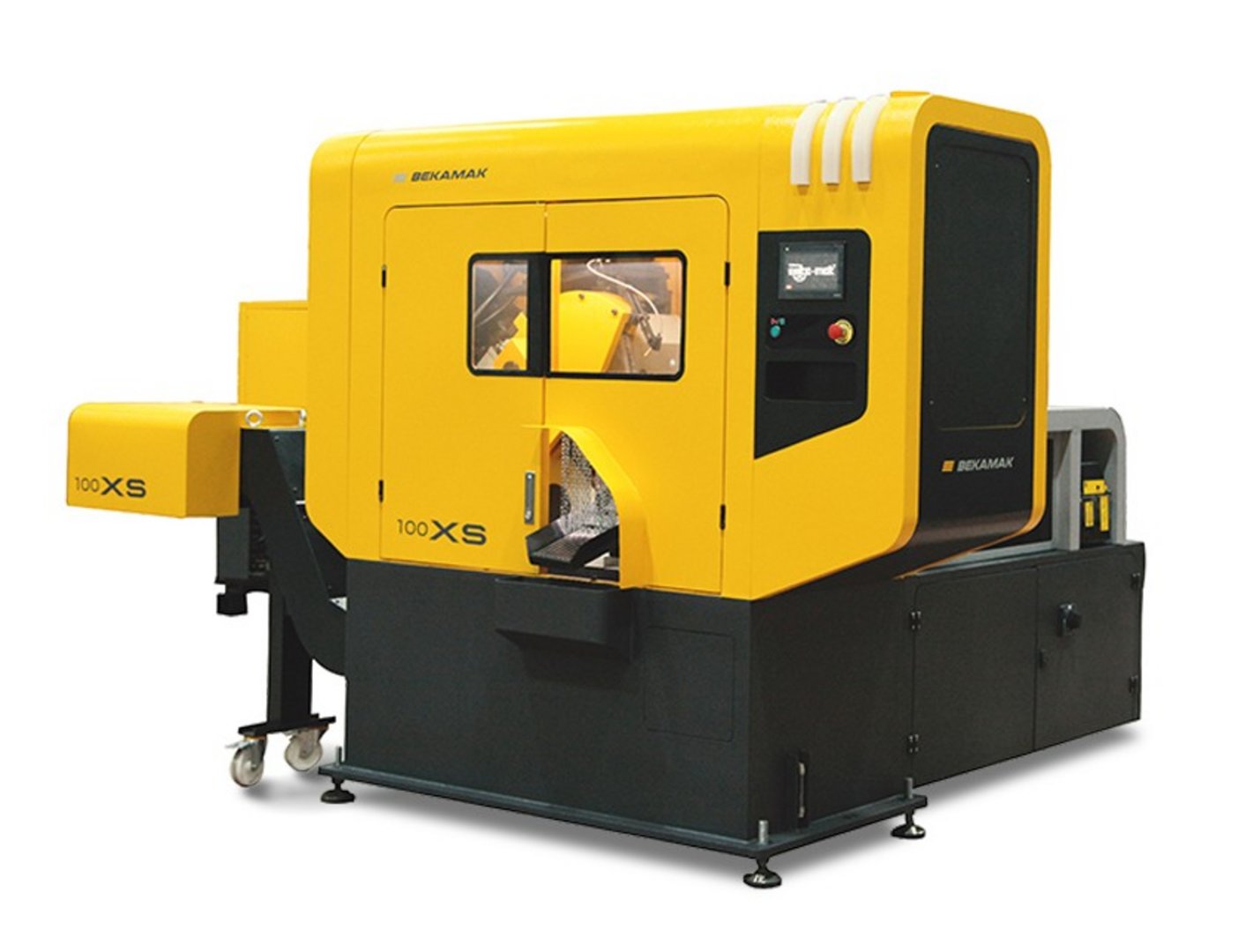

Automatic circular saw HESSE by BEKAMAK BMDO-100 XS
| Model | BMDO-100 XS |
| Brand | HESSE by BEKAMAK |
| Condition | new |
| Saw blade diameter | 360 mm |
| Origin | Türkiye |
General characteristics
| Saw blade diameter | 360 mm |
| Saw blade dimensions | Ø360 x 40 mm |
| Saw blade speed | 40 - 280 rpm |
| Cutting capacity 0° | round: 20 - 100 mm; square: 20 - 60 mm |
| Min. rest piece length | 60 mm |
| Feeding length | 10 - 9999 mm |
| Working height | 900 mm |
| Motor | 15 kW |
| Total power | 21 kW |
Dimensions and weight
| Width | 3400 mm |
| Depth | 2675 mm |
| Height | 2750 mm |
| Weight | 3450 kg |
Description
Mass production in continuous operation is done by BMDO 100 XS when producing cut-off pieces of steel and non-ferrous metals
with a material cross-section up to a diameter of 100 mm.

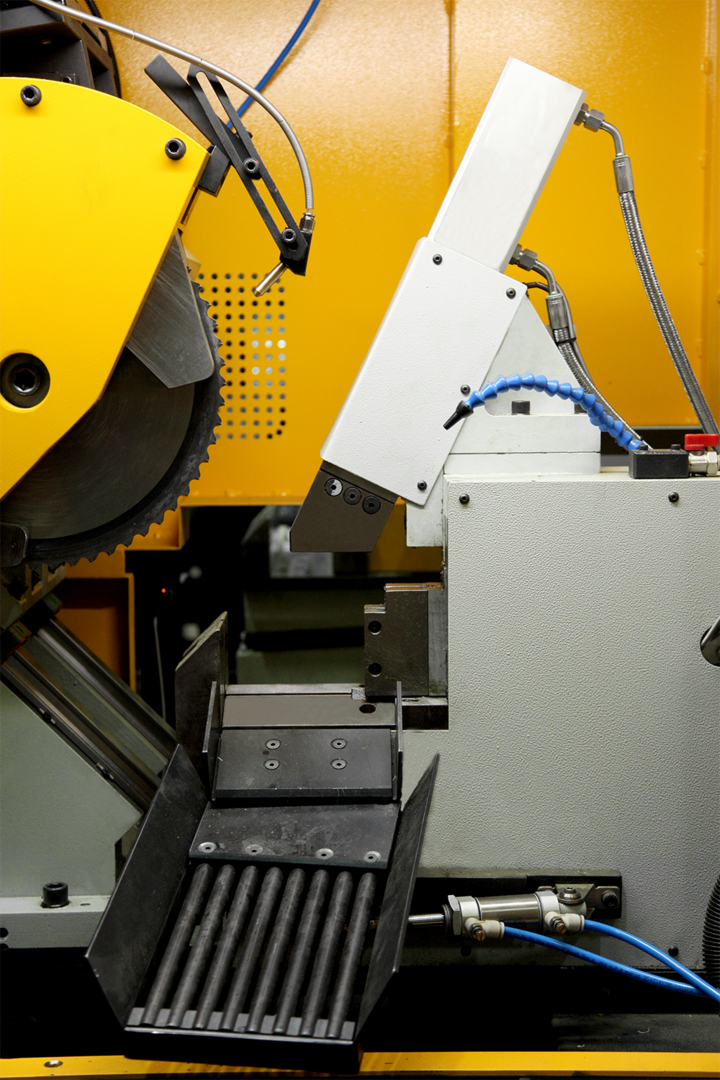

BMDO 100 XS is designed to be used with TCT circular saw blade in order to cut solid bars in high speed and excellent precise.
It is also suitable for HSS blades to cut tubes.
With the Standard 800mm stroke servo feeding and 6 meters automatic loader.
BMDO 100 XS is perfect for large-scale production of solid bars.
Standard accessories:
automtic loader 6 m
motorized roller table 3 mMikrospray Coolant

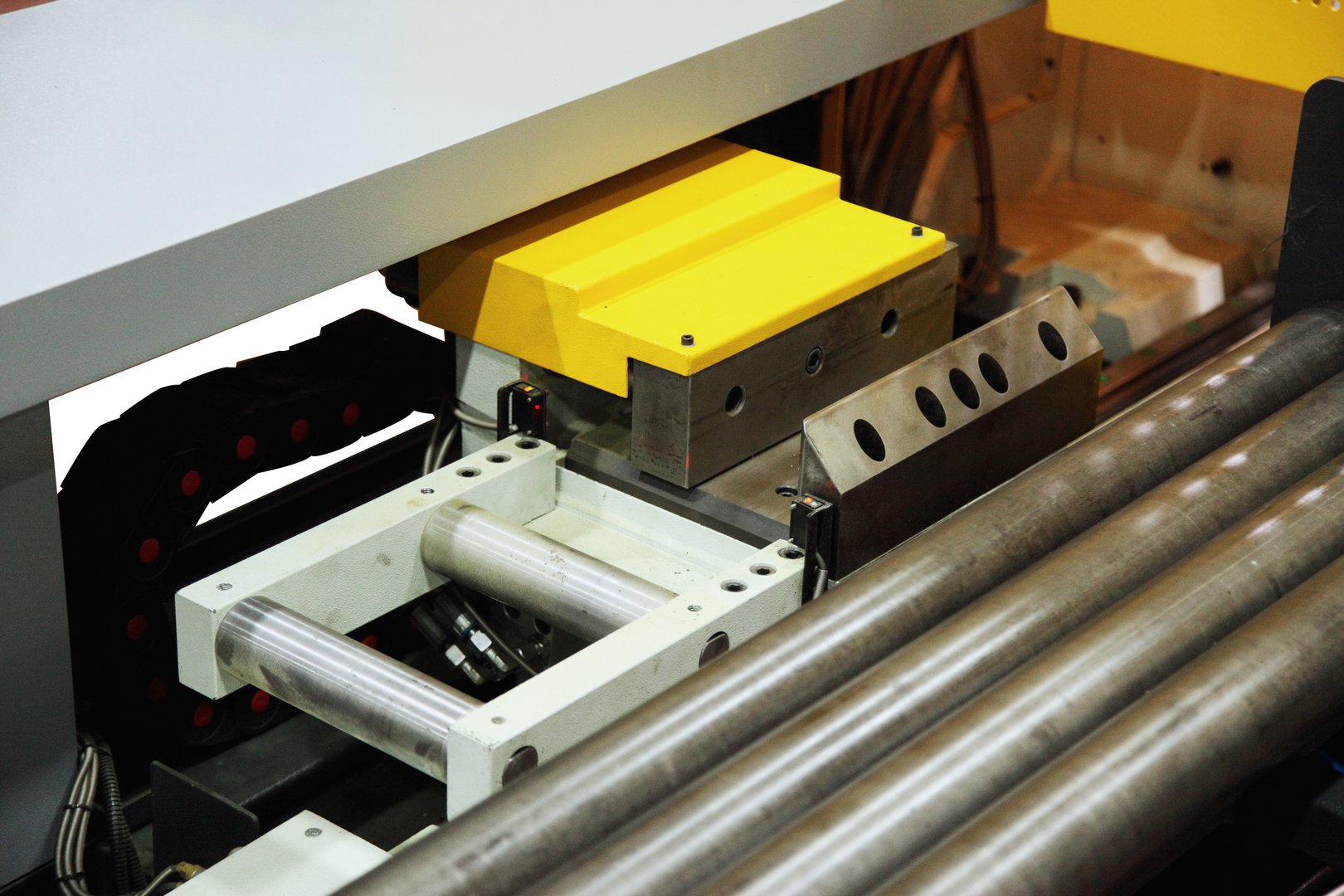

Hydraulic Vice
Inverter
Control Panel
Saw Blade Brush
Cover Switch
Heavy Duty Gearbox
Optional equipment (prices on request):
mist filter
6 m roller table
Further information
Brochures
Product video
Automatic circular saw BMDO-100 XS
