General characteristics
| Saw blade diameter | 500 mm |
| Saw blade speed | 2800 rpm |
| Cutting capacity 0° | Rund 180 mm, Quadratprofil 160 mm, Rechteckprofil 250 x 120 mm |
| Cutting capacity 45° right | Rund 120 mm, Quadratprofil 120 mm, Rechteckprofil 210 x 100 mm |
Dimensions and weight
| Width | 1100 mm |
| Depth | 1450 mm |
| Height | 1350 mm |
| Weight | 490 kg |
Description
hydropneumatic saw feed
new HM saw blade

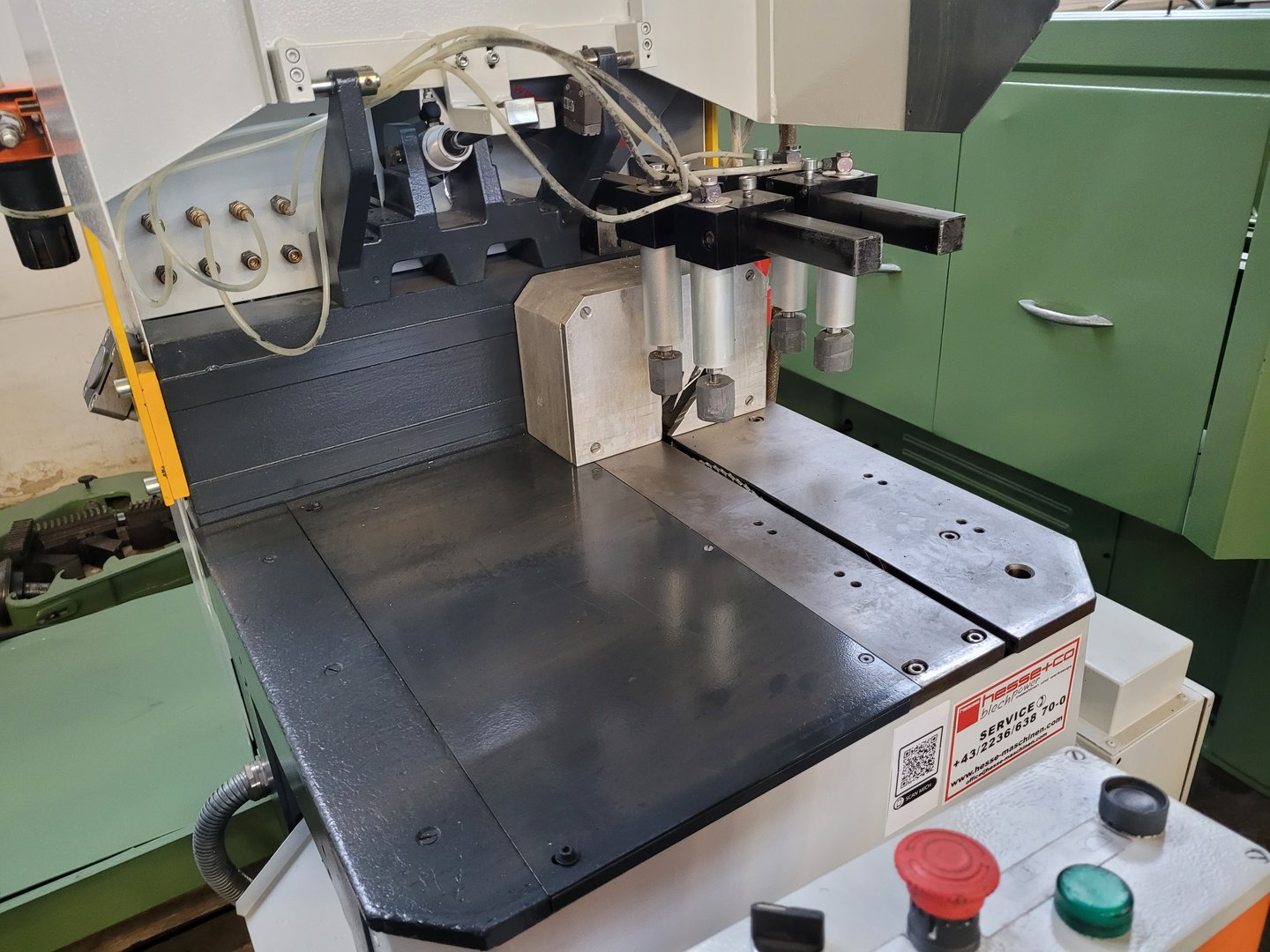

pneumatic material clamping device vertical
automatically opening protective cover

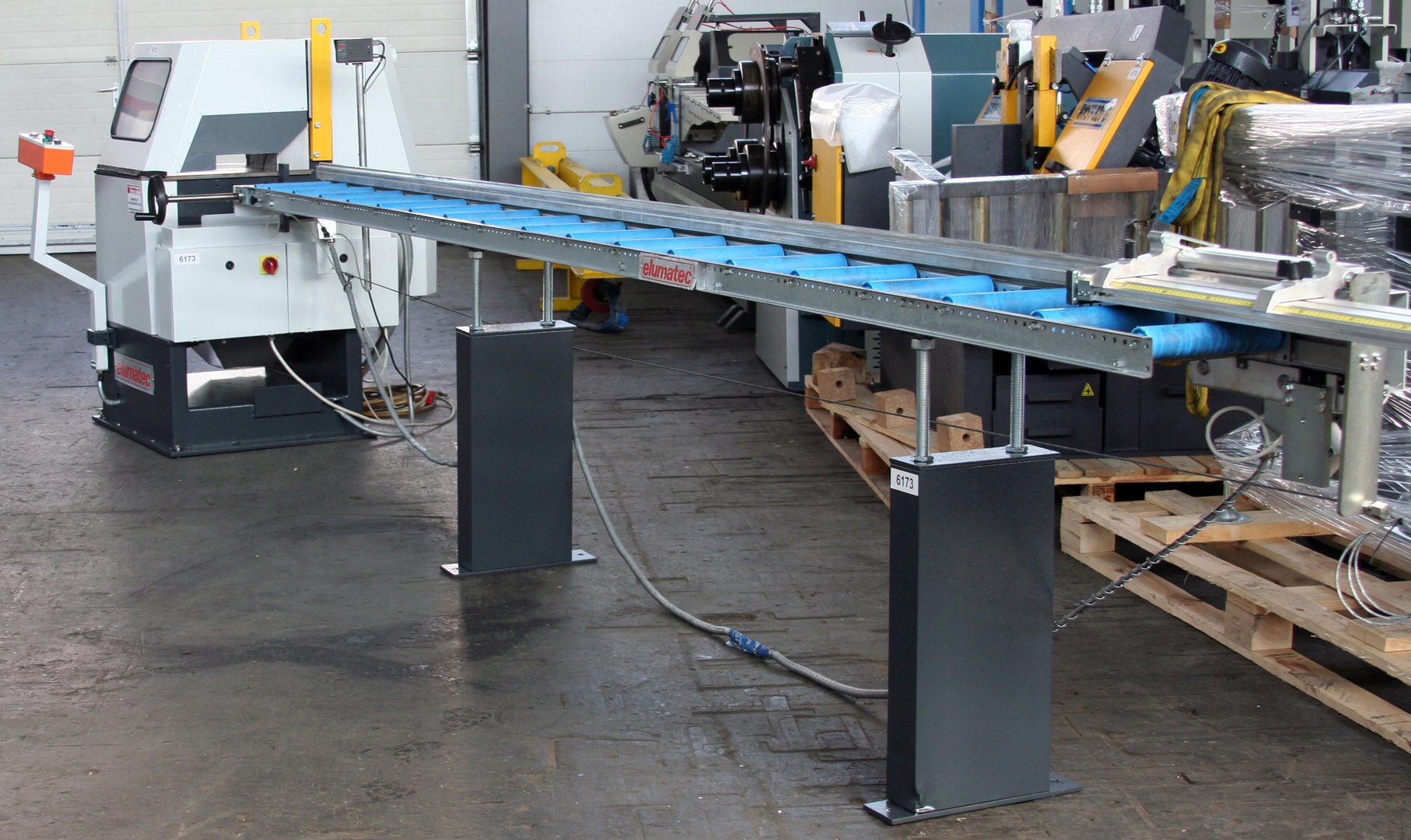

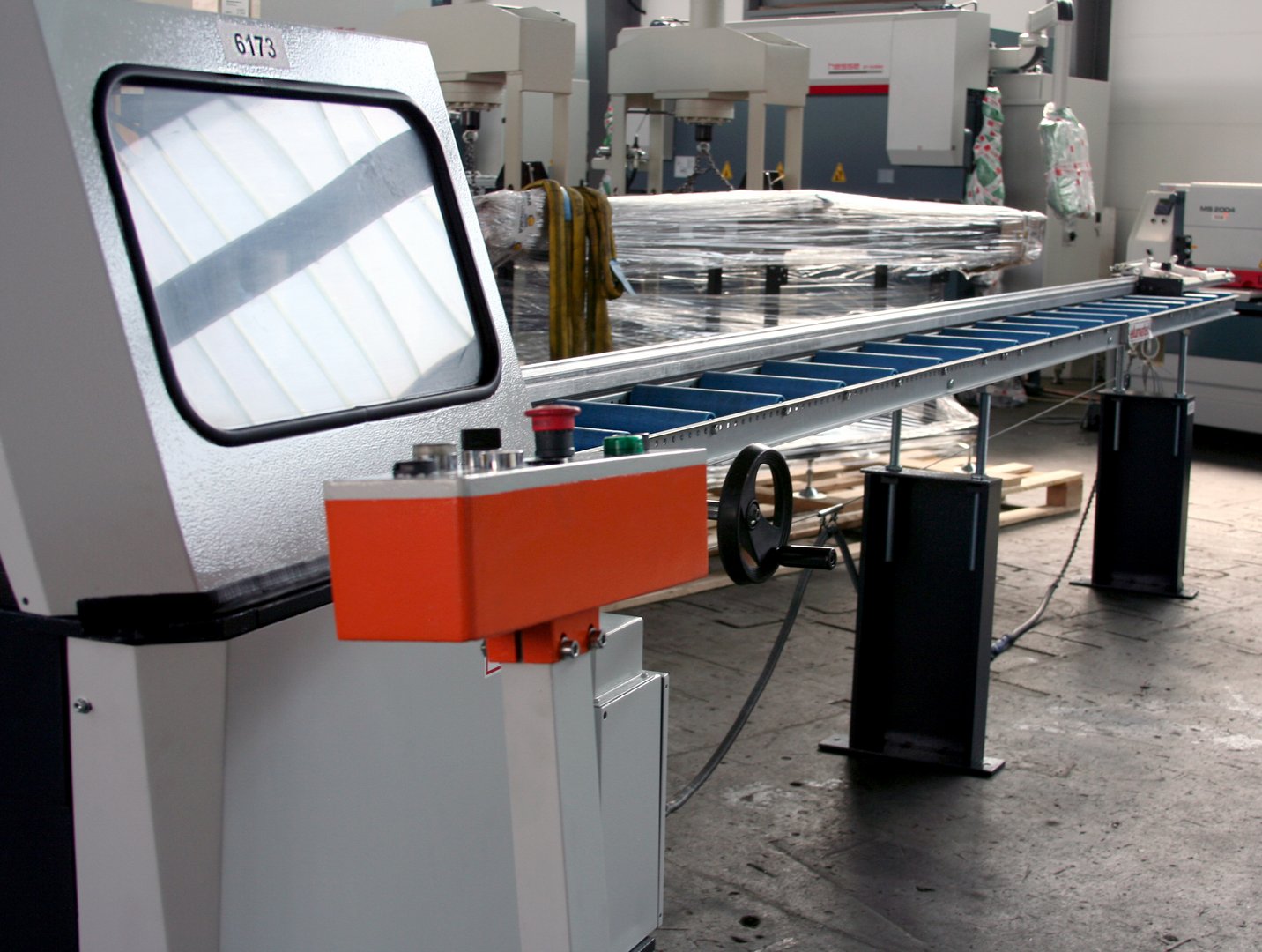

Discharge roller conveyor with stop and measuring system, display E 110, 1/10mm, 4.5 m long, plastic rollers b = 250 x Ø 50mm,
pneum. clamping, handwheel drive and locking in the operator area, stop can be folded up
user manual in GERMAN
Comply with the current industrial safety regulations (AMVO & UVV)
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
