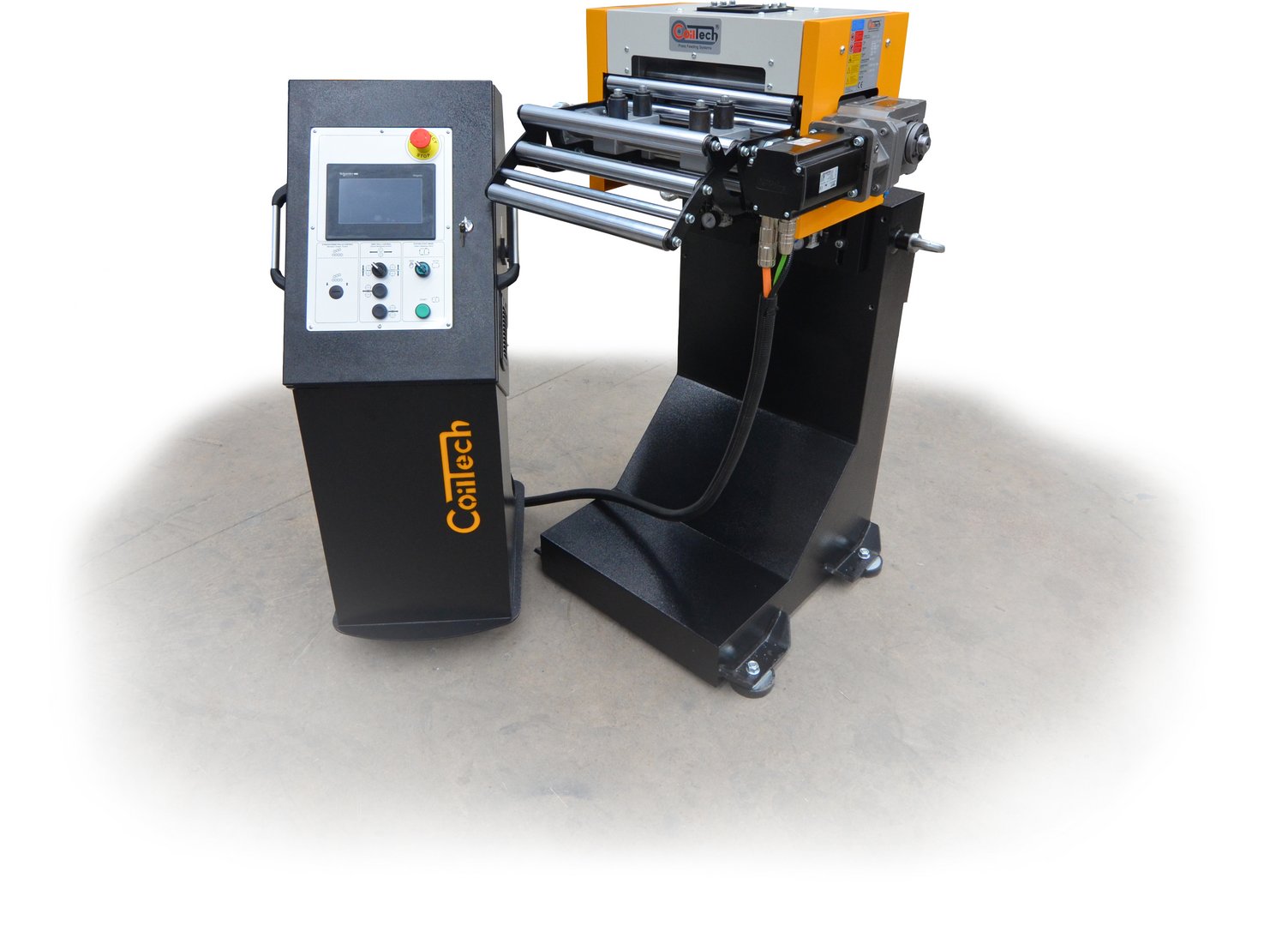

Servo feeder HESSE by COILTECH PRO 80 - 200
| Model | PRO 80 - 200 |
| Brand | HESSE by COILTECH |
| Condition | new |
| Max. sheet width | 200 mm |
| Sheet Thickness - mild steel | 0.4 - 3.5 mm |
| Origin | Türkiye |
General characteristics
| Sheet Thickness - mild steel | 0.4 - 3.5 mm |
| Max. sheet width | 200 mm |
| Max. cross-section | 200 x 3 mm |
| Feed roll diameter | 80 mm |
| Motor torque | 10 Nm |
Dimensions and weight
Description
helical gear box WATTDRIVE (Made in Austria)
FESTO pneumatic equipment
servo drive and control SIEMENS
7" colour touchscreen SIEMENS
4 gear rollers drive. Prevents the separation of the rollers during piloting operation for higher accuracy
Remote service module
EUCHNER hand wheel
Option:
Siemens Encoder € 9.110,--
(for higher accuracy and automatic slip comensation - espacially in case of higher feeding speed and thicker material)
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
