Servo feeder HESSE by COILTECH PRO 80 - 300 / Schneider
| Model | PRO 80 - 300 / Schneider |
| Brand | HESSE by COILTECH |
| Condition | new |
| Year of manufacture | 2018 |
| Max. sheet width | 300 mm |
| Sheet Thickness - mild steel | 0.6 - 4 mm |
| Stock number | 70033 |
| Origin | Türkiye |
General characteristics
| Sheet Thickness - mild steel | 0.6 - 4 mm |
| Max. sheet width | 300 mm |
| Max. cross-section | 900 mm |
| Feed roll diameter | 80 mm |
| Motor torque | 10 Nm |
| Motor | 2.62 kW |
Dimensions and weight
| Length | 1000 mm |
| Width | 800 mm |
| Height | 1400 mm |
| Weight | 330 kg |
Description
demo machine

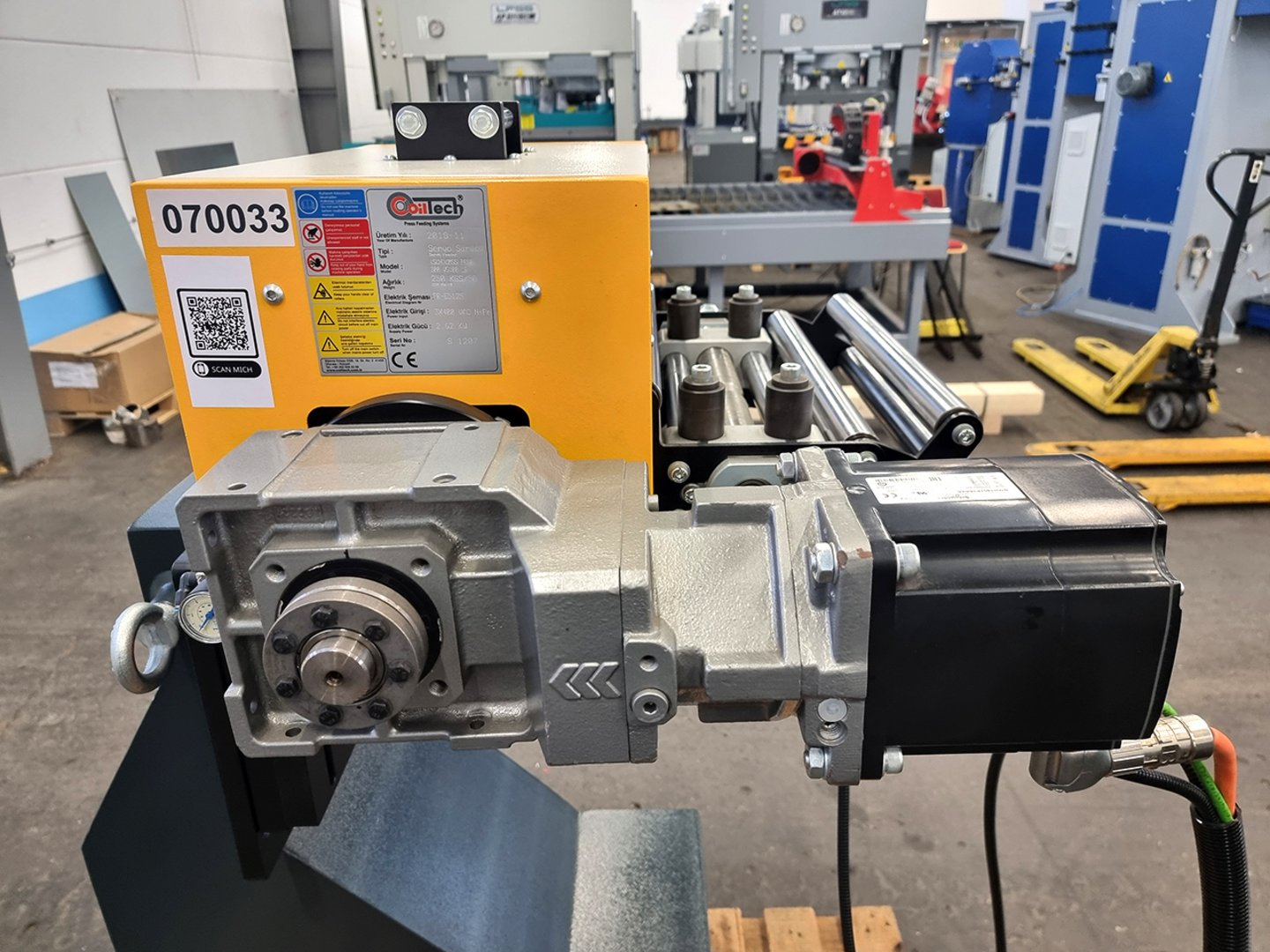

helical gear box Wattdrive
pneumatic equipment Festo

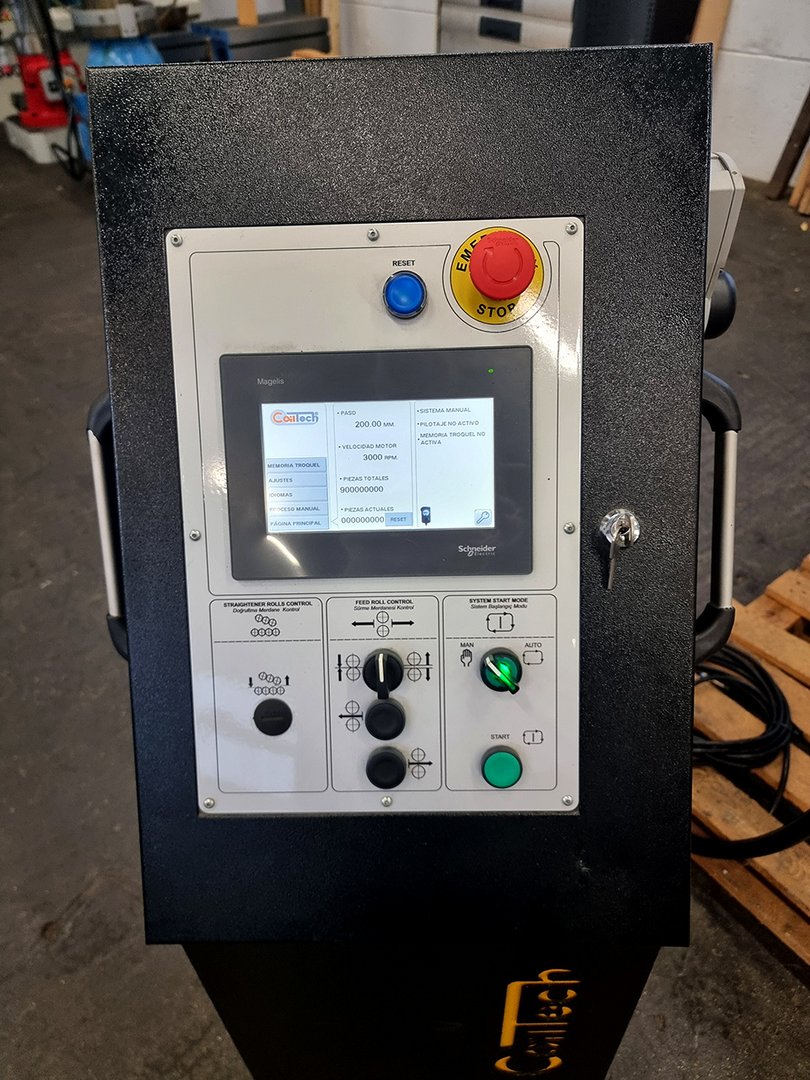

control SCHNEIDER with touchscreen

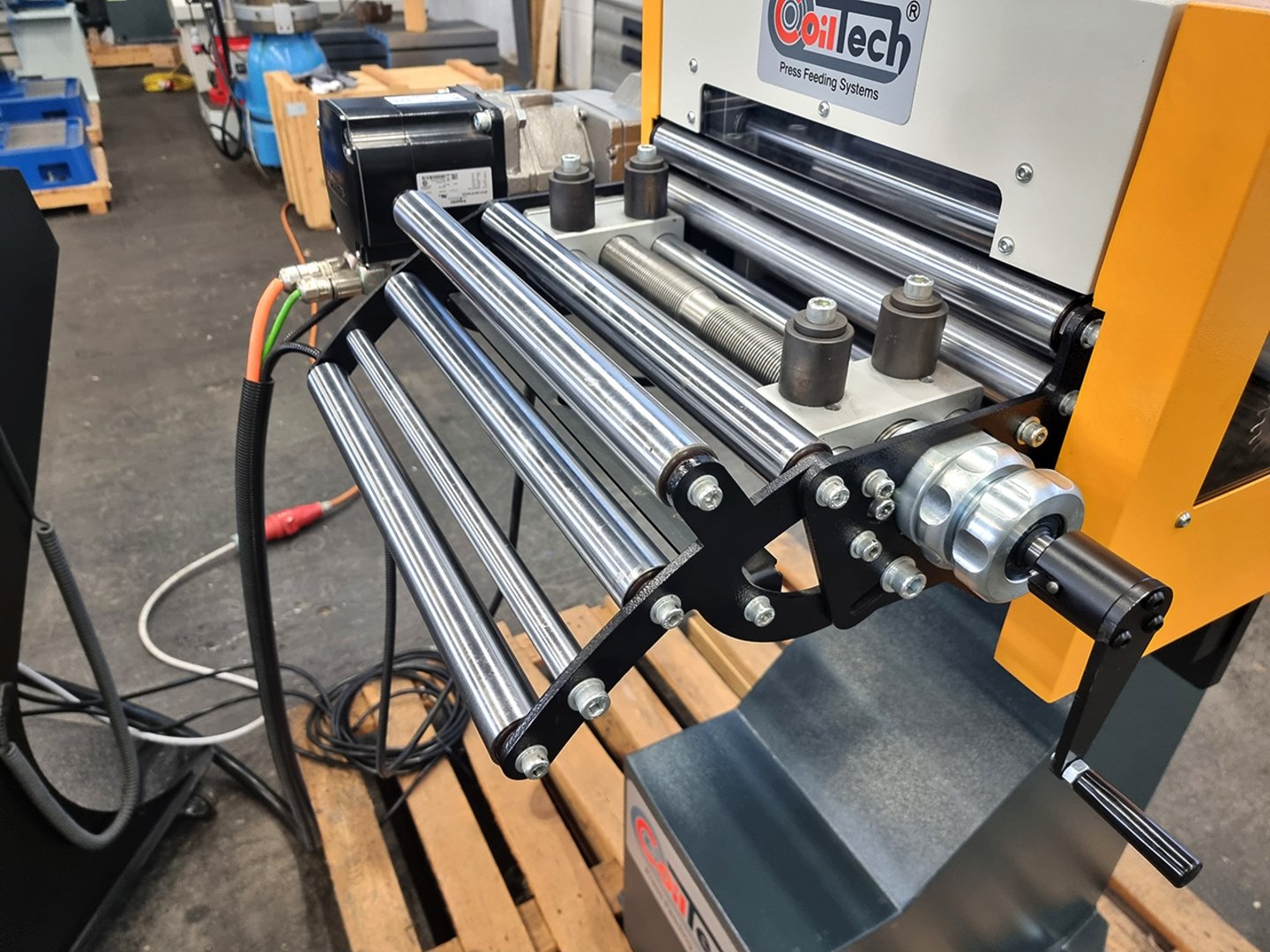

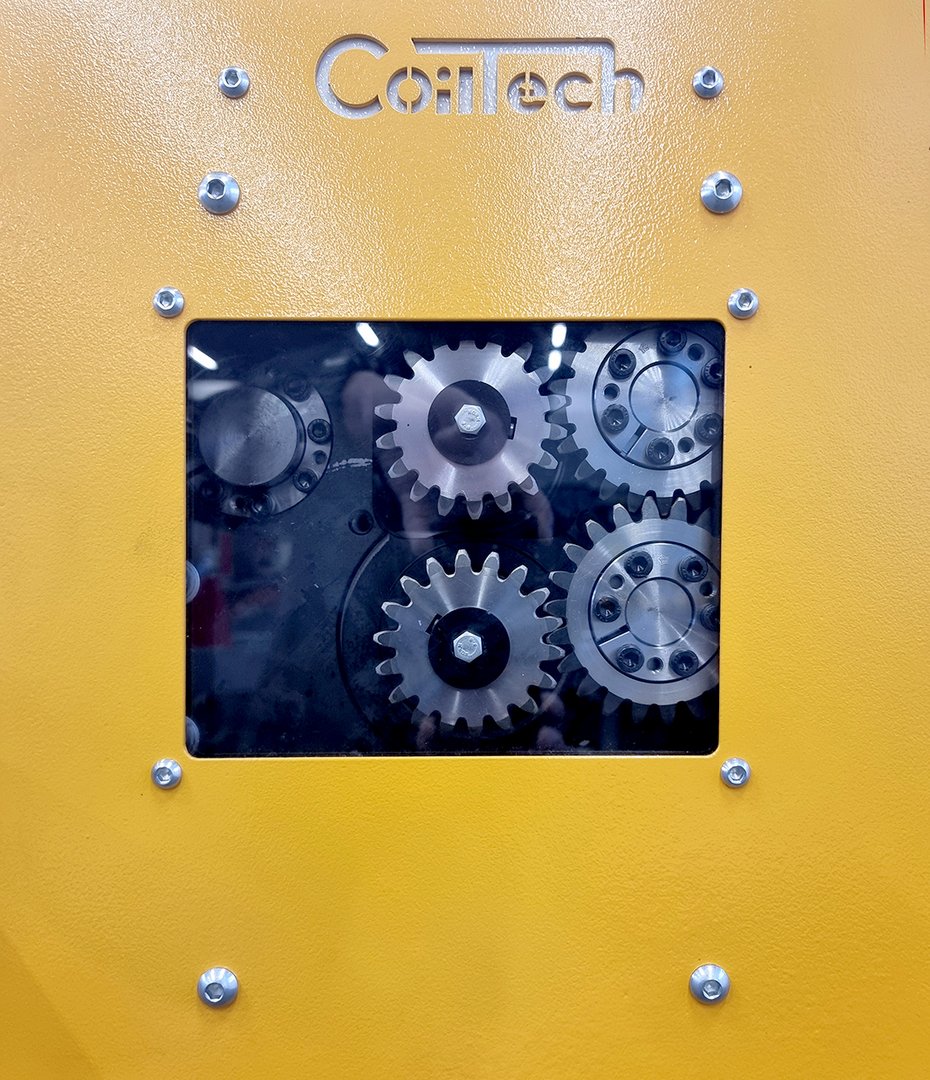

4 gear rollers drive. Prevents the separation of the rollers during piloting operation for higher accuracy
remote service module

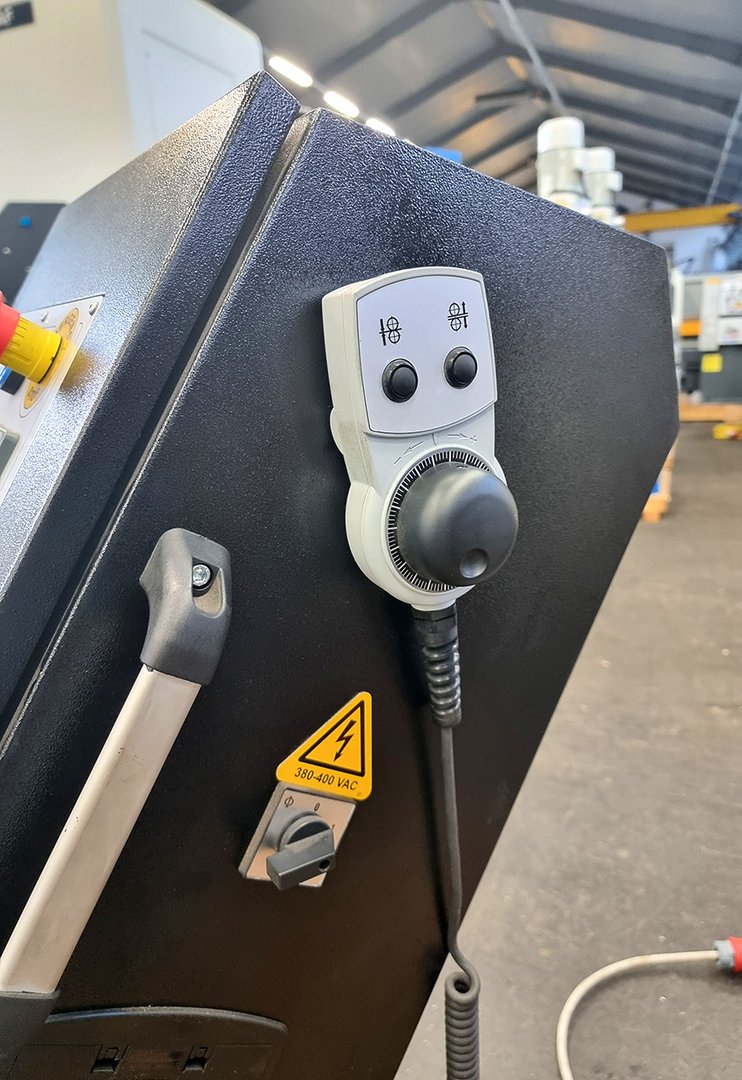

hand wheel Euchner
operating manual in German with EC conformity declaration
