General characteristics
| Drilling capacy mild steel | 13 mm |
| Taper | MK 2 |
| Distance spindle - column | 220 mm |
| Revs | 40 - 4000 r.p.m. |
| Tapping capacity | M 10 (depends on gradient) |
| Quill travel | 60 mm |
| Distance spindle - table | 85 - 370 mm |
| Distance spindle-base | 420 mm |
| Table | 300 x 250 mm |
| Column diameter | 70 mm |
Dimensions and weight
| Length | 520 mm |
| Width | 400 mm |
| Height | 850 mm |
| Weight | 62 kg |
Description
Includes free spring package (with purchase until March 31, 2026)
- VÖLKEL Precision Package (List price €54.90)
Contents:
+ MGB GREEN RING FORM B
1 x M4 (35330)
1 x M5 (35334)
1 x M6 (35338)
1 x M8 (35342)
+ LÖHER Core Drill Bits (M4, M5, M6, M8)
- FLOTT quick-release drill chuck 3-16 mm B18 (list price €115.43)
- FLOTT tap holder B16 (list price €191.57)
- Taper mandrel DIN 238 MK2/B16 (list price €26.18)
- Taper mandrel DIN 238 MK2/B18 (list price €26.18)
- Felix 2.0 - 100 mm (list price €428.36)
You save: 842,62 €
Continuous/normal drilling performance 13/15 (in E335/ST60), 12 Nm
Manual feed
Digital speed and drilling depth display
Thread cutting device

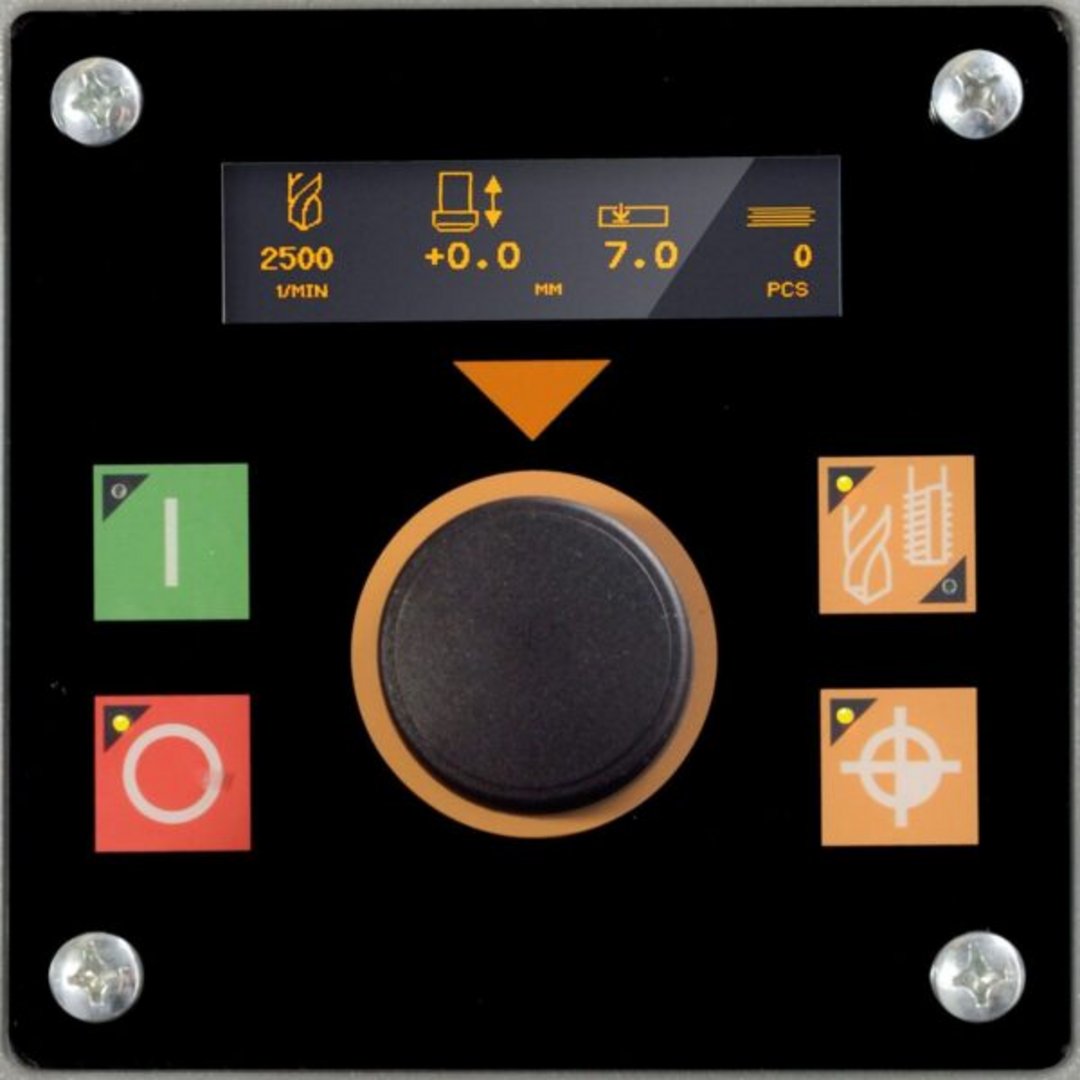

Control panel with OLED display
Robust, high-quality drill head cover with ergonomically inclined front
LED lighting
Quickly adjustable and ergonomic drilling depth stop
Continuous speed control via central rotary knob
Emergency stop push button
Thermal overload protection
Spindle stop
Drill protection with electrical protection
Connection cable with Schuko plug
Options:

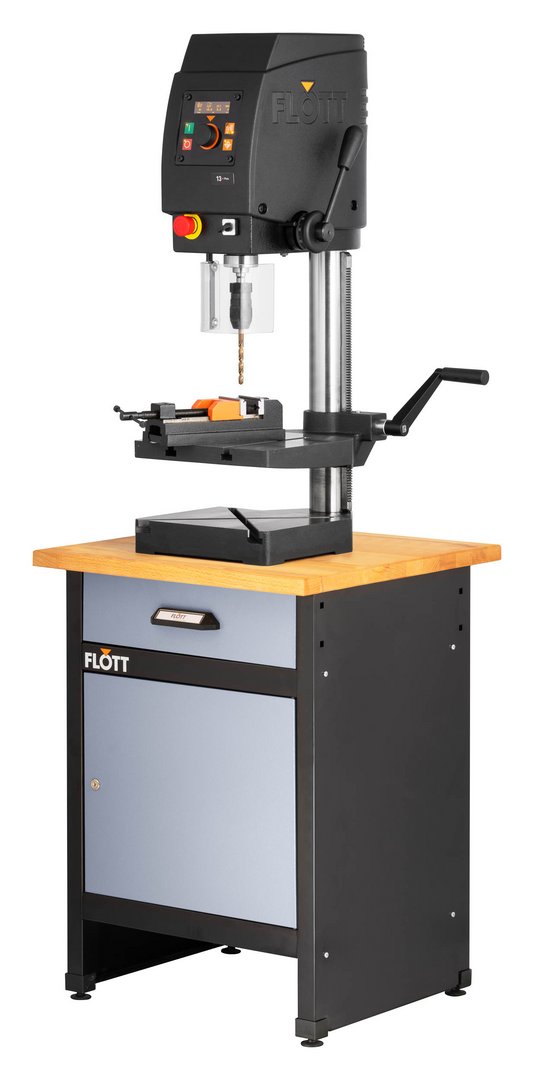

Machine cabinet with door and drawer
Drill package 2 (vice & keyless chuck)
Further information
Product video

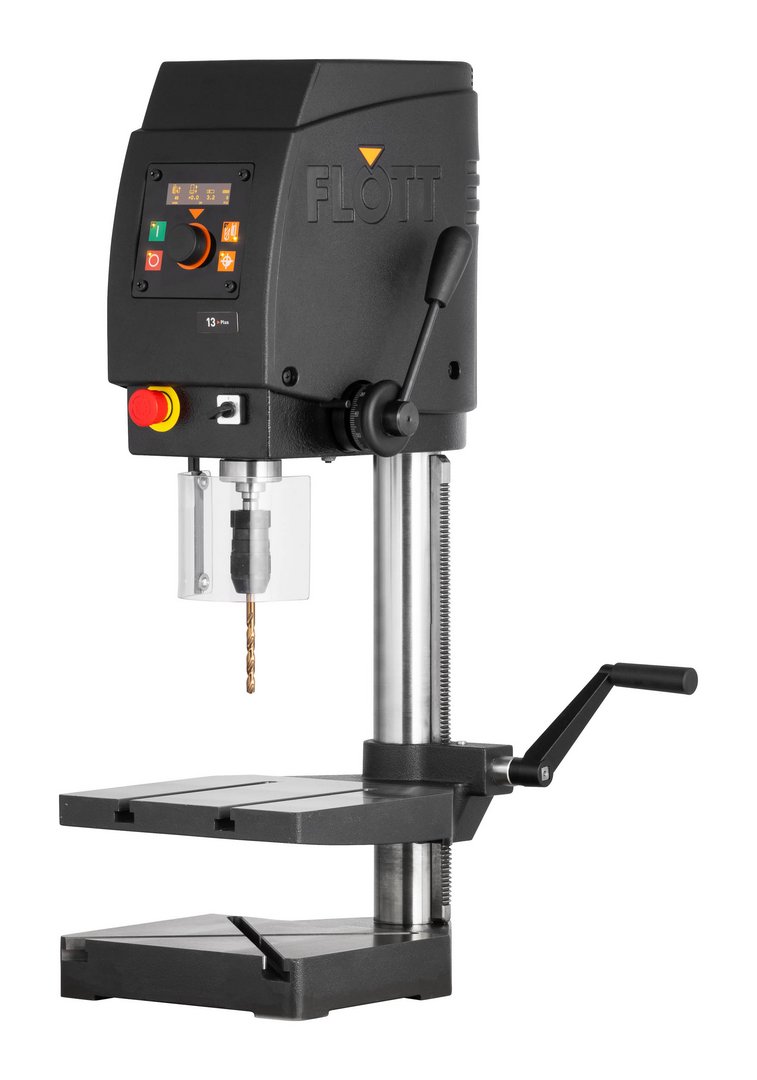

Bench typ drilling machine TB 13 Plus MK2 - spring campaign
