General characteristics
| Drilling capacy mild steel | 10 mm |
| Taper | B 16 |
| Distance spindle - column | 180 mm |
| Revs | 250 - 3000 r.p.m. |
| Motor | 0,45 (230V) kW |
| Quill travel | 50 mm |
| Distance spindle - table | 105 - 245 mm |
| Table | 300 x 200 mm |
| Column diameter | 50 mm |
Dimensions and weight
| Length | 400 mm |
| Width | 248 mm |
| Height | 460 mm |
| Weight | 30 kg |
Description
Continuous/normal drilling performance 10/12 (in E335/ST60)
Manual feed
Digital speed display
Robust, high quality and inclined rotation hood for easy speed reading
LED lighting
Quickly adjustable and ergonomic drill depth stop
Stepless speed control via central rotary knob
EMERGENCY STOP pushbutton
Thermal overload protection
Undervoltage release
Drill protection with electr. Fuse
Connection cable with Schuko plug (1.2 m)
3 years warranty for single shift operation
Options:

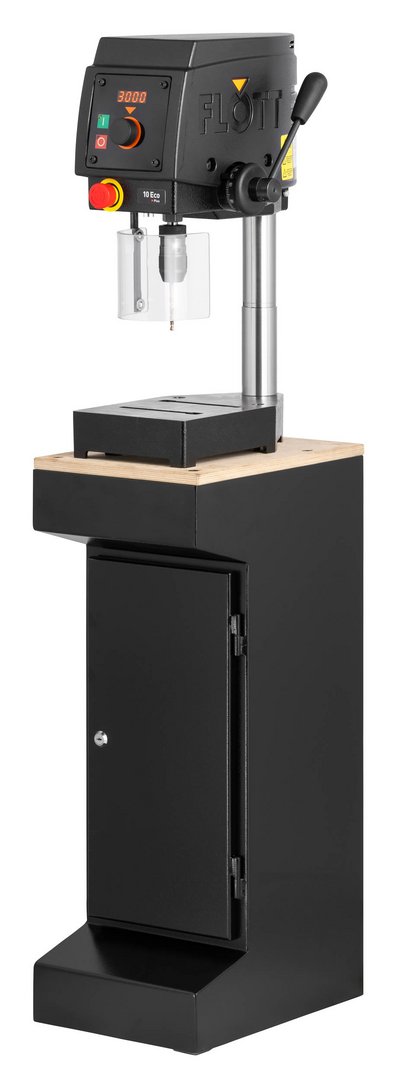

Machine cabinet with door and drawer

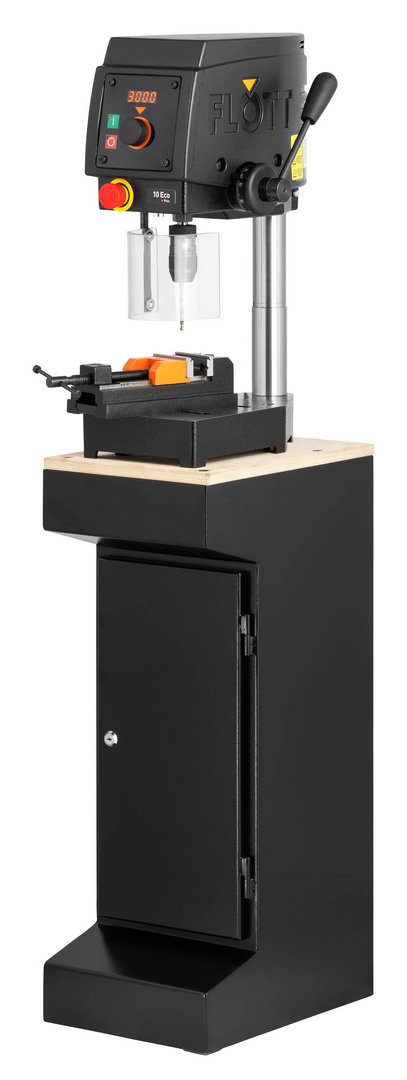

Drill package 2 (vice & keyless chuck)
Further information
Brochures
Product video

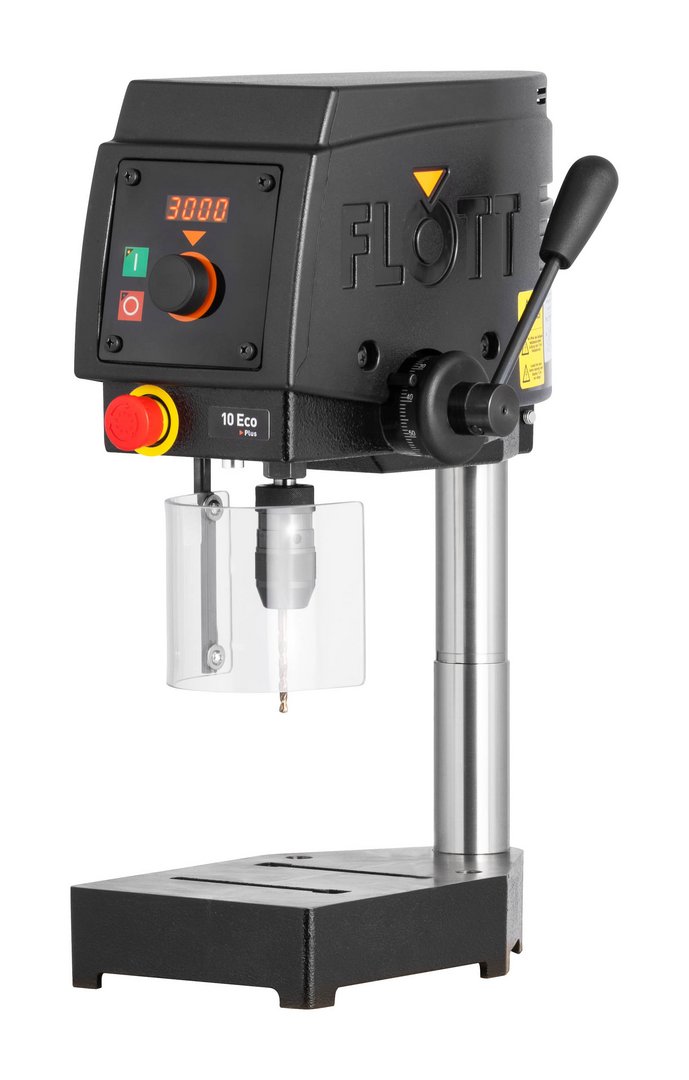

Bench typ drilling machine TB 10 Eco Plus
