General characteristics
| Drilling capacy mild steel | 18 mm |
| Taper | MK 2 |
| Distance spindle - column | 240 mm |
| Revs | 30 - 3000 r.p.m. |
| Tapping capacity | M12 |
| Quill travel | 100 mm |
| Distance spindle - table | 155 - 415 mm |
| Distance spindle-base | 155 - 550 mm |
| Table | 340 x 280 mm |
| Column diameter | 82 mm |
Dimensions and weight
| Length | 355 mm |
| Width | 705 mm |
| Height | 1065 mm |
| Weight | 170 kg |
Description
Continuous/normal drilling performance 18/20 (in E335/ST60), 12 Nm
Manual feed
Digital speed and drilling depth display
Thread cutting system
Control panel with OLED display
Robust, high quality drill head hood with ergonomically inclined front
LED lighting
Quickly adjustable and ergonomic drill depth stop
Stepless speed control via central rotary knob
EMERGENCY STOP pushbutton
Thermal overload protection
Spindle stop
Drill protection with electr. Fuse
Connection cable with Schuko plug
3 years warranty for single shift operation
Options:

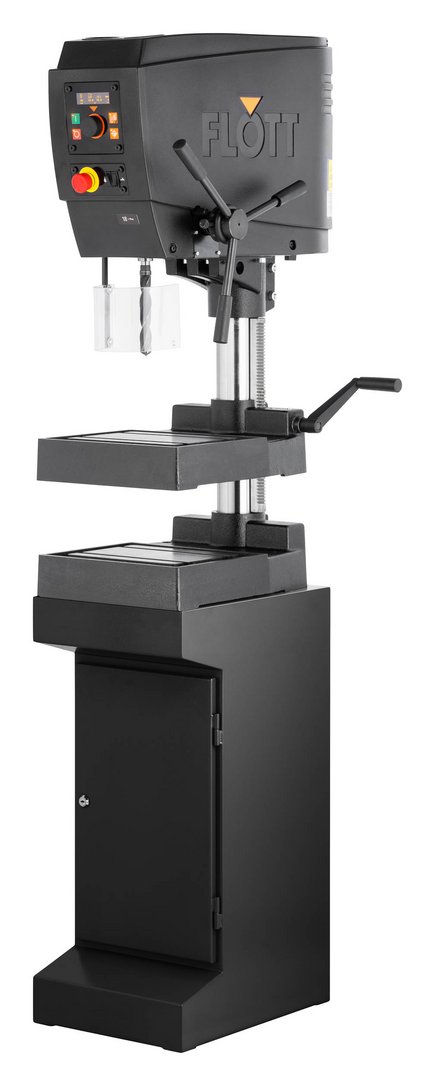

Machine cabinet with door and drawer
Coolant device
LED lighting with pivot arm

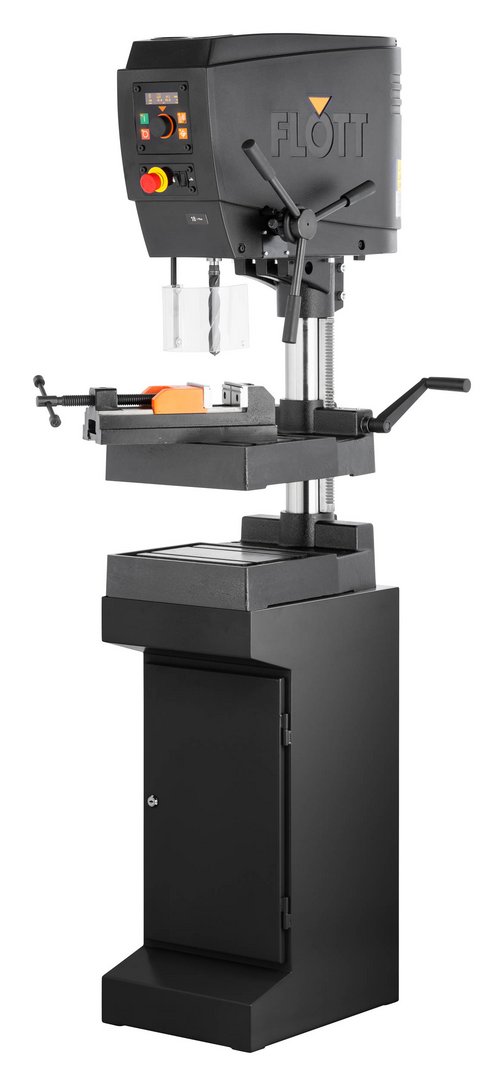

Drill package 3 (vice & keyless chuck)
Further information
Product video

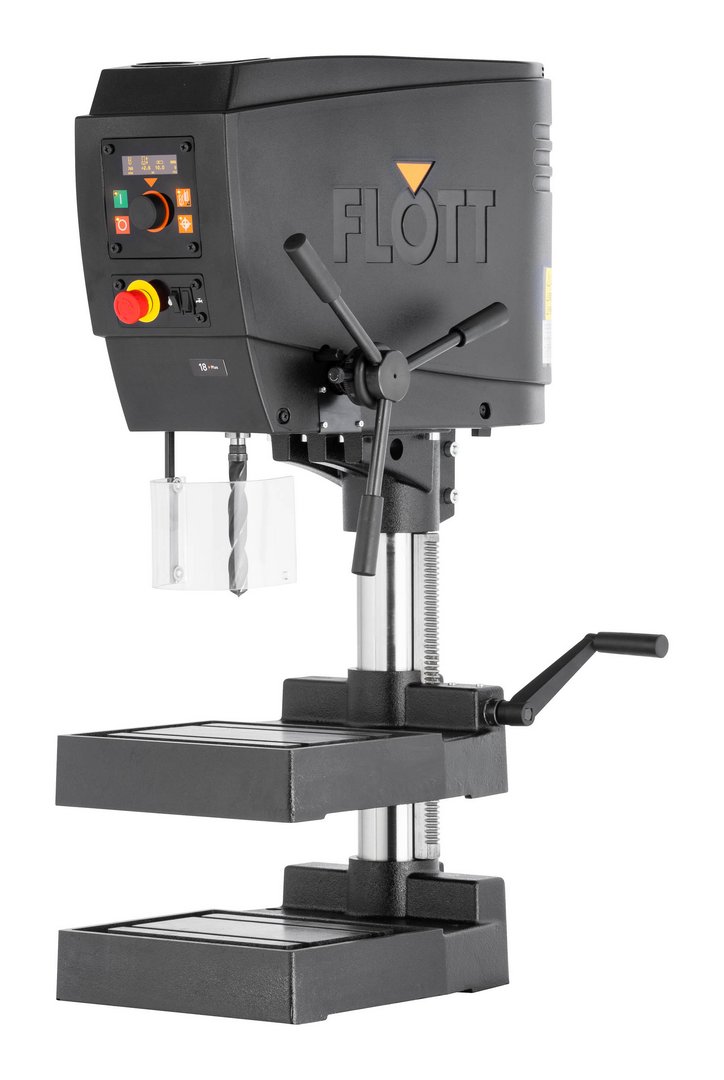

Bench typ drilling machine TB 18 Plus
