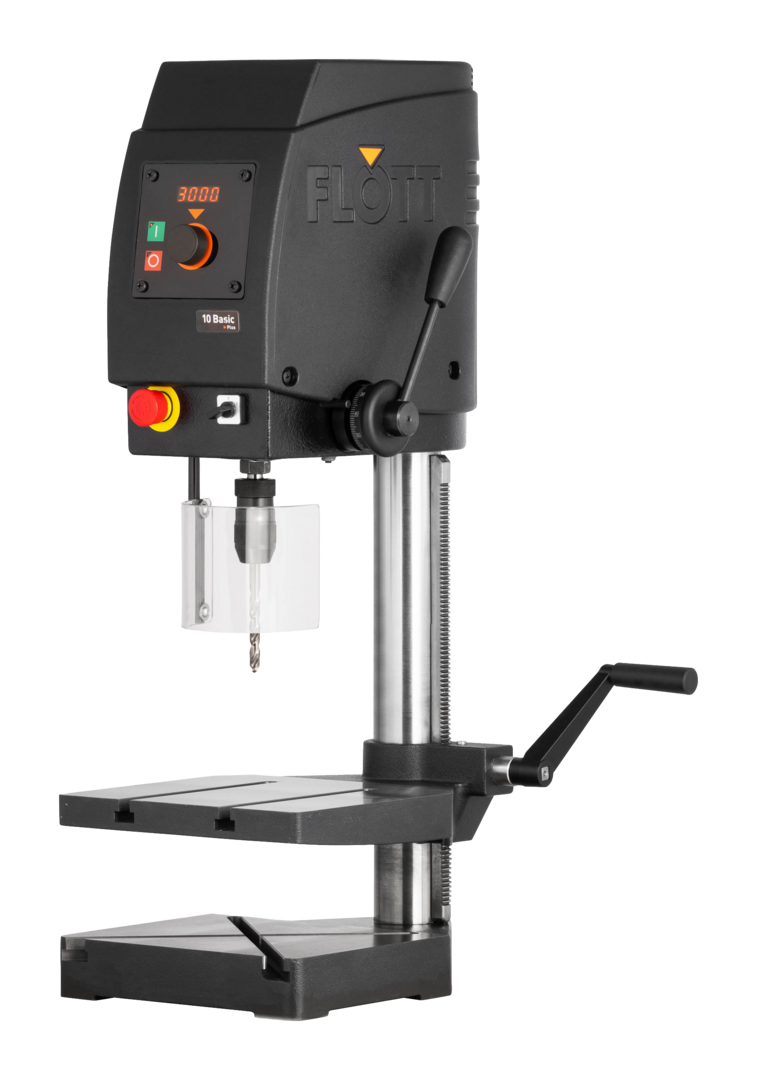

Bench typ drilling machine FLOTT TB 10 Basic Plus with intermediate table
| Model | TB 10 Basic Plus with intermediate table |
| Brand | FLOTT |
| Distance spindle - column | 220 mm |
| Origin | Germany |
General characteristics
| Drilling capacy mild steel | 10 mm |
| Taper | B 16 |
| Distance spindle - column | 220 mm |
| Revs | 250 - 3000 r.p.m. |
| Quill travel | 60 mm |
| Distance spindle-base | 140 - 315 mm |
| Table | 300 x 250 mm |
| Column diameter | 70 mm |
Dimensions and weight
| Length | 320 mm |
| Width | 520 mm |
| Height | 820 mm |
| Weight | 44 kg |
Description
Drilling capacity / normal drilling Performance 10/12 (in E335/ST60)
Robust, high quality and inclined rotation hood for easy speed reading
LED lighting
Quickly adjustable and ergonomic drill depth stop
Stepless speed control via central rotary knob
EMERGENCY STOP pushbutton
Thermal overload protection
Undervoltage release
Drill protection with electr. Fuse
Connection cable with Schuko plug (1.2 m)
3 years warranty for single shift operation
Art. – No. 217.410 with intermediate table and table height adjustment via toothed rack
Options:
Machine cabinet with door and drawer
Drill package 2 (vice & keyless chuck)
Further information
Product video
Bench typ drilling machine TB 10 Basic Plus with intermediate table
