General characteristics
| Drilling capacy mild steel | 10 mm |
| Taper | B 16 |
| Distance spindle - column | 220 mm |
| Revs | 60 - 6000 r.p.m. |
| Quill travel | 60 mm |
| Distance spindle - table | 140 - 315 mm |
| Table | 300 x 250 mm |
| Column diameter | 70 mm |
Dimensions and weight
| Length | 350 mm |
| Width | 520 mm |
| Height | 820 mm |
| Weight | 44 kg |
Description
Drilling capacity / normal drilling Performance 10/12 (in E335/ST60)
Thread cutting device

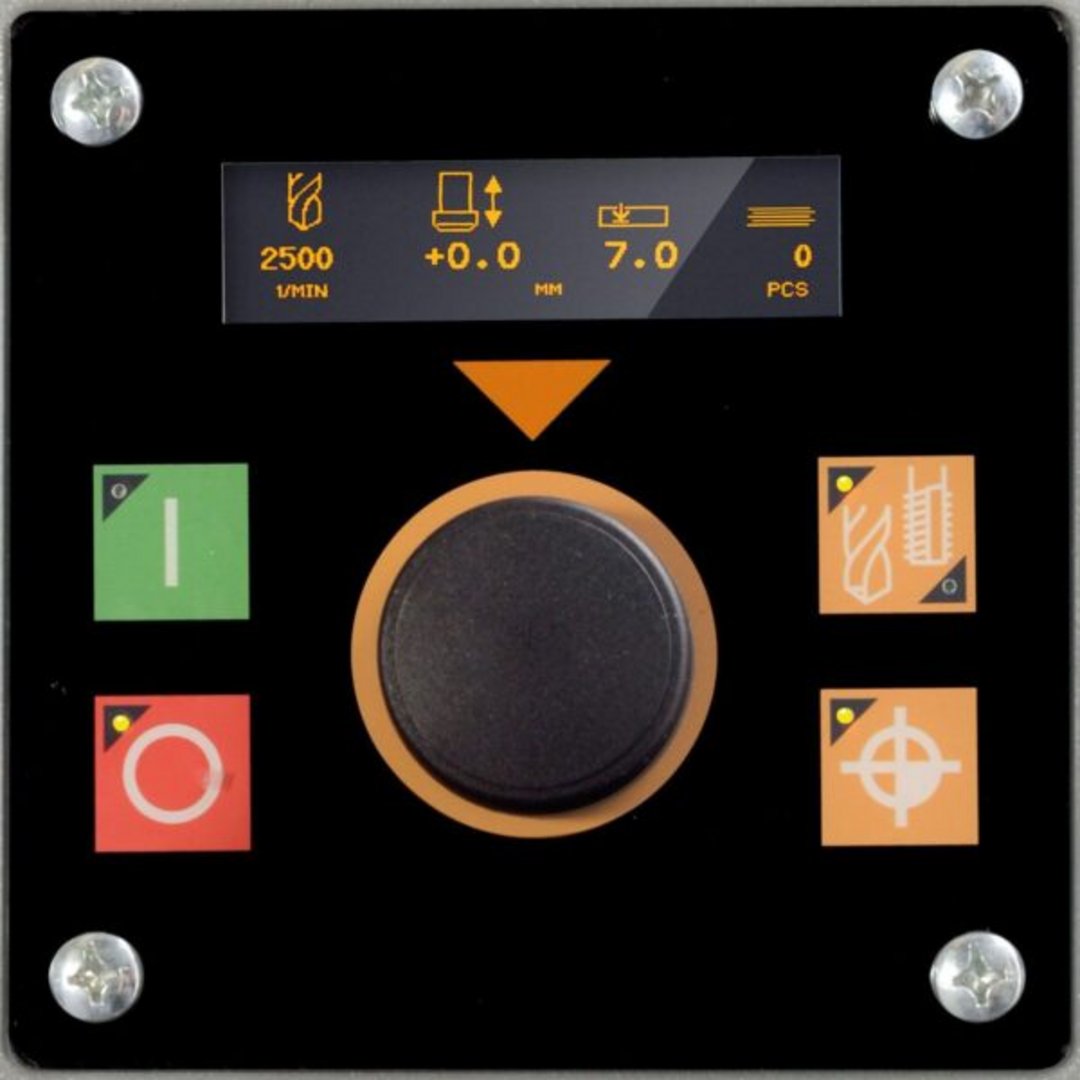

Control panel with OLED display
Robust, high quality drill head hood with ergonomically inclined front
LED lighting
Quickly adjustable and ergonomic
Drilling depth stop
Stepless speed control via central rotary knob
EMERGENCY STOP pushbutton
Thermal overload protection
Spindle stop
Drill protection with electr. Fuse
Connection cable with Schuko plug
3 years warranty for single shift Operation
Options (prices on request):

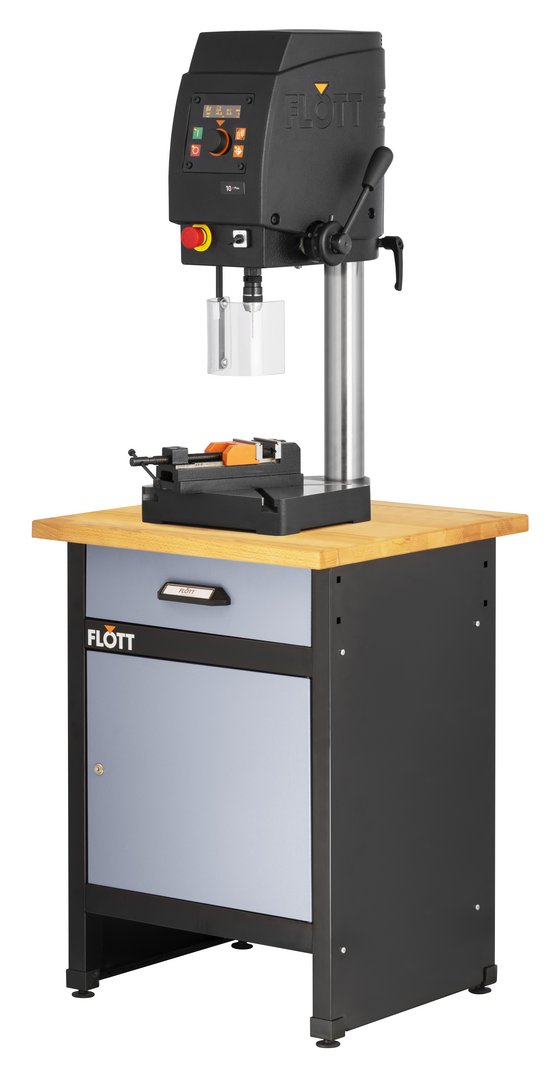

Machine cabinet with door and drawer

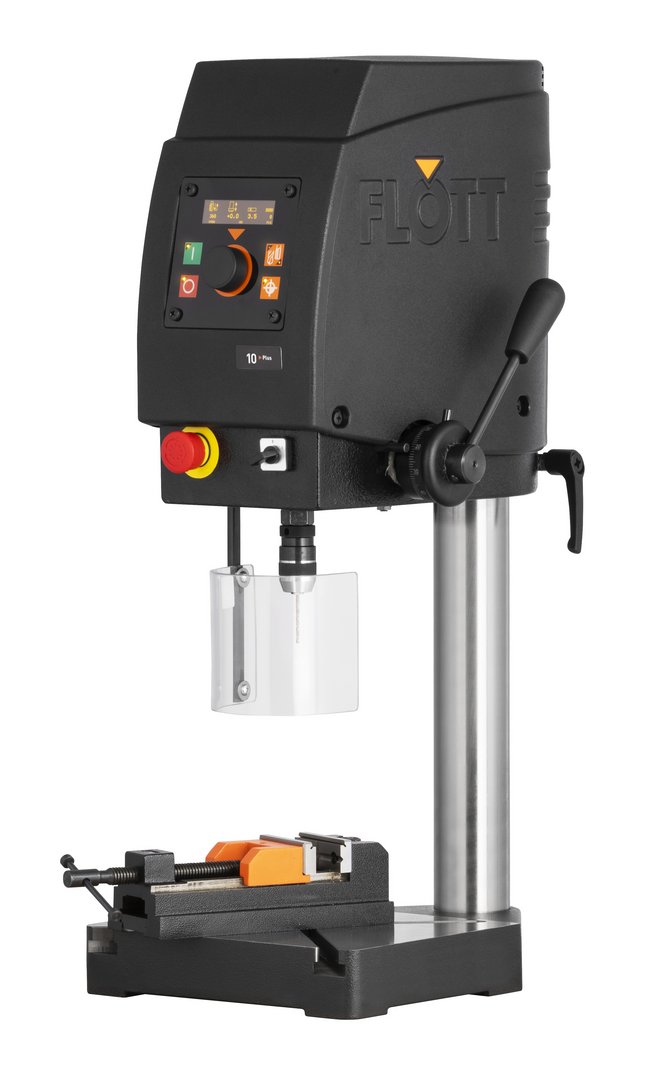

Drill package 2 (vice & keyless chuck)
Further information
Product video

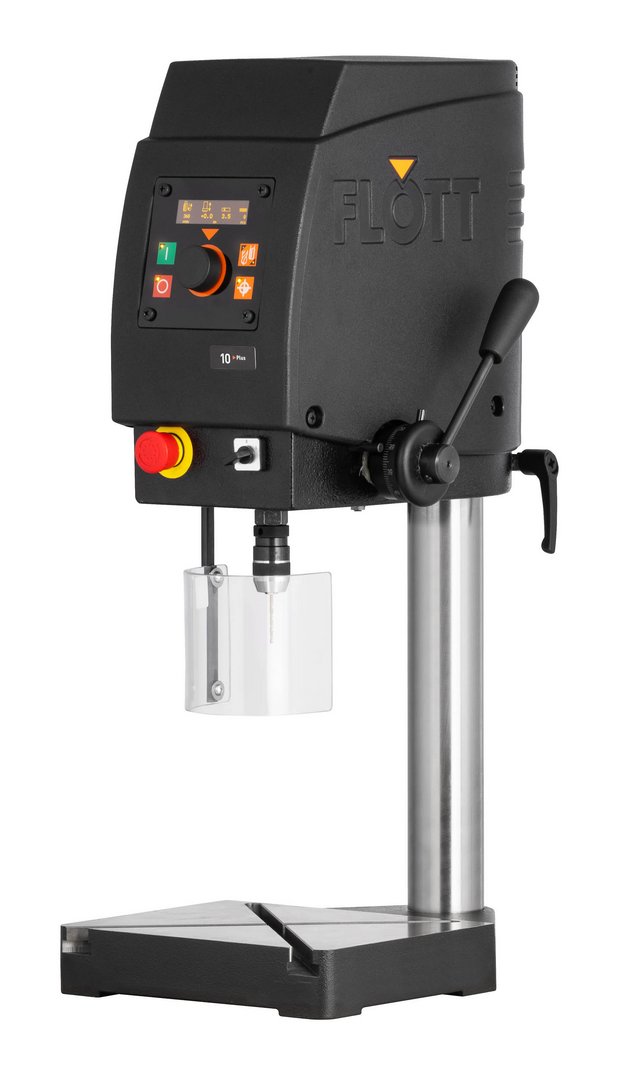

Bench typ drilling machine TB 10 Plus
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
