General characteristics
| Drilling capacy mild steel | 15 mm |
| Taper | MK 2 |
| Distance spindle - column | 220 mm |
| Revs | 40 - 4000 r.p.m. |
| Tapping capacity | M12 |
| Quill travel | 70 mm |
| Distance spindle - table | 85 - 370 mm |
| Table | 300 x 250 mm |
| Column diameter | 70 mm |
Dimensions and weight
| Length | 400 mm |
| Width | 520 mm |
| Height | 850 mm |
| Weight | 65 kg |
Description
Drilling capacity / normal drilling Performance 15/18 (in E335/ST60) 17 Nm
Thread cutting system

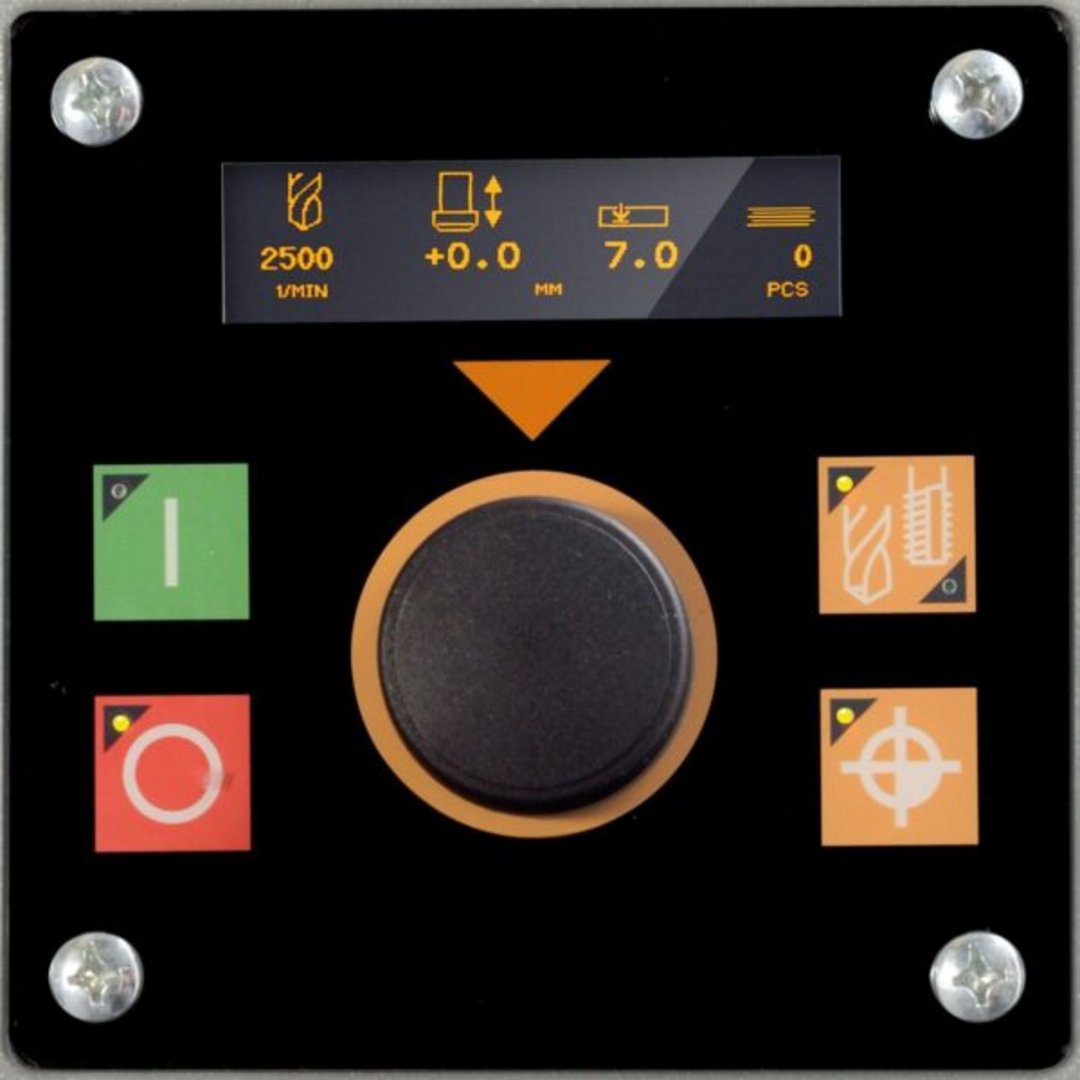

Control panel with OLED display
Robust, high quality drill head hood with ergonomically inclined front
LED lighting
Quickly adjustable and ergonomic
Drilling depth stop
Stepless speed control via central rotary knob
EMERGENCY STOP pushbutton
Thermal overload protection
Spindle stop
Drill protection with electr. Fuse
Connection cable with Schuko plug
3 years warranty for single shift operation
Options (prices on request):

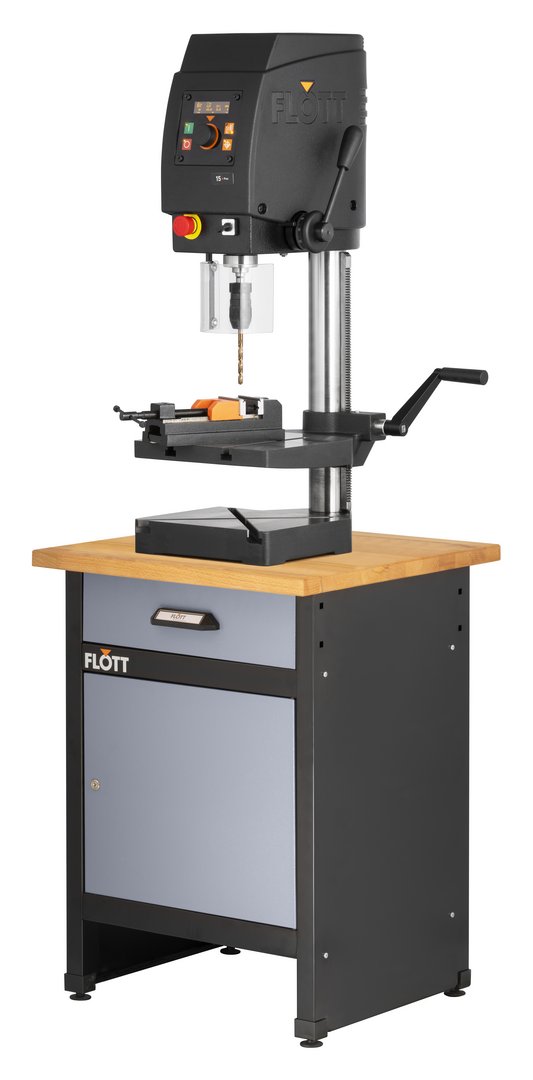

Machine cabinet with door and drawer
Drill package (vice & keyless chuck)
Further information
Product video

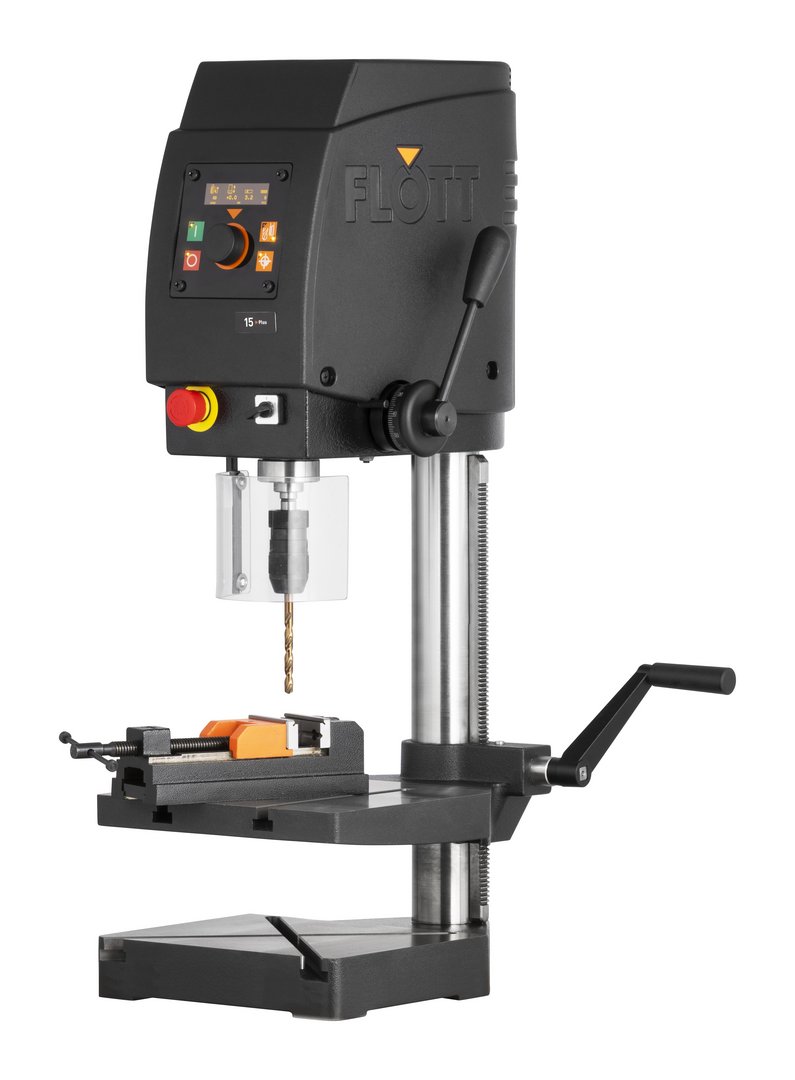

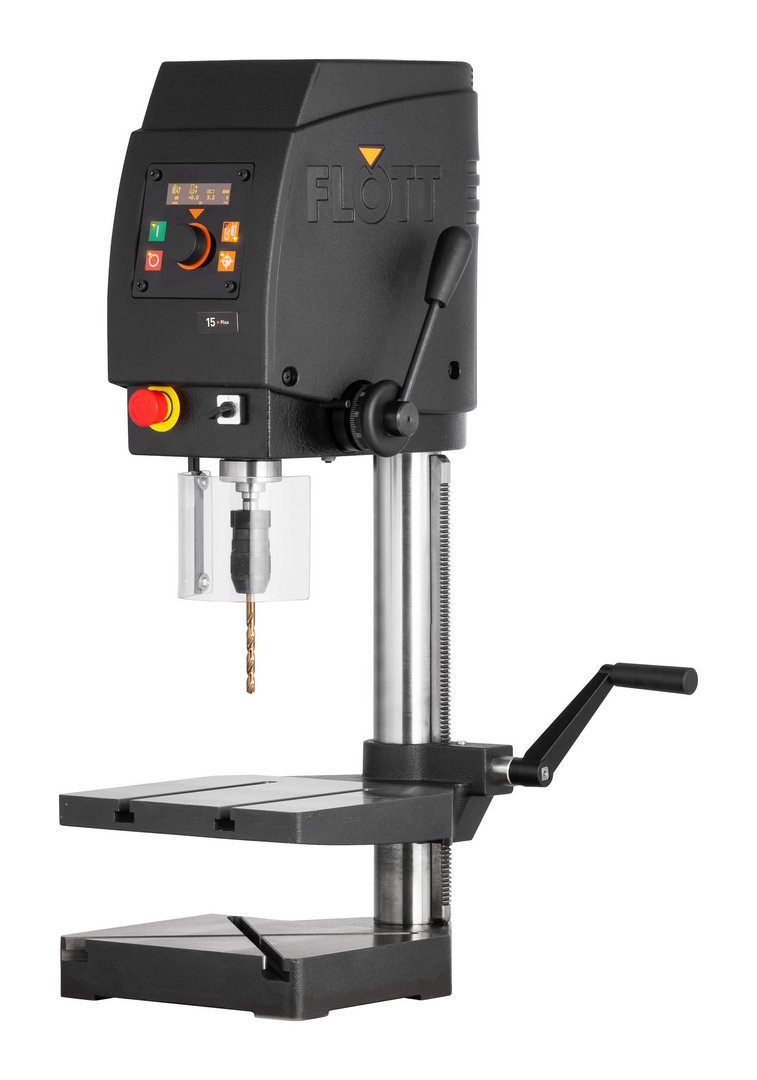

Bench typ drilling machine TB 15 Plus
