General characteristics
| Drilling capacy mild steel | 25 mm |
| Spindle cone | MK 3 |
| Distance spindle - column | 250 mm |
| Revs | 245 - 4000 r.p.m. |
| Motor power | 0,7 / 1,3 kW |
| Tapping capacity | M18 |
| max. drilling depth | 120 mm |
| Column diameter | 100 mm |
| Distance spindle - table | 85 - 635 mm |
| Distance spindle-base | 1.195 mm |
| Table | 300 x 270 mm |
| Base dimensions | 600 x 380 mm |
Dimensions and weight
| Length | 400 mm |
| Width | 655 mm |
| Height | 1900 mm |
| Weight | 280 kg |
Description
ERLO (MADE IN SPAIN)
for manufacturing use
V-belt drive
manual feed
left-right drilling
tool ejector
adjustable depth stop
table with T-slots
drill guard with micro switch
lightening equipment
user manual in English or GERMAN
CE
Options:
Variable speed incl. digital display (VE+TAK) € 1.310,---
Tapping device (IR/RS) € 810,--
Coolant equipment incl. T-slots in the ground plate (ERB) € 910,--
Further information
Product video

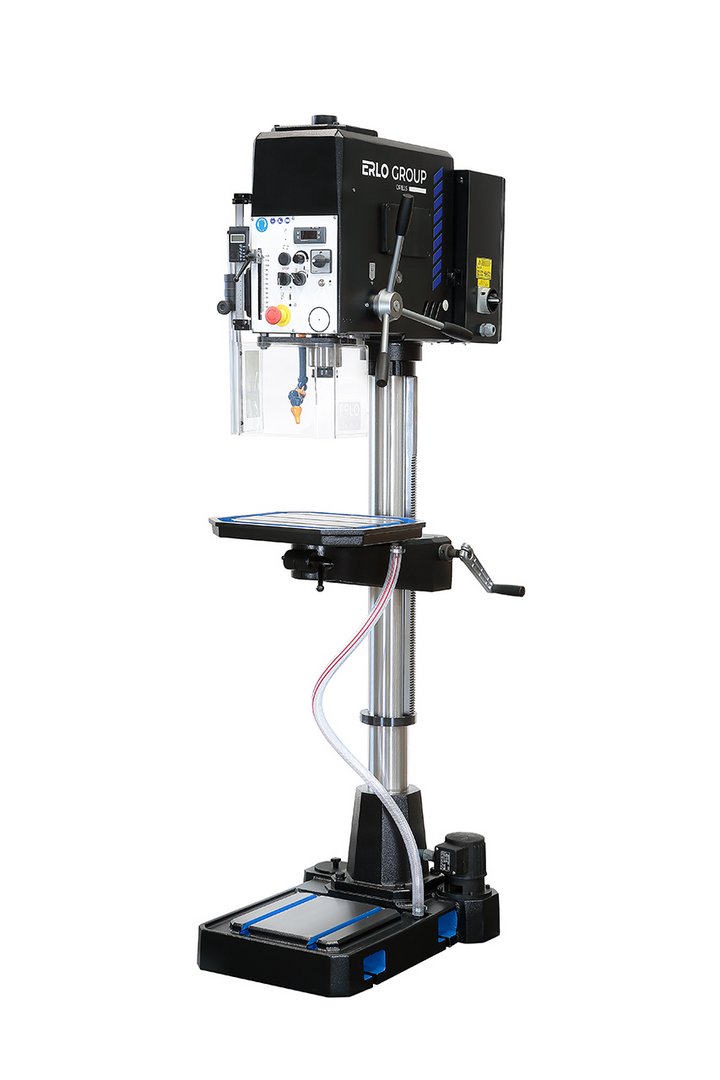

Column drilling machine C.25
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
