General characteristics
| Drilling capacy mild steel | 32 mm |
| Spindle cone | MK 3 |
| Distance spindle - column | 250 mm |
| Revs | 65 - 125 - 185 - 365 - 540 - 1.055 - 1.560 - 3.060 r.p.m. |
| Tapping capacity | M24 |
| Column diameter | 100 mm |
| Distance spindle - table | 85 - 635 mm |
| Distance spindle-base | 1.17 mm |
| Table | 300 x 270 mm |
| Base dimensions | 600 x 380 mm |
| Quill travel | 120 mm |
Dimensions and weight
| Length | 600 mm |
| Width | 640 mm |
| Height | 2020 mm |
| Weight | 260 kg |
Description
ERLO (MADE IN SPAIN)
for demanding workshop use
geardrive machine
manual feed
left-right drilling
table with t-slots
depth adustable end
tool ejector
drill guard
CE norms
user manual in GERMAN
|

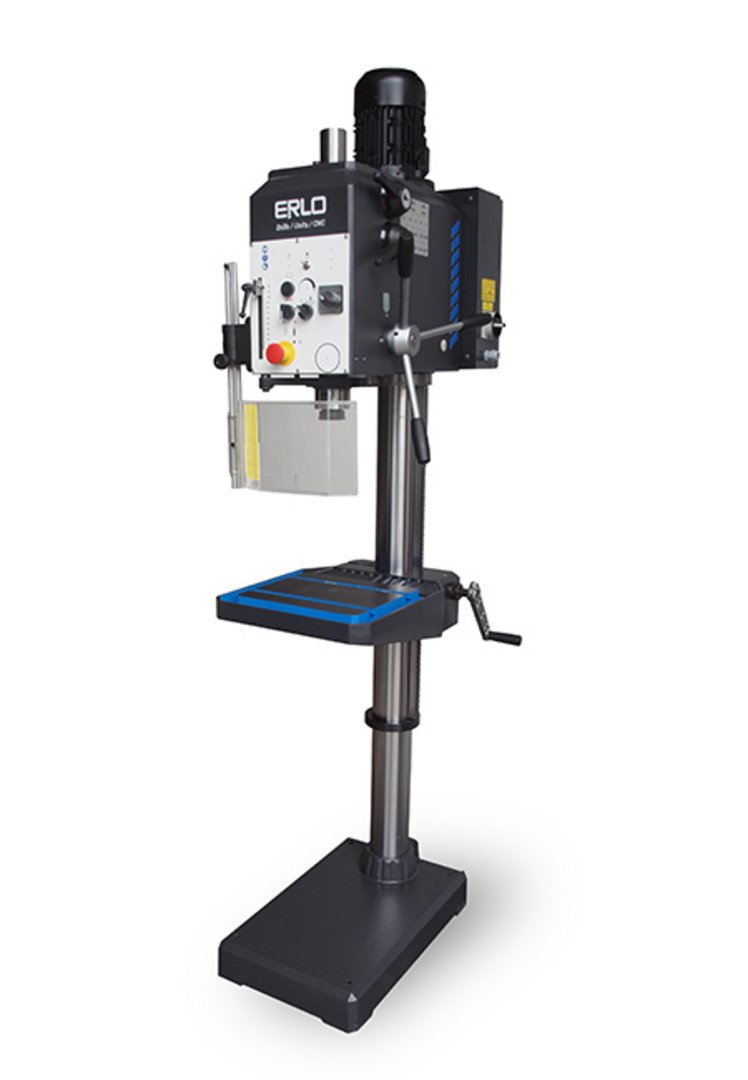

(sample photo)
|
|||||||||||
Further information
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
