General characteristics
| Drilling capacy mild steel | 32 mm |
| Taper | MK 3 |
| Distance spindle - column | 250 mm |
| Revs | 65 - 125 - 185 - 365 - 540 - 1.055 - 1.560 - 3.060 r.p.m. |
| Tapping capacity | M24 |
| Feeds | Automatisch 0,10 - 0,20 - 0,30 (3) mm/r |
| Column diameter | 100 mm |
| Distance spindle - table | 85 - 635 mm |
| Distance spindle-base | 1.17 mm |
| Table | 300 x 270 mm |
| Base dimensions | 665 x 400 mm |
| Quill travel | 120 mm |
Dimensions and weight
| Length | 665 mm |
| Width | 640 mm |
| Height | 2100 mm |
| Weight | 260 kg |
Description

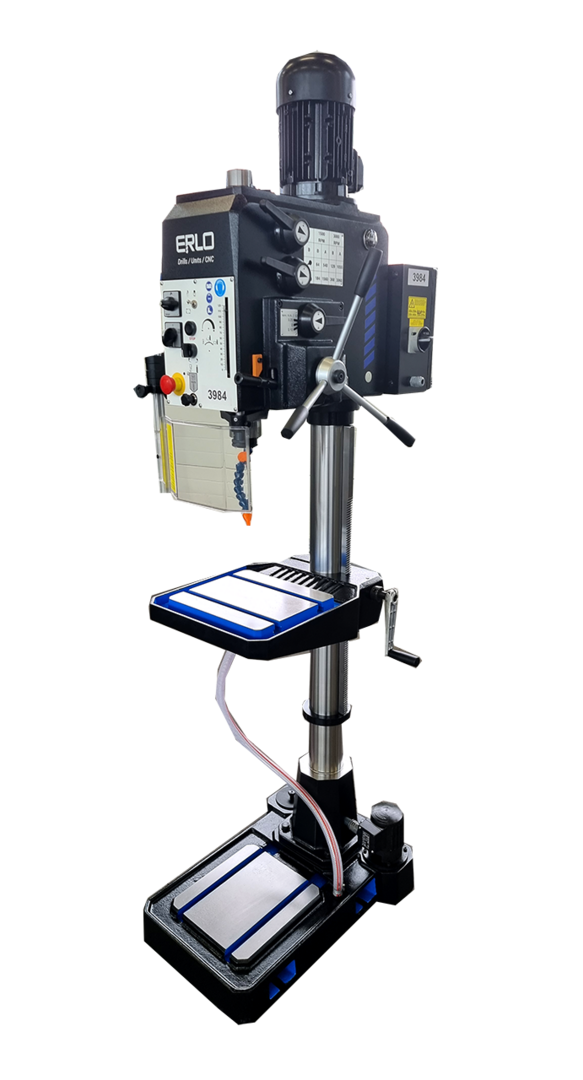

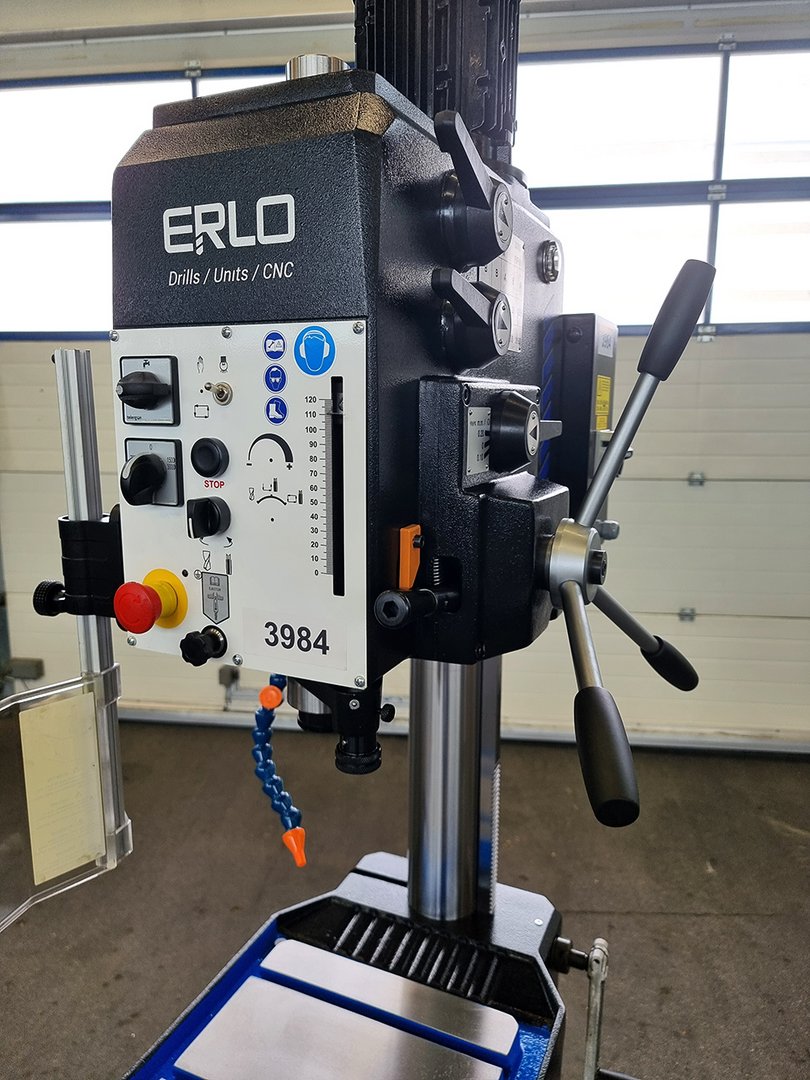

ERLO (MADE IN SPAIN)
for demanding workshop use
geardrive machine
3 aut. feeds
left-right drilling
table with t-slots
depth adustable end
tool ejector
drill guard
CE norms
user manual in GERMAN
Incl. following optional equipment:
lighting equipment

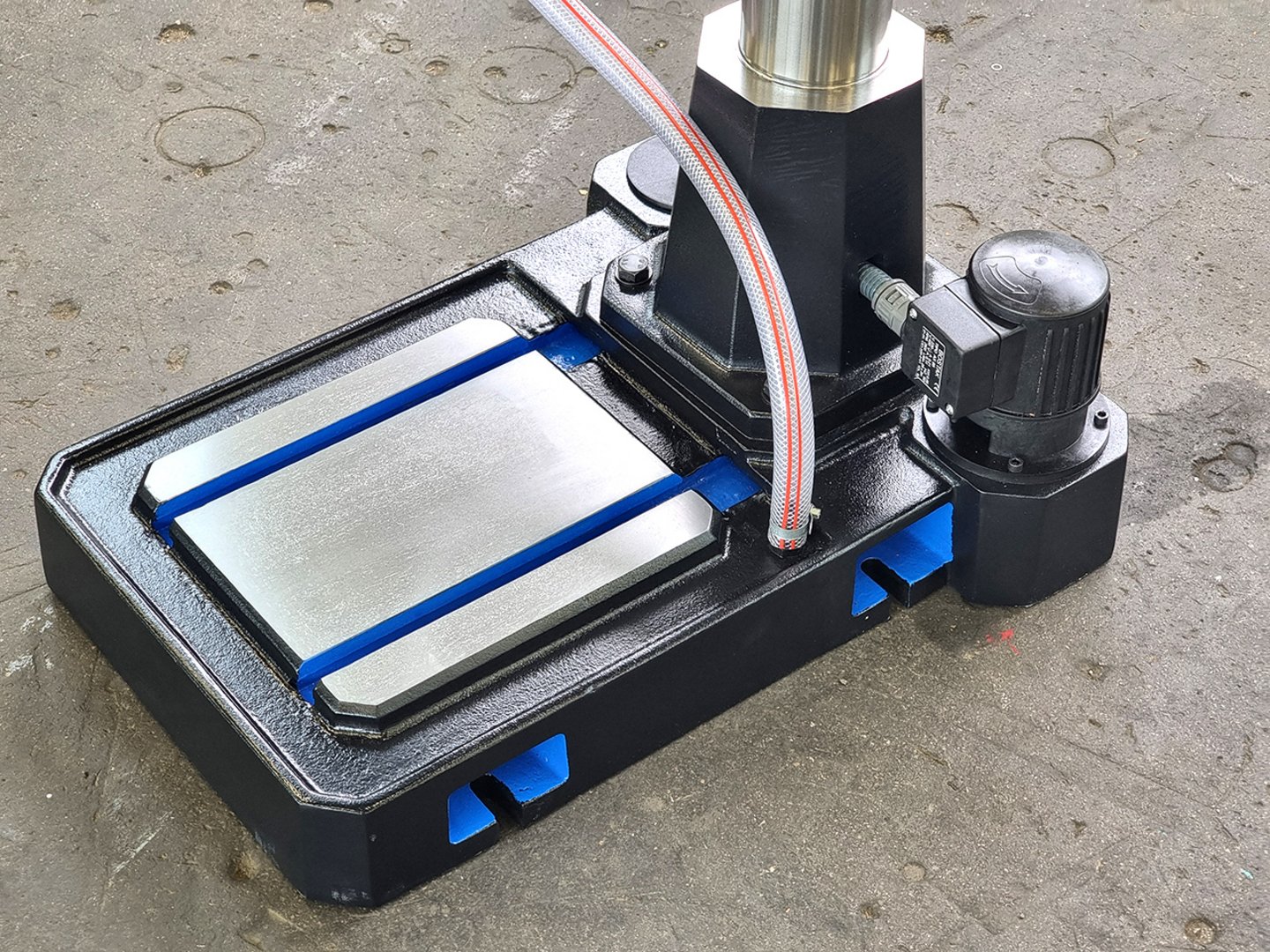

coolant equipment and machine base with T-slots
(symbol photo)
|
Option (price on request): |
|
reverse for tapping |
Time of delivery with options: approx. 8 weeks
