General characteristics
| Drilling capacy mild steel | 50 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 350 mm |
| Revs | 93 - 152 - 204 - 298 - 443 - 695 - 970 - 1.420 r.p.m. |
| Motor power | 3 kW |
| Tapping capacity | M35 |
| Feeds | 0,1 / 0,18 / 0,24 mm/r |
| max. drilling depth | 180 mm |
| Column diameter | 150 mm |
Dimensions and weight
| Length | 480 mm |
| Width | 755 mm |
| Height | 2265 mm |
| Weight | 435 kg |
Description
ERLO (MADE IN SPAIN)
for demanding workshop use
Gear drive
3 aut. feeds
sliding machine table
solid drill head
tiltable turntable
front wheel for sensitive fine feed

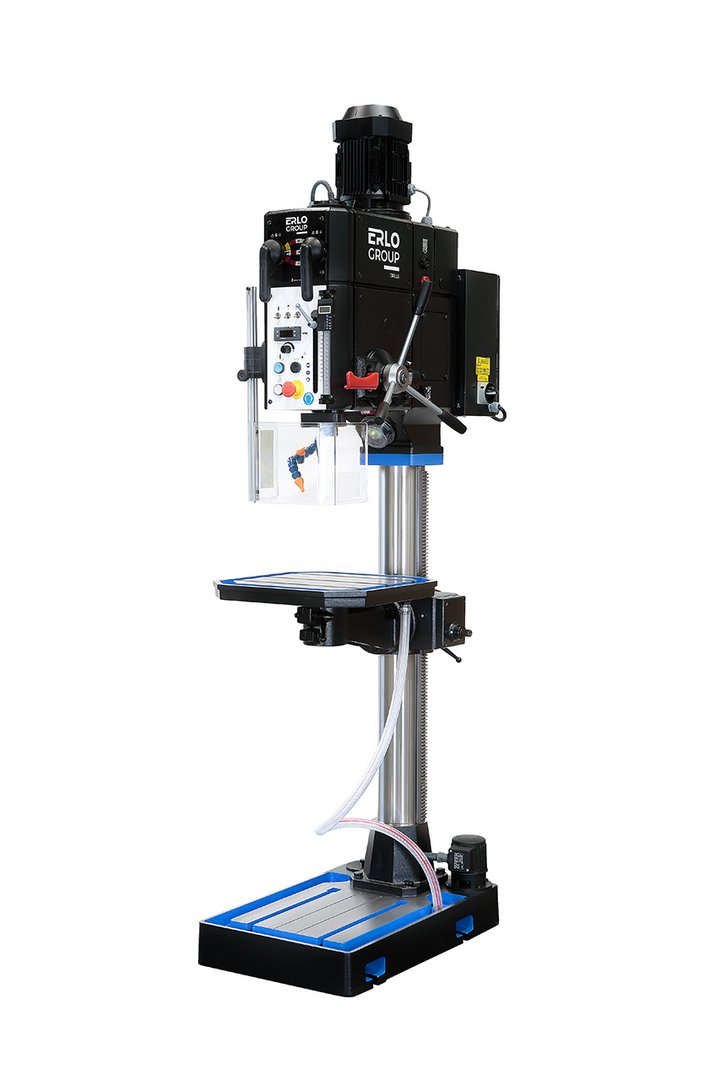

(sample photo)
|
Options: |
|
|
lighting equipment L |
€ 260,-- |
|
coolant equipment and machine base with T-slots ERB |
€ 910,-- |
|
Reverse for tapping IR/RS |
€ 810,-- |
Further information
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
