General characteristics
| Drilling capacy mild steel | 50 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 400 mm |
| Revs | 45 - 1.115 (9) r.p.m. |
| Motor | 2.9 kW |
| Tapping capacity | M36 |
| Feeds | 0,08 - 0,35 (4) mm/r |
| max. drilling depth | 230 mm |
| Column diameter | 200 mm |
| Distance spindle - table | 50 - 850 mm |
| Distance spindle-base | 1290 mm |
| Table | 550 x 550 mm |
| Base dimensions | 1ß6ß x 600 mm |
Dimensions and weight
| Length | 600 mm |
| Width | 1200 mm |
| Height | 2500 mm |
| Weight | 710 kg |
Description
ERLO (MADE IN SPAIN)
for manufacturing use

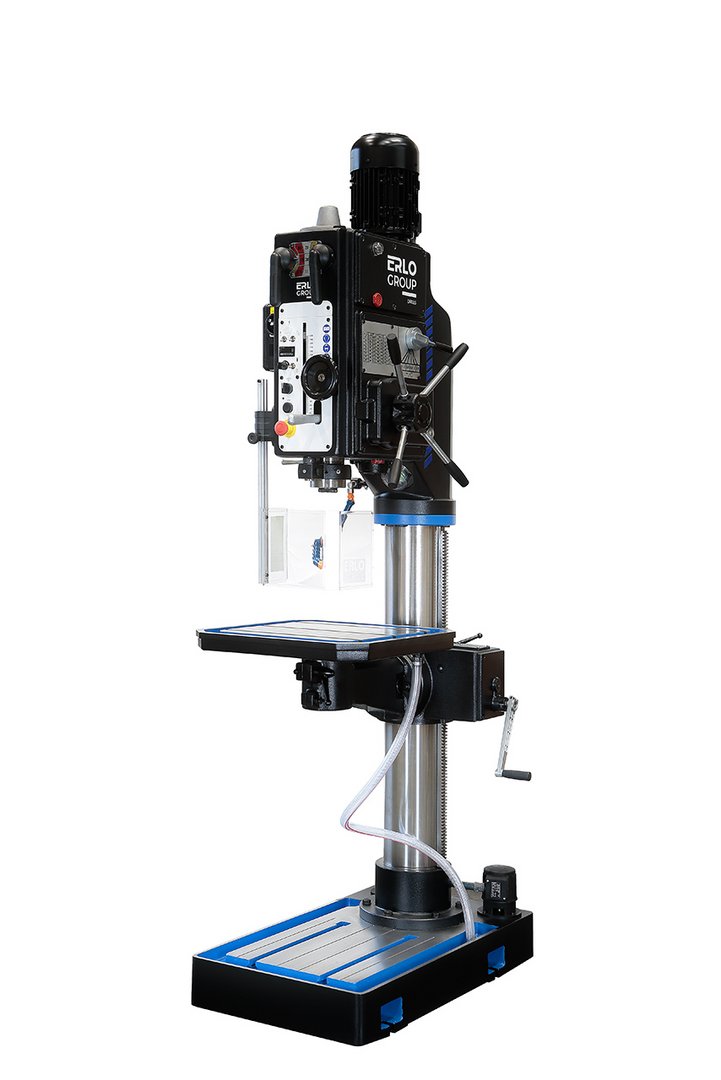

High quality gear drilling machine
cooling equipment
VDE electric
chuck protection
left right drilling
lighting

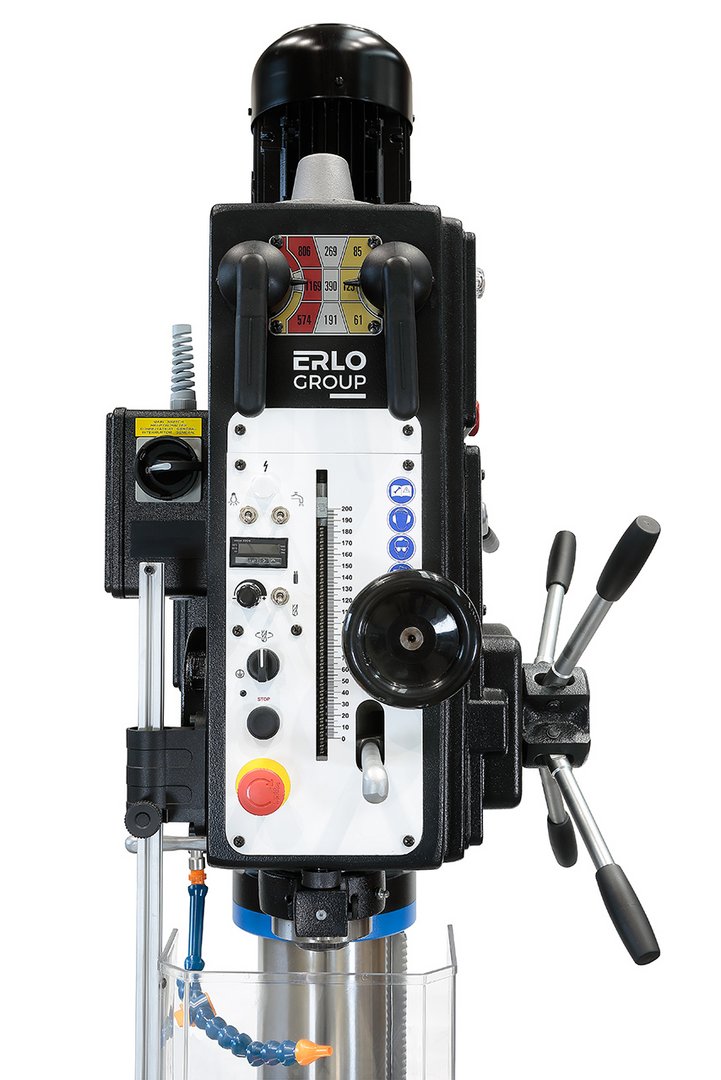

front handwheel for sensitive feed

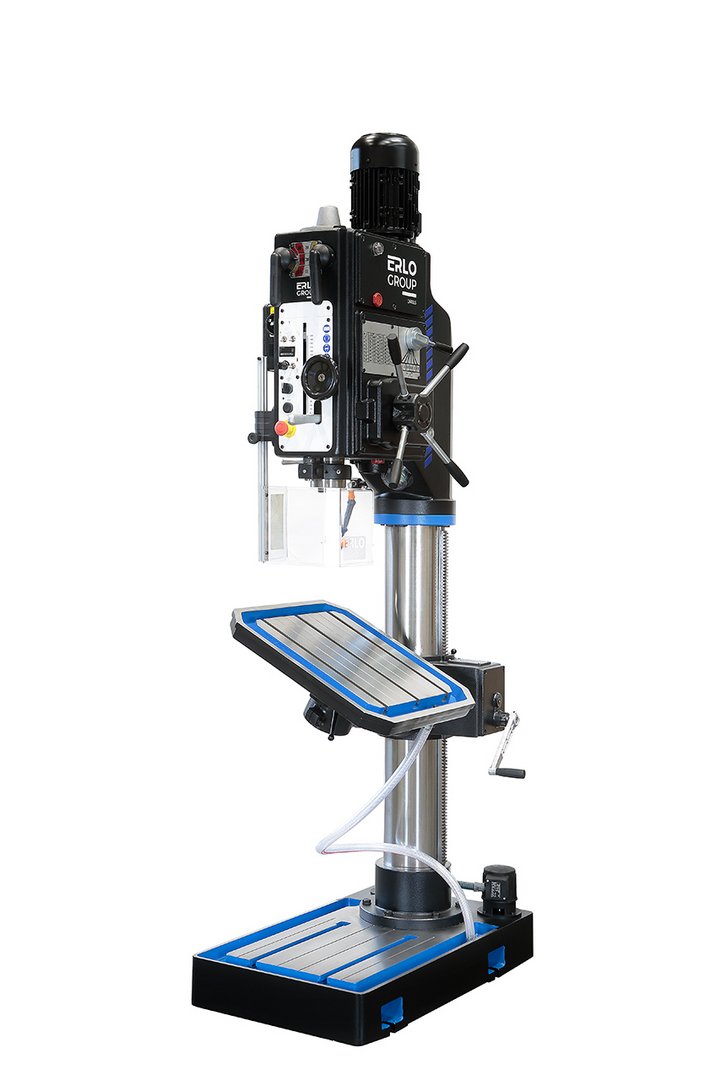

table turn and tiltable
user manual in GERMAN
Options:
| manual tapping system IR/IRS | € | 810,- |
| electronic speed variator with digital read out VE+TAK | € | 2.110,- |
| digital read out for drilling depth LBC | € | 640,- |
Alternative:

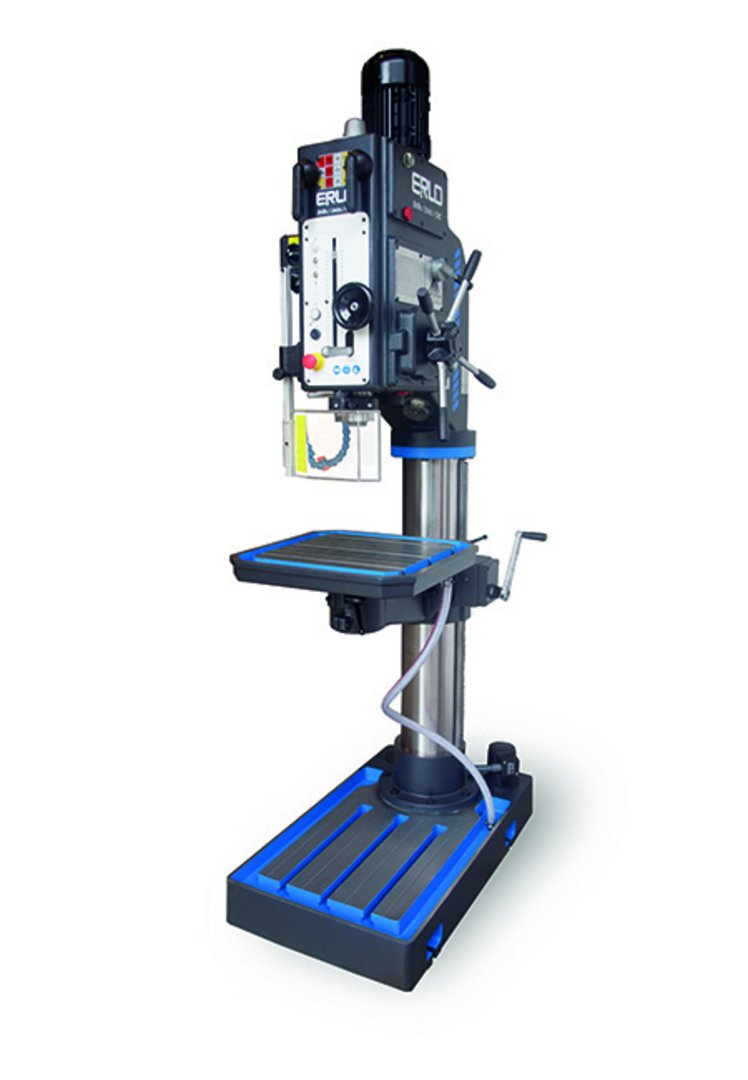

ERLO B-50 version with electromagnetic clutch € 20.280,--
Further information
Product video
Column drilling machine A 50
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
