General characteristics
| Drilling capacy mild steel | 35 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 300 mm |
| Revs | stufenlos 100 - 2.000 r.p.m. |
| Motor | 3 kW |
| Tapping capacity | bis M-33 |
| Feeds | 0,10 / 0,20 / 0,30 (3) mm/r |
| max. drilling depth | 150 mm |
| Column diameter | 125 mm |
| Distance spindle - table | 90-890 mm |
| Distance spindle-base | 1250 mm |
| Table | 480 x 480 mm |
Dimensions and weight
| Length | 1100 mm |
| Width | 600 mm |
| Height | 1950 mm |
| Weight | 360 kg |
Description
ERLO (MADE IN SPAIN)
for demanding workshop use

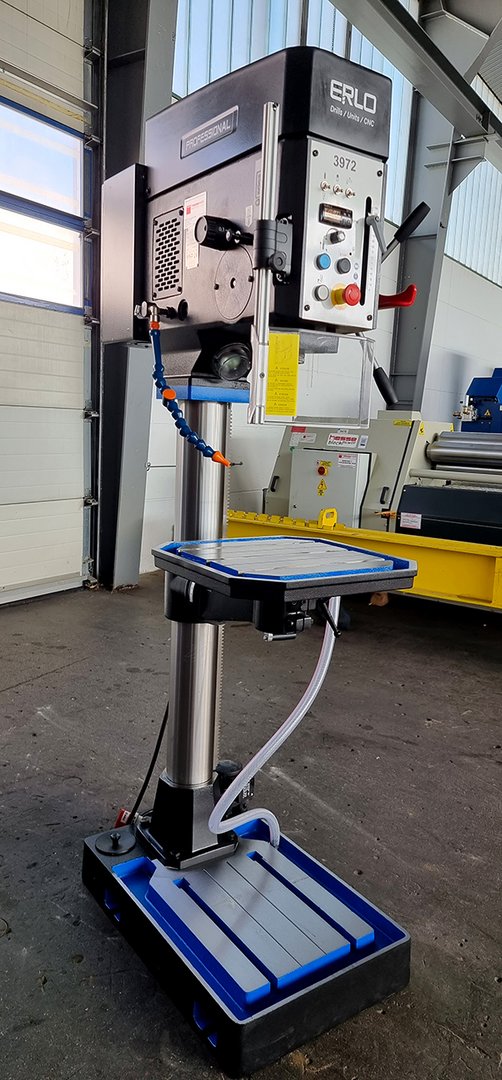

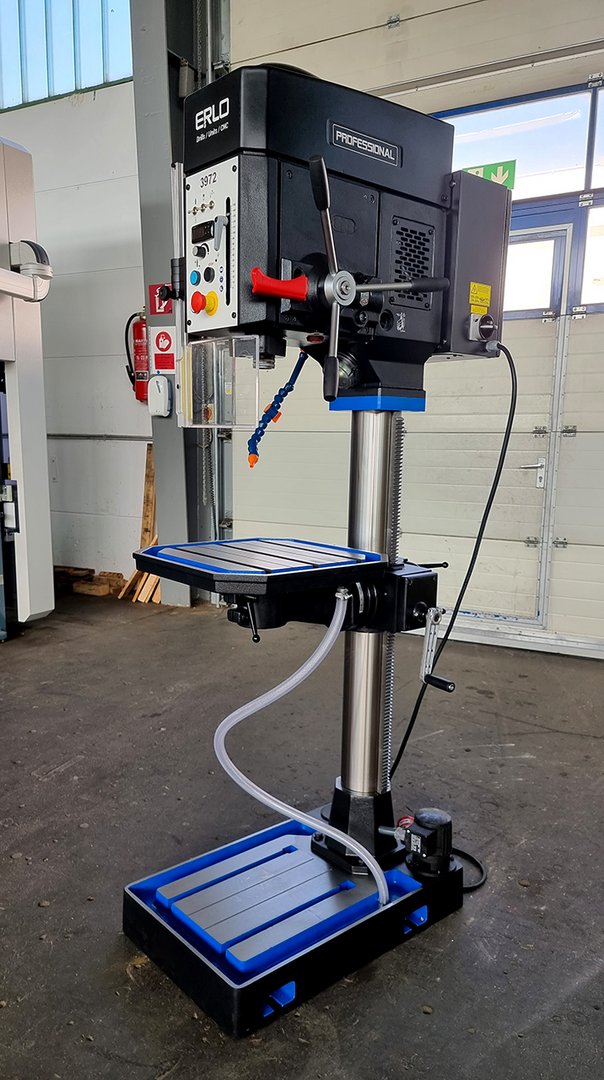

column drilling machine with vario gear

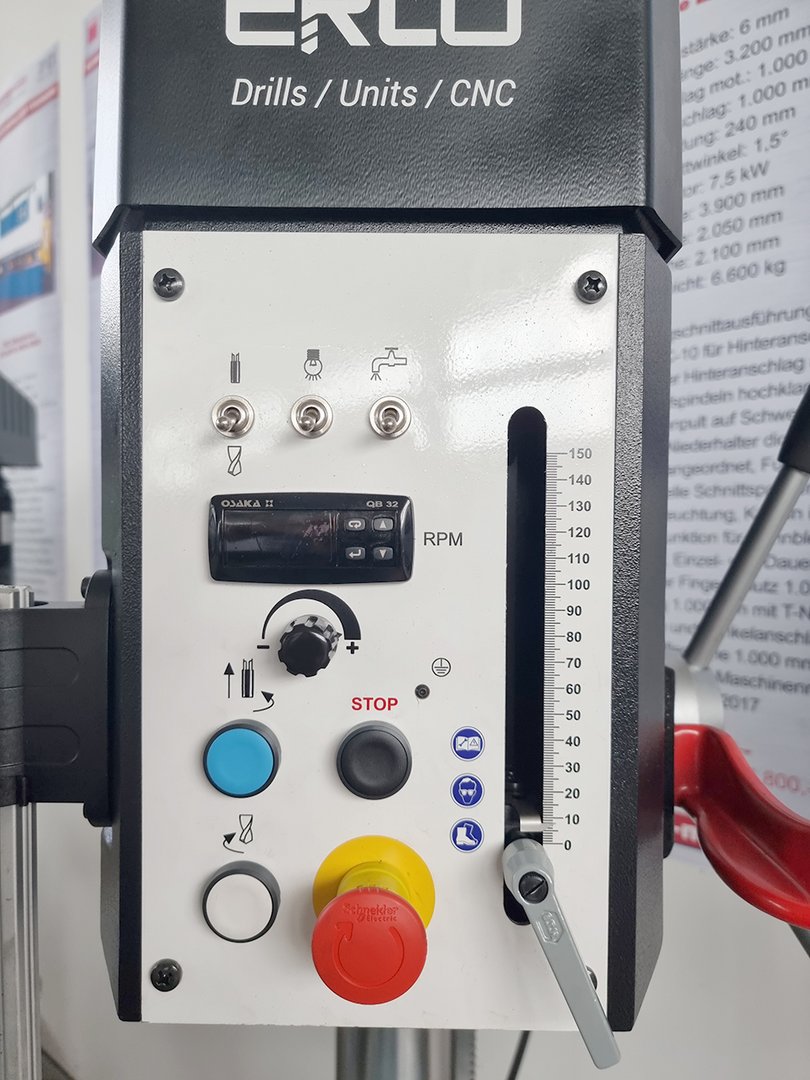

1-stage V-belt drive with stepless variable speed with a frequency converter and digital speed display
3 automatic feeds
chuck guard
left-right drilling
T-Slots and integrated coolant equipment in base stand
integrated lighting
drill guard

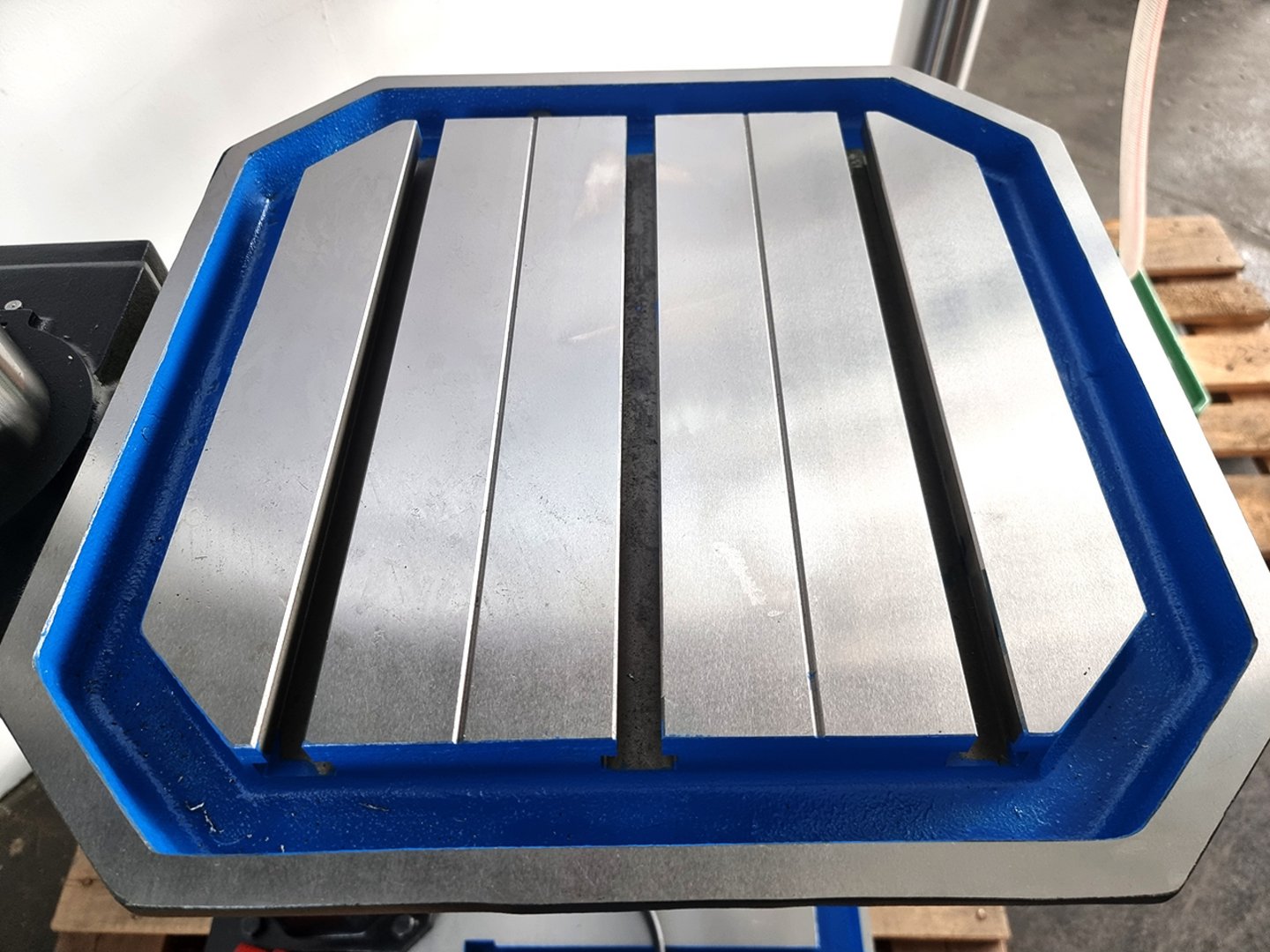

height adjustable, rotating and tilting table with T-slots
reverse for tapping
fast and precise setting and control of the speed without switching operations and without defined levels
more particularly robust parts for wear resistant operation and smooth running
compact design with high performance
CE norms
user manual in GERMAN
