General characteristics
| Drilling capacy mild steel | 40 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 300 mm |
| Revs | 75 - 150 - 235 - 325 - 470 - 650 - 1.050 - 2.100 r.p.m. |
| Motor | 1.3 kW |
| Tapping capacity | Stahl: M 30; Guss: M 32 |
| Feeds | 0,1 — 0,2 — 0,3 mm/r |
| max. drilling depth | 160 mm |
| Column diameter | 125 mm |
| Table | 420 x 400 mm |
Dimensions and weight
| Length | 600 mm |
| Width | 640 mm |
| Height | 2020 mm |
| Weight | 305 kg |
Description

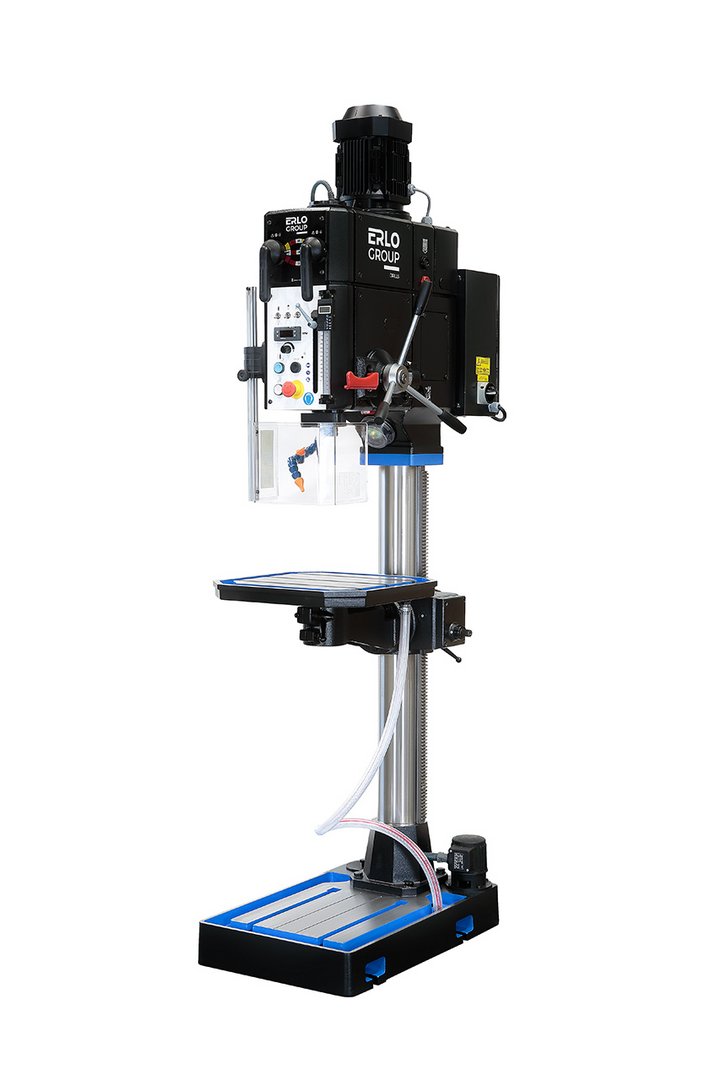

ERLO (MADE IN SPAIN)
for demanding workshop use
geardrive machine
2 aut. feeds
left-right drilling
drill guard
CE norms
user manual in GERMAN
|
Optionen: |
|
| lighting equipment |
€ 260-- |
| coolant equipment and machine base with T-slots |
€ 910,-- |
| Reverse for Tapping |
€ 810,-- |
|
|
Further information
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
