General characteristics
| Drilling capacy mild steel | 35 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 300 mm |
| Revs | 132 - 194 r.p.m. |
| Motor | 1.5 kW |
| Tapping capacity | M27 |
| Column diameter | 125 mm |
| Distance spindle - table | 90 - 890 mm |
| Distance spindle-base | 1250 mm |
| Table | 400 x 420 mm |
| Quill travel | 150 mm |
Dimensions and weight
| Length | 755 mm |
| Width | 480 mm |
| Height | 2205 mm |
| Weight | 385 kg |
Description
Manual feed
Geared drive
Hardened and ground high quality steel gears

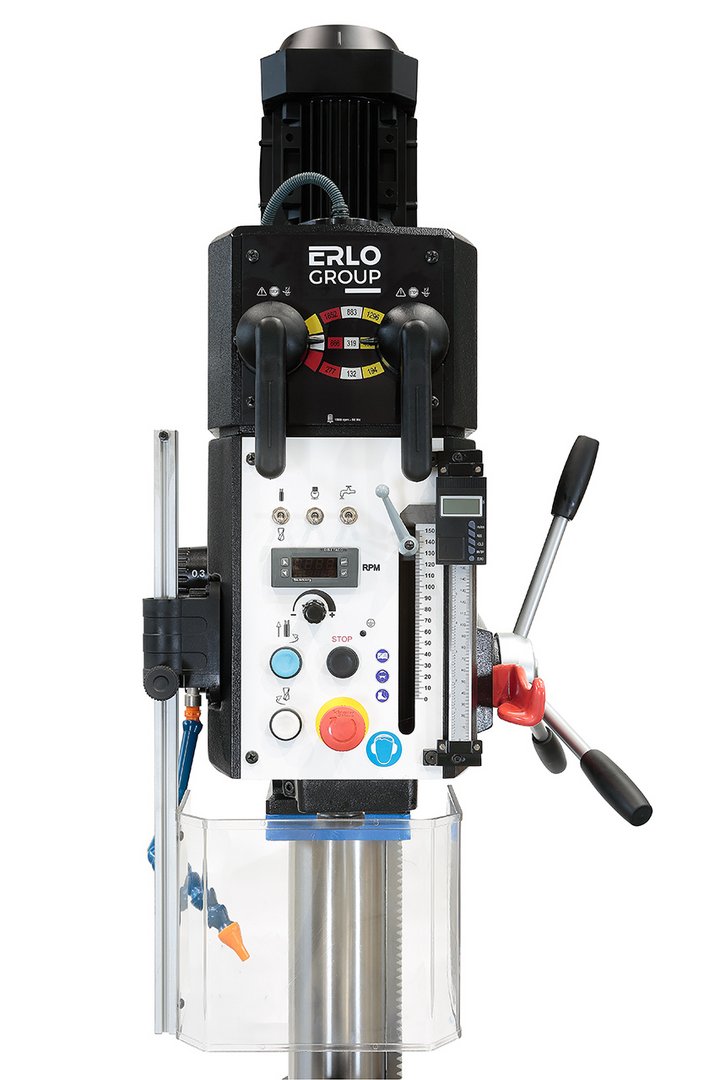

Speed plate and selecting levers on head front
Depth scale and adjustable depth stop
Thermomagnetic switch
Emergency STOP push button
Spindle reversing switch
Worklight
Fixed table
Safety drill guard with microswitch
CE mark
Options:
| Electronic speed variator with speed digial reader (VE+TAK) | € | 1.310,00 |
| A) 66-211 B) 97-310 C) 138-443 D) 160-510 E) 233-746 F) 333-1066 G) 440-1413 H) 648-2074 I) 926-2963 |
||
| Depth digital reader (LBC) | € | 640,00 |
| Manual tapping system (IR/RS) | € | 810,00 |
| Manual tapping system for models with variator (IR/RS-VE) | € | 560,00 |
| Rotating and tilting table (MGI) | € | 540,00 |
| Coolant equipment with T-slots in the base plate (ERB) | € | 910,00 |
ERLO BX-35 version with electromagnetic clutch € 12.770,--
Further information
Product video

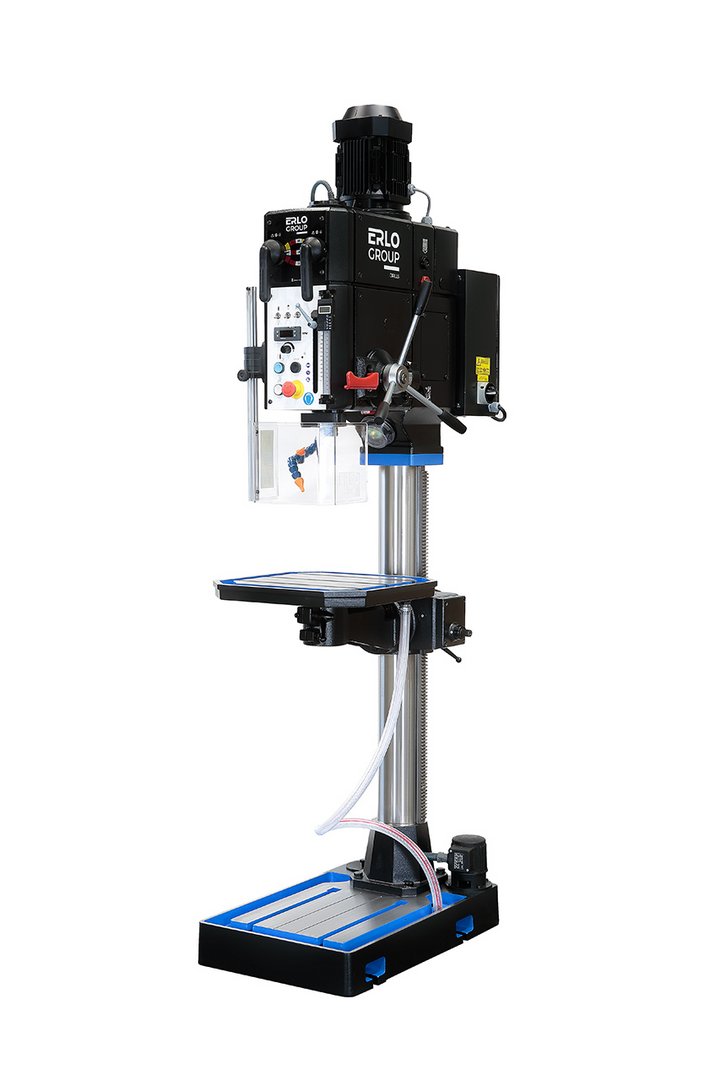

Column drilling machine AX.35
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
