General characteristics
| Drilling capacy mild steel | 40 mm |
| Spindle cone | MK 4 |
| Distance spindle - column | 350 mm |
| Revs | 132-194-277-319-466-666-883-1296-1852 r.p.m. |
| Motor | 2.2 kW |
| Tapping capacity | M33 |
| Feeds | 0,1 - 0,2 - 0,3 mm/r |
| Column diameter | 150 mm |
| Distance spindle - table | 80 - 880 mm |
| Distance spindle-base | 1225 mm |
| Table | 480 x 480 mm |
| Quill travel | 175 mm |
Dimensions and weight
| Length | 755 mm |
| Width | 480 mm |
| Height | 2280 mm |
| Weight | 490 kg |
Description
Automatic feed with mechanical clutch
Geared drive
Hardened and ground high quality steel gears

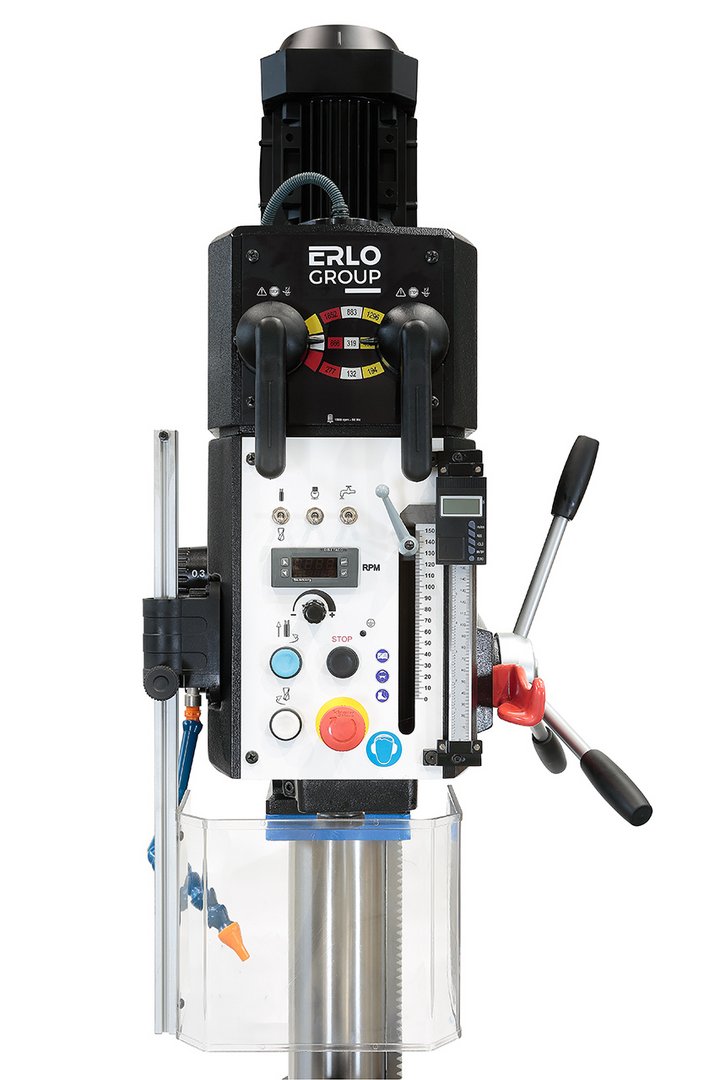

Speed plate and selecting levers on head front.
Depth scale and adjustable depth stop
Automatic tool ejector
Emergency STOP push button
Spindle reversing switch
Electric equipment integrated on machine’s head
Machined base with coolant tank
Worklight
MGI: Rotating and tilting table for model 40
Safety drill guard with microswitch
CE mark
Alternative:
Version BX.40 mit elektromagnetic clutch € 14.710,--
Options:
| Electronic speed variato with speed digital reader (VE+TAK) | € | 1.310,00 |
| A) 66-211 B) 97-310 C) 138-443 D) 160-510 E) 233-746 F) 333-1066 G) 440-1413 H) 648-2074 I) 926-2963 |
||
| Depth digital reader (LBC) | € | 640,00 |
| Manual tapping system (IR/RS) | € | 810,00 |
| Manual tapping system for models with variator (IR/RS-VE) | € | 560,00 |
Further information
Product video

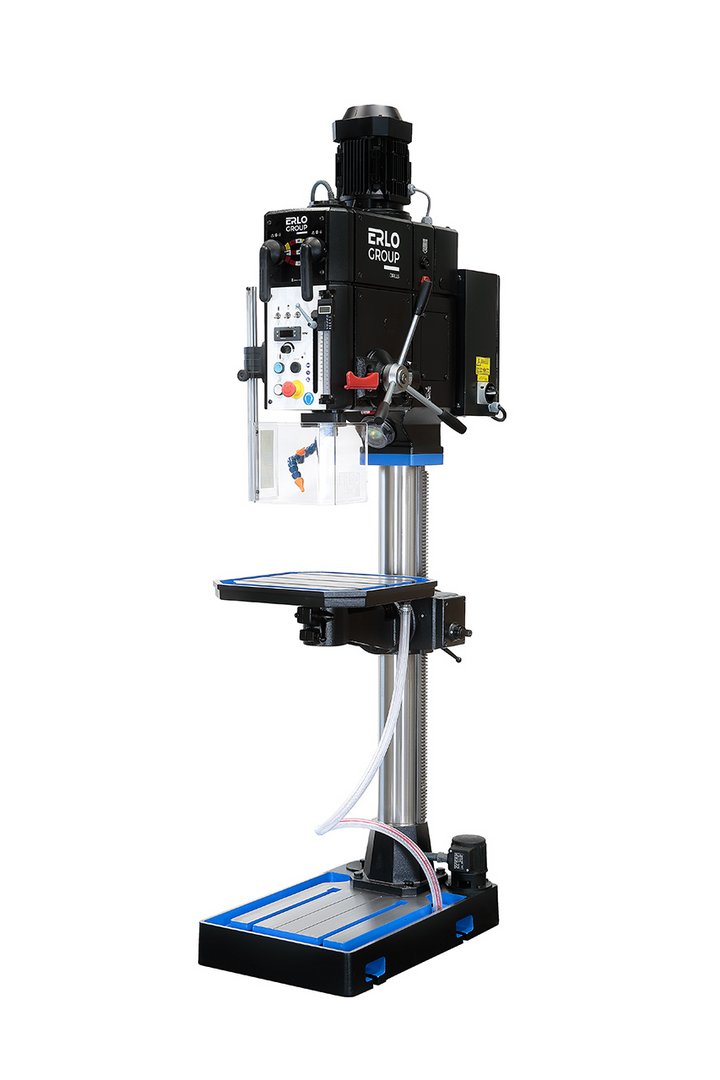

Column drilling machine AX.40
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
