General characteristics
| Drilling capacy mild steel | 23 mm |
| Taper | MK 2 |
| Distance spindle - column | 260 mm |
| Revs | 20 - 2000 r.p.m. |
| Motor | 1.5 kW |
| Tapping capacity | M16x1 |
| Feeds | manual mm/r |
| Column diameter | 110 mm |
| Distance spindle - table | 230 - 850 mm |
| Table | 420 x 340 mm |
| Quill travel | 100 mm |
Dimensions and weight
| Length | 430 mm |
| Width | 715 mm |
| Height | 1800 mm |
| Weight | 290 kg |
Description
Drilling capacity / normal drilling capacity 23/25 (in E335/ST60)
Manual feed
Main switch
Tapping attachement

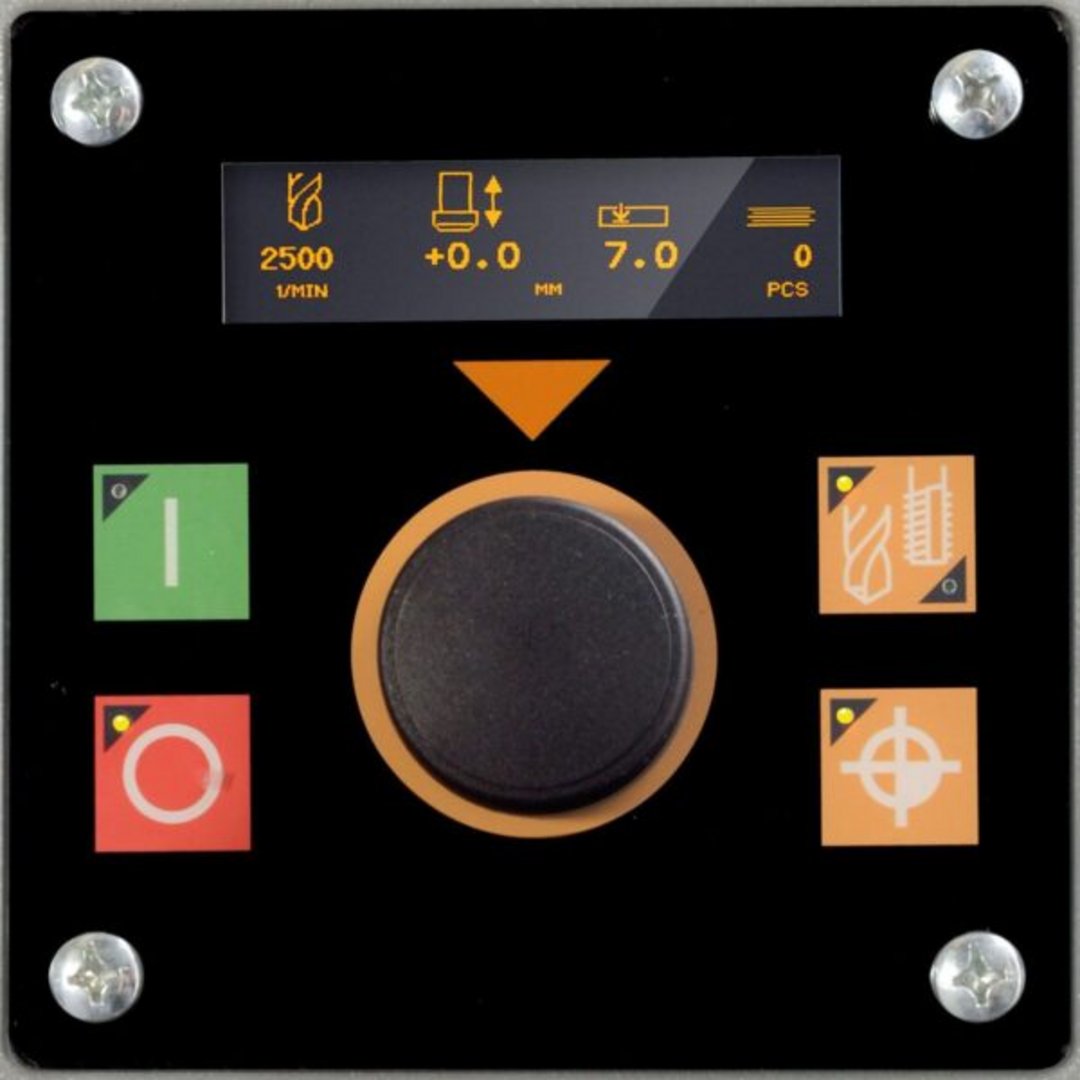

Control panel with OLED display
Robust, high quality drill head hood with ergonomically inclined front
LED lighting
Quickly adjustable and ergonomic drill depth stop
Stepless speed control via central rotary knob
EMERGENCY STOP pushbutton
Thermal overload protection
Spindle stop
Drill protection with electr. Fuse
Connection cable with CEE plug
Options:

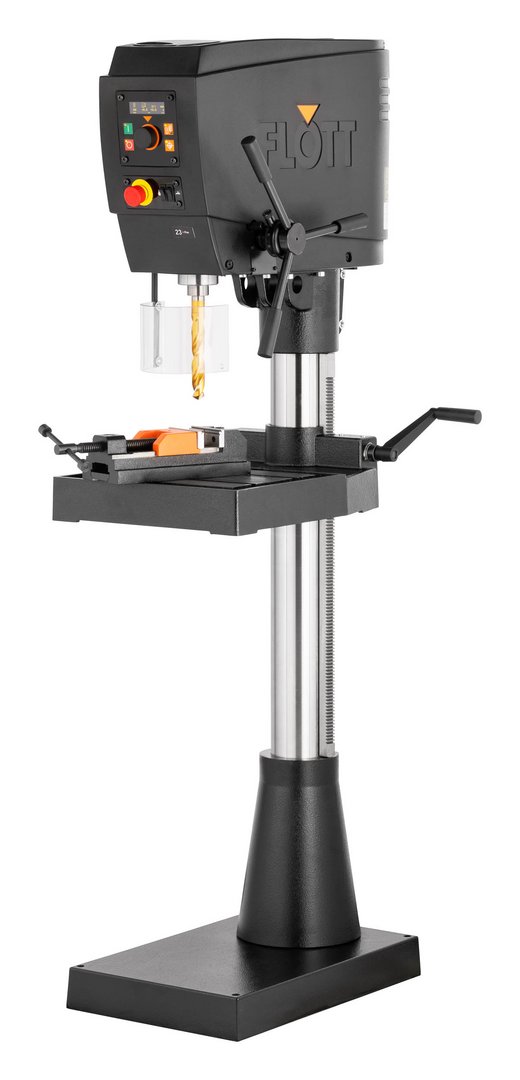

Drill package 3 (vice & keyless chuck)
Coolant device
LED lighting with pivot arm
Further information
Product video

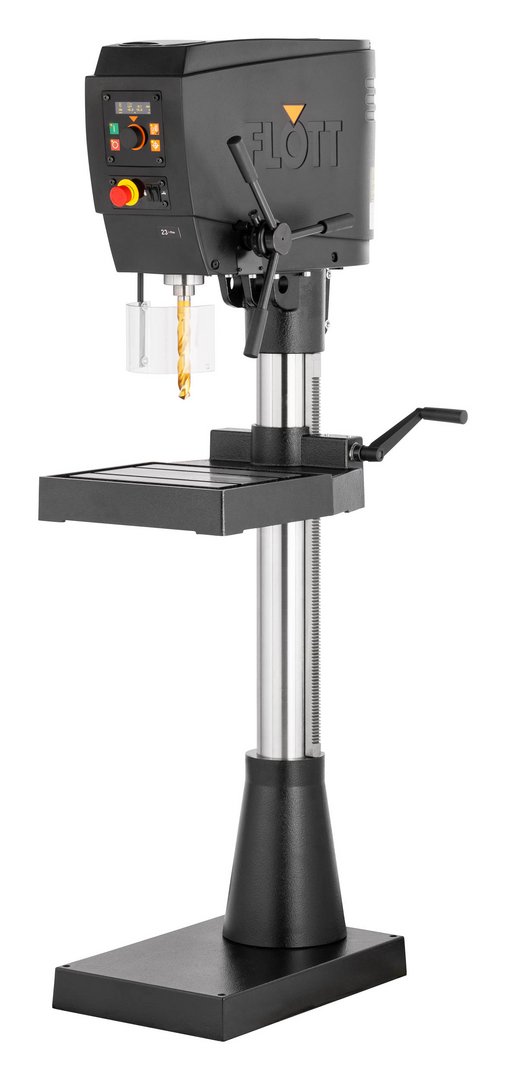

Column drilling machine SB 23 Plus R1
