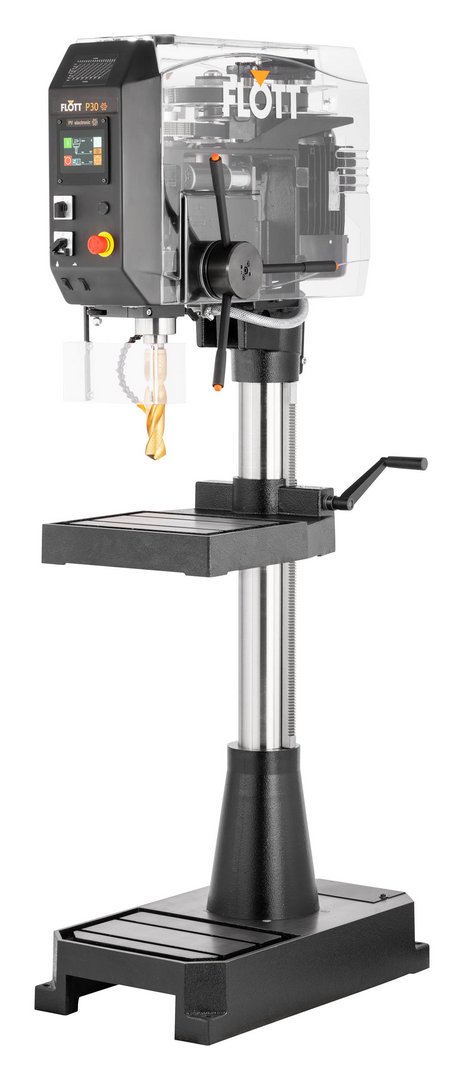

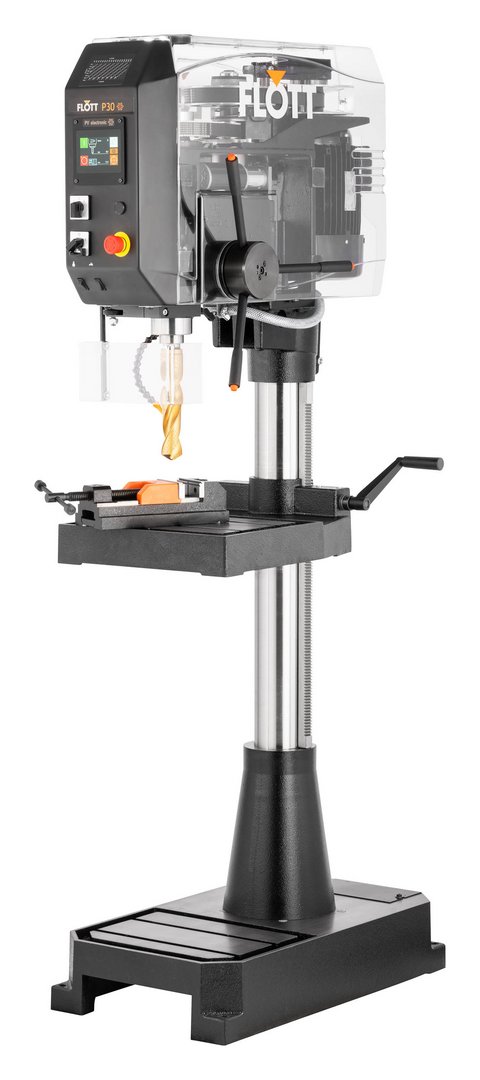

Column drilling machine FLOTT SB P30 STG PV electronic - spring campaign
| Model | SB P30 STG PV electronic - spring campaign |
| Brand | FLOTT |
| Condition | new |
| Year of manufacture | 2025 |
| Drilling capacy mild steel | 30 mm |
| Distance spindle - column | 280 mm |
| Stock number | 30140 |
| Origin | Germany |
General characteristics
| Drilling capacy mild steel | 30 mm |
| Taper | MK 3 |
| Distance spindle - column | 280 mm |
| Revs | Stufe 1: 125 - 4000; Stufe 2: 250 - 4000 r.p.m. |
| Motor | 0,9 / 1,45 kW kW |
| Tapping capacity | M20 |
| Feeds | 0 - 300 mm/r |
| Distance spindle - table | 240 - 790 mm |
| Table | 420 x 340 mm |
| Quill travel | 125 mm |
Dimensions and weight
| Length | 820 mm |
| Width | 520 mm |
| Height | 1900 mm |
| Weight | 320 kg |
Description
Includes free spring package (with purchase until March 31, 2026)
- VÖLKEL Precision Package (List price €54.90)
Contents:
+ MGB GREEN RING FORM B
1 x M4 (35330)
1 x M5 (35334)
1 x M6 (35338)
1 x M8 (35342)
+ LÖHER Core Drill Bits (M4, M5, M6, M8)
- FLOTT quick-release drill chuck 3-16 mm B18 (List price €115.43)
- FLOTT tap holder B16 (List price €191.57)
- Taper mandrel DIN 238 MK2/B16 (List price €26.18)
- Taper mandrel DIN 238 MK3/B18 (List price €28.57)
- Reducing sleeve DIN 2185 MK3/MK2 (List price €26.18)
- Felix 2.0 - 120 mm (List price €571.15)
You save: 1.013,98 €
Drilling capacity / normal drilling performance 25/30 (in E335/ST60)
Automatic feed

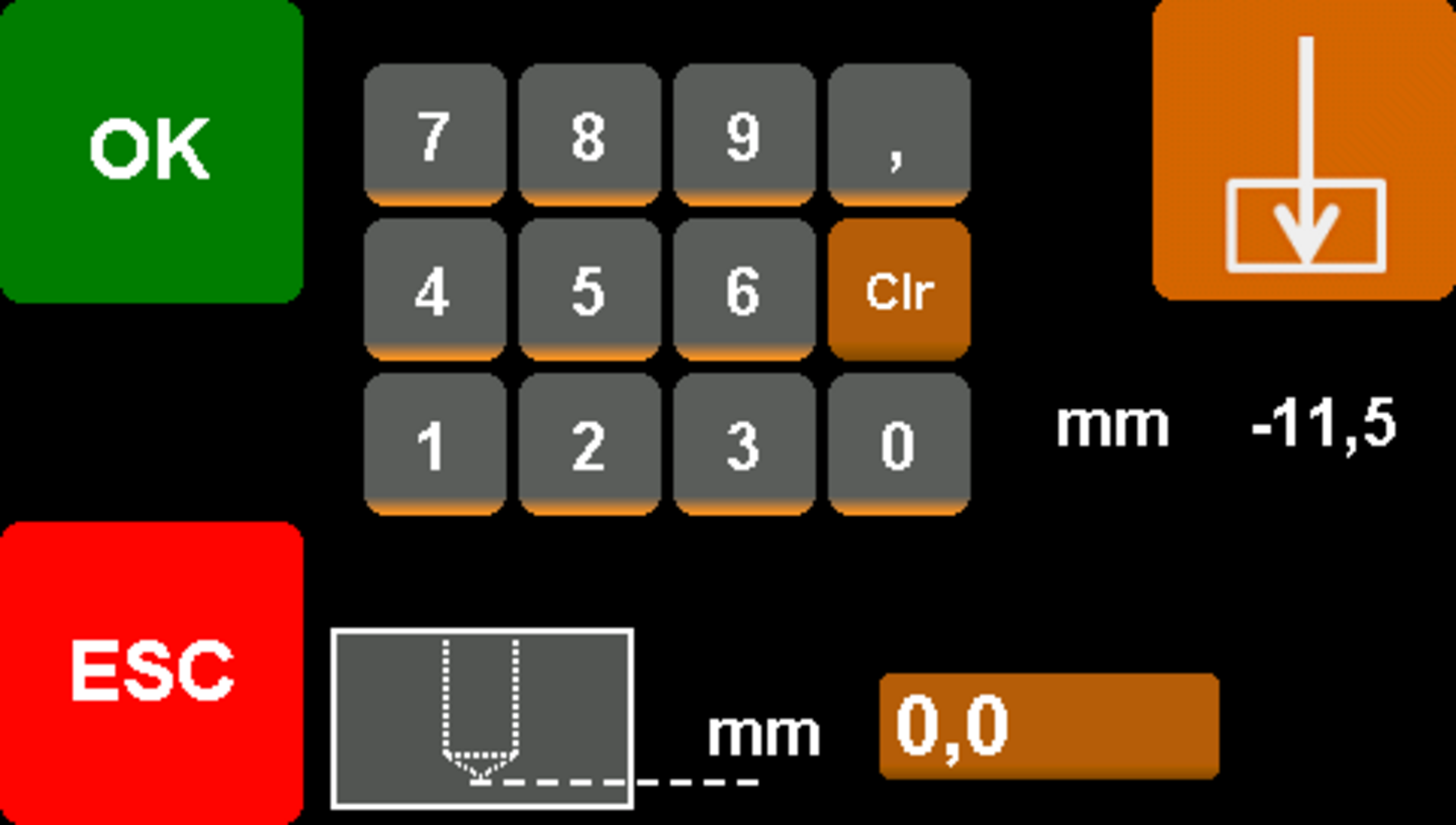

Digital speed-, drilling depth and feed display
Drilling depth adjustment with fine adjustment and undervoltage trigger
EMERGENCY STOP pushbutton
Stepless speed control
Table height adjustment via toothed rack
Connection cable (1.5 m) with CEE plug
Drill protection with electr. Fuse
Thermal overload protection

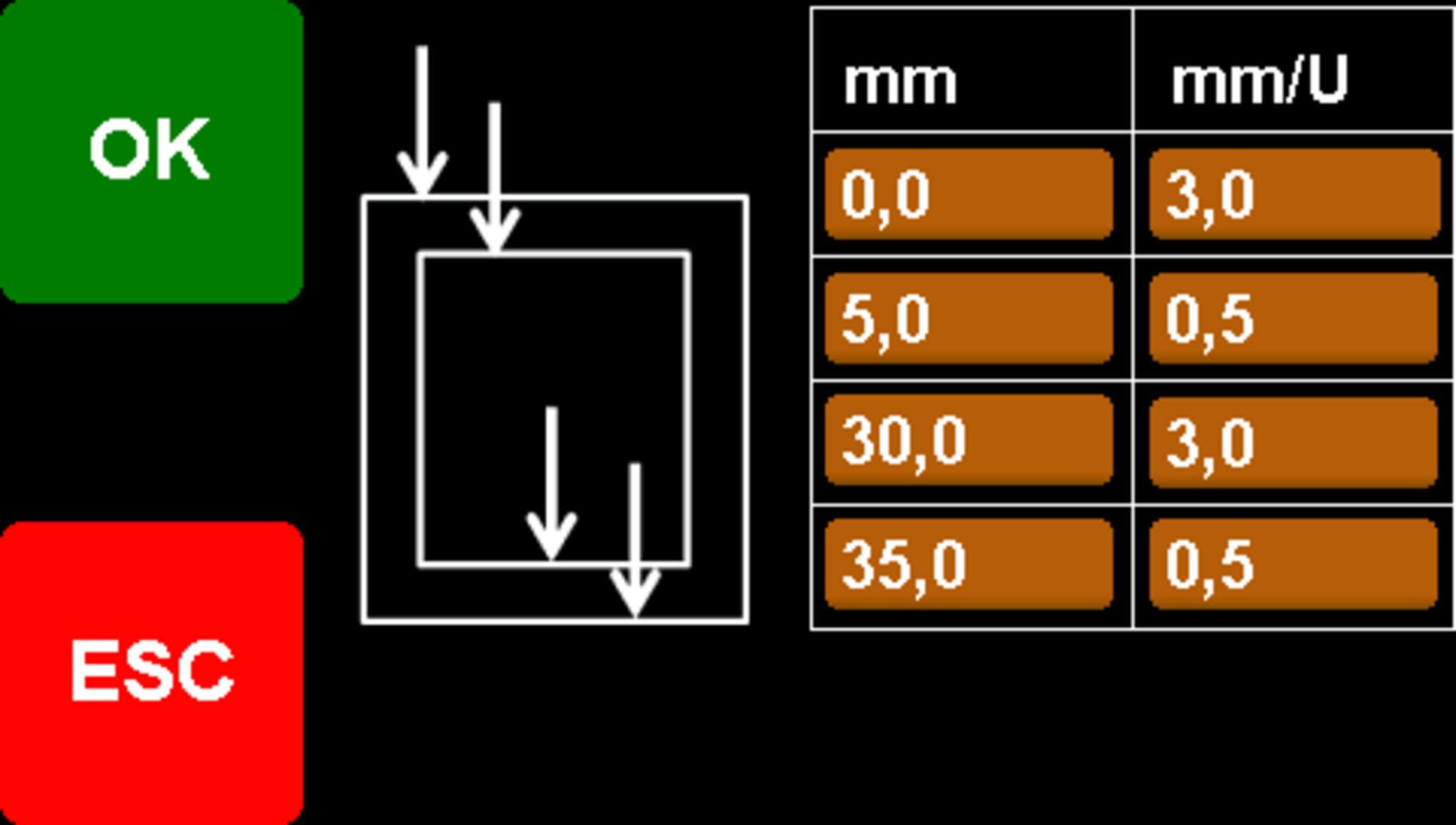

Electronically infinitely variable feed incl. Spindle monitoring
Free cutting device
Thread cutting device, thread cutting capacity max. M20, setting the thread cutting depth via digital depth display
Drilling depth shut-off; programmable; easy operation
Drilling cross with pushbutton for feed on/off switching
Optional transparent or black protective hood (stock machine transparent)
LED lighting as standard
Options:
Drill package 5 (vice & keyless chuck)
Coolant device
LED lighting with pivot arm
Further information
Product video
Column drilling machine SB P30 STG PV electronic - spring campaign
Notice
Prices ex location, excluding VAT.
The General Terms and Conditions of Delivery of the Austrian Association of the Machine and Steel Construction Industry apply.
We only sell under retention of title, the goods remain our unrestricted property until they have been paid for in full.
Price changes and errors excepted.
