General characteristics
| Drilling capacy mild steel | 18 mm |
| Taper | MK 2 |
| Distance spindle - column | 240 mm |
| Revs | 30 - 3000 r.p.m. |
| Tapping capacity | M12 |
| Feeds | manual mm/r |
| Column diameter | 82 mm |
| Distance spindle - table | 180 - 870 mm |
| Table | 340 x 280 mm |
| Quill travel | 100 mm |
Dimensions and weight
| Length | 705 mm |
| Width | 355 mm |
| Height | 1825 mm |
| Weight | 195 kg |
Description
Drilling capacity / normal drilling capacity 18/20 (in E335/ST60)
Thread cutting system

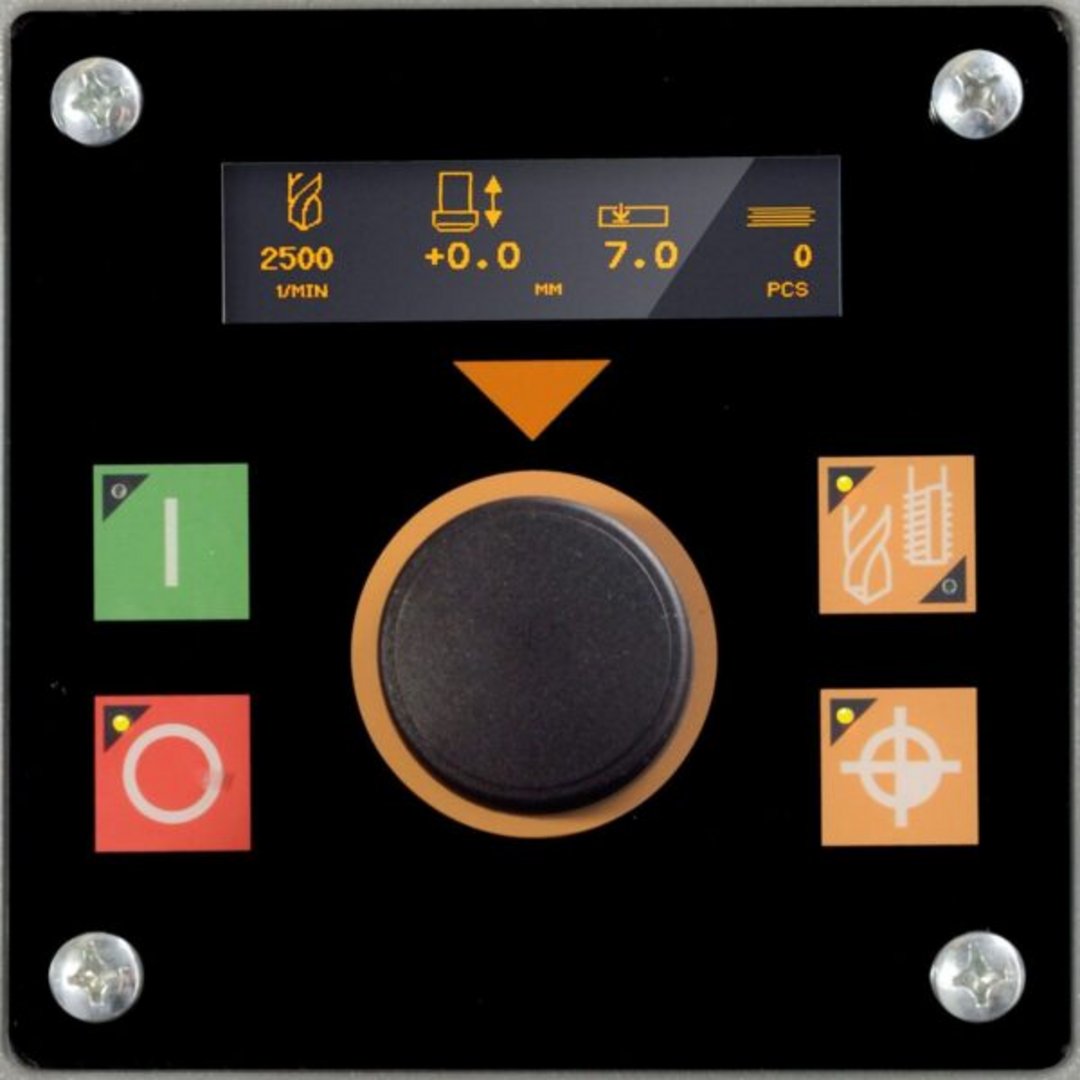

Control panel with OLED display
Robust, high quality drill head hood with ergonomically inclined front
LED lighting
Quickly adjustable and ergonomic drill depth stop
Stepless speed control via central rotary knob
Manual feed
EMERGENCY STOP pushbutton
Thermal overload protection
Spindle stop
Drill protection with electr. Fuse
Connection cable with Schuko plug
3 years warranty for single shift operation
Options:

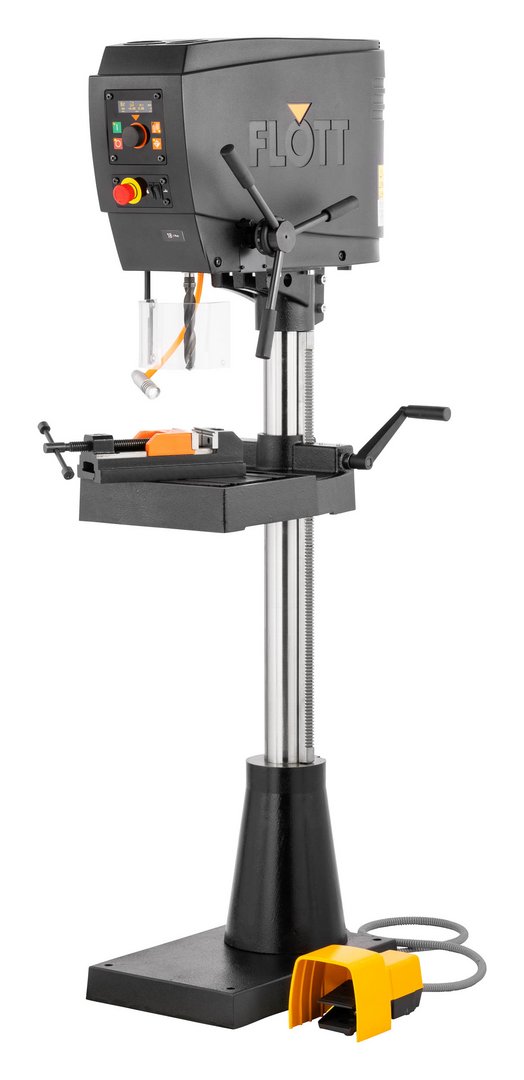

Drill package 3 (vice & keyless chuck)
Coolant device
LED lighting with pivot arm
Further information
Product video

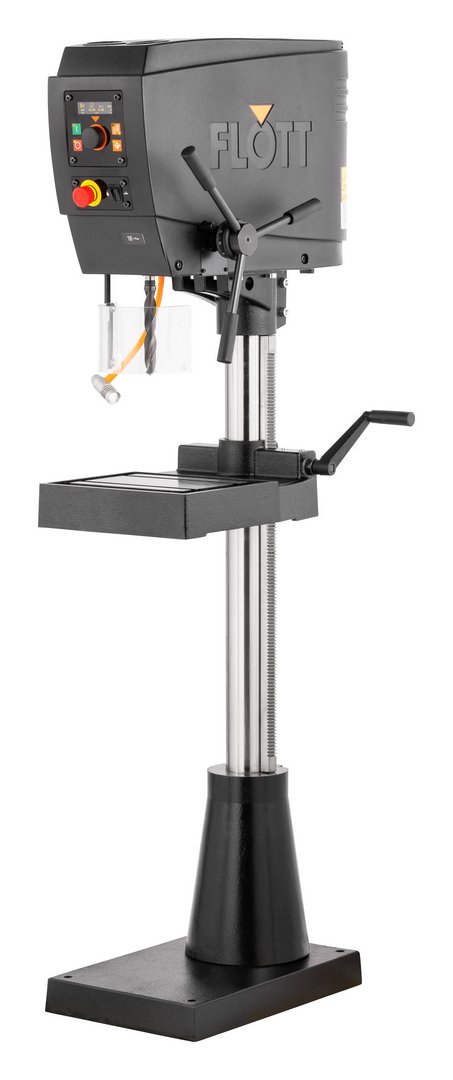

Column drilling machine SB 18 Plus
